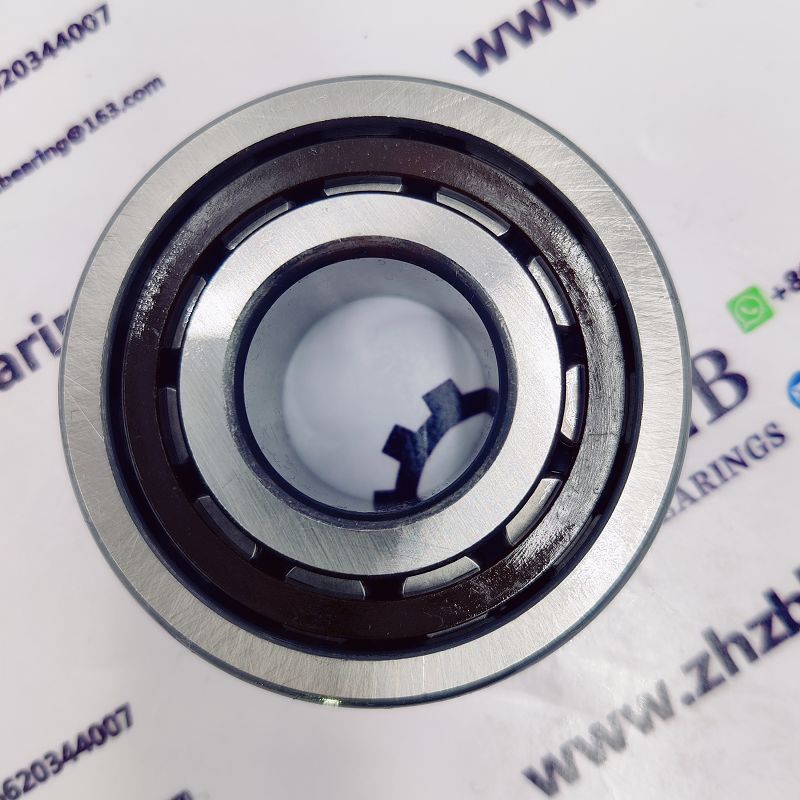

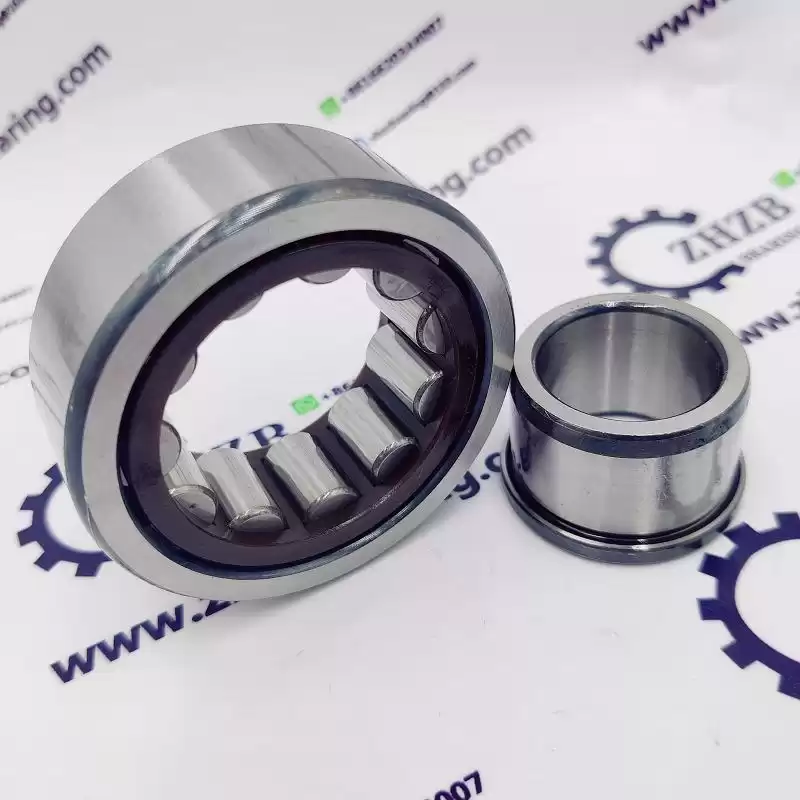

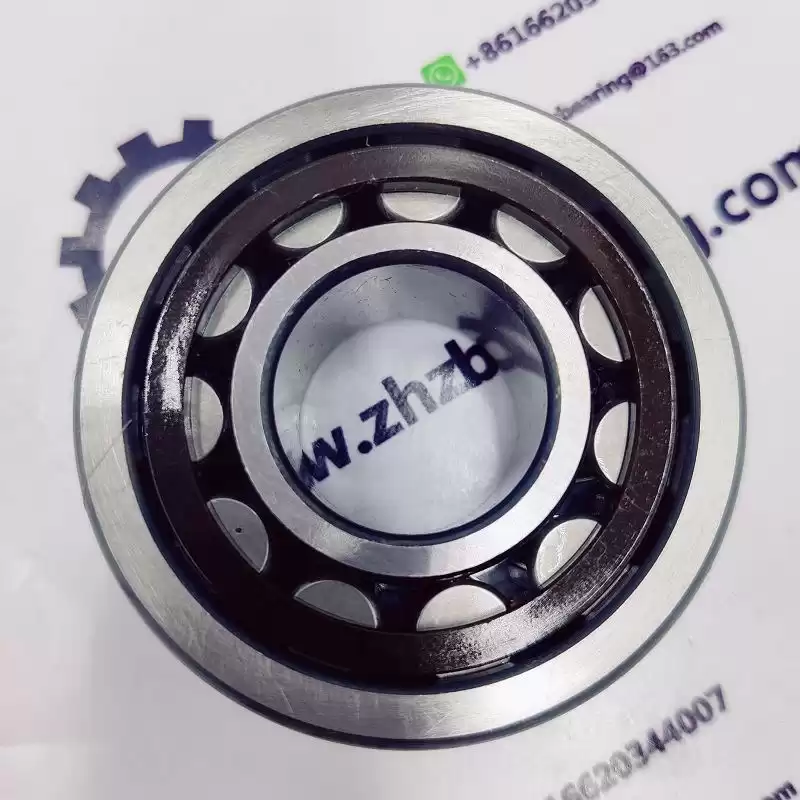

CATERPILLAR excavator Hydraulic pump bearing 180-6769
|
P/N
|
180-6769
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Cylindrical Roller Bearings
|
Product features:
1. Special bearing for excavator Hydraulic pump
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' Hydraulic pump bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of Hydraulic pump bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

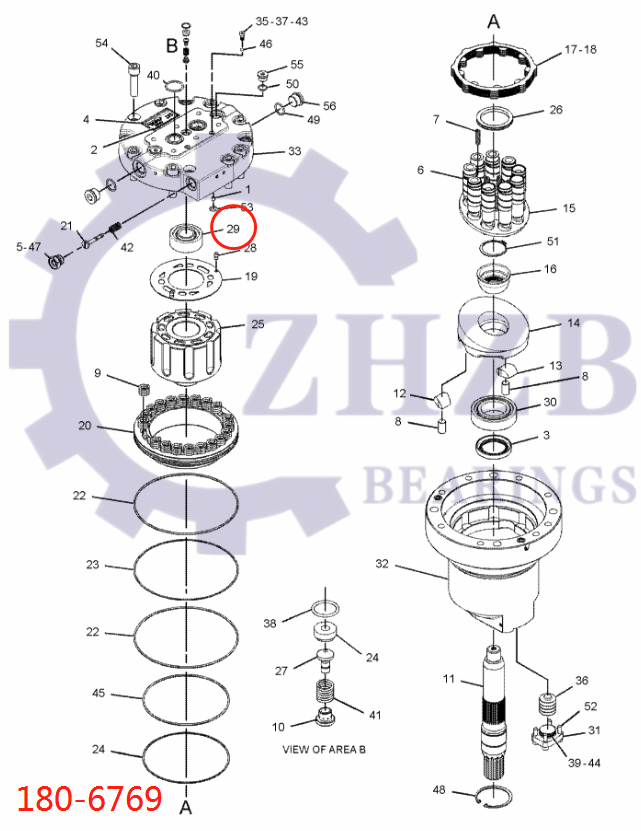

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
1.
|
1T-0936
|
[1]
|
PLUG-ORIFICE
|
|
|
2.
|
4B-4158
|
[4]
|
SCREW-DRIVE (NO 4X0.25-IN)
|
|
|
3.
|
6V-3382 J
|
[1]
|
SEAL-LIP TYPE
|
|
|
4.
|
8J-2559
|
[1]
|
PLATE-WARNING (OIL FILL)
|
|
|
5.
|
087-4786
|
[1]
|
ADAPTER
|
|
|
6.
|
108-6503
|
[9]
|
PISTON AS
|
|
|
7.
|
118-4057
|
[9]
|
SPRING
|
|
|
8.
|
124-1541
|
[2]
|
PIN
|
|
|
9.
|
124-1561
|
[20]
|
SPRING-BRAKE
|
|
|
10.
|
137-3708
|
[1]
|
RETAINER
|
|
|
11.
|
167-3855
|
[1]
|
SHAFT
|
|
|
12.
|
167-3857
|
[1]
|
KEY
|
|
|
13.
|
167-3858
|
[1]
|
KEY
|
|
|
14.
|
167-3859
|
[1]
|
PLATE-CAM
|
|
|
15.
|
167-3862
|
[1]
|
PLATE-RETAINER
|
|
|
16.
|
167-3863
|
[1]
|
BALL
|
|
|
17.
|
167-3865
|
[5]
|
PLATE-SEPARATOR
|
|
|
18.
|
167-3866
|
[4]
|
PLATE-FRICTION
|
|
|
19.
|
167-3867
|
[1]
|
PLATE-PORT
|
|
|
20.
|
167-3868
|
[1]
|
PISTON-BRAKE
|
|
|
21.
|
167-3872
|
[1]
|
SPOOL
|
|
|
22.
|
170-1612 J
|
[2]
|
SEAL
|
|
|
23.
|
170-1626 J
|
[1]
|
RING-BACKUP
|
|
|
24.
|
170-1627 J
|
[1]
|
RING-BACKUP
|
|
|
25.
|
173-4063
|
[1]
|
BARREL AS-MOTOR
|
|
|
26.
|
173-4066
|
[1]
|
SPACER (63.05X79.8X7-MM THK)
|
|
|
27.
|
175-7436
|
[1]
|
VALVE
|
|
|
28.
|
175-7887
|
[2]
|
DOWEL
|
|
|
29.
|
180-6769
|
[1]
|
BEARING AS
|
|
|
30.
|
180-6770
|
[1]
|
BEARING AS
|
|
|
31.
|
186-5175
|
[1]
|
PLUG
|
|
|
32.
|
193-7901
|
[1]
|
BODY AS
|
|
|
|
124-1555
|
[4]
|
PLUG
|
|
|
33.
|
271-6377
|
[1]
|
HEAD AS
|
|
|
|
096-5916
|
[2]
|
SEAT
|
|
|
|
124-1555
|
[4]
|
PLUG
|
|
|
34.
|
274-4512
|
[1]
|
SEAT
|
|
|
35.
|
274-4513
|
[2]
|
RETAINER
|
|
|
36.
|
345-3744
|
[1]
|
PISTON-ACTUATOR
|
|
|
37.
|
095-1572 J
|
[2]
|
SEAL-O-RING
|
|
|
38.
|
095-1585 J
|
[1]
|
SEAL-O-RING
|
|
|
39.
|
095-1596 J
|
[1]
|
SEAL-O-RING
|
|
|
40.
|
095-1700 J
|
[2]
|
SEAL-O-RING
|
|
|
41.
|
095-7380
|
[1]
|
SPRING
|
|
|
42.
|
096-3978
|
[1]
|
SPRING
|
|
|
43.
|
096-5919 J
|
[2]
|
RING-BACKUP
|
|
|
44.
|
099-7030 J
|
[1]
|
RING-BACKUP
|
|
|
45.
|
170-1616 J
|
[1]
|
SEAL
|
|
|
46.
|
2D-6642
|
[2]
|
BALL
|
|
|
47.
|
2M-9780 J
|
[1]
|
SEAL-O-RING
|
|
|
48.
|
2R-1236
|
[1]
|
RING-RETAINING (LOCK, INTERNAL)
|
|
|
49.
|
3D-2824 J
|
[2]
|
SEAL-O-RING
|
|
|
50.
|
3K-0360 J
|
[2]
|
SEAL-O-RING
|
|
|
51.
|
4K-4284
|
[1]
|
RING-RETAINING
|
|
|
52.
|
6V-5192 M
|
[4]
|
BOLT-SOCKET HEAD (M8X1.25X30-MM)
|
|
|
53.
|
7Y-5219 J
|
[2]
|
SEAL-O-RING
|
|
|
54.
|
8T-2393 M
|
[8]
|
BOLT-SOCKET HEAD (M16X2X60-MM)
|
|
|
55.
|
9S-8005
|
[2]
|
PLUG (3/4-16-THD)
|
|
|
56.
|
9S-8008
|
[2]
|
PLUG (1-1/16-12-THD)
|
|
