Coaxial cable is commonly used by cable operators, telephone companies, and internet providers around the world to convey data, video, and voice communications to customers.It has also been used extensively within homes.

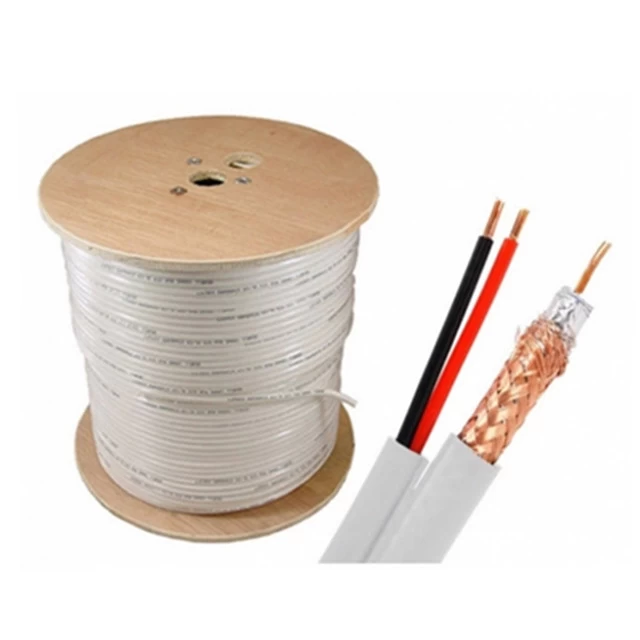

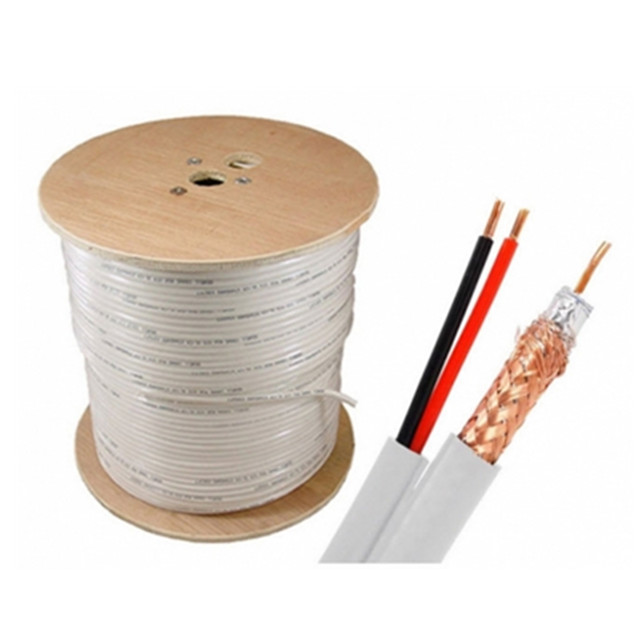

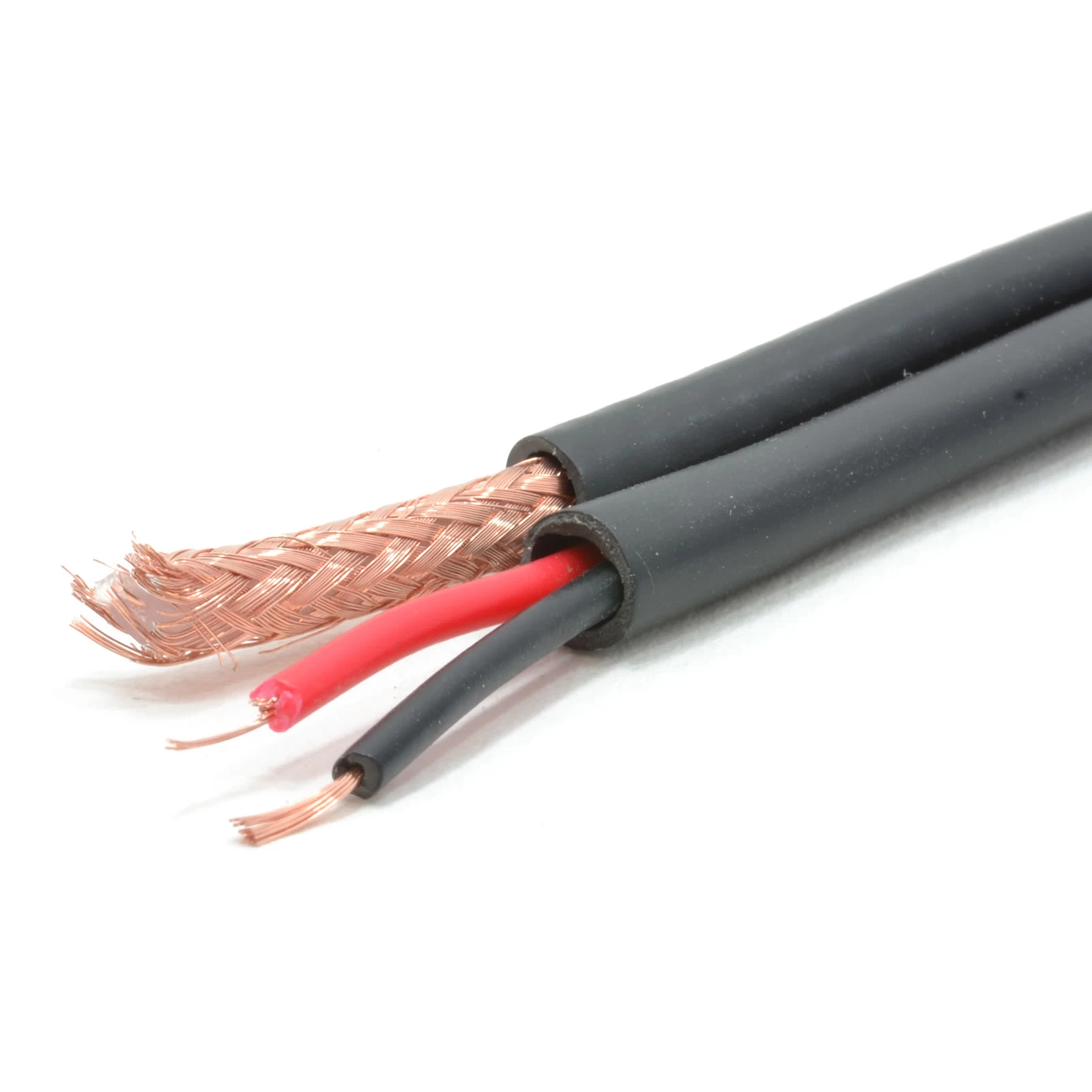

CATV/CCTV RG59 Camera Wire Coaixal Cable

Product Description:

1) Center conductor:BC,TC,CCA,CCS

2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double

non-bonded Al-foil are available

3) Braiding wire:Al,BC,,TC,CCA,CCS Available

4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available

5) Braiding net:32,48,64,72,80,96,120,128,144 and more available

6) Braiding coverage:Between 30-97%

7) PVC jacket of flame retardant,UL Available

 Application:

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable

for satellite systems where lower attenuation required.
