Suitable for 350MHZ high-speed data applications, gigabit ethernet, fast ethernet and 155MBPSTP-PMD/CDDI
Destigned for indoor installations, (CMR)riser.
Category-5Eunshielded twisted pair (UTP) cable
4 Pairs easily identified color-striped pairs
24AWG solid bare copper conductors
HIGH-GRADE RG6 QUAD SHIELD COAXIAL CABLE
Suitable for digital HDTV applications, CATV, outdoor TV antennas and digital satellite installations
18AWG solid copper clad steel
Exceeds EIA/TIA568B.2, ISO/IEC 11801 Specifications
ETL Listed

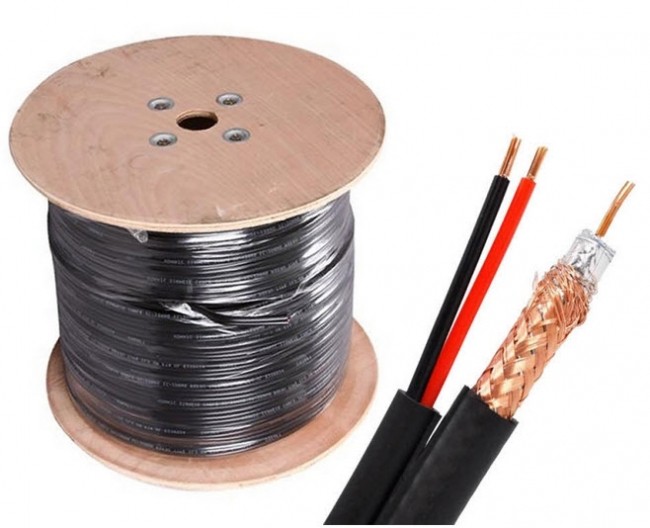

Supplied in 500' wooden spool
PVC Jacket

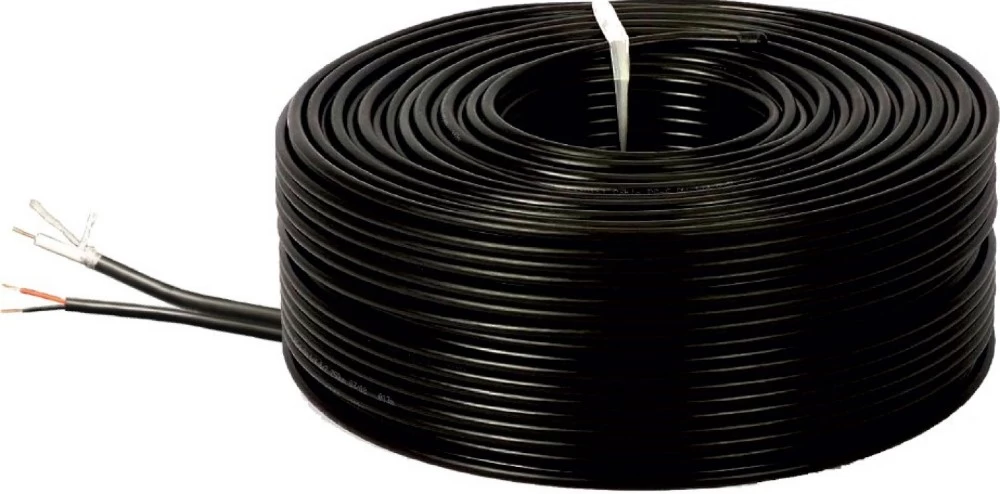

HIGH-PERFORMANCE CCTV Cable for Communication Rg6 Coaxial Cables

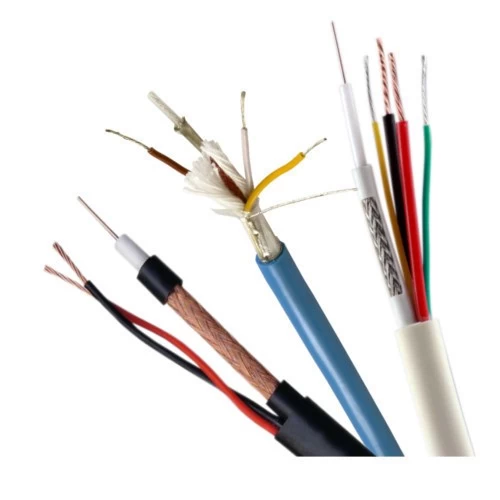

Coaxial Cable Coaxial RG59 RG6 CCTV Coaxial Cable Common Specification :
0.81CU+3.66FPE+ALfoil+80*0.12AL-MG+6.1PVC
0.65CU +3.66FPE+ALfoil+80*0.12AL-MG+6.1PVC
0.58CU +3.66FPE+ALfoil+80*0.12AL-MG+6.1PVC
Other Coaxial Cable Coaxial RG59 CCTV Coaxial Cable Specification Optional:
1) Inner Conductor: Tinned Copper, Bare Copper, Copper Clad Al luminum ,Copper Clad Steel available;
2) Inner Conductor Diam:0.58mm,0.65mm,0.81mm
2) Insulation : Foamed PE ,Soild PE
3) Al-foil: Al-foil, bonded Al-foil, double bonded Al-foil, and APA available;
4) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
5) Jacket Color: White, Black, Transparent and etc. Przewód koncentryczny RG59 / RG59 koaksialkabel / RG59 câble coaxial / RG59 may panlahat na ehe cable
Target Market:
UK, Canada ,American, Southeast Asia, Middle-east,Latin America, Africa ETC.
