CCC CE CB certificated 36VDC switching power supply 200W for Robot

CCC CE CB certificated 36VDC switching power supply 200W for stepper motors from China factory.



Robot power supply 200W 24V with CCC CE CB certification

Description:

K26B-UP200S36 is 100-240vac input voltage and open frame 24VDC single output switching power supply with PFC function, high quanlity,it is used in electronic LED stage lights,robot and other industrial equipments.


Features:

1, 200W high efficiency 36V stepper motors power supply;
2, Wide range of AC input voltage,36V 200W single output power supply open frame;
3, Over load, short circuit protection,over-temperature protection;

4, 200W 24V small size power supply built-in active PFC function.


Parameter
            Item No. K26B-UP200S12 K26B-UP200S24 K26B-UP200S36 K26B-UP200S48
Output

Output Voltage

+12V +24V +36V +48V

Rated Current

16.7A 8.3A 5.6A 4.2A

Current Range

0-16.7A 0-8.3A 0-5.6A 0-4.2A

Rated Power

200.4W 204W 201.6W 201.6W

Ripple & Noise

200mVp-p 240mVp-p
360mVp-p 480mVp-p

Adjustable Output Range

±10%

Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up,Rise,Keep up time

500ms, 50ms, 20ms

Input

Input Voltage Range

90-264V AC

Input Current

1.2A@220V AC

Input Frequency

47-63Hz

Power Factor >0.95@110VAC; >0.99@220VAC

Efficiency @230Vac

>88% >90% >90% >92%

Inrush Current

Cold start 15A@115V,30A@230V

Leakage Current

<0.75mA@240V

Protection

Over Load Protection

110~200% Hiccup automatic protection

Short Circuit Protection

---

Over Temp., protection >105 degree,receovers automatically after the temp. goes down.

Environment


Working Temp.,Humidity

-20~50℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES

Safety&EMC Standards


Safety Standards

GB4943,EN60950

Withstand Voltage

I/P-O/P:3KV; I/P-FG:1.5KV;O/P-FG:0.5KV DC 1min

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC Standards

GB9254 EN55022 CLASS B,EN6100-3-2

Others Dimension

148*60*35mm(L*W*H)

Weight 0.4kg
Notes

1.All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.

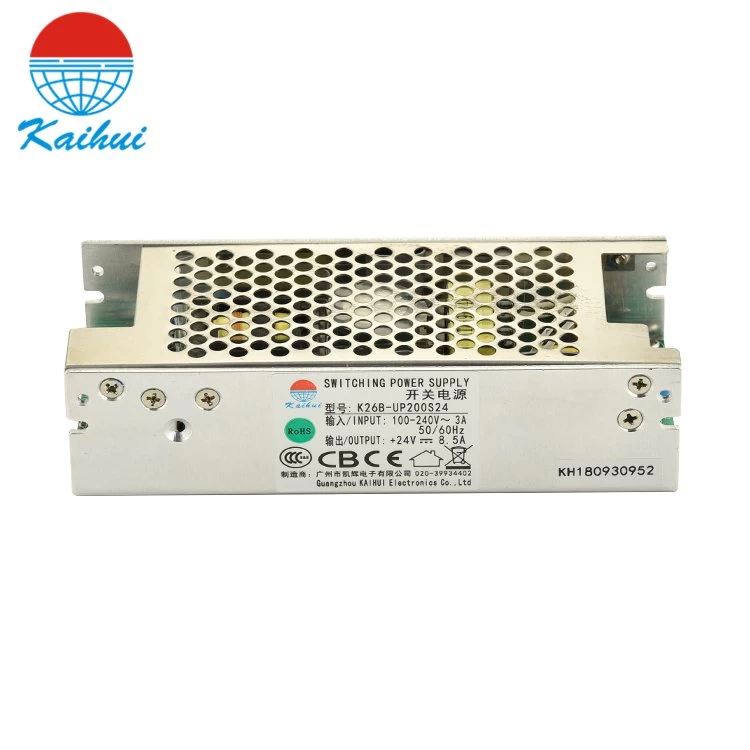

Product picture:

CB power supply 200W

CE switching power supply 200W

CE certificated power supply 36V

CE certificated power supply 200W

CE Switching power supply 200W

switching power supply 200W 36V

switching pwoer supply 200W for game machine application

CB Switching power supply 200W
