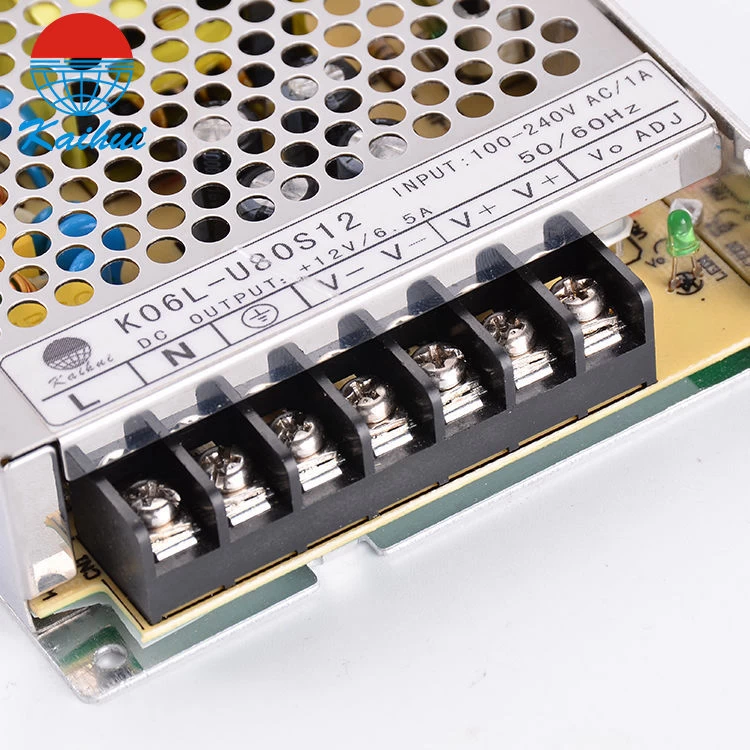

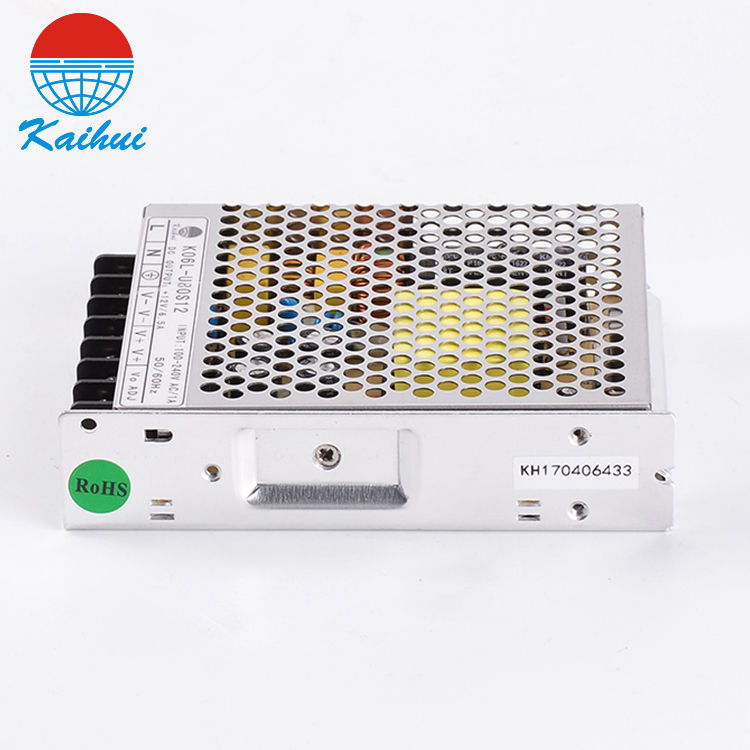

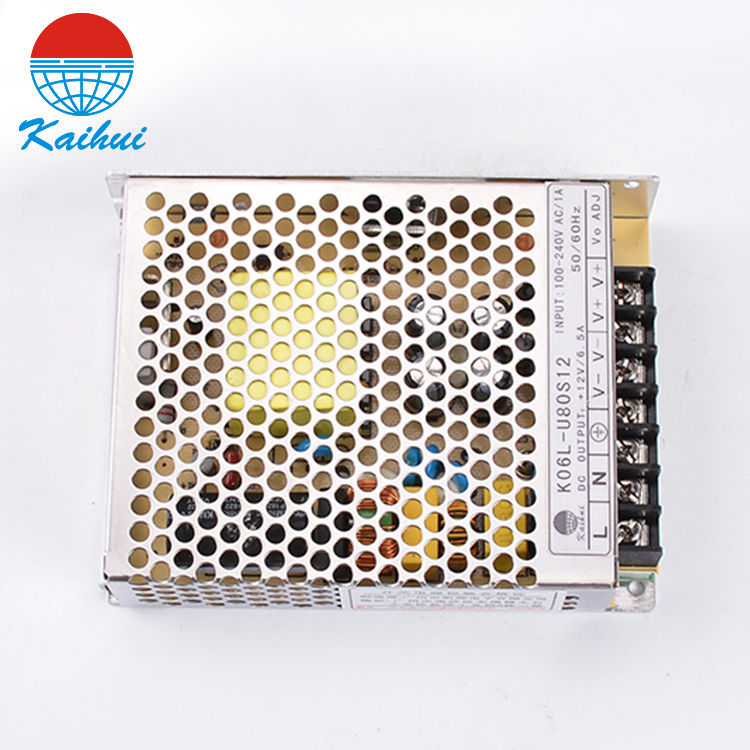

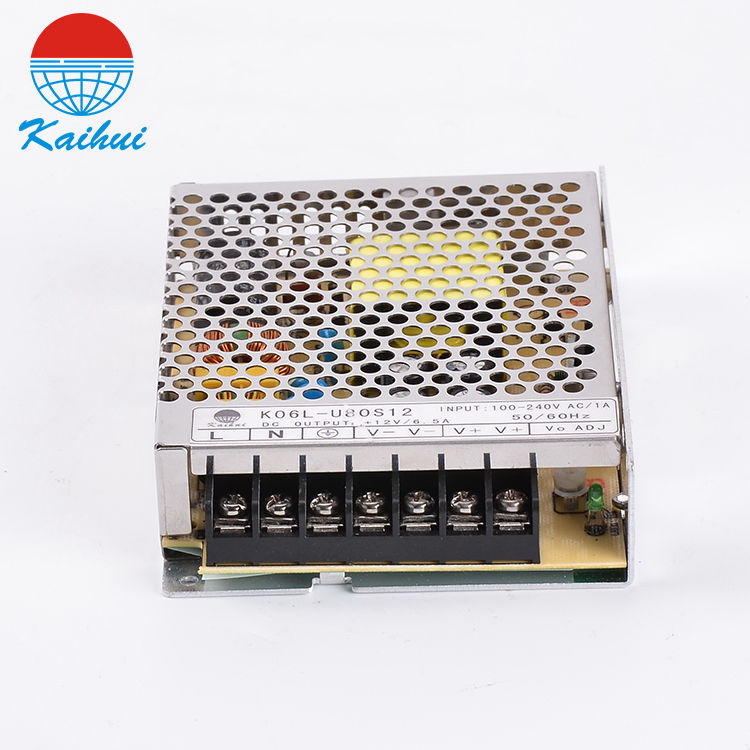

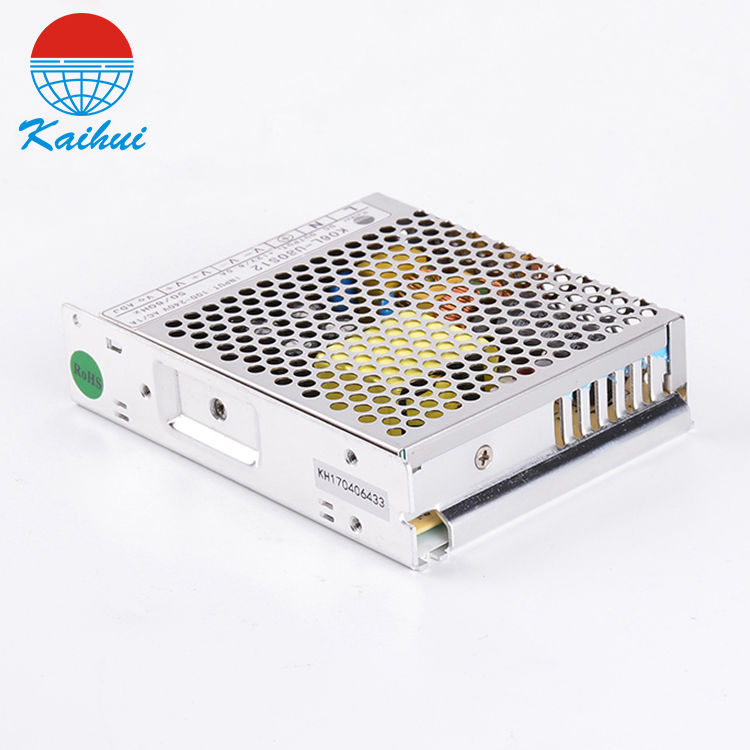

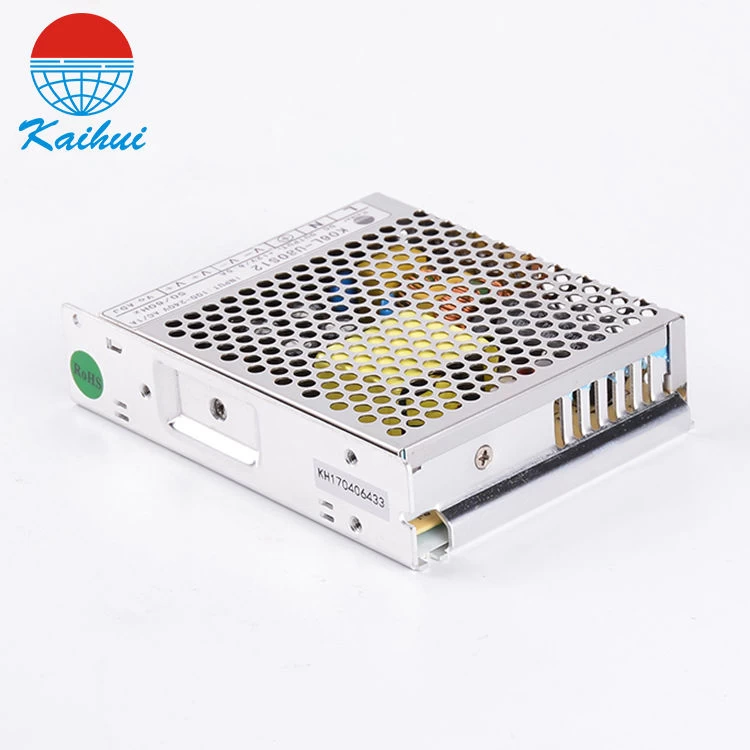

CE 220V to 12v 80w smps dc power supply/thin 30mm Switching power supply
Description:
K06L-U80S series 80W 12Vdc 6.7A switching power supply also has high efficiency, 100-240V AC input voltage and overload overcurrent protection. We have common version of 12v 24v 36v 48v 60v output voltage.
Features:
1, 80w power supply high efficiency;
2, 12v 6.7a contains filter, low output noise;
3, DC 12V 80w power supply 100-240vac input voltage;
4,12v 80w power supply overload and overcurrent protection.
|
Parameter
|
|
Item NO
|
K06L-U80S12
|
K06L-U80S24
|
K06L-U80S36
|
K06L-U80S48
|
K06L-U80S60
|
|
Output
|
DC Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
+60V
|
|
Output Rated Current
|
6.7A
|
3.33A
|
2.22A
|
1.67A
|
1.33A
|
|
Current Range
|
0-6.7A
|
0-3.33A
|
0-2.22A
|
0-1.67A
|
0-1.33A
|
|
Rated Power
|
80W
|
80W
|
80W
|
80W
|
80W
|
|
Ripple & Niose
|
120mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
600mVp-p
|
|
DC Adjustable range
|
±5%
|
±5%
|
±5%
|
±5%
|
±5%
|
|
Voltage Tolerance
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500mS,50mS,20mS
|
|
Input
|
Voltage Range
|
100V~240V AC
|
|
AC Current
|
1.4A@115Vac, 0.7A@230Vac
|
|
Input Frequency
|
50-60Hz
|
|
Efficiency
|
85% @230Vac
|
87% @230Vac
|
88% @230Vac
|
89% @230Vac
|
90% @230Vac
|
|
Power Factor
|
＞0.5@115Vac, ＞0.5@230Vac
|
|
Inrush Current
|
Cold Start
10A@115Vac ,20A@230Vac
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
110~200% Automatic protection
|
|
Over Voltage Protection
|
18-21V
|
34-42V
|
50-65V
|
72-84V
|
95-108V
|
|
Over Temp. Protection
|
------
|
|
Environment
|
Working Temp., Humidity
|
-20~50℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety & EMC
|
Safety Standards
|
GB4943，EN60950
|
|
Withstand Voltage
|
I/P-O/P:3KV; I/P-FG：1.8KV；O/P-FG:0.06KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN55022B
|
|
Others
|
Dimension
|
129*98*30mm CASE：K806L
|
|
Weight
|
0.3KG
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|
