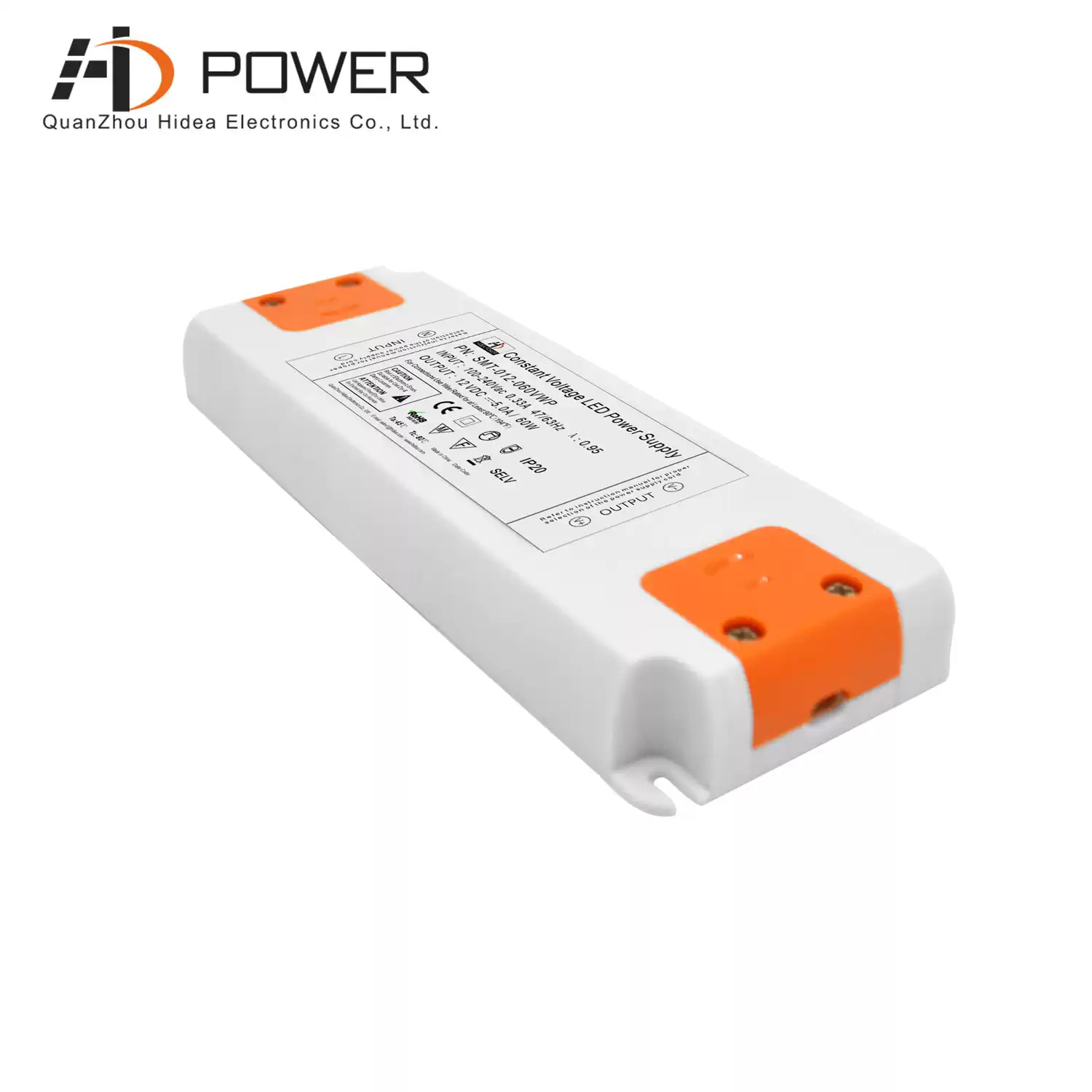

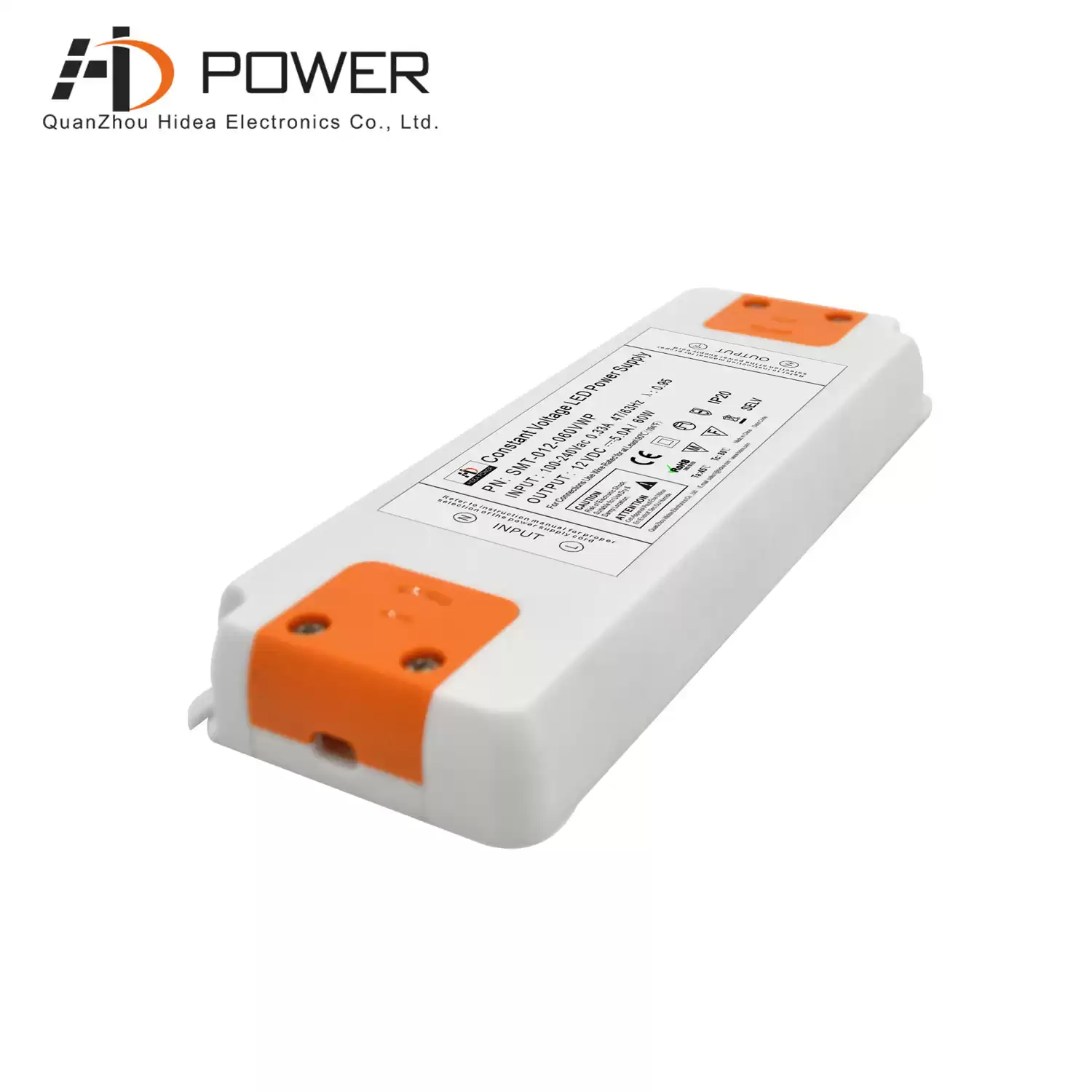

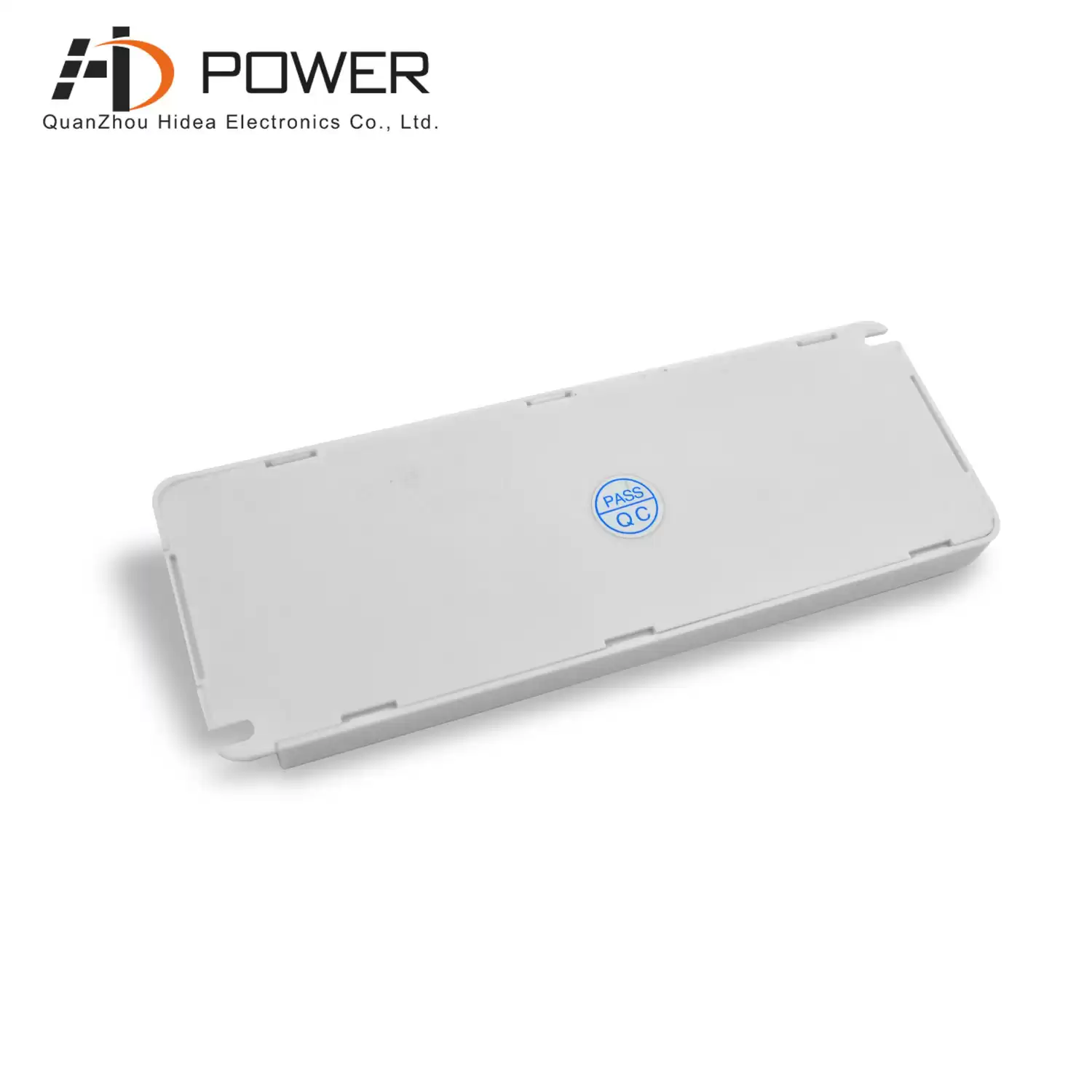

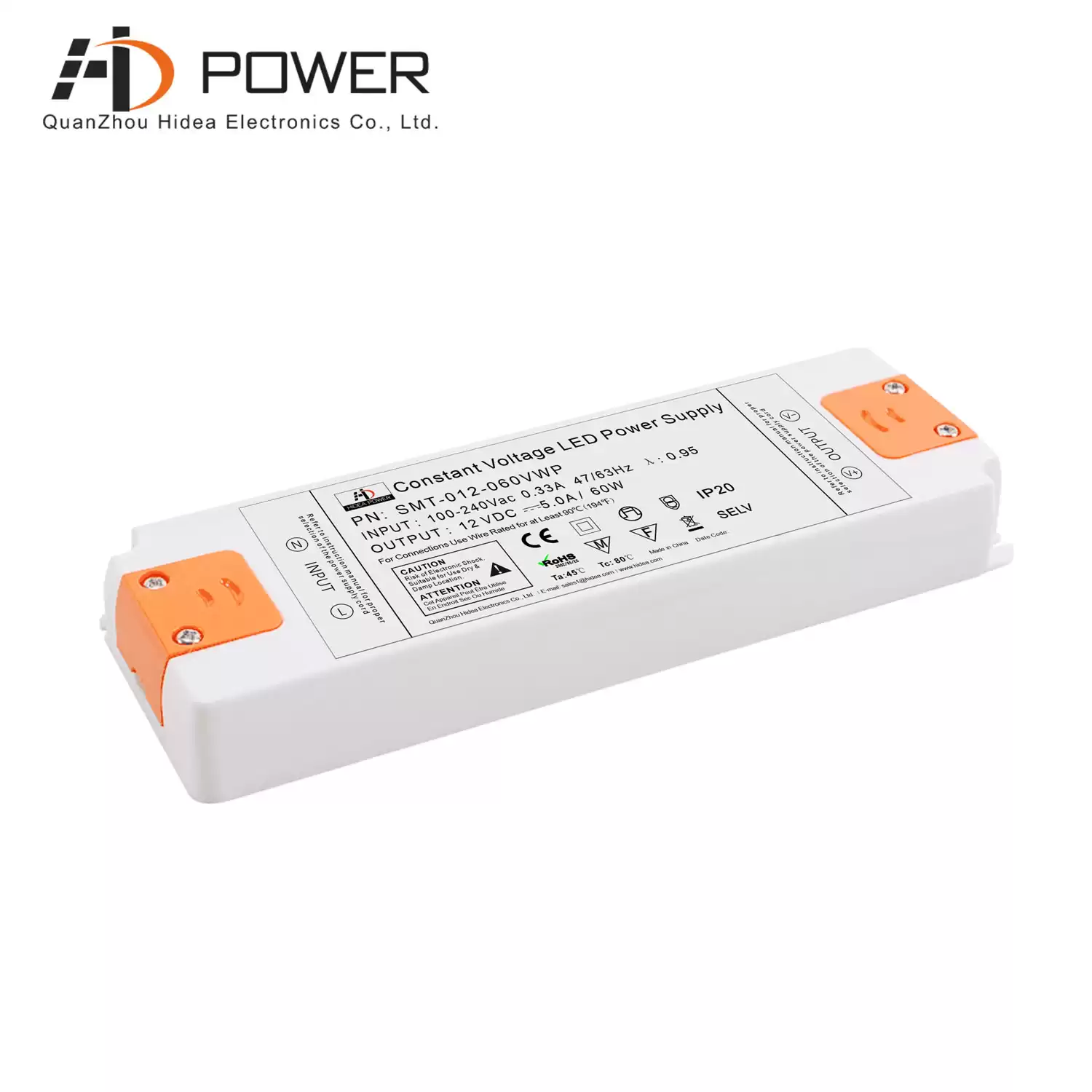

hideapowertech led driver 60w 12v is with terminal that easy to mounting and installation. the IP20 plastic design are designed for indoors lighting applications.
Specification
|
MODEL
|
SMT-012-060VWP
|
SMT-024-060VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
5.0Amp
|
2.5Amp
|
|
VOLTAGE RANGE
|
0-5.0A
|
0-2.5A
|
|
RATED POWER
|
60Watt
|
60Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.69A/110VAC, 0.34A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
5.7A
|
3.2A
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGETEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
|
|
WITHSTANDVOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type

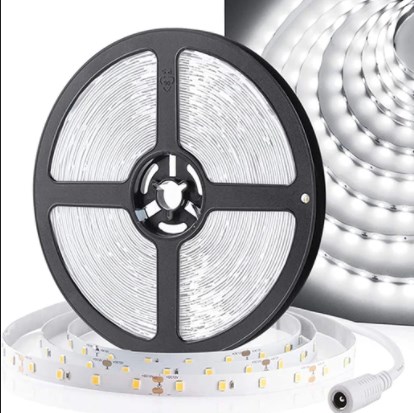

If you are looking for a small led strip power supply at a limit place, this 12V 60W power supply just satisfy your needs. The whole series are with thin share and it is ideal for use with kitchen cabinet lights. We suggest finding LED strips like Ustellar.
Related Products
|

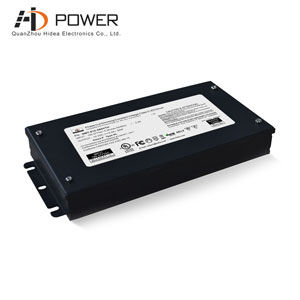

 This is a 0 10V dimming class 2 power supply for led lighting. With junction box, it is safer for indoors using. Offer smooth dimming and flicker free.
Mode：SMT-012-060VDH
Dimming Mode : 0-10v Dimming
Output Power : 60W
intput voltage：110-277V AC
Size：188*92*41MM （L*W*H）
|
