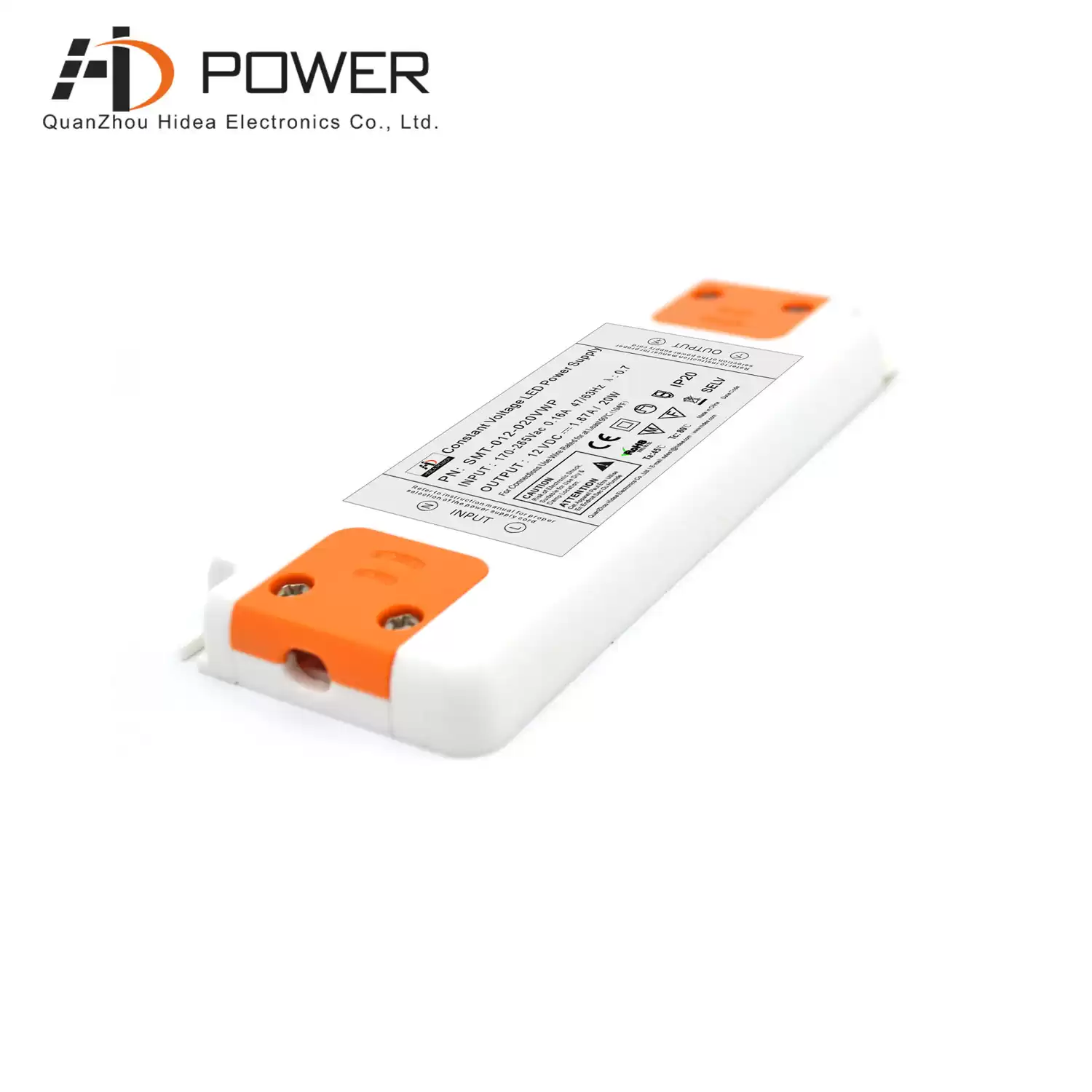

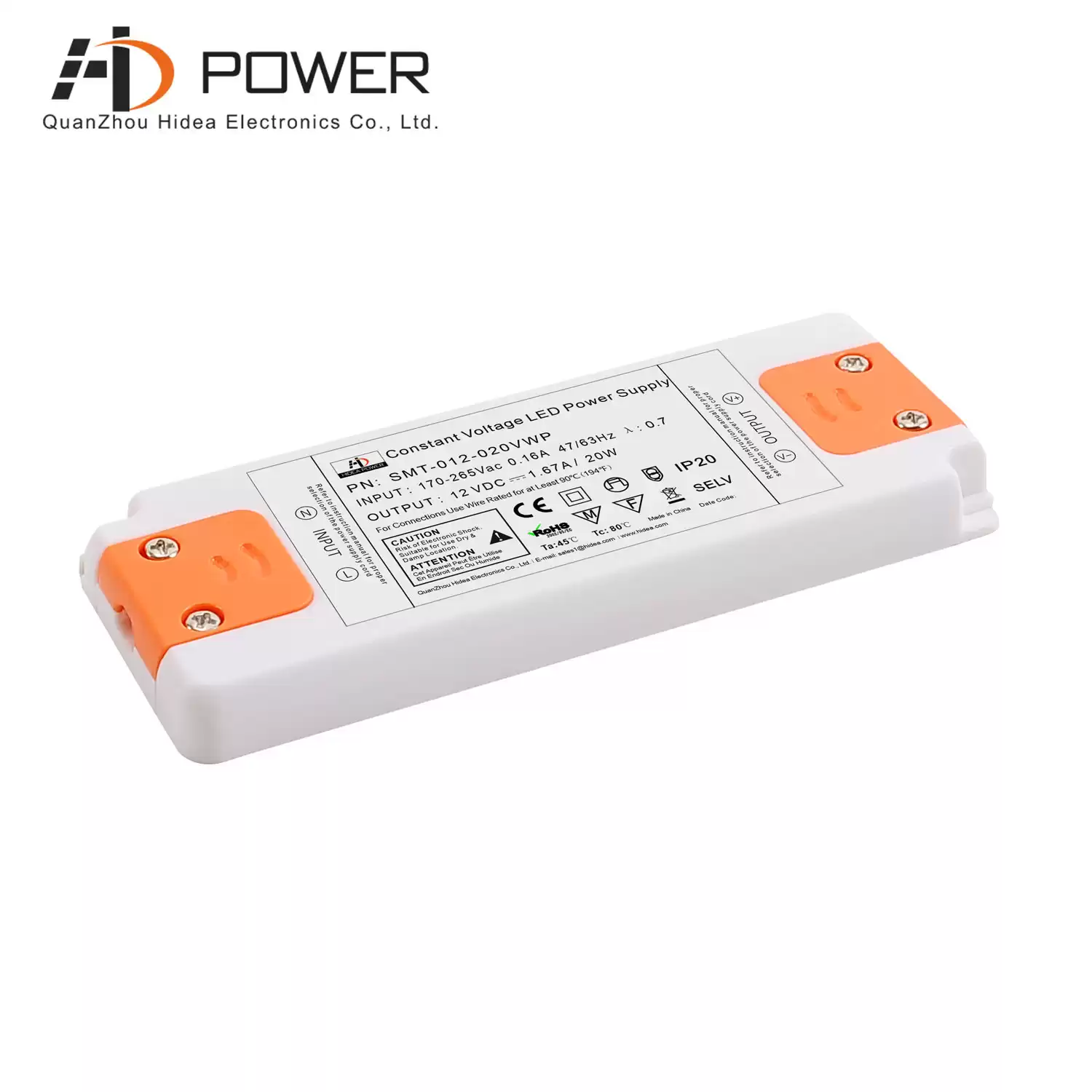

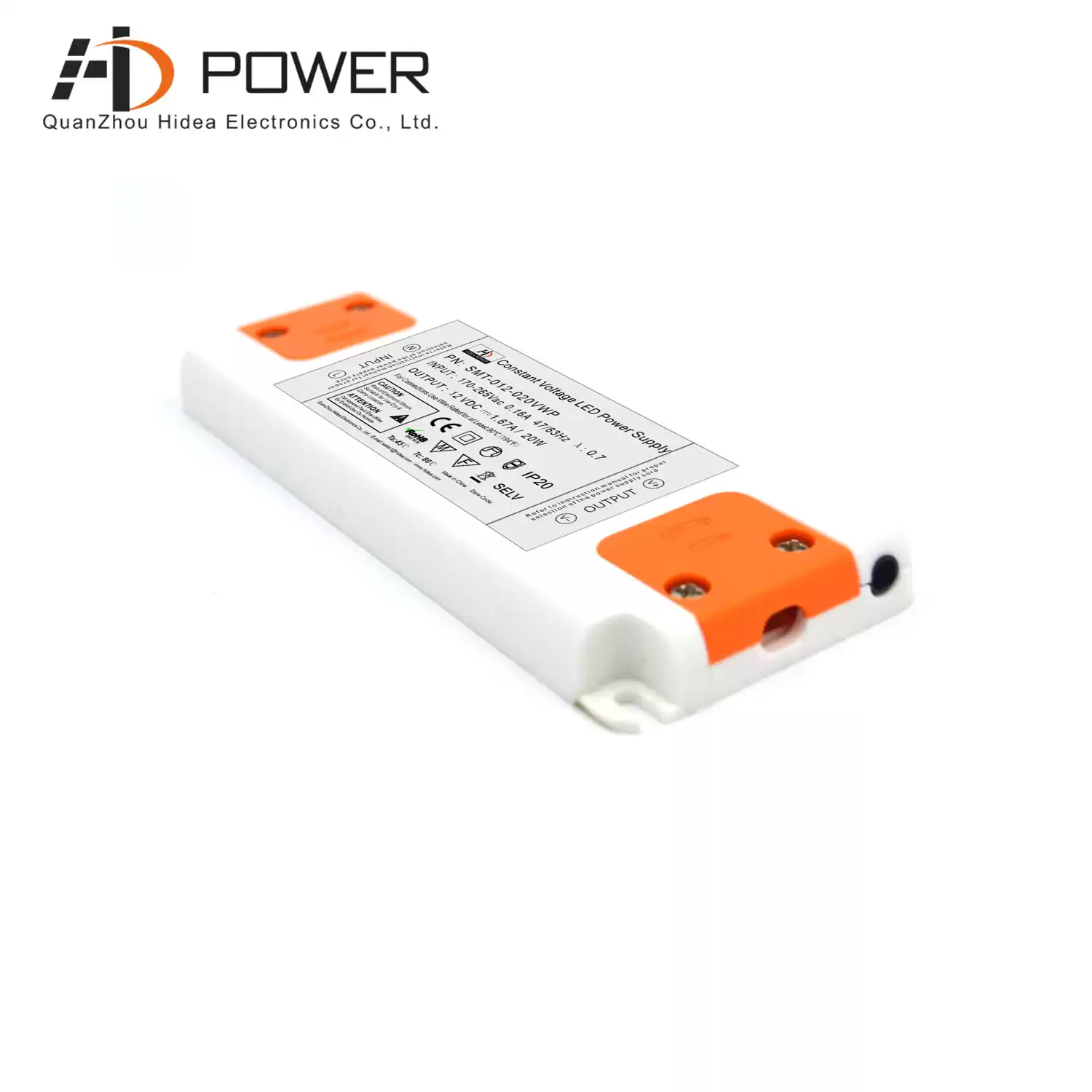

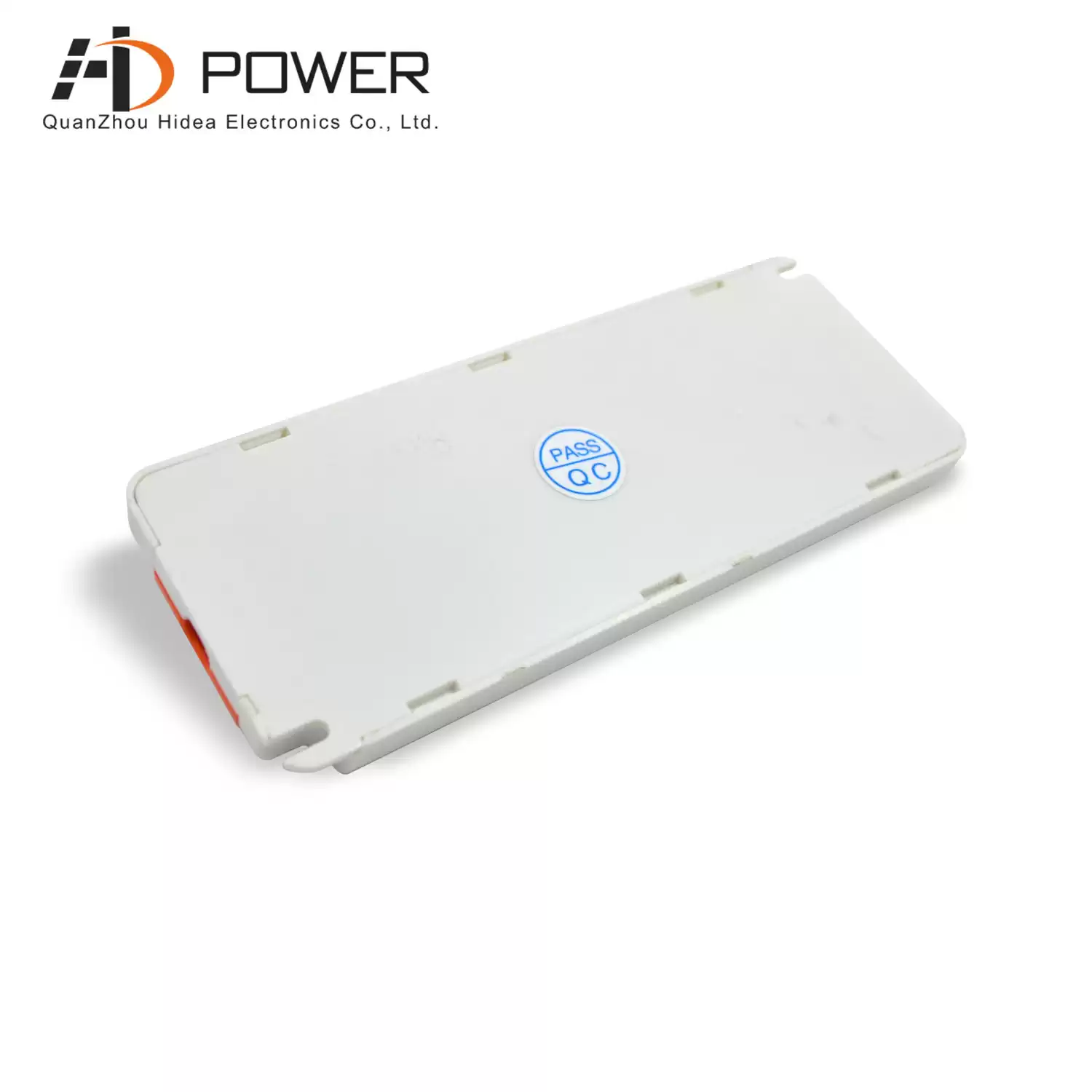

CE ROHS listed constant voltage led driver 12v 20w
The ultra thin led driver be useful for your existing products, from wall sconces, ceiling fixtures and suspended light fixtures, to floor and table lamps and lamp shades, in addition to adapting or designing fixtures from drafts provided from ABSOLUX lifgting.
Specification
|
MODEL
|
SMT-012-020VWP
|
SMT-024-020VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1.66Amp
|
0.83Amp
|
|
VOLTAGE RANGE
|
|
|
|
RATED POWER
|
20Watt
|
20Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
200-240VAC
|
200-240VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWERFACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.18A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
2.8A
|
1.2A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGETEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
|
|
WITHSTANDVOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

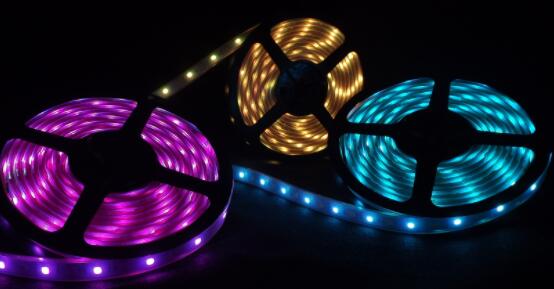

Compatible Light Type
The constant voltage led driver 12v is a leading resource for sustainable, energy-efficient LED lighting products to meet the needs of business, commercial and residential clients. Their in-house sales engineers provide expert advice in the selection and design of lighting systems, as well as technical support throughout the installation process.
Related Products
|

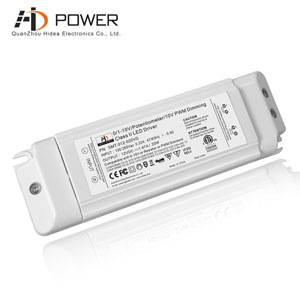

 We have created 0-10v dimmable led driver 20w 12v led driver so they can sell either via the website or in-store using an LED lighting.
Mode：SMT-012-020VD
Dimming Mode : 0-10V Dimming
Output Power : 20W
intput voltage：100-265Vac
Size：140*45*28MM （L*W*H）
|
