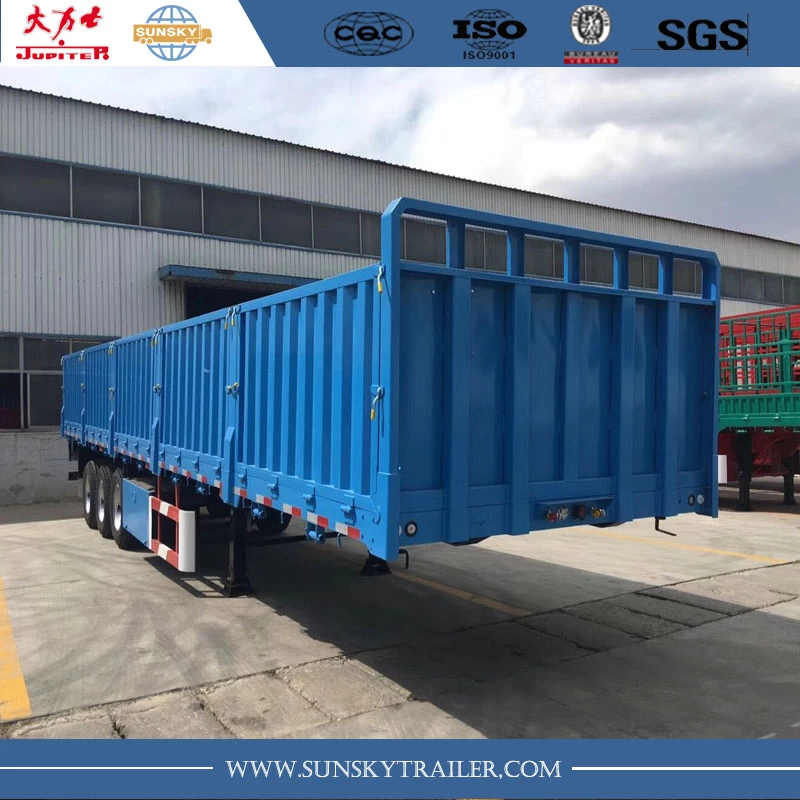

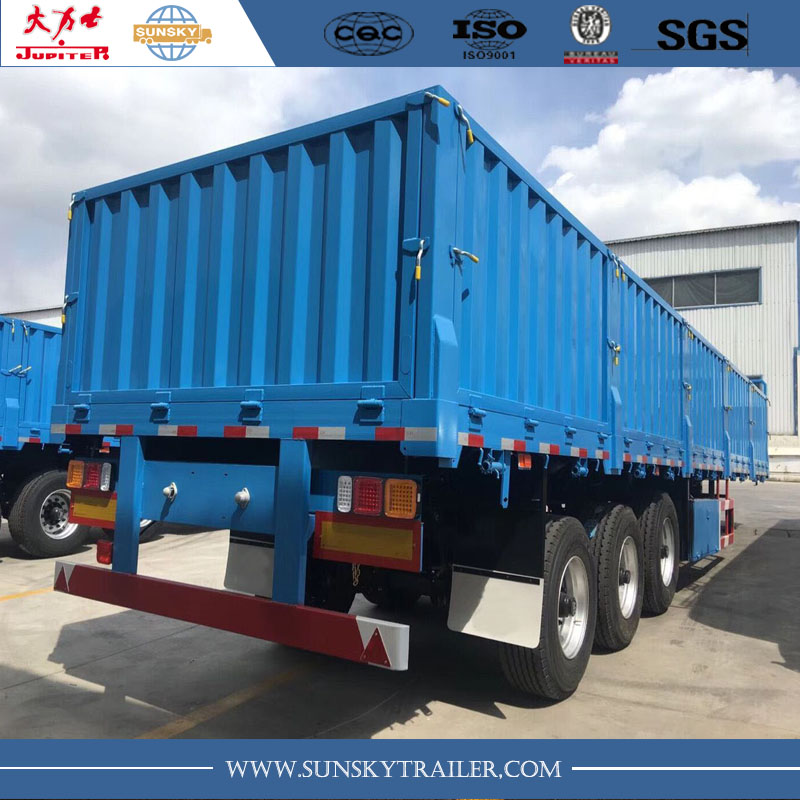

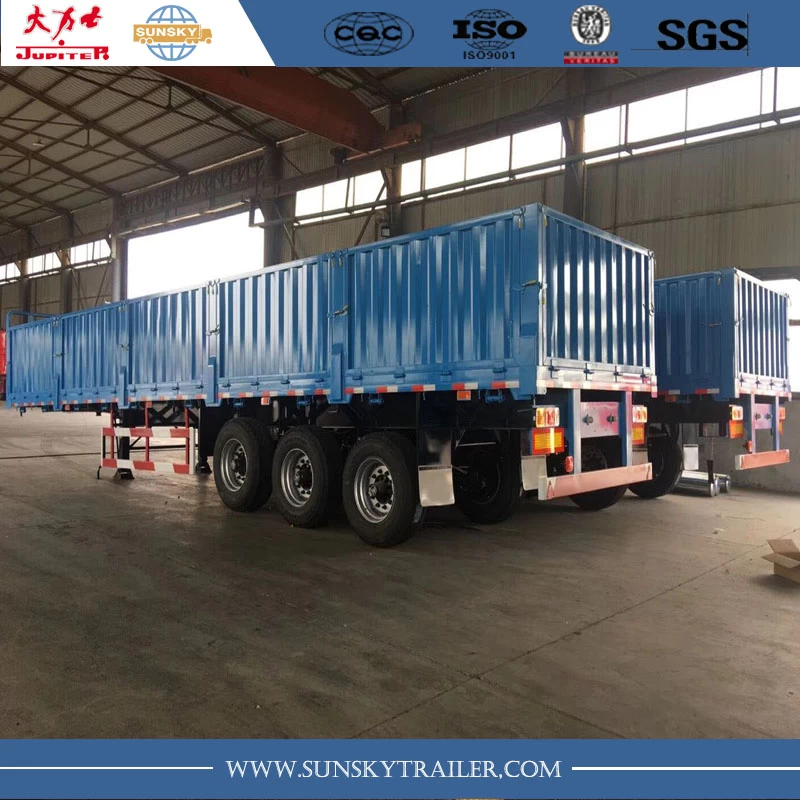

Cheap 40ft side wall trailer for transport bulk cargo
1.The main frame of SUNSKY SIDE WALL TRAILER is made of 16Mn high-tensile steel, reasonable structure, light weight, superior carrying capacity and no permanent deformation.
2.Can be made of foreign or domestic high-tensile steel to reduce tare weight, and the trailer is customizable!
3.Equips the Axles, tires and other accessories of the well-known products which supplied by the domestic and foreign professional manufacturers. Like BPW Axles, FUWA Axles. Triangle tires, Double-Coin Tires. Meanwhile, they can be equipped with airbag suspension and super single tires as your requirement.
4.Powerful quality and people-oriented service,One year warranty!
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1)Specialized:More than 30 years professional experience.
2)Quality-guarantee:One years guarantee term provided freely.
3)Sales service:Export more than 300 units to Africa, Southeastern Asia.
4)Customized: Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
40FT Side Wall semi trailer
|
|
Feature:
|
Carry Bulk cargo and container
|
|
Dimension(L*W*H):
|
12600*2500*2300mm
|
|
The Height of Wall
|
1200mm
|
|
Main frame:
|
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
|
|
Model:
|
SS9402TJZX
|
|
No. of axle:
|
3
|
|
Payload(kgs):
|
40000
|
|
Tare weight(kgs):
|
8000
|
|
Kingpin:
|
JOST 3.5”/2”
|
|
Landing gear:
|
JOST two-speed manual operation 19”
|
|
Tire size:
|
12R22.5
|
|
Rim size:
|
9.00*22.5
|
|
Axle:
|
FUWA-13T
|
|
Suspension
|
Fuwa brand with 8pcs of leafs spring
|
|
Brake system:
|
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Container locks
|
12(for 1x20GP,2X20GP,1X40HQ)
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
|
|
Accessory:
|
One tool box; one set of standard tool
|
|
We can build the trailers according to customer’s design and requirement
|
Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Producing process:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Loading and Packing:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. I want to reduce the tare weight of trailer,Can it be realized？
Answer: Yes,the trailer can be custom-built as your requirement.Can be made of foreign or domestic high-tensile steel to reduce tare weight.
2. I want to equip airbag suspension,how much will it cost?
Answer: Yes,of course.We can equip airbag suspension for you with super single tires.It will cost about USD 2000 for trailer with airbag suspension and 385/80R22.5 tires.
