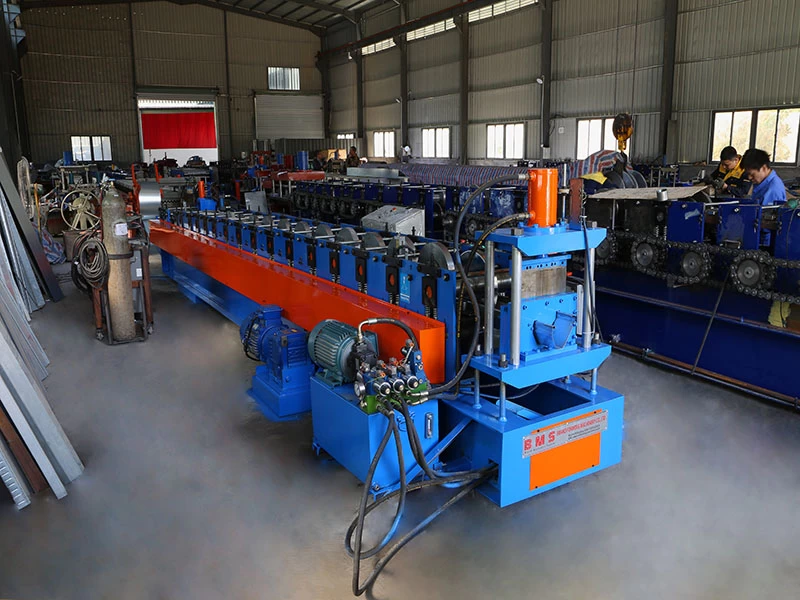

Chicken Feeder Plate Roll Forming Machine

Metal Gutter Roll Forming Machine For Feed Chicken Gutter



Chicken Feeder Plate Roll Forming Machine



Chicken Feeder Plate Roll Forming Machine

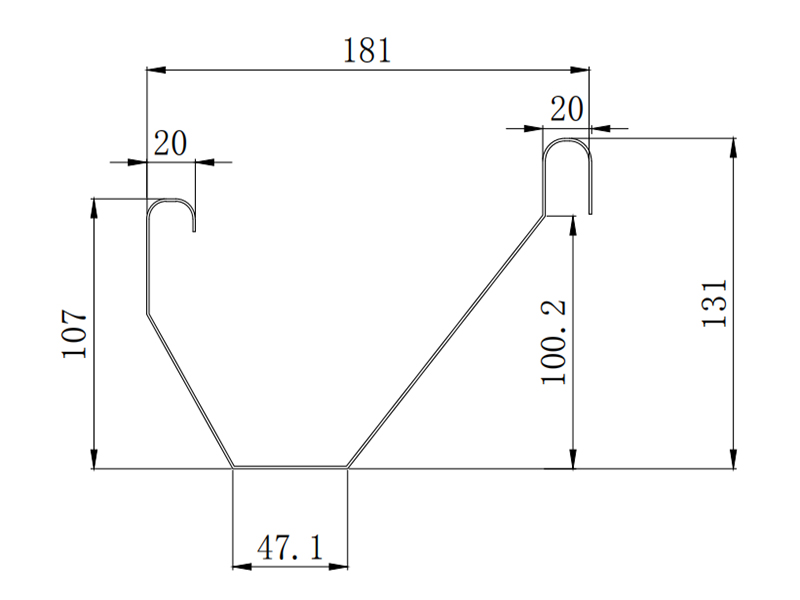

Profile

Chicken Feeder Plate Roll Forming Machine



Material

Effective width:181mm
Feeding width:about 387mm
Material Thickness: 1.0mm
Applicable material:Galvanized Steel(GI)
With yield strength:390Mpa

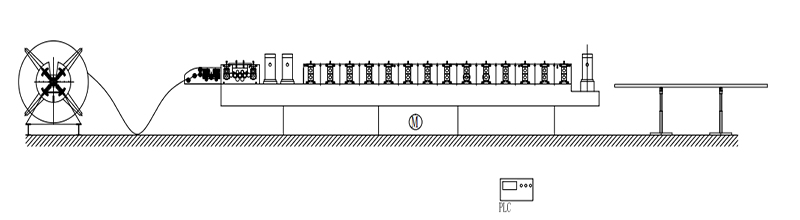

Work Follow

DecoilerFeeding Guide→Pre-Punching DeviceRoll Forming SystemHydraulic Post Cutting DeviceExit Rack(Independent Post Punching Device)




Machine Components

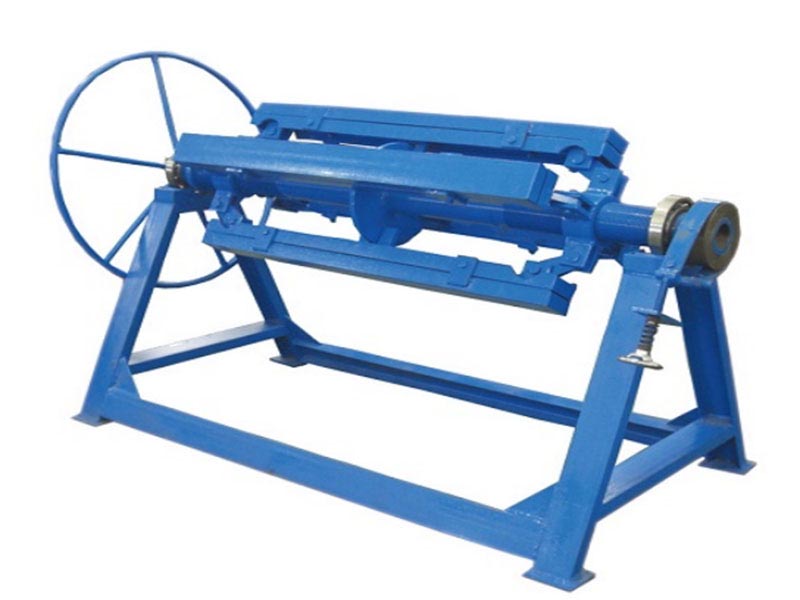

1) Manual Decoiler one set


Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 600mm,coil ID range 508mm±30mm Capacity: Max. 5 Ton

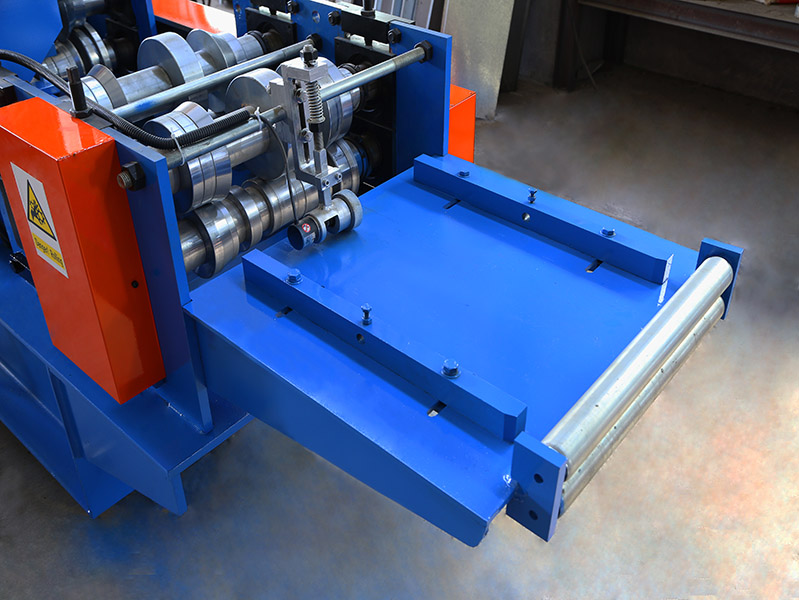

2) Feed Guide Device


The guiding position can be adjusted for suitable material feeding


Chicken Feeder Plate Roll Forming Machine

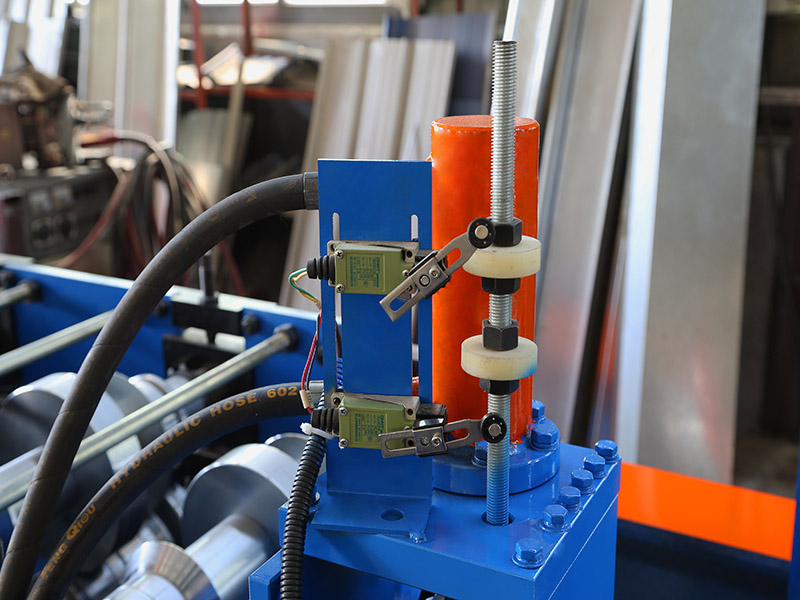

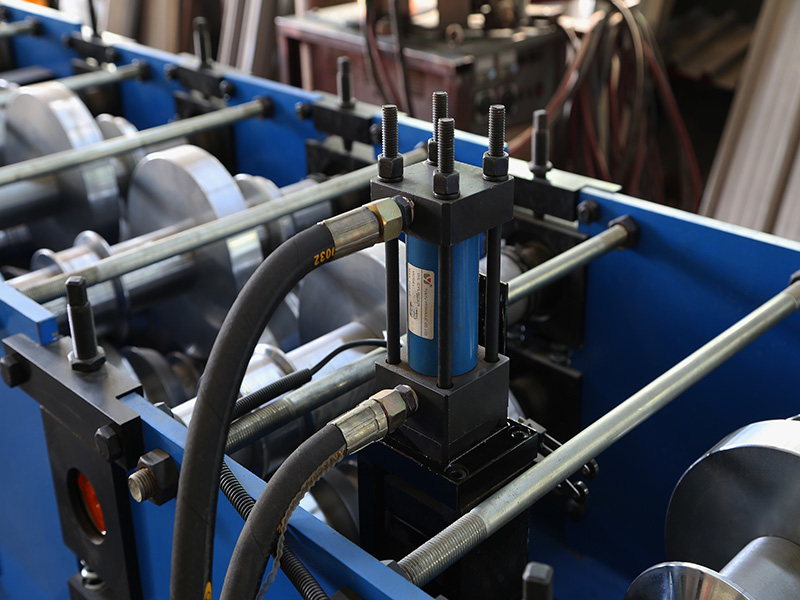

3) Pre-Punching Device


Chicken Feeder Plate Roll Forming Machine

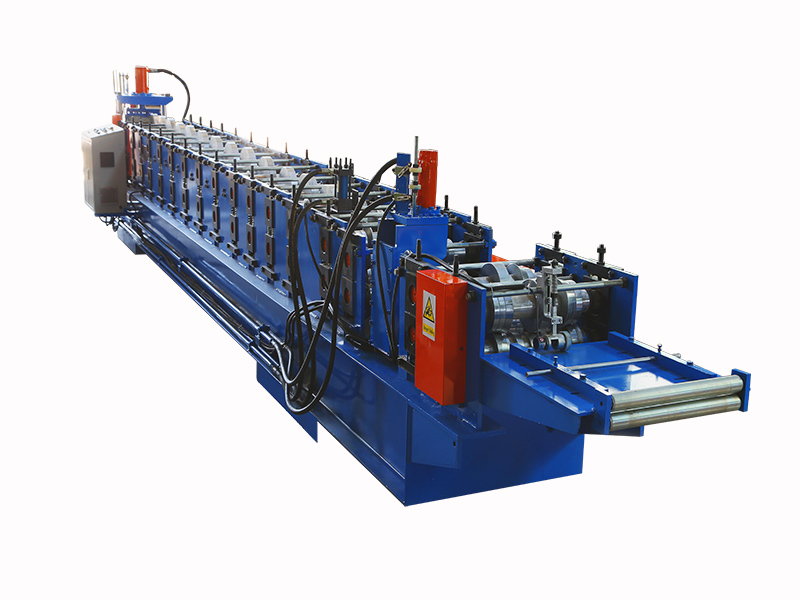

4) Main Machine


Body frame made from H400 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor(Polaroid brand)=11KW,Frequency speed control
Real forming speed 15m/min(Not include cutting time)


Chicken Feeder Plate Roll Forming Machine

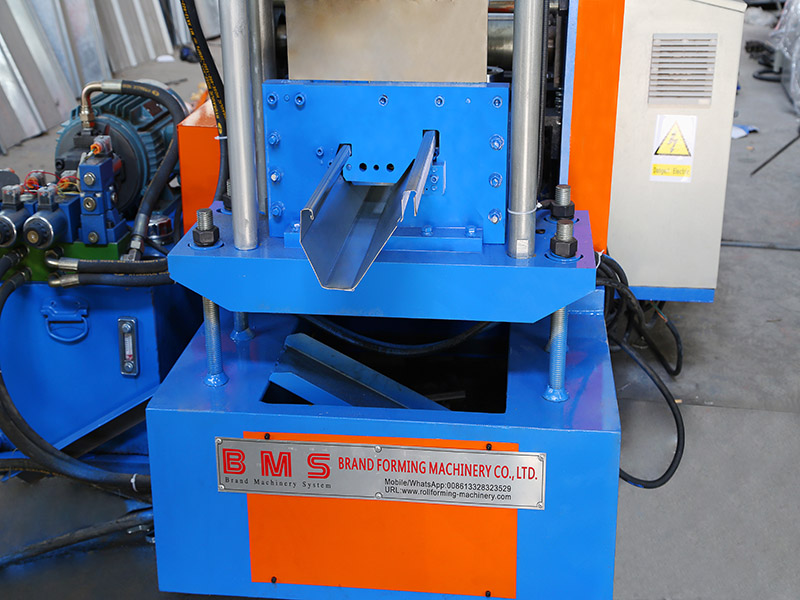

5) Post Hydraulic Cutting Device


Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking

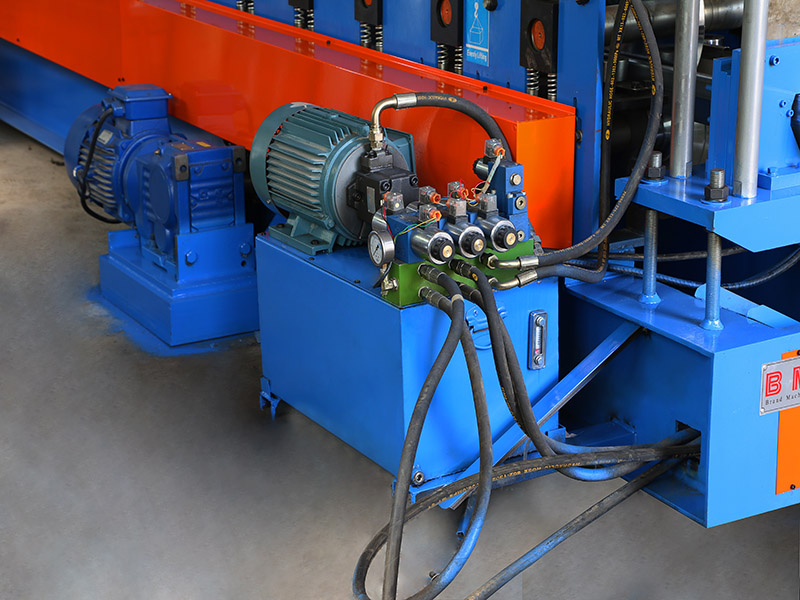

Hydraulic motor: 7.5KW
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station


Chicken Feeder Plate Roll Forming Machine



Chicken Feeder Plate Roll Forming Machine

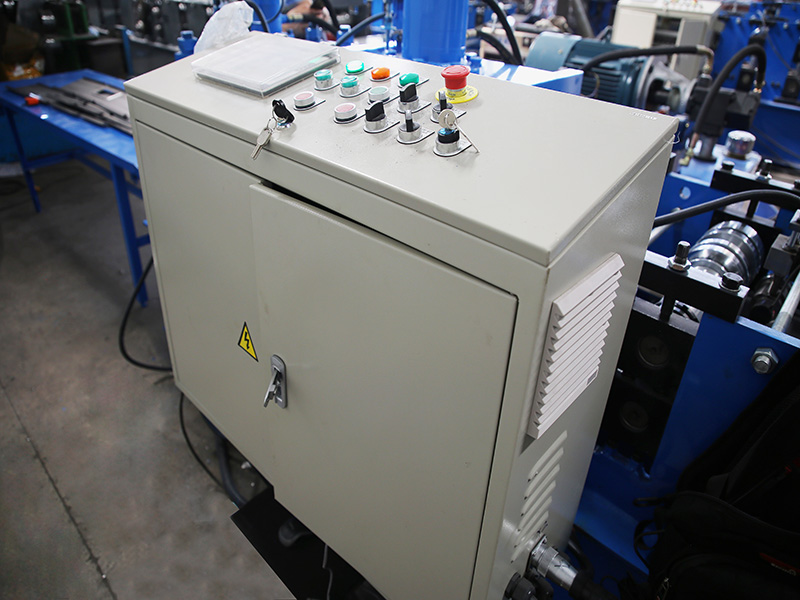

6) PLC Control System


Control The Quantity And Cutting Length Automatically.

Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


Chicken Feeder Plate Roll Forming Machine



7)Exit Rack


Un-powered, Two units,with rollers on it for easy movement.

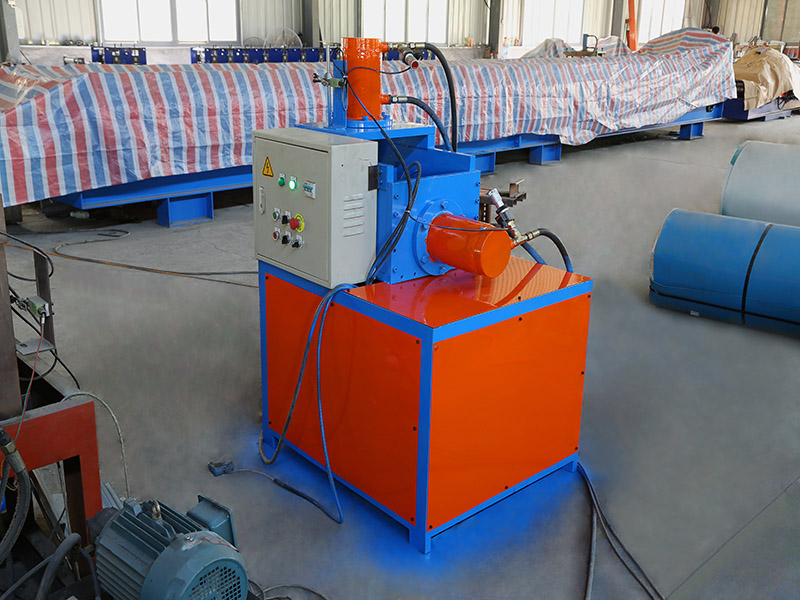

8) Independent Punching Device


Chicken Feeder Plate Roll Forming Machine

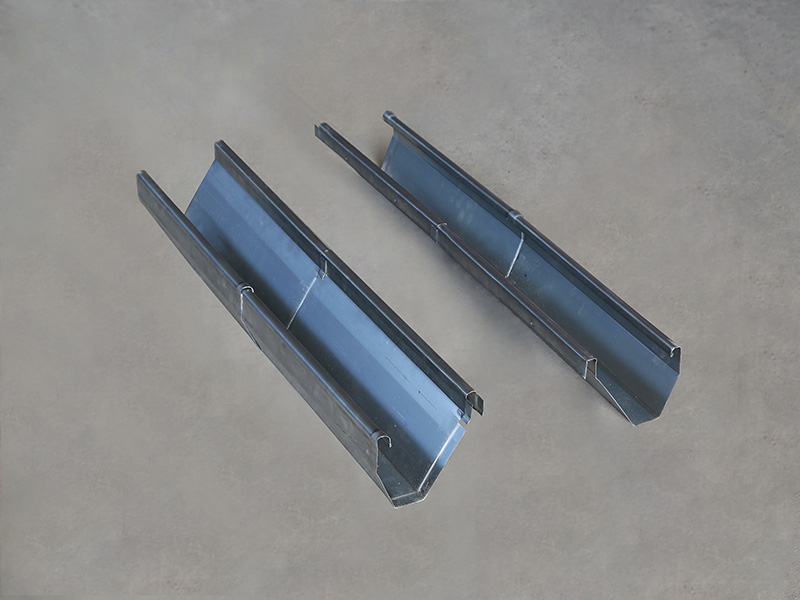

9)Product Show


Chicken Feeder Plate Roll Forming Machine


After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost.



Terms Of Trade


1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc


Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
