Metal Box Roll Forming Machine

Metal Box Roll Forming Machine & Bending Machine



Metal Box Roll Forming Machine



Metal Box Roll Forming Machine

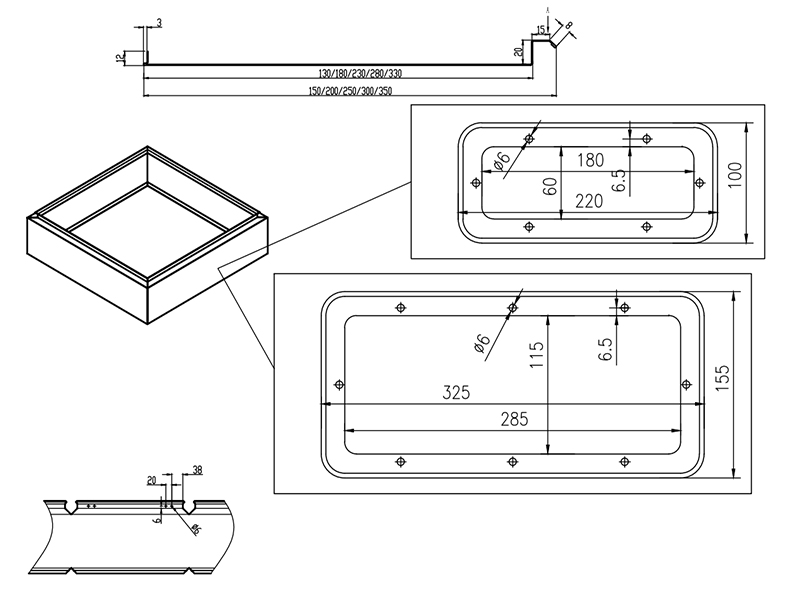

Profile

Metal Box Roll Forming Machine

Change Size By Spacer



Material

Material Thickness: 0.6-1.2mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength :245-345Mpa

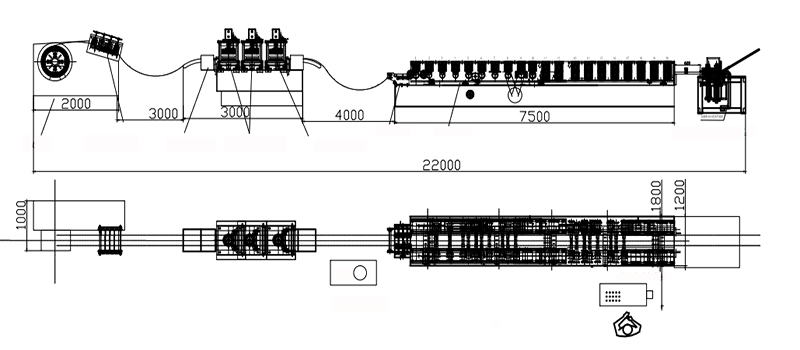

Work Follow

Decoiler & Leveling Device→Servo Motor Feeding & Punching DeviceFeed Guide DeviceRoll Forming SystemHydraulic Post Punching & Cutting DeviceExit Rack




Machine Components

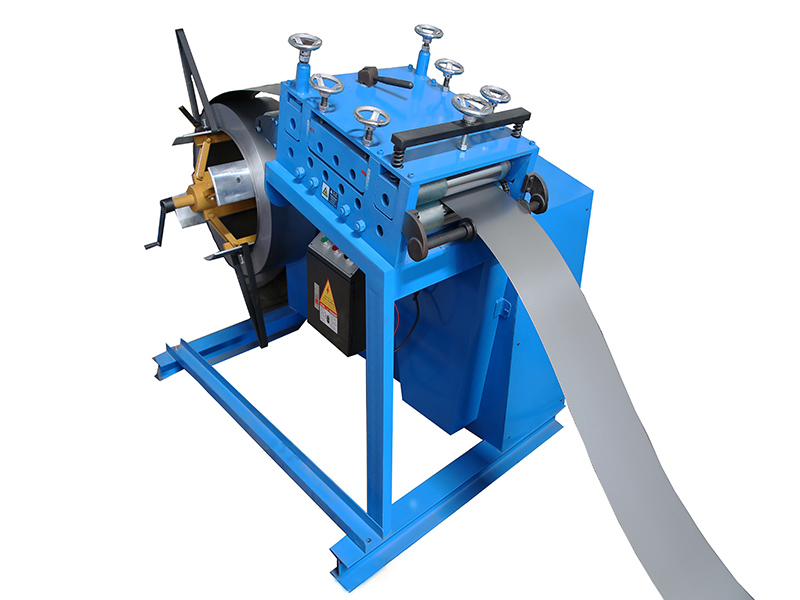

1) Decoiler & Leveling Device: one set


Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 600mm,coil ID range 508mm±30mm Capacity: Max. 5 Ton

Metal Box Roll Forming Machine

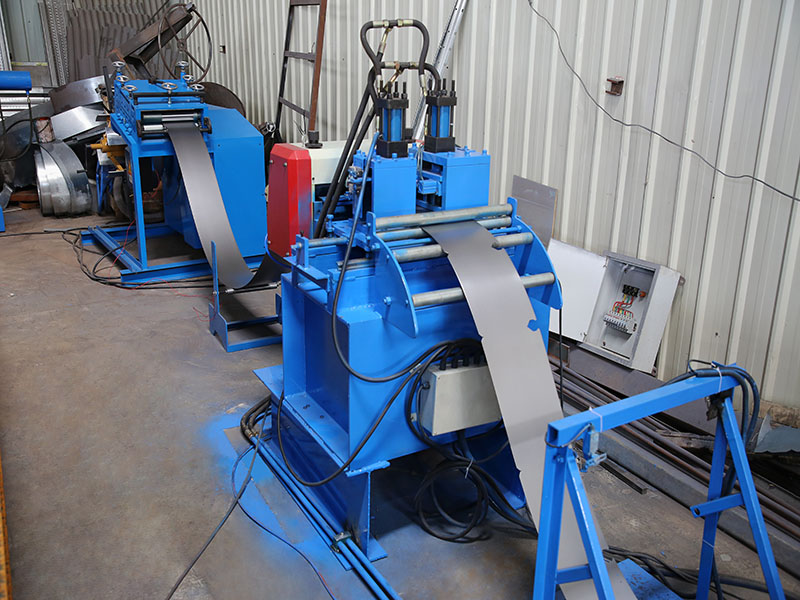

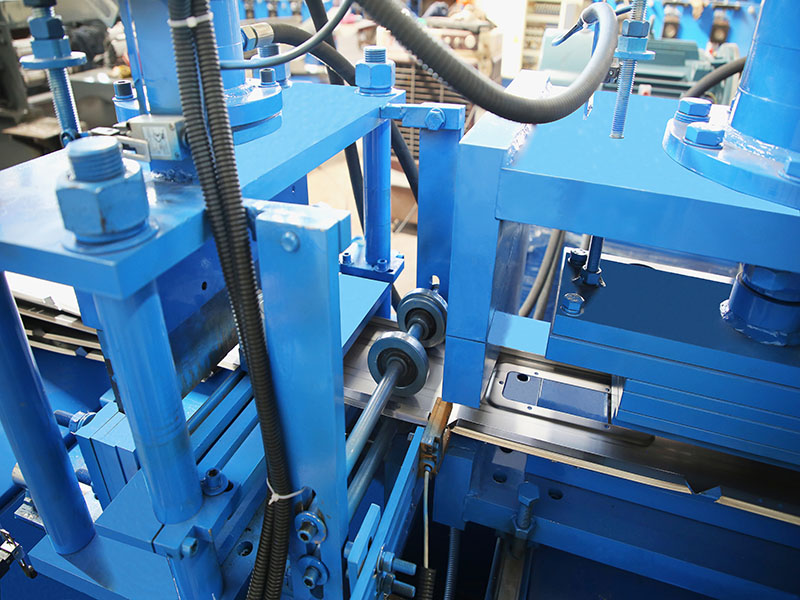

2) Servo Motor Feeding & Punching Device


Metal Box Roll Forming Machine



Metal Box Roll Forming Machine

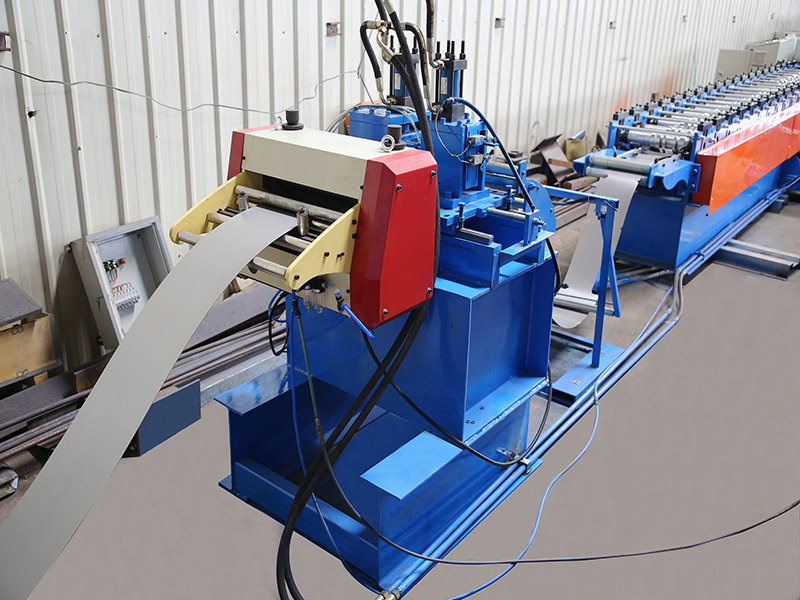

3) Feed Guide Device

The guiding position can be adjusted for suitable material feeding


Metal Box Roll Forming Machine

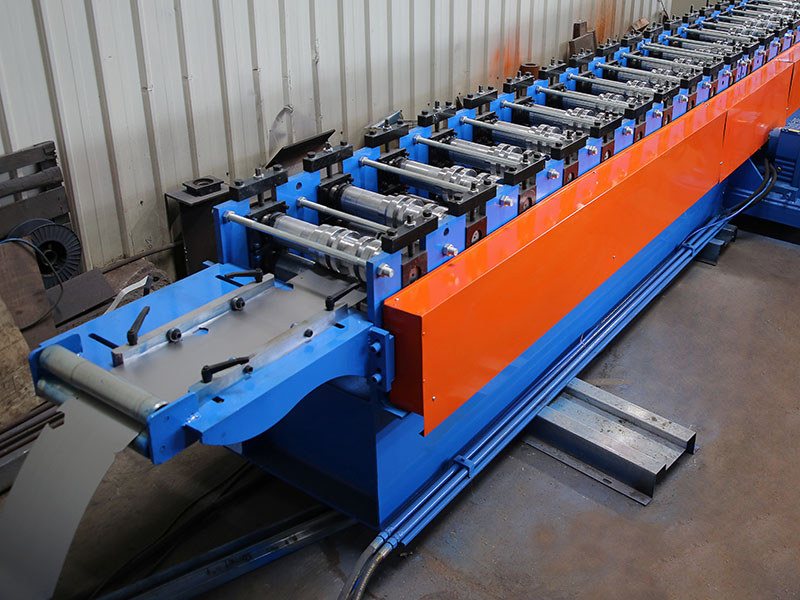

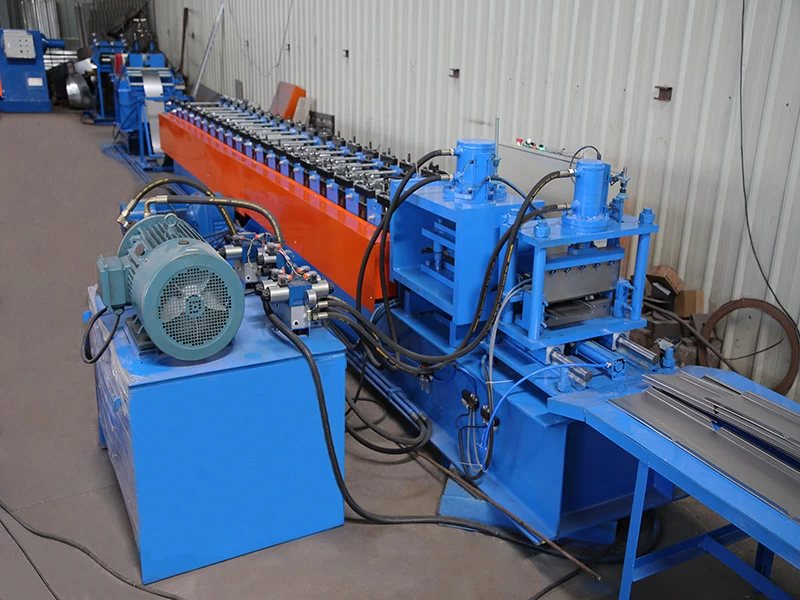

4) Main Machine


Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm

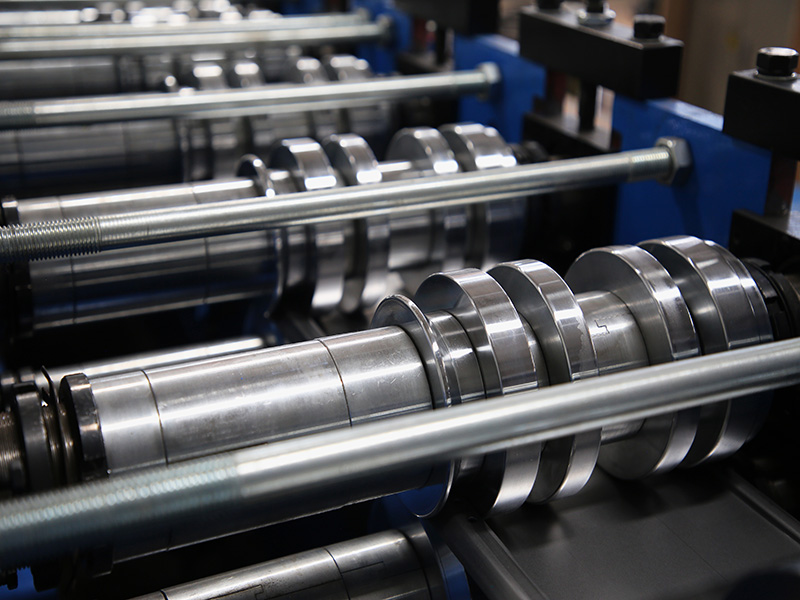

Rollers manufactured from GCr15 Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 20-step to form
Main Motor(Polaroid brand)=7.5KW,Frequency speed control
Real forming speed 15-18m/min(Not include cutting time)


Metal Box Roll Forming Machine

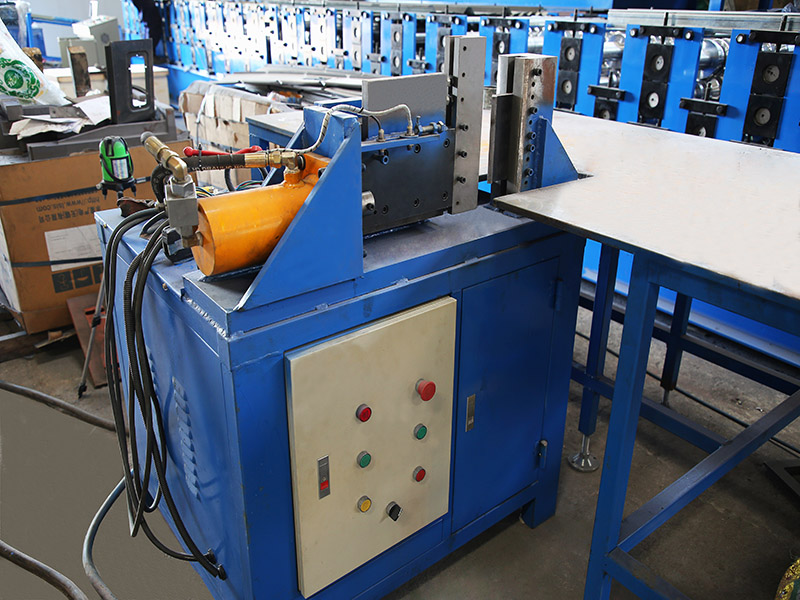

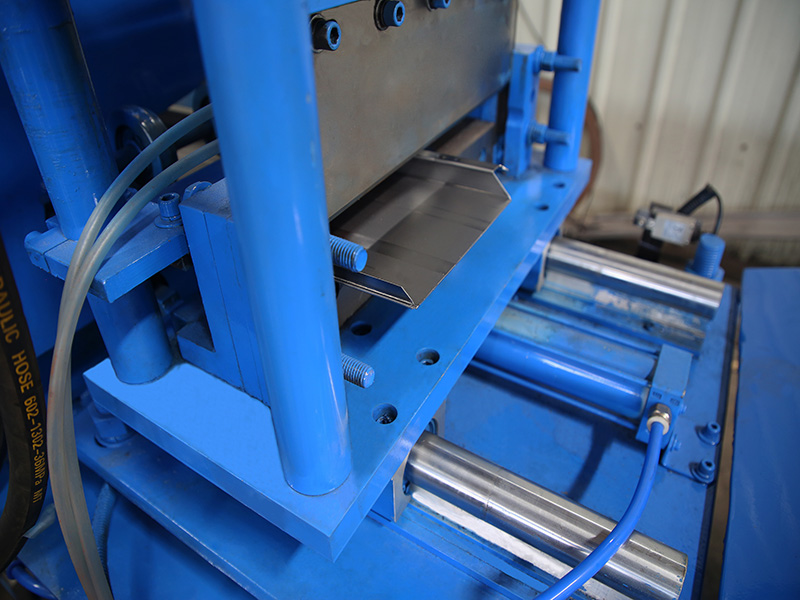

5)Post Hydraulic Punching & Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 5.5KW
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station


Metal Box Roll Forming Machine


Metal Box Roll Forming Machine


Metal Box Roll Forming Machine



6) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


Metal Box Roll Forming Machine



7)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.




8)Bending Machine

Metal Box Roll Forming Machine

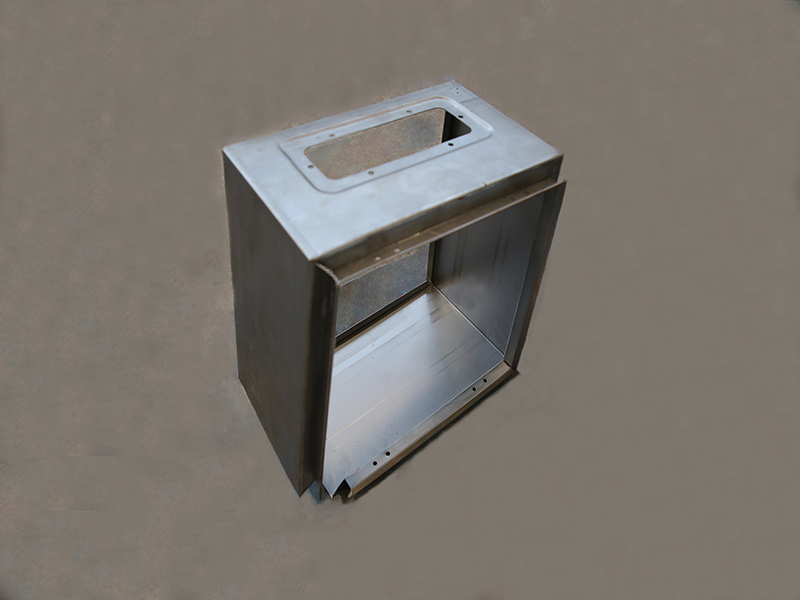

9)Product Show

Metal Box Roll Forming Machine




After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost.



Terms Of Trade


1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc


Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
