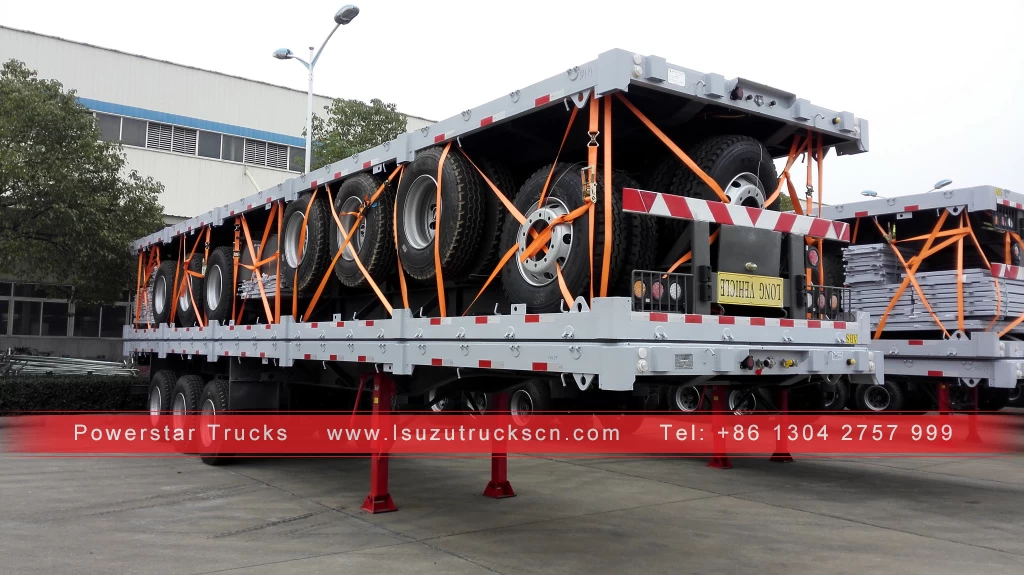

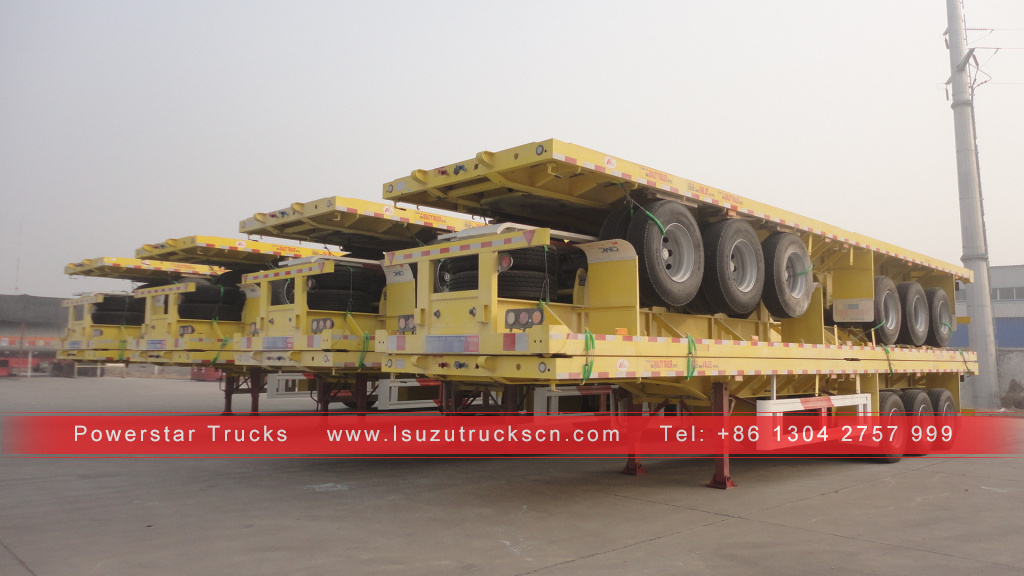

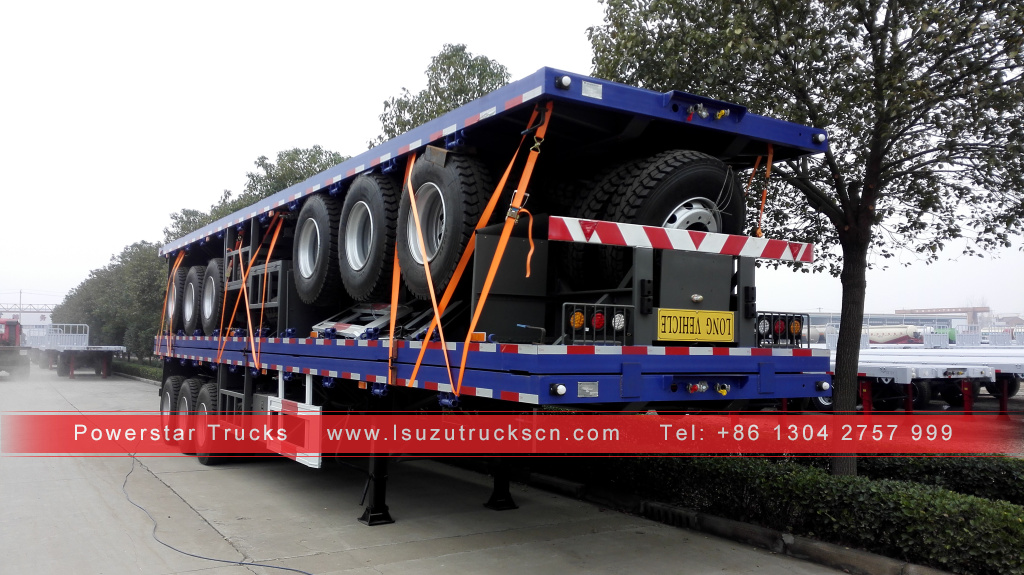

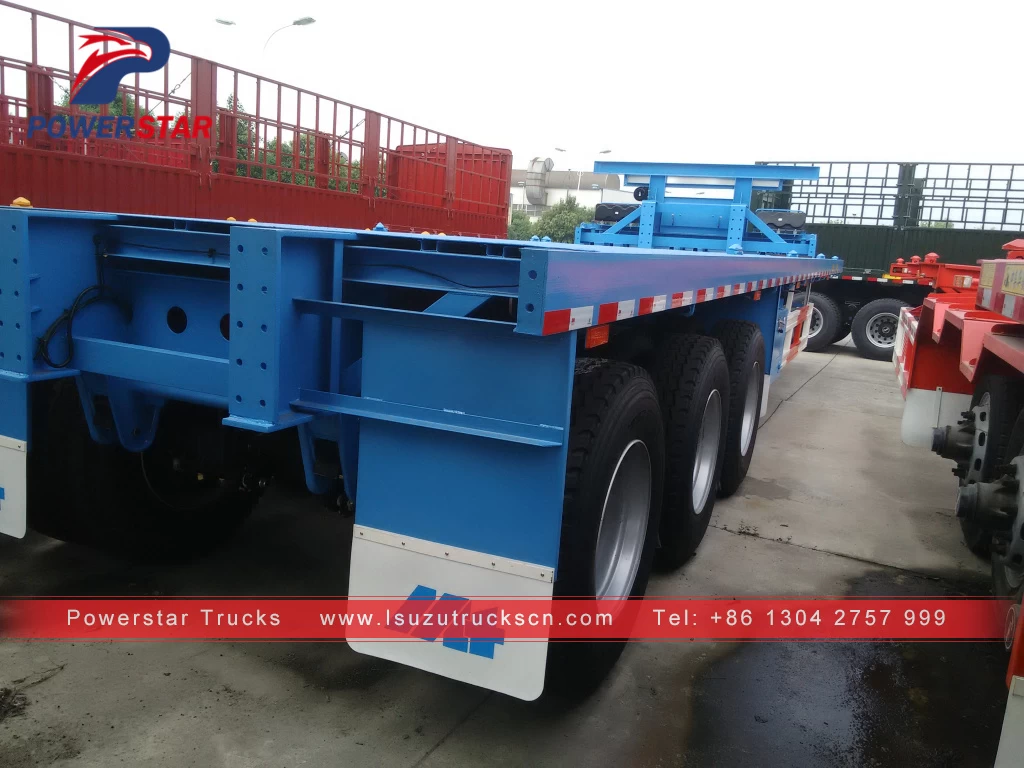

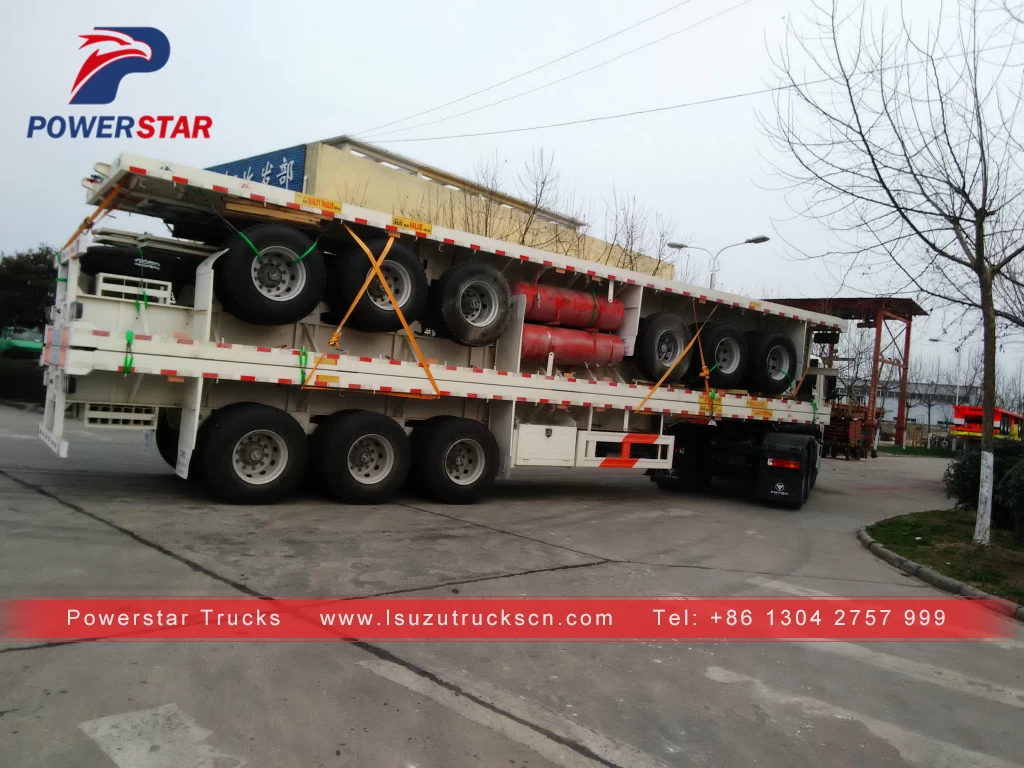

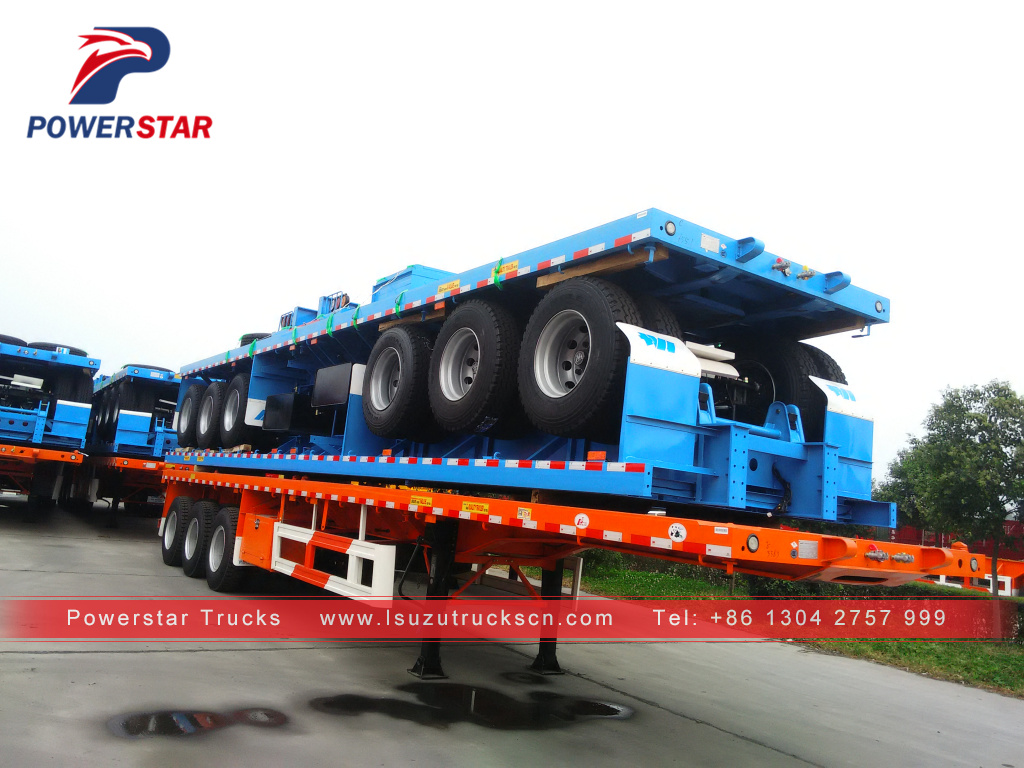

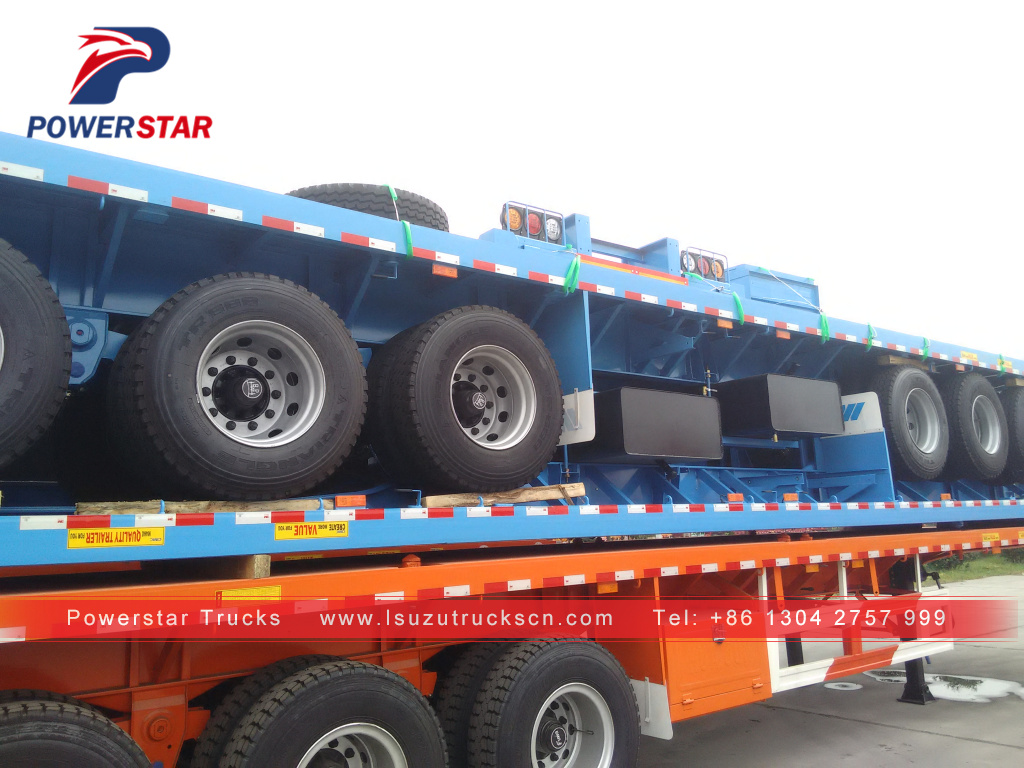

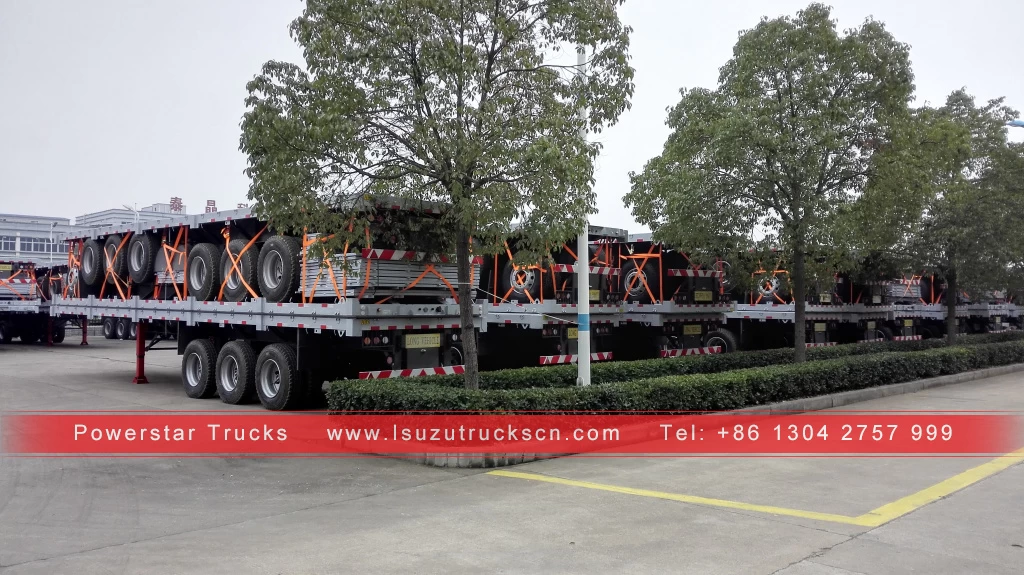

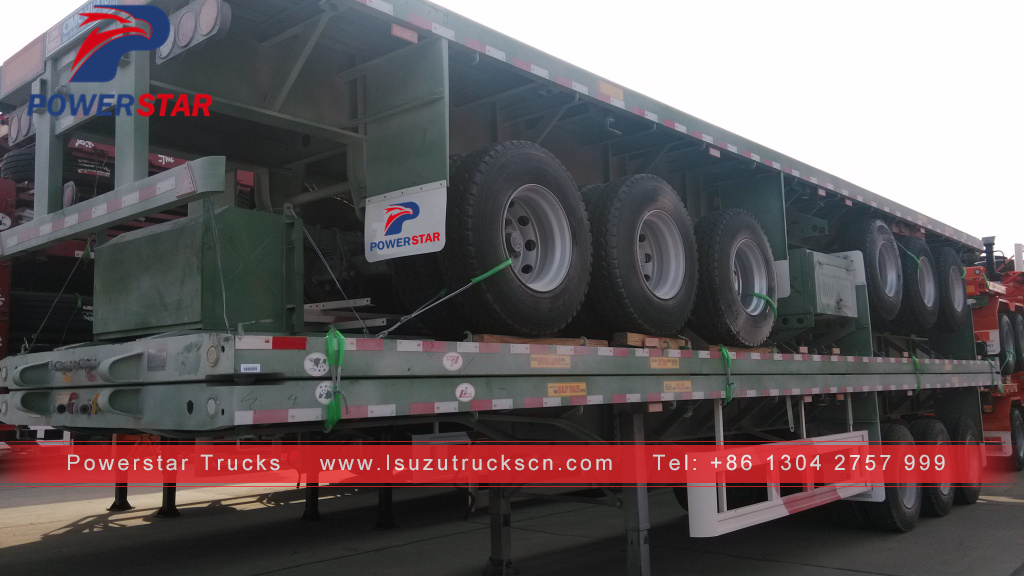

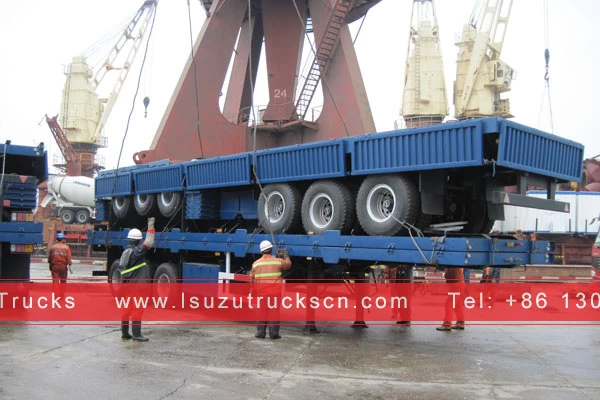

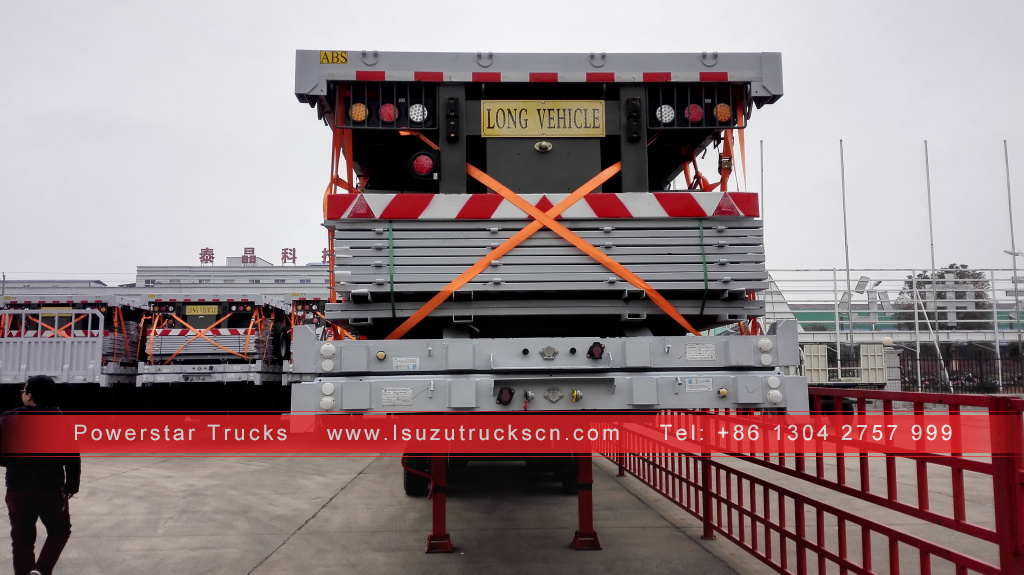

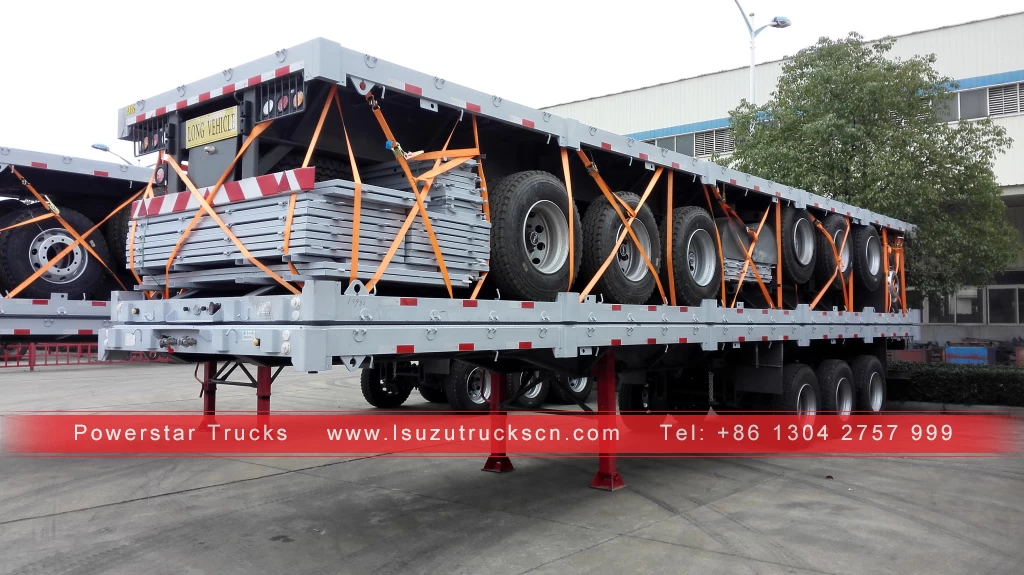

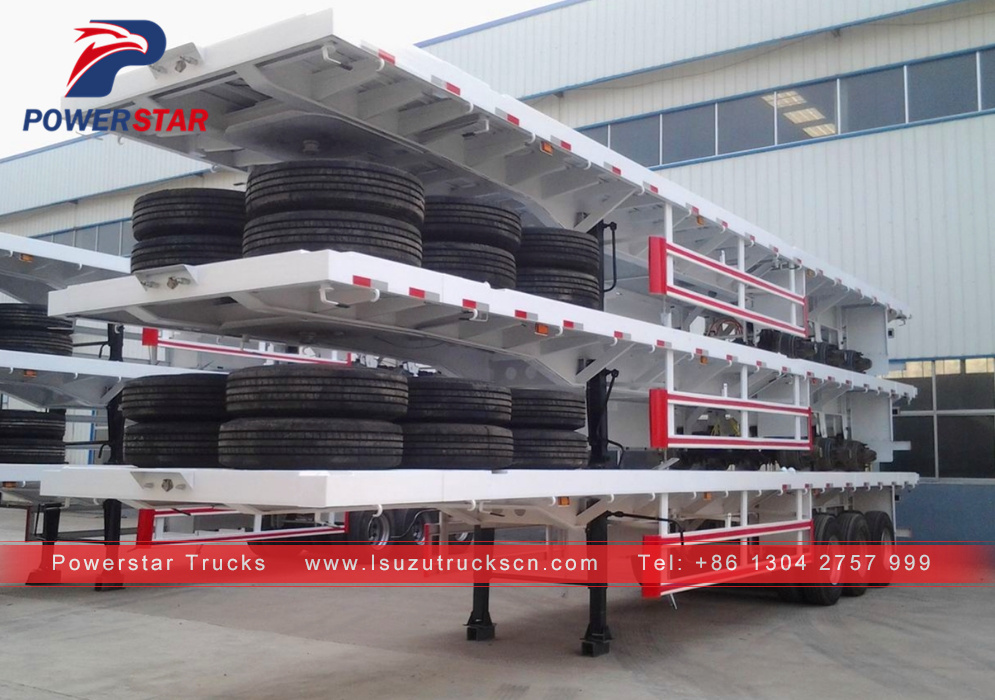

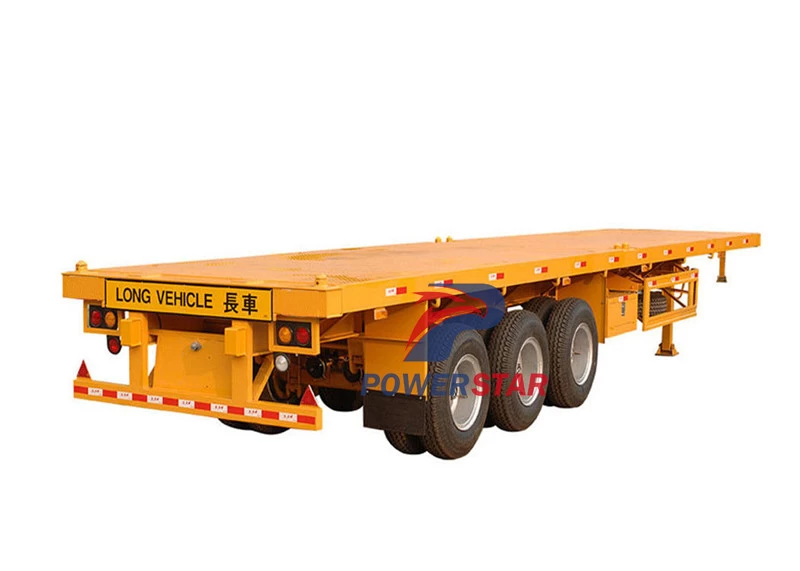

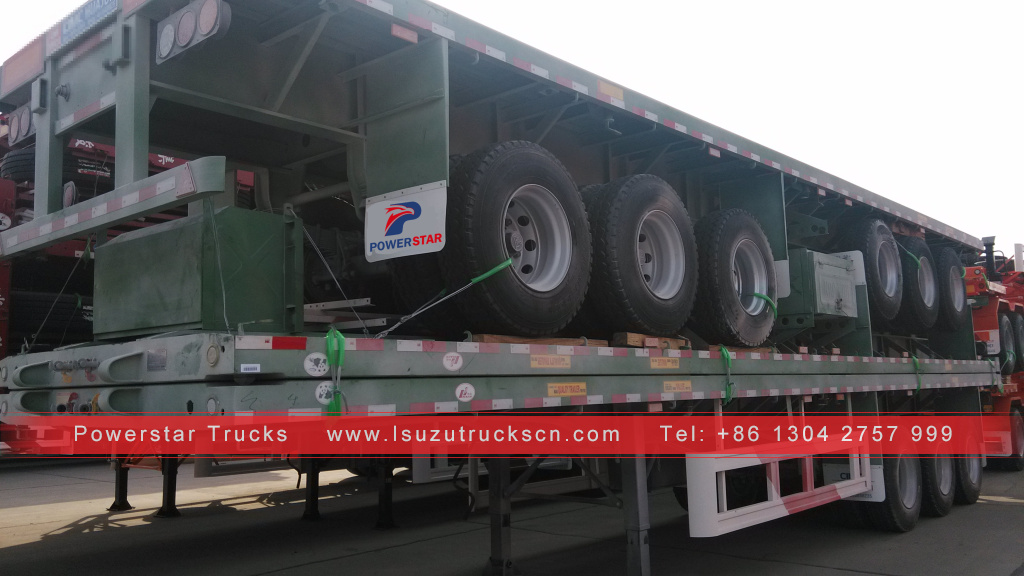

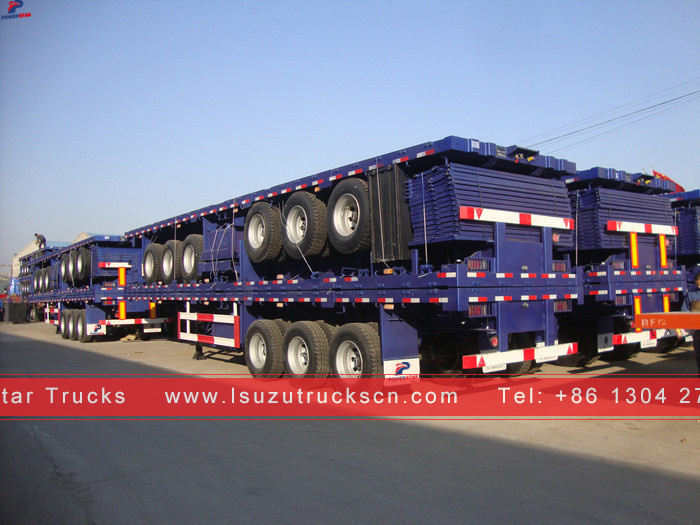

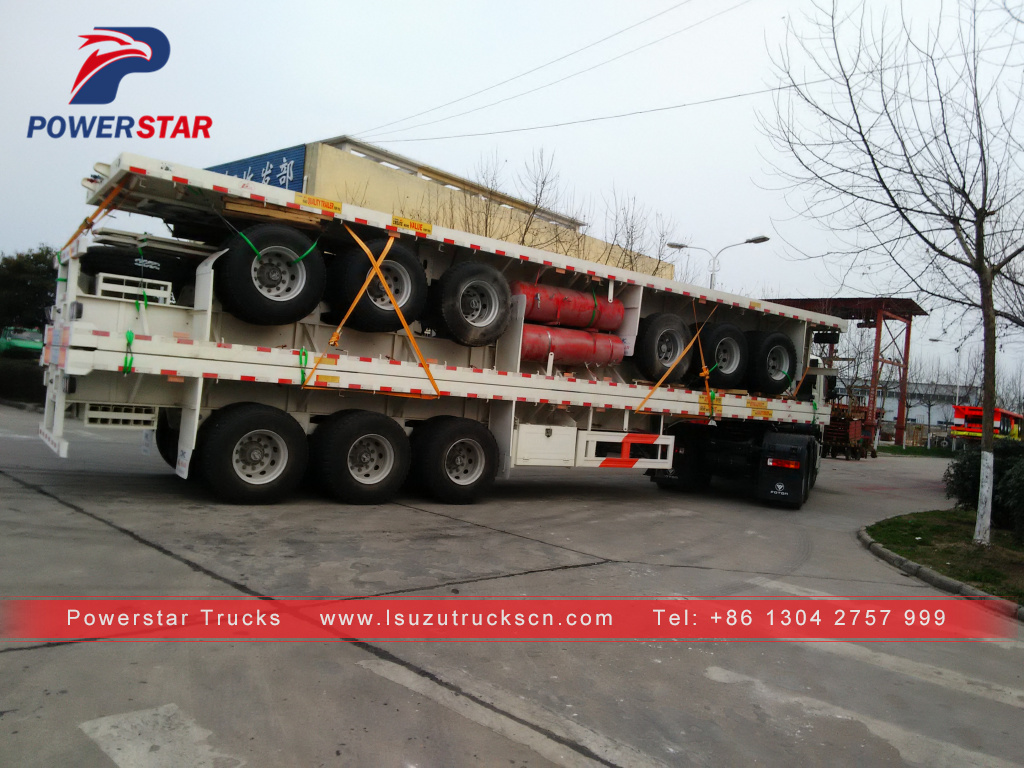

3 Axle 40ft Powerstar Container Flatbed semi trailer
Applications:
3 Axle 40ft Flatbed Semi trailer (also called Tri axle container flatbed trailer, 3 Axle flatbed semi trailer with spring suspension,Cargo flatbed semi trailer, Platform truck semi trailer, Customer made container semi trailer) are widely used to carry 20 foot and 40 foot ISO shipping containers.
As one of the featured products of Powerstar truck, our flatbed trailers have earned reputation for reliable quality from world-wide customers.
Key Features:
---- 15 years Manufacturer experience.
---- Payload: 20ton, 30ton, 40ton, 60ton to 100ton.
---- Export to More than 70 Countries or Area.
---- Certificate: ISO9001, COC, PVOC, CIQ, SONCAP, BV, FORM E.
---- Quickly delivery to Worldwide.
Specifications:
Type:
|
3 Axles Flatbed Trailers
|
Model:
|
PST9403TJZP
|

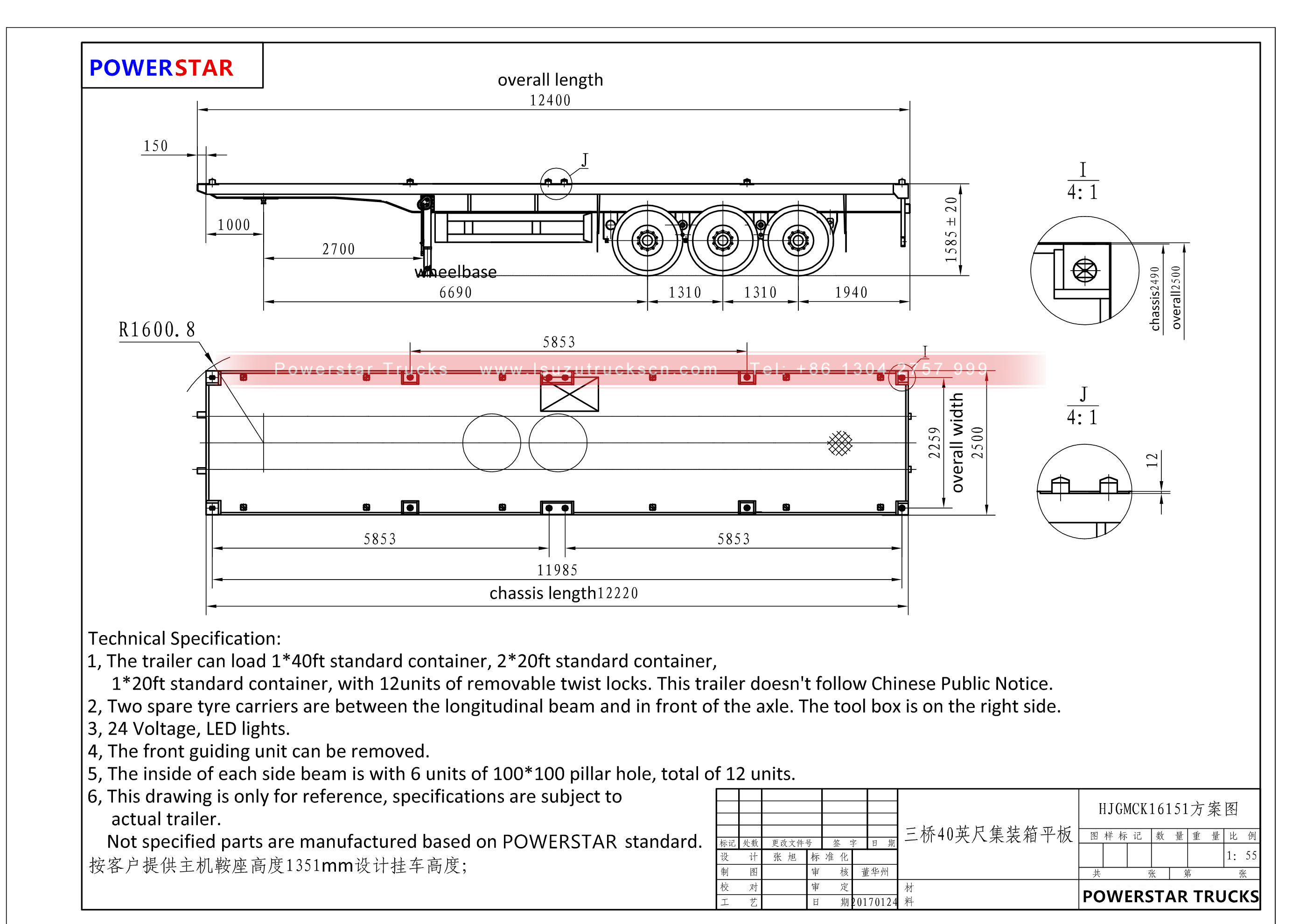

Dimension:
|
Size:
|
12,500*2500*1500mm
|
Weight:
|
Payload:
|
50 Tons
|
Tare weight:
|
Approx. 7450kg
|
G.V.W.R.:
|
Approx. 53,000kg
|
Frame & Structure:
|
Main beam:
|
Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness 14mm
|
Side beam:
|
14# channel steel
|
Platform:
|
2.5mm thick chequer plate with supporting channel
|
Cross beam:
|
80*40mm square tube
|
Kingpin:
|
JOST 2” or 3.5" SAE Kingpin, bolted in type
|
Twist lock:
|
No
|
Welding standard:
|
All welding are to be done by qualified welder per applicable national standard
|
Painting:
|
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um
|
Running gear:
|
Suspension:
|
Germany type mechanical suspension, leaf spring 13mmx90mm, China
|

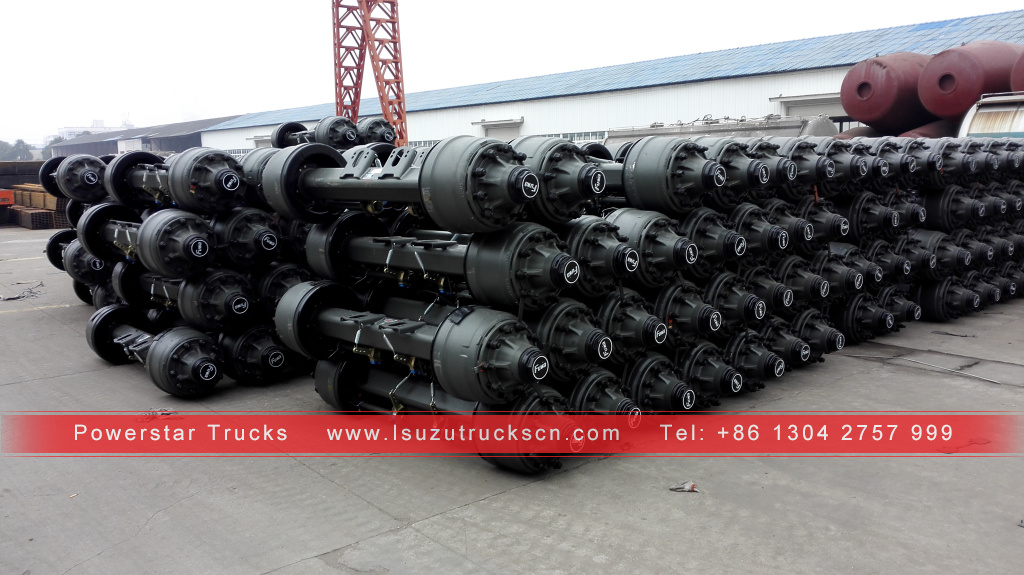

Axle:
|
FUWA 150x150 square beam axle, 3pcs*13 ton capacity, China
|
Brake system:
|
Dual line pneumatic brake, SAE hose and connector
|
Brake chamber:
|
4 units T30/30 spring brake chambers, 2 units T30 brake chambers
|
Air tank:
|
40L, 2 pcs, China
|
Emergency relay valve:
|
Wabco relay valve
|
Tire:
|
Triangle brand, 12R22.5, 12 pcs. China
|
Rim:
|
9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China
|
Landing gear:
|

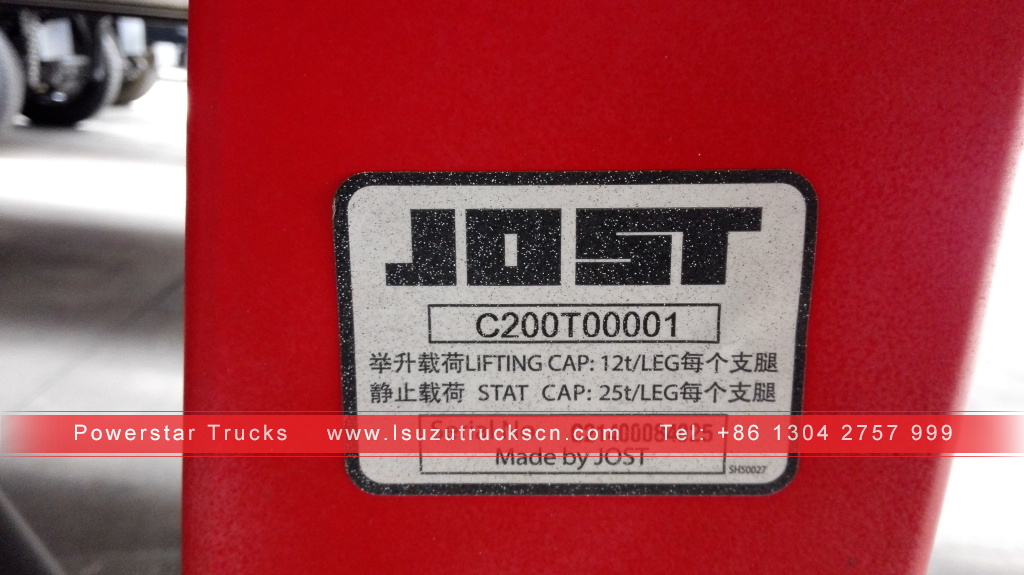

JOST C200 two speed telescopic manual landing gear
|
