China suppliers sewage suction truck vacuum tank trucks for sale

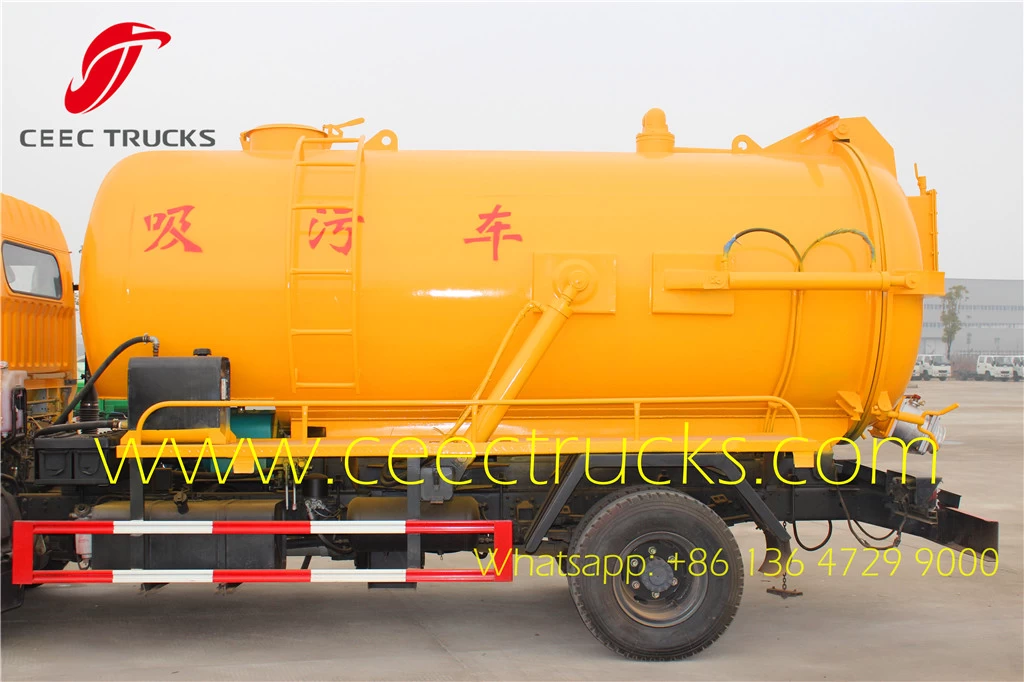

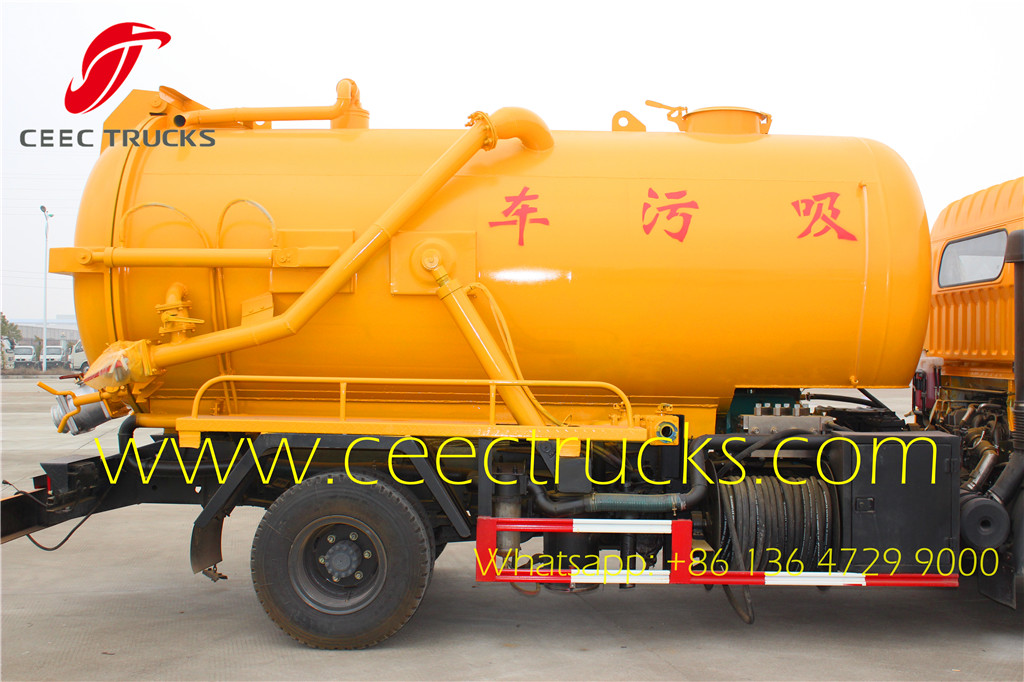

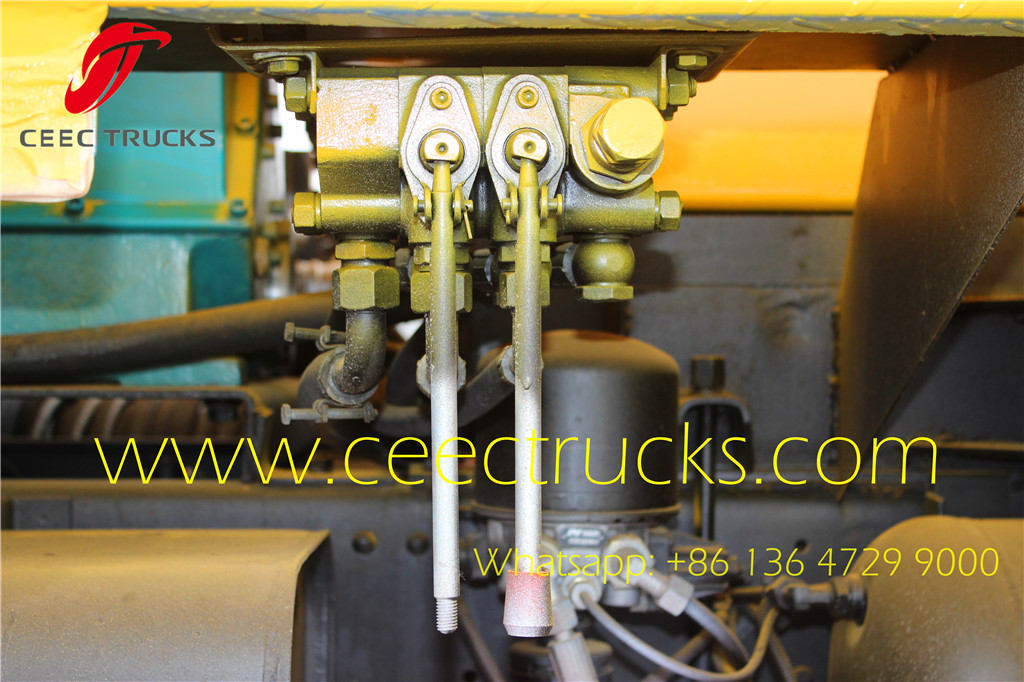

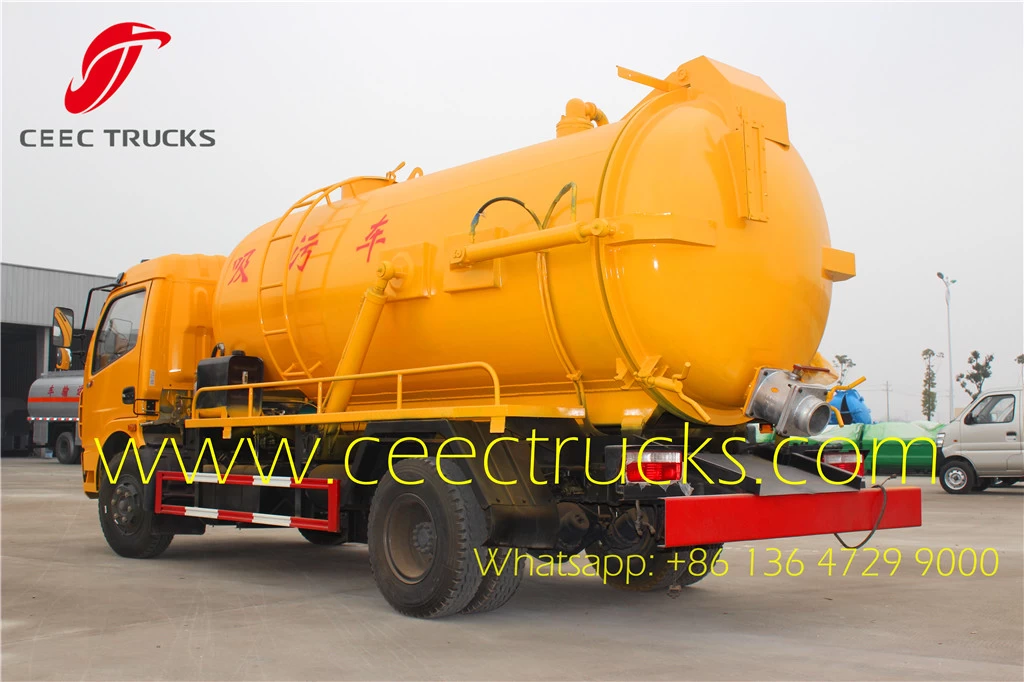

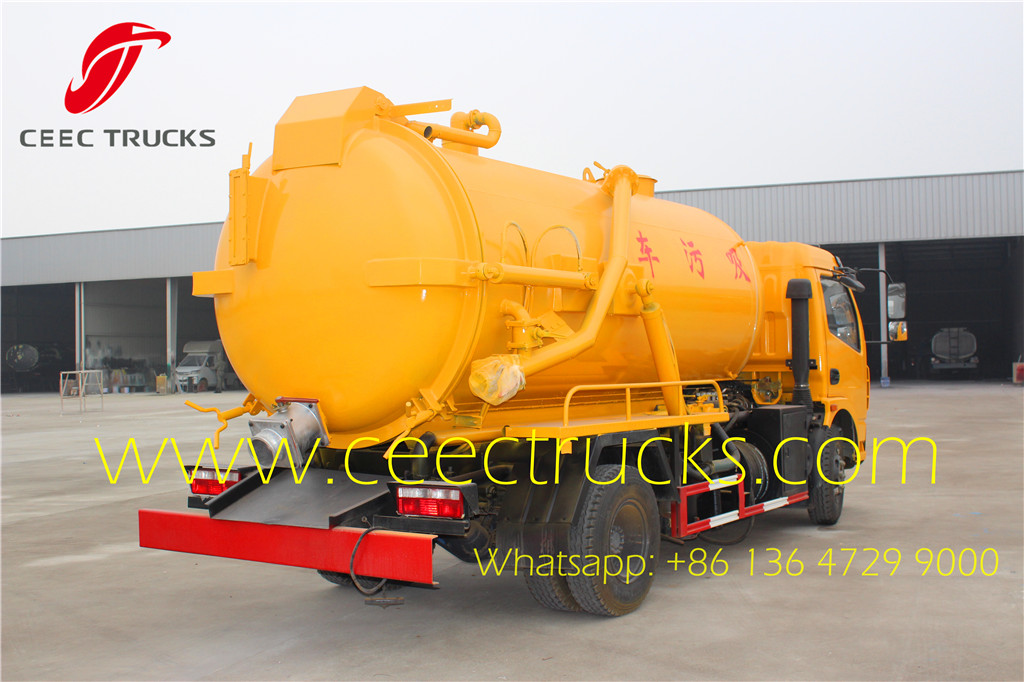

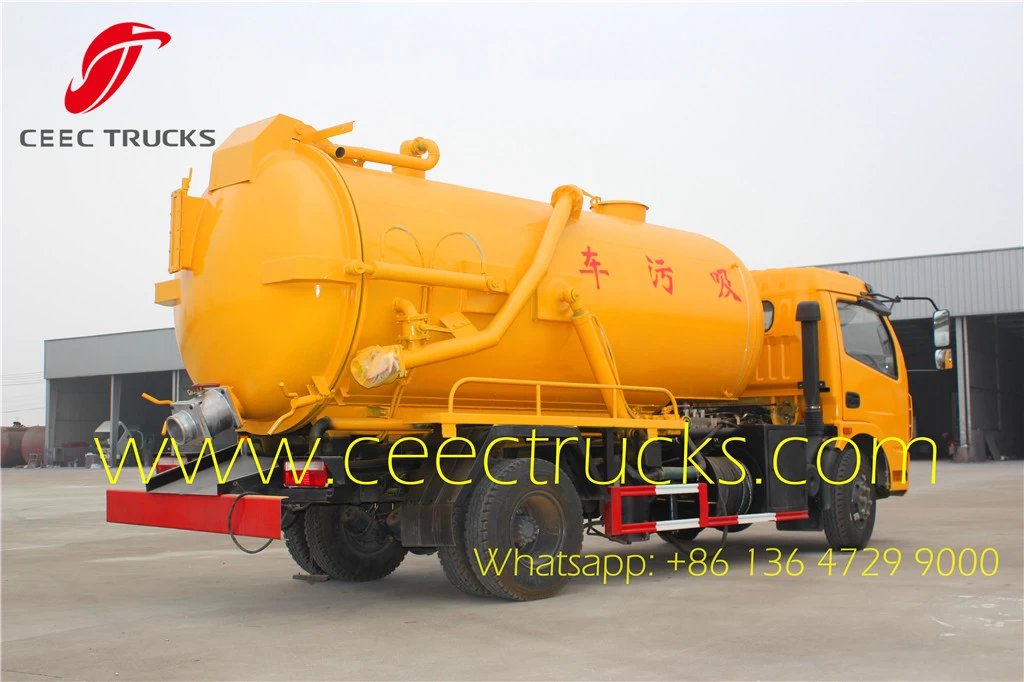

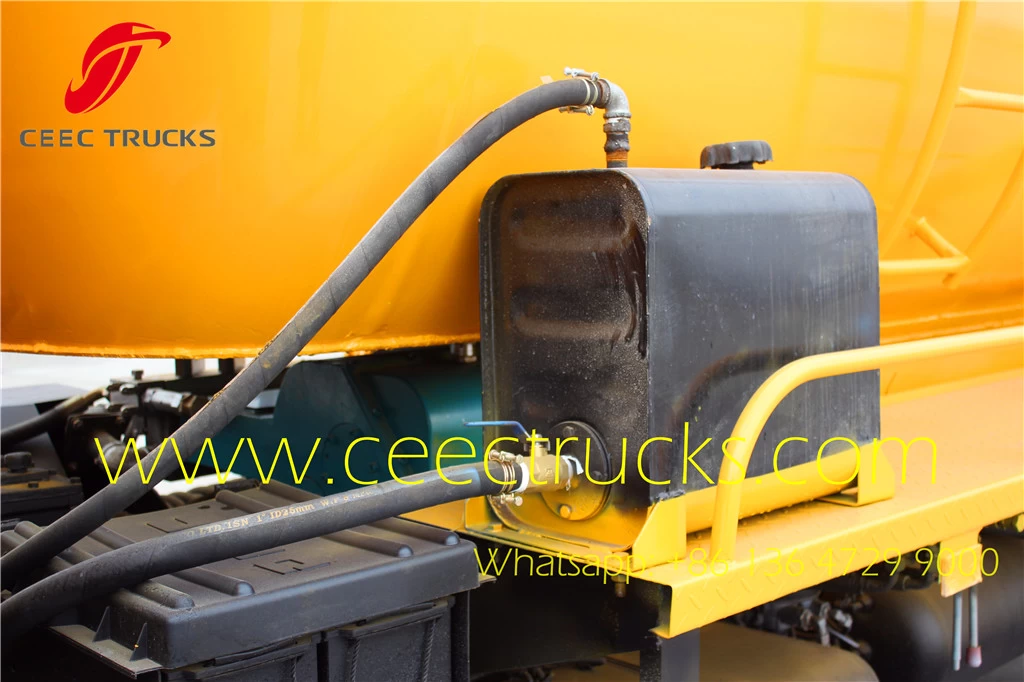

The vacuum sewage suction tanker truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
Advanced features for CEEC TRUCKS produced vacuum sewage suction tanker trucks:
1. Model: we have sewage suction truck and sewage suction cleaning truck;
2. Drive model: 4*2, 4*4, 6*2, 6*4, 8*4;

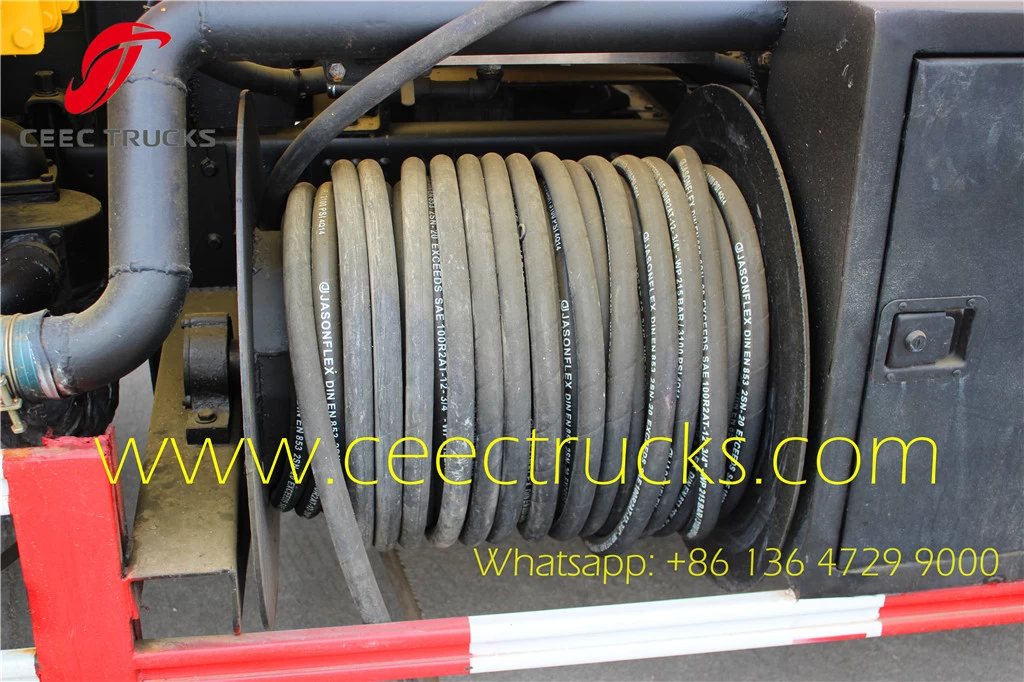

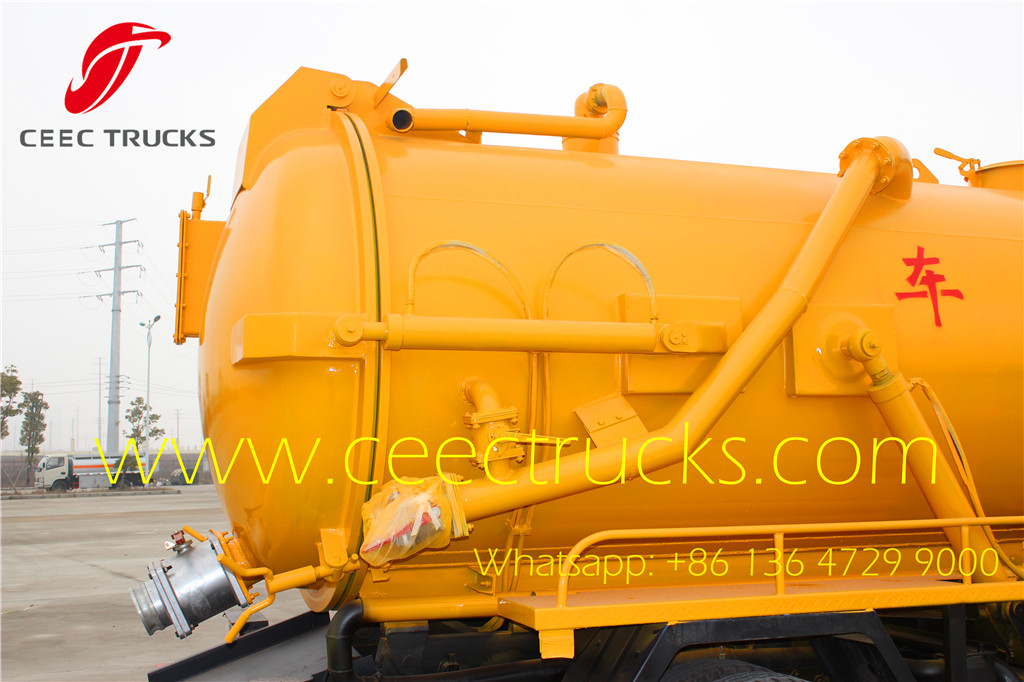

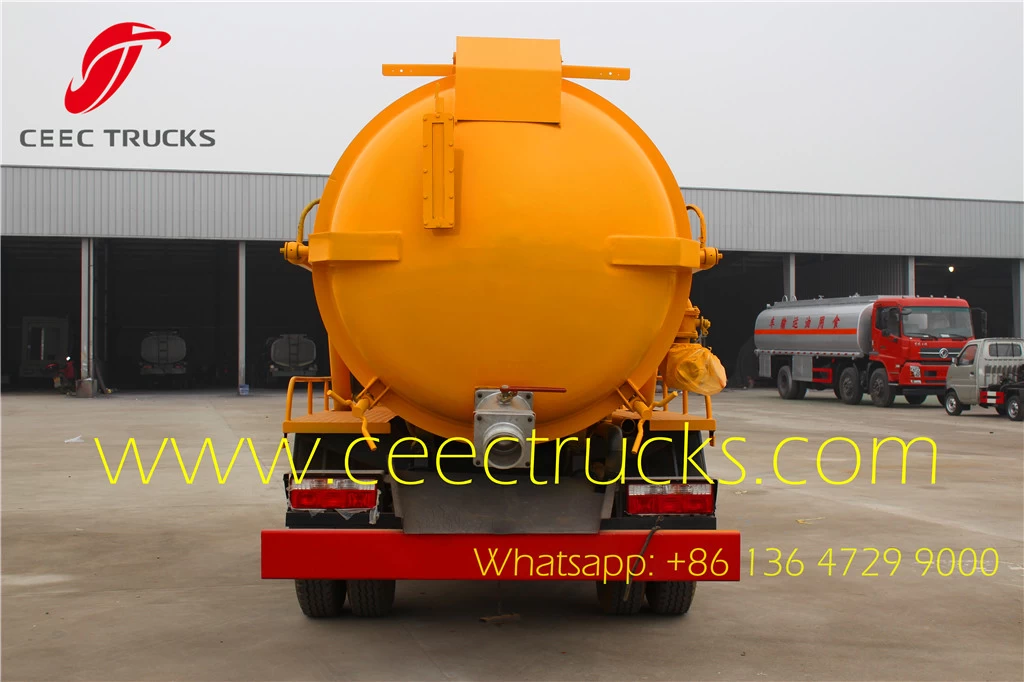

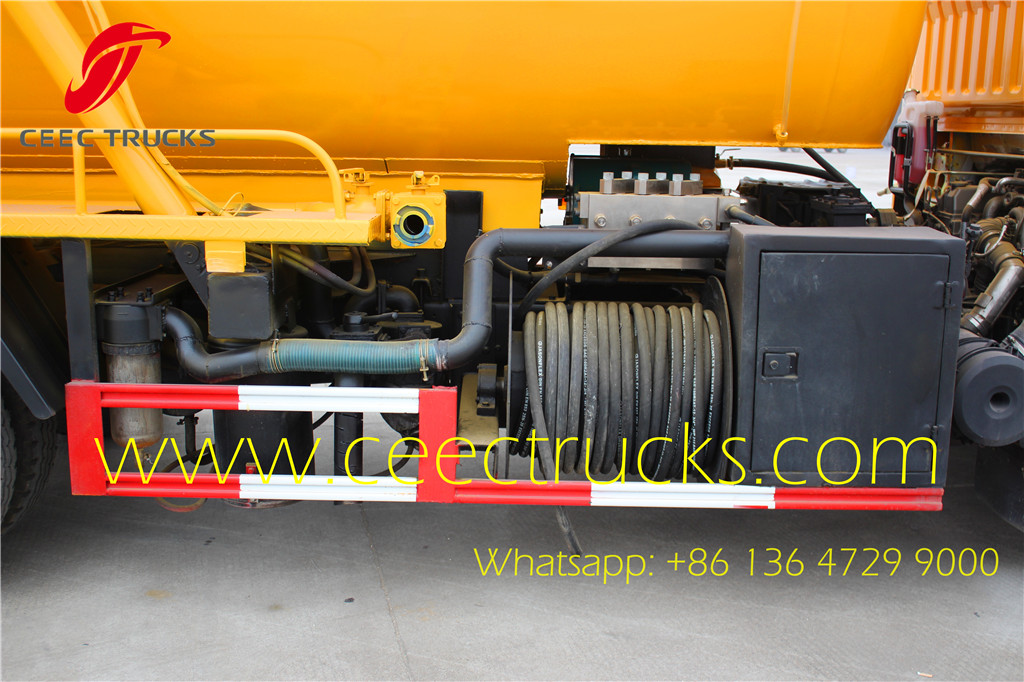

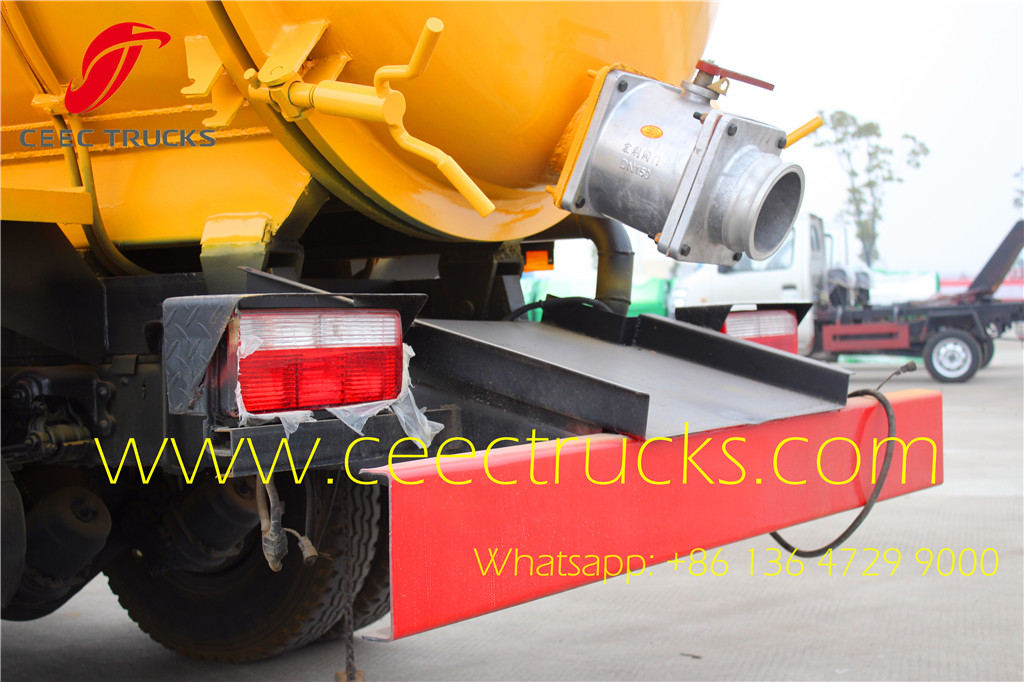

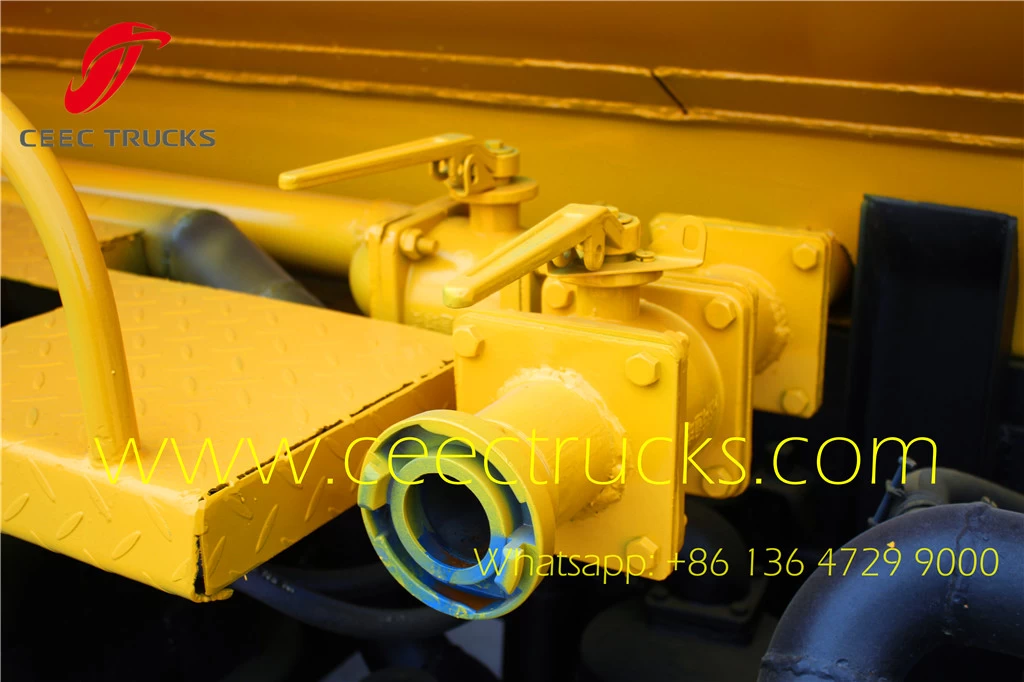

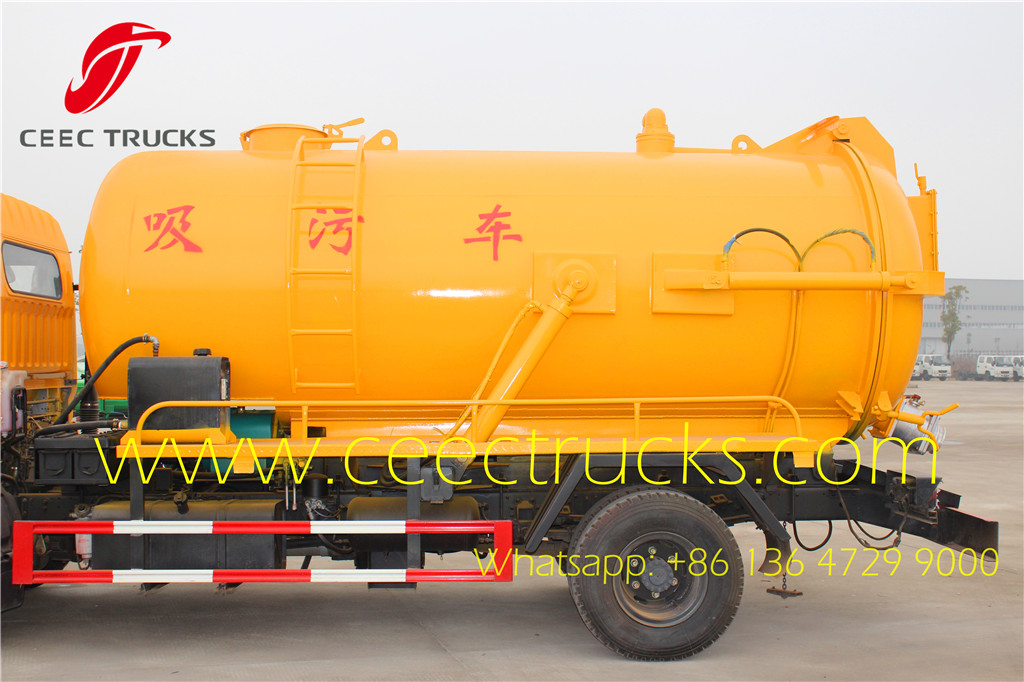

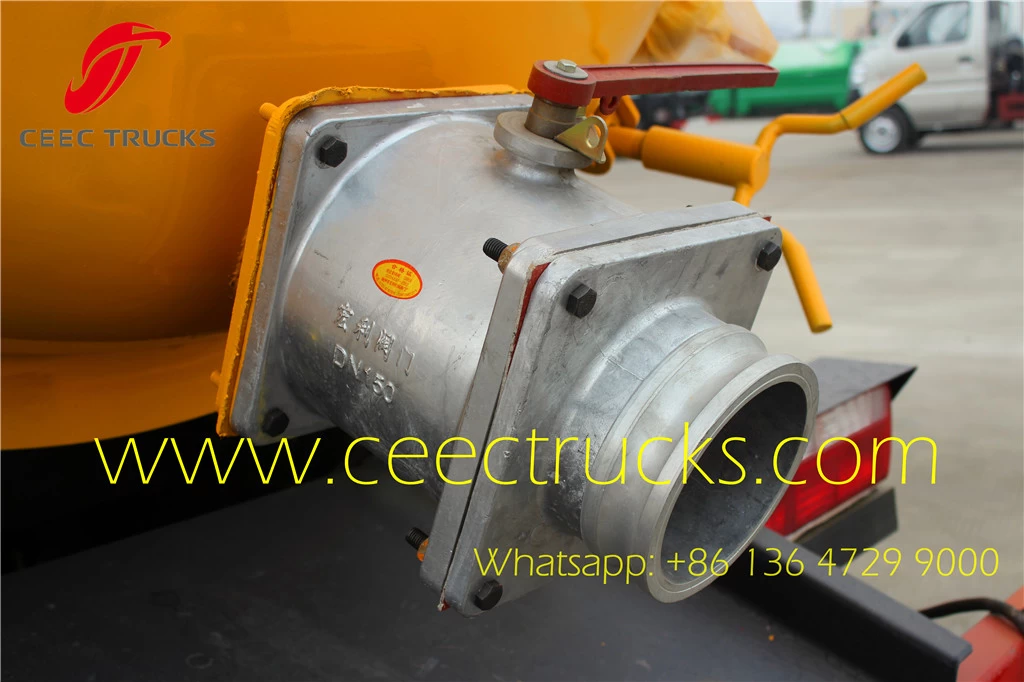

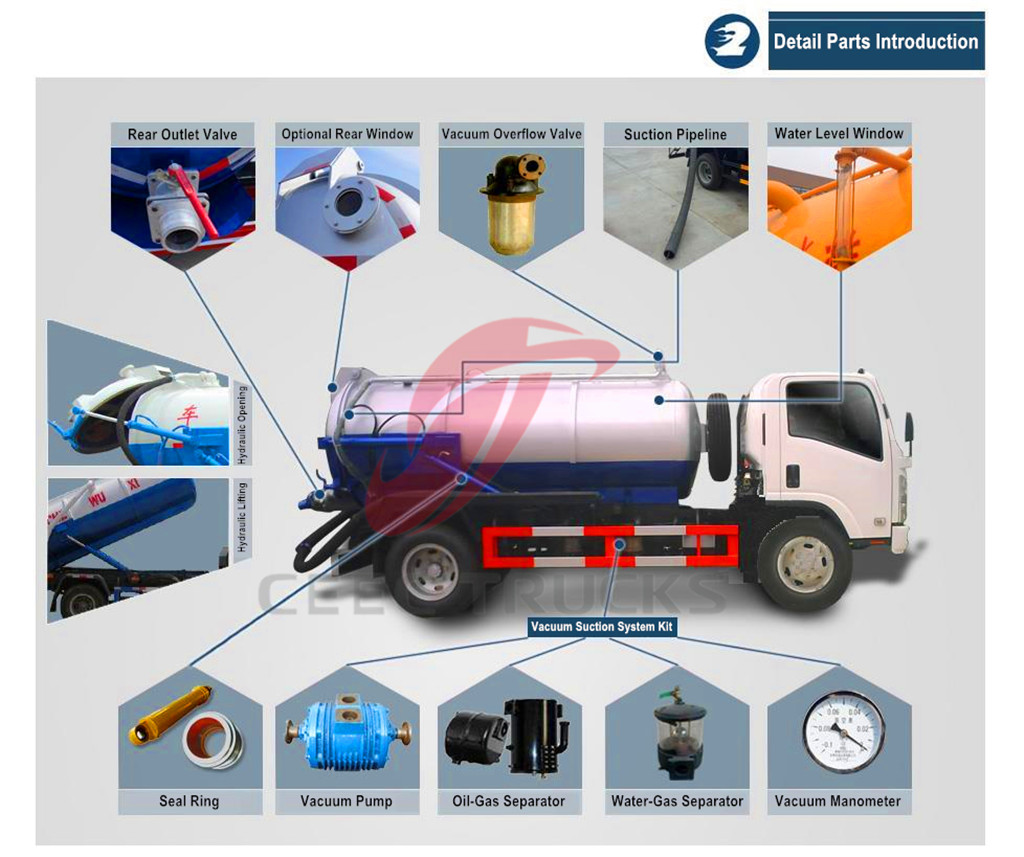

3.Equipments: round tank with material of carbon steel, high-power vacuum pump, dump body, back cover can be opened by hydraulic, back cover equipped with self-flowing hole and special valve, suction height can be 5-8 meter, equipped with special sewage suction pipe;
4. Tank capacity: we have tanks for 3-20CBM;
5. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
Similar Keywords: Dongfeng mini cesspit emptier, 6CBM vacuum suction truck, septic
suction truck, sludge tipper, sewer scavenger, vacuum tank, truck
vacuum, sucker machine, sewage disposal truck, gully emptier, 6000 liters cesspool
emptier, sewer suction truck…
| Commodity
|

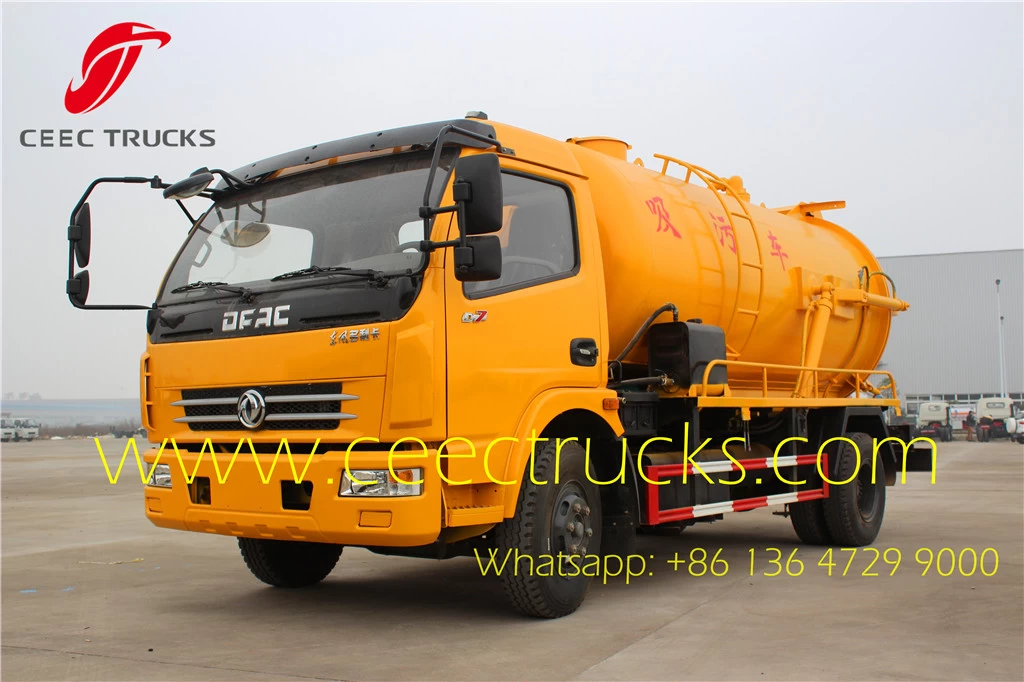

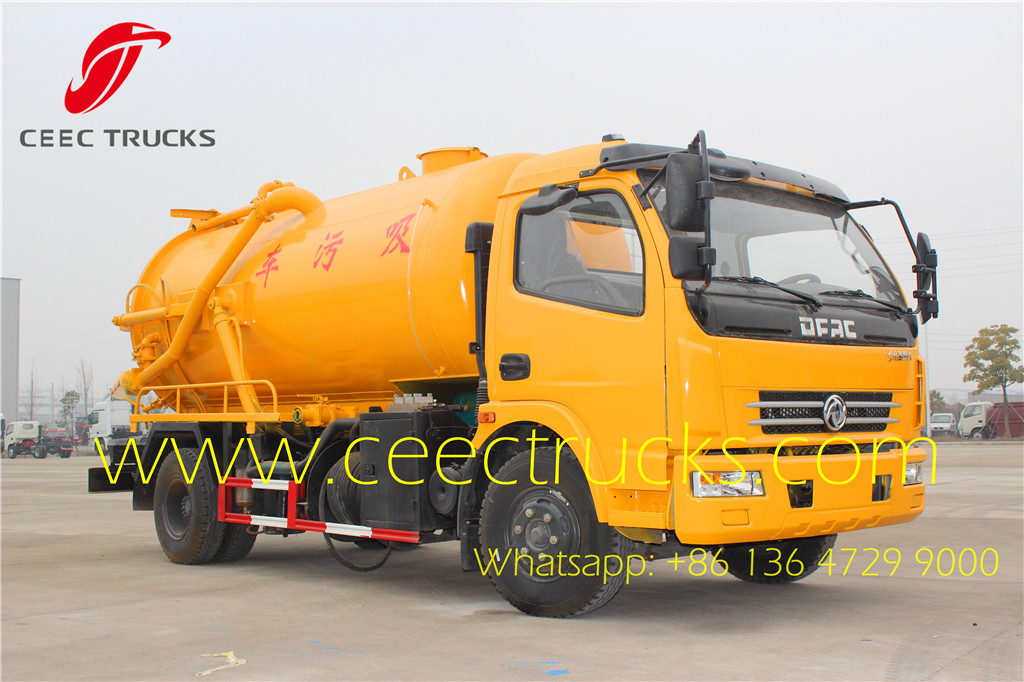

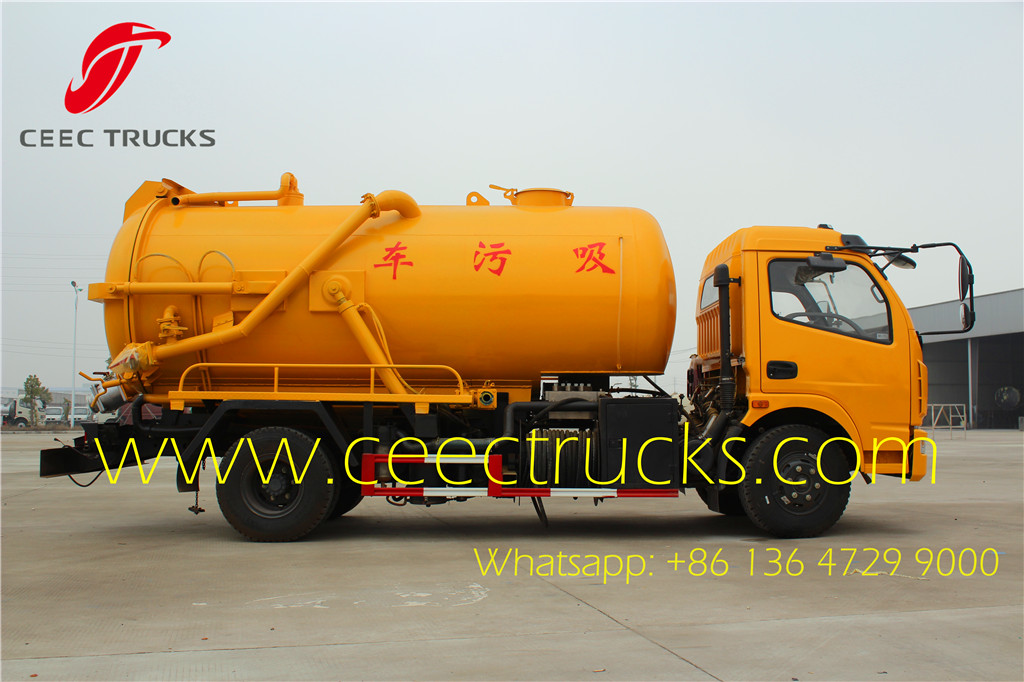

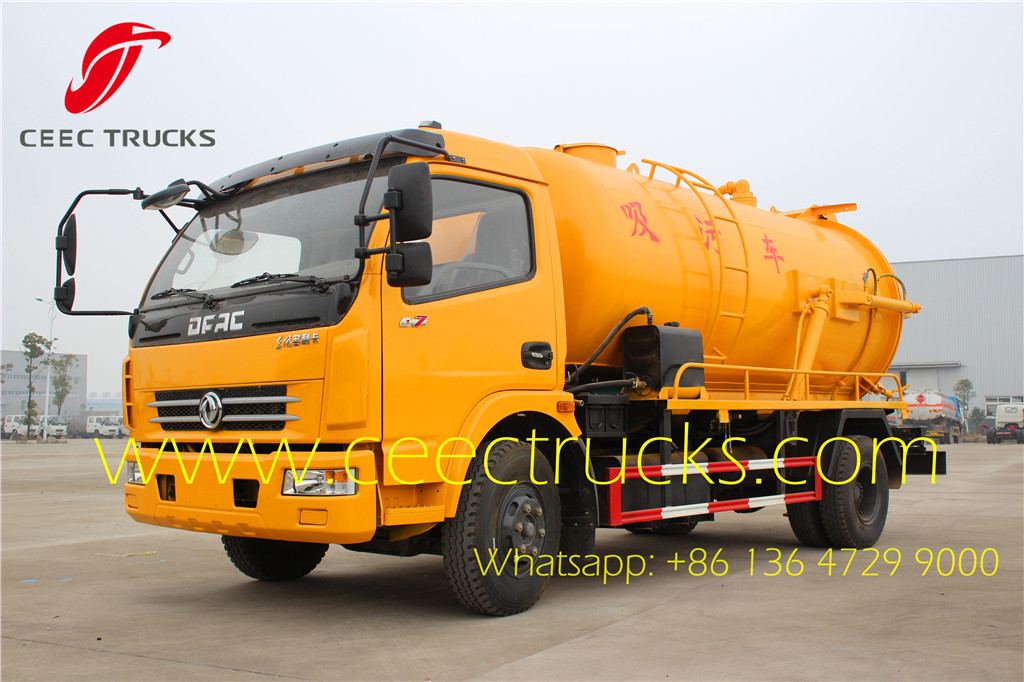

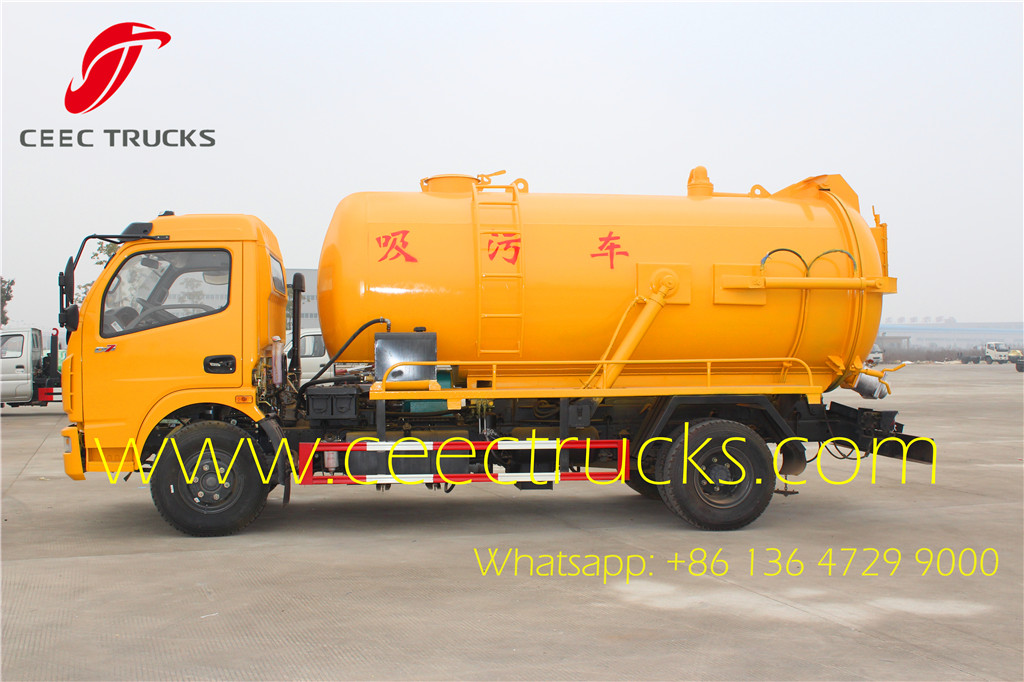

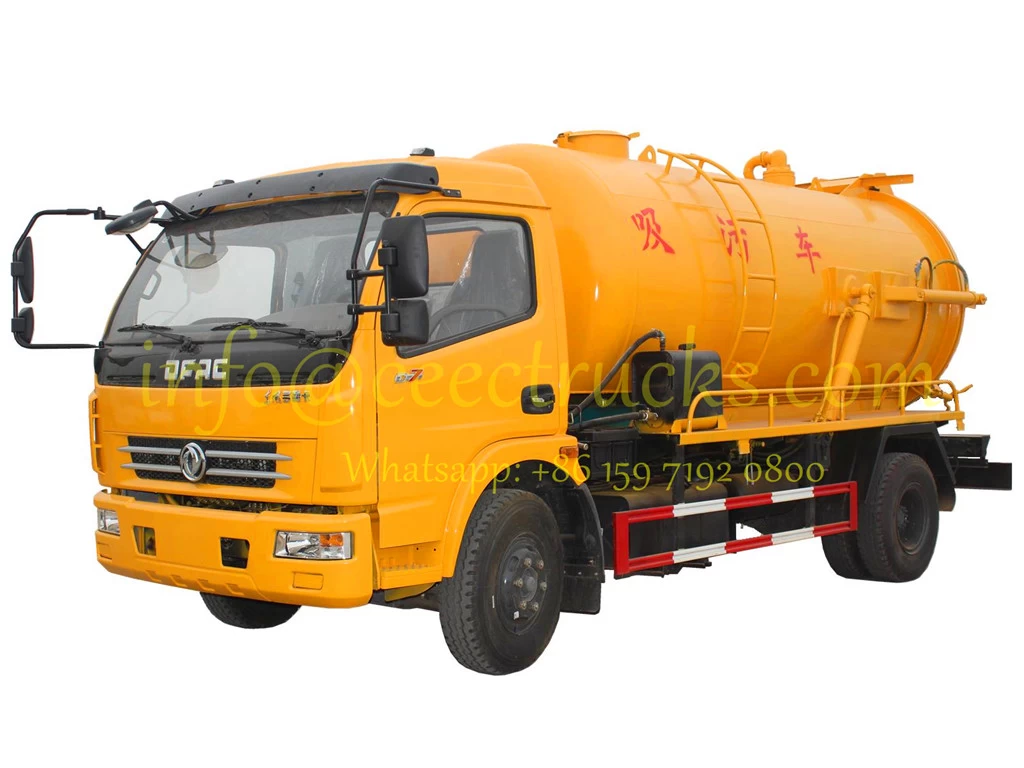

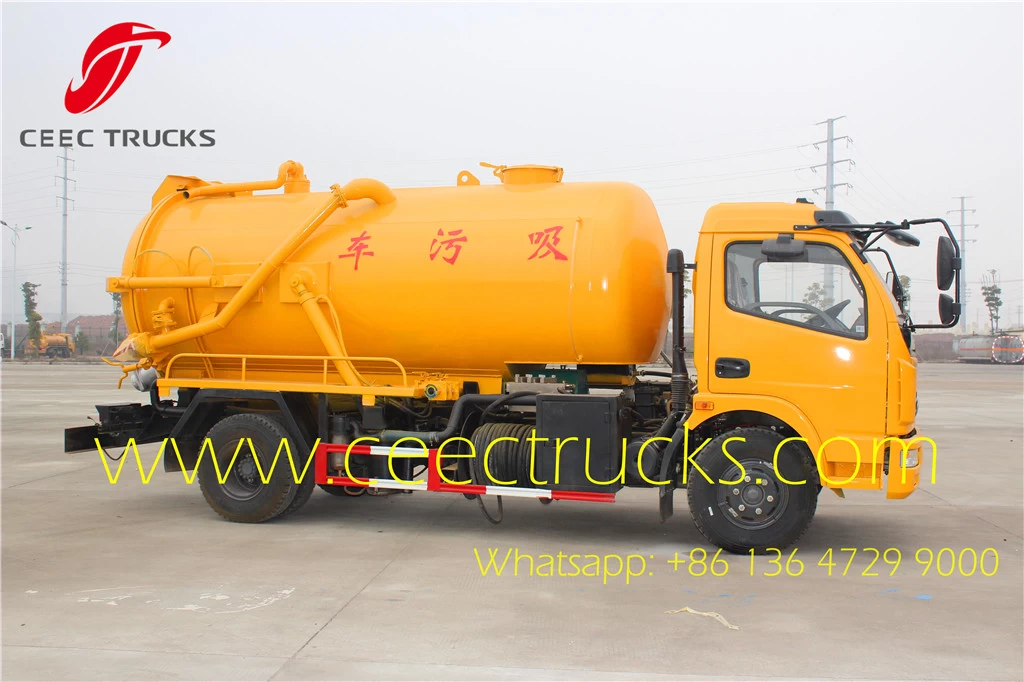

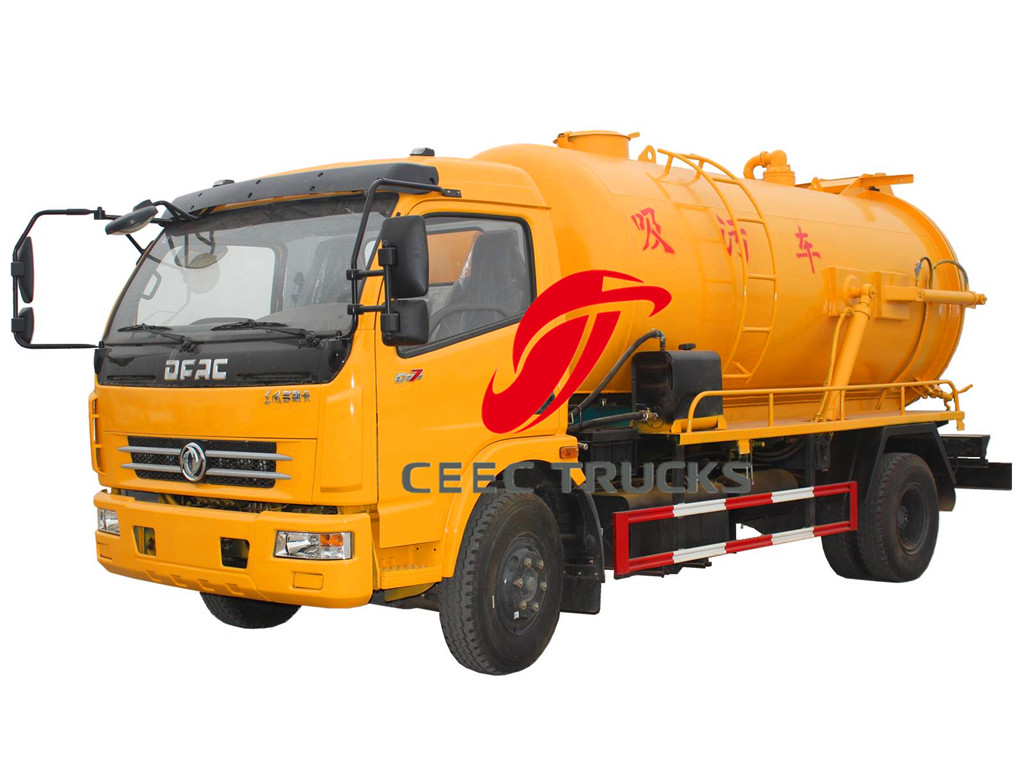

DongFeng EQ1090 Mini Cesspit Emptier (Euro 3)
|
| Chassis
|
EQ1090
|
| Volume
|
6000Liters
|
| Vehicle
|
Overall dimension (length/width/height)mm
|
6500*2200X2900
|
| G V W(kg)
|
6015
|
| Payload (kg)
|
14000
|
| Curb Weight(kg)
|
4505
|
| Fuel Type
|
Diesel
|
| Engine
|
Model
|
CY4102-E3C
|
| Exhaust/Power(kw)
|
3856/88kw(120HP)
|
| 120HP
|
| Manufacturer
|
DongFeng ChaoChai Engine
|
| Type
|
4-in-line water cool Turbo Charge engine
|
| Chassis
|
Drive type
|
4×2
|
| Wheelbase (mm)
|
3800
|
| Air condition
|
Installed
|
| suction system
|
suction pump
|
Single Stage Rotary Oil Seal Vacuum Pump
|
| special parameter
|
Vertical suction heihgt
|
≥8
|
| working pressure
|
8500Pa
|
| rotation speed
|
500
|
| suction speed
|
98L/S
|
| power
|
5.5kw
|
| inlet diatmeter
|
50mm
|
| filling time
|
less than 5s
|
| discharge time
|
Less than 4s
|
