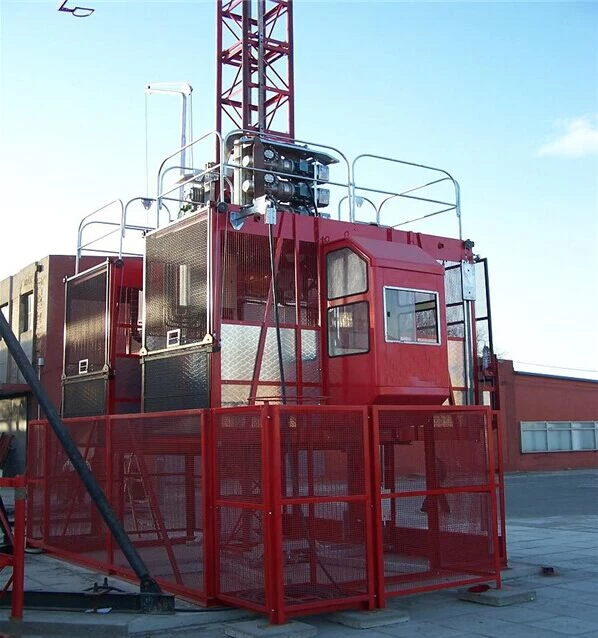

China SC series Rack and Pinion Passenger Hoist
Passenger Hoist
Passenger hoists are widely used at the sites of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry, which is convenient for transport of both material and human.
1. Lifting speed:33m/min
2. Max Lifting height: 150m
3. Start-up current: 270A
4. Working current: 70 A
5. Motor power:3*11kw
6. The recommended cage dimension (L*W*H) ( m) of construction hoist: 2.0*1.0*2.5, 2.5*1.3*2.5, 3.0*1.3*2.5, 3.2*1.5*2.5, 3.7*1.5*2.5, 4.2*1.5*2.5. and The cage Size also can be made according to your reuquirement.
7. Perfect safety device for the hoist, Mainly including: Anti-falling safety device, upper and lower travel limit, upper and lower finial limit, cage door electrical and mechanical interlock device, anti-roof collapse device, anti-doffing safety hook, buffer spring, overloading protective device, etc.
*Standard cage dimension is 3.2x1.5x2.5,other available cage dimension(LxWxH)(m)
2.5x1.3x2.5; 3x1.3x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5;4.0x1.5x2.5;4.2x1.5x2.5 special dimension can be made according to requirement of customer.
* Capacity ,lifing speed etc can be selected according to requirement of customer.
*Standard mast section is 650x650x1508mm,or can be made according to requirement of customer.
*Motor/reducer option:GJJ motor(Chinese);Nord motor special for GJJ(Germany)
*Tie-in type I apply for the height <=150m
*The hoist over 200 meters with counter weight is not recommended
SC series passenger lifts Advantages
1. SC series construction lifts have comprehensive and reliable electrical, mechanical interlock device, safety switches and protection hook interlock switches.
2. advanced progressive anti-crash safety device, a flexible and reliable overload protection devices and advanced computer automatically call-layer devices.
3. simple struction, controller microprocessor, photo-electric signal input
4. have the protective function of preventing illegal operation
5.superior anti-jamming performance
6. electronic calling devices to make the hoists accurately arrive the floor, and increase the work efficiency.
7.paint of cages and mast section process Pickling phosphating, it will be more smooth, and more durable for about 5 years.
8. mast section apply new CNC stamping technology, connection will be more accurate and firm.
We can also supply construction hoist whose dimension of mast section is 800*800*1508mm. There are also inclined and curvilinear styles.
Commercial Terms
MOQ: 1set
Tradeterms: FOB (Qingdao) or as per your request
Theabroad market: MiddleEast, South Asia, Africa, Russia, etc.
Deliverytime: 10-15 days after receiving 30% advanced payment
Termsof Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Package:nude in 1*40"HQ containers for basic height (50m)
Warranty:12 months
Our Service
----timely delivery, in time shipping notice
----1 year warranty of products quality and full set ofspare parts
----training installation, guidance of operation and maintenance
----engineers have rich experience, can solveall your problems
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
