China Suppier Tube Thermostat pool heat exchanger

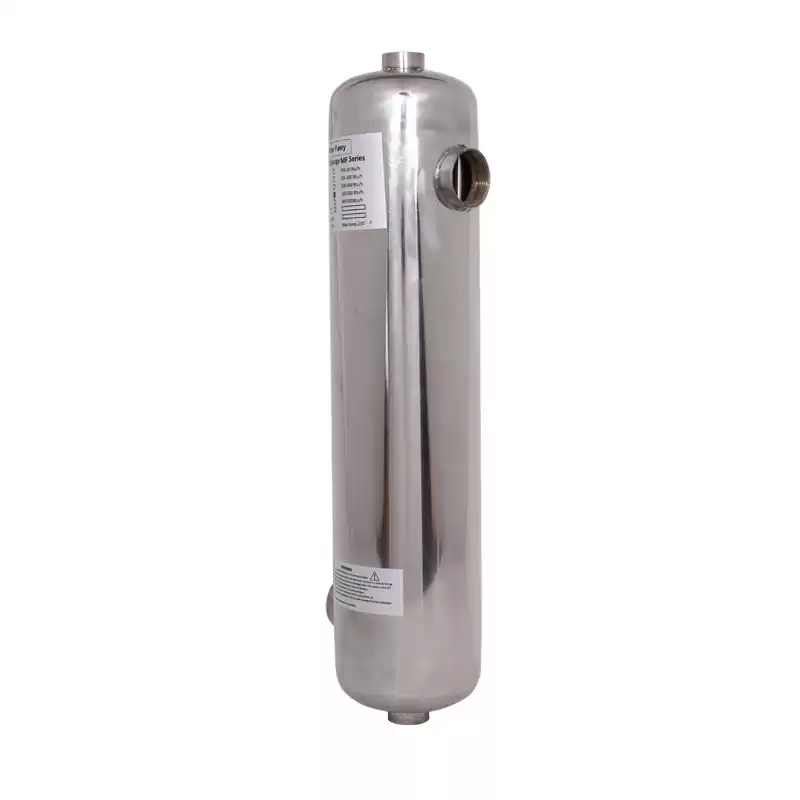

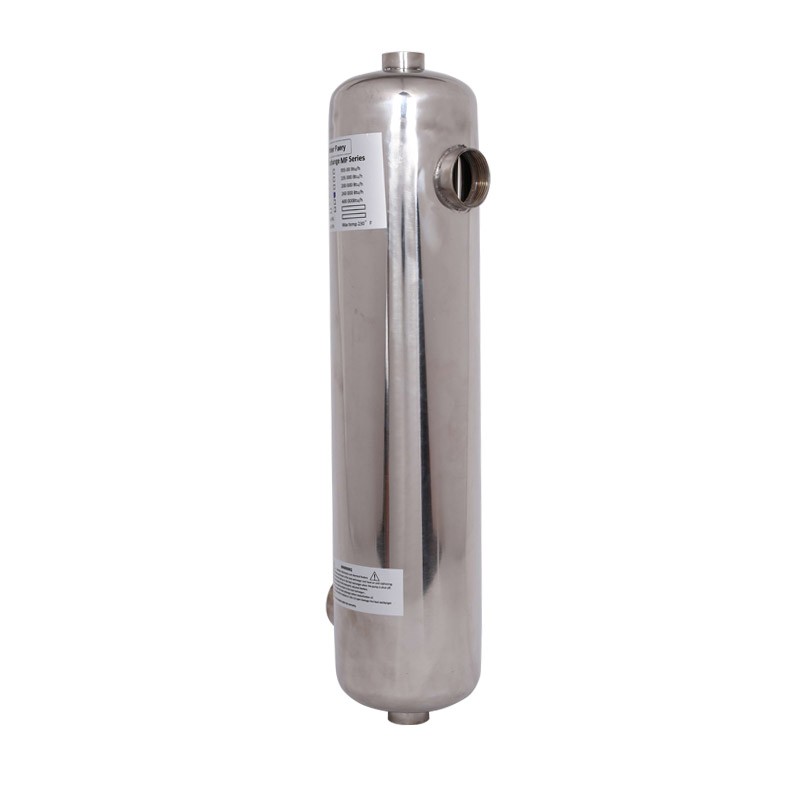

This Tube & Shell Pool Heat Exchanger is perfect for high-pressure setups. The 316 L Stainless Steel Tube and Shell Heat Exchanger’s function by one fluid running through the tube, while another fluid is running around the tube. There is a bundle of tubes inside a shell configuration, hence the name. It's 316 L Stainless Steel welded structure reinforces the strength and high-quality performance, quality matters to us because it benefits you.


  • SizeCustomized
  • MaterialStainless Steel
  • ThicknessCustomized
  • ColorSatinless steel/Black/customized
  • LogoCustomized
  • ApplicationSwimming Pool

China Suppier Tube Thermostat Pool Heat Exchanger

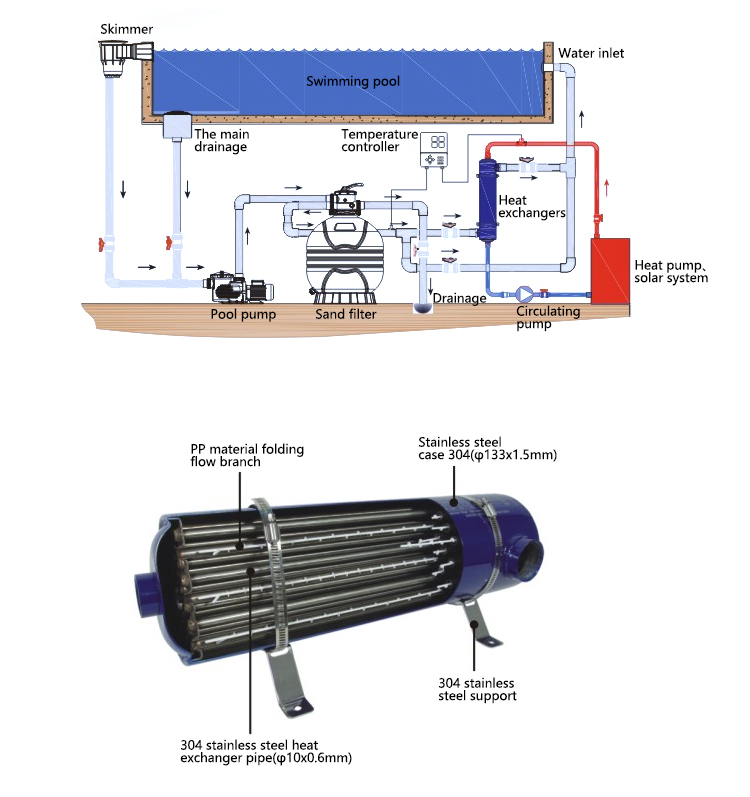

A swimming pool heat exchanger uses hot water from a boiler or solar heated water circuit to heat the pool water. Heat is transferred by conduction through the exchanger materials which separate the mediums being used.Heat exchangers allow heat from a fluid (a liquid or a gas) to pass to a second fluid (another liquid or gas) without the two fluids having to mix together or come into direct contact. The essential principle of a heat exchanger is that it transfers the heat without transferring the fluid that carries the heat.

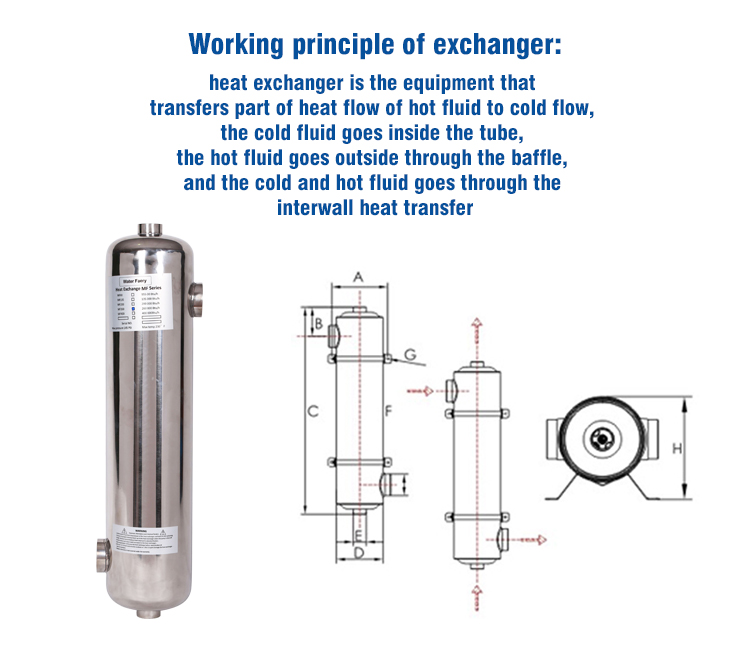

Size of Pool Heat Exchanger:

Model A B C D E F G H
MF80 160mm 75mm 292mm Φ133mm 1‘’ 1.5‘’ Φ6mm 165mm
MF135 160mm 75mm 355mm Φ133mm 1‘’ 1.5‘’ Φ6mm 165mm
MF200 160mm 75mm 485mm Φ133mm 1‘’ 1.5‘’ Φ6mm 165mm
MF260 160mm 85mm 613mm Φ133mm 1‘’ 2‘’ Φ6mm 165mm
MF400 160mm 85mm 1070mm Φ133mm 1.5‘’ 2‘’ Φ6mm 165mm

Pool Heat Exchanger Technical Parameters:

Model Power Weight

Hot Water Flow

(L/min)

Pool flow

(L/min)

KW kBtu/h kg
MF80 28 28 3.5 18 150
MF135 40 135 4.0 25 200
MF200 60 200 5.2 30 250
MF260 75 260 6.4 35 300
MF400 120 400 10.9 50 360

Pool heat Exchange Features:
1. Constructed of high-quality corrosion-resistant stainless steel
2.Specially designed built-in flow restrictor to assure maximum heat exchanger.
3.Designed to minimized pressure loss in the heating system.
4. Compact in size and require a minimum installation space-light weight.
5. Equipment with stainless steel holding brackets

Pool heat exchanger detail:

1. Pool heat exchanger is versatile

  ◆Energy conservation &environmental protection

  ◆Open as soon as hot

  ◆Simple structure



  ◆Continuous operation

2. The product is durable and easy to use

   ◆304 stainless steel



   ◆Corrosion resistance, fast heat transfer eiffciency and rust prevention

3. Tube heat exchanger

   ◆The storage type

   ◆Cold and hot water do not mix with each other





   ◆No pollution, Continuous constant temperature

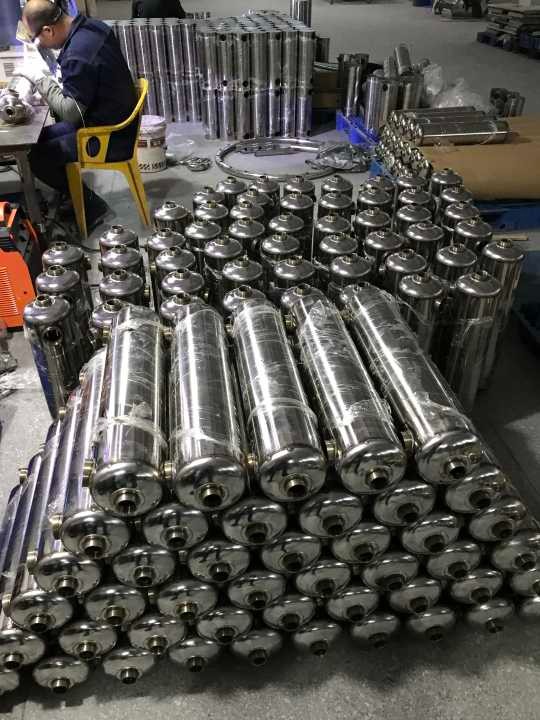

As a professional swimming pool equipment supplier , fenlin provides high quality pool heat exchanger, with strict quality control for the products.Fenlin has a large factory in China, providing you with a wide range of choices, we guarantee to give you first-class product quality and service. High quality pool heat exchanger can be supplied in bulk, shipped directly from the factory, only the factory price
