China Suppiler dimmable lighting power supply
Smarts are in the field of designing and manufacturing innovative LED drivers and triav, 0-10V & DALI dimmable LED drivers for lighting & electrical manufacturers, distributors, wholesalers, retrofit projects, professional lighting chain stores etc..
Specification:
|
Model
|
SMT-012-080VM
|
SMT-024080VM
|
SMT-036-080VM
|
WMT-048-080VM
|
|
Output
|
DC Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Voltage Tolerance
|
±3%
|
|
Rated current
|
0～6.6A
|
0～3.3A
|
0～2.2A
|
0～1.66A
|
|
Rated power
|
80W
|
80W
|
80W
|
80W
|
|
Input
|
Voltage Range
|
100-130VAC/170-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor(Typ.)
|
PF≧0.90/110V / PF≧0.90/220V
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
>88%
|
>88%
|
|
AC Current(Typ.)
|
0.92A/110VAC
|
0.46A/220VAC
|
|
Leakage current
|
﹤0.5mA/110V , ﹤0.7mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Load
|
≦120%
|
|
Over Circuit
|
≦1.4*I out
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
|
|
Others
|
Weight
|
1.1Kg
|
|
Size
|
200*68*46mm（L*W*H）
|
|
packing
|
329*279*176mm/10pcs/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.
2.Tolerance:includes set us tolerance, line regulation and load regulation .
3.The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
|
Mechanical Specification:
※Input with Live Wire(L) Neutral Wire (N)
※Output LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.
※Signal Dimming （DA1）, (DA2） DALI Non polar！Connected to the BUS of the DALI Master.
※ When installing the LED driver and making input and output connections, cross-section area of conductor for input and output terminal block:0.75mm²(cord type: H03VVH2-F or H03VV-F).
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Opreation reference 1:
Opreation reference 2:
■Instruction:
1)This driver should be installed by qualified and professional person;
2)Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation.
3)Ensure that wiring is correct before test in order to avoid light and power supply damage;
4)If driver Cannot work normally, don’t maintain privately; Have any question, please contact: sales1@smarts-electronics.com Thanks.
Dimming Operation

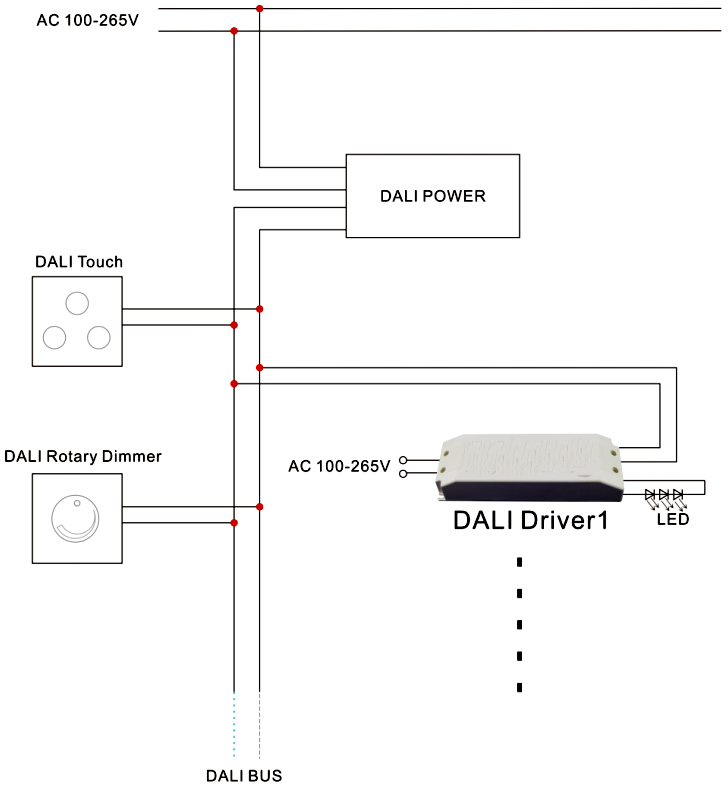

※Connect the Dali signal line to the Dali bus of the controller (the Dali Master).
After Dali Master scanning and address assignment, the driver can be successfully dimmed.
Please refer to Diagram 1
※Notice:In the market, some DALI controllers has bus-powered functions .If not,please add an extra power supply.(DALI Power).
※Any incorrect connecting of signal line and output line would damage the master.
FAQ:
1. If the connection load less than 55% for the load limitation led driver, what will happen?
Answer: If you take our 1.0V triac dimmable led drivers, the led light will have flick problem.
2. Can we make our company information on the label?
Answer:
--As per the policy of ETL/UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..
--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.
