China Supplier 220v/380v Sauna Steam Generator For Sale
Working process of sauna steam generator ：Water is fed into the water tank through a solenoid-controlled valve,which is driven by a water level sensor in the tank.The water supply can be either hot or cold. Cold works fine although a hot supply will allow the steam to build up a little more quickly.The heating element boils the water and generates the steam.As the steam pressure builds up, it passes through the output pipe that is connected to the steam shower or steam room.

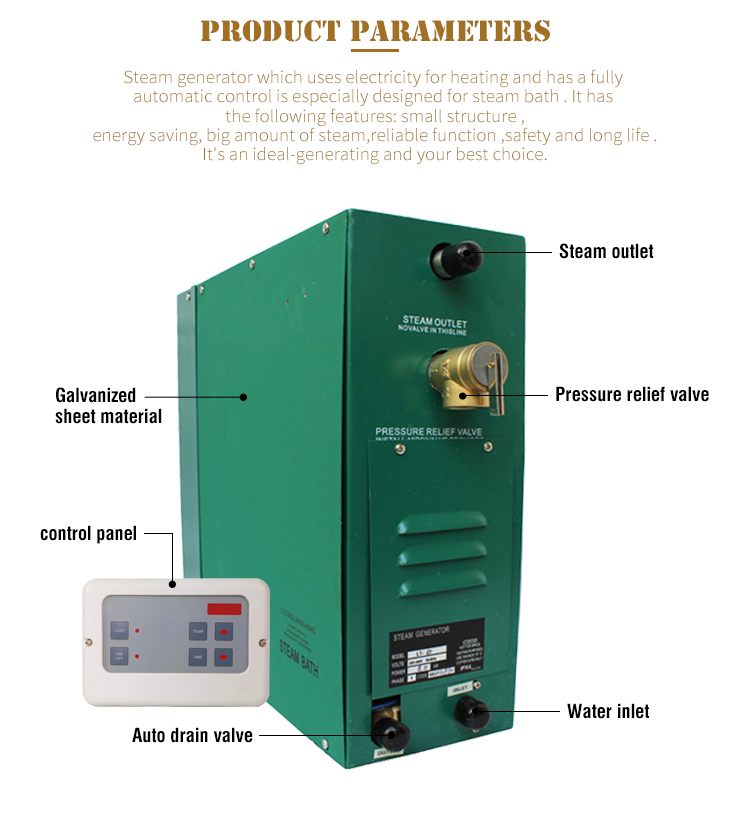

Sauna Steam Generator Product Parameter:
| Model |
Power（KW） |
Voltage（V） |
Current（A） |
Phase（N-） |
Volume（M3） |
Wire（NXmm2） |
Control Type |
| FAN-40 |
4 |
220/380 |
18.2/6.1 |
1/3 |
2.5-5 |
3*4/5*1.5 |
control inside/outside |
| FAN-60 |
6 |
220/380 |
27.1/9.1 |
1/3 |
6-7 |
3*6/5*2.5 |
| FAN-75 |
7.5 |
220/380 |
34.1/11.4 |
1/3 |
9-10 |
3*6/5*2.5 |
| FAN-90 |
9 |
220/380 |
41/13.7 |
1/3 |
10-12 |
3*10/5*4 |
| FAN-105 |
10.5 |
220/380 |
47.7/15.9 |
1/3 |
12-15 |
3*10/5*4 |
| FAN-120 |
12 |
220/380 |
54.5/18.2 |
1/3 |
14-17 |
3*10/5*4 |
Sauna Steam Generator Feature:
AFN/AFNS series is the second generation of making,There are two exterior:power coasting and stainless steel,it kept the sales records until now.
1、Working Time setting :30 minutes to 8 hours
2、Temperature setting: 35-55C (95-131F)
3、Protection of water shortage
4、Over-high temperature protection
5、Auto-draining
6、Light system control
7、Long distance signal transmission,the longest distance can be 50m
8、Over-high pressure protection,prevent tank from expanding,in steam head has been blocked
9、The tank material is 304# stainless steel

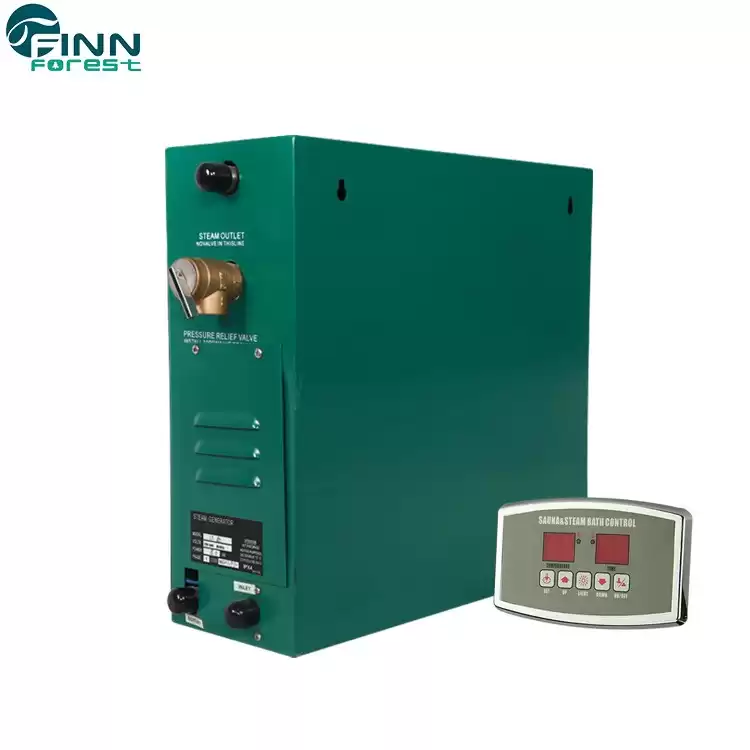

AFN/AFNS Sauna Steam Room is equipped with ST-135M external controller, and its product characteristic are as follows:
1) Time setting: adjustable from 30 minutes to 8 hours
2) Temperature setting: the temperature can be set within the range of 35-55°C (95-131F)
3) Water shortage protection: When the water in the sauna steam generator is less than the safe value, it will automatically stop running to protect the machine from damage.
4) High temperature Baohua to prevent dry burning: the internal temperature of the sauna steam generator is too high, it will automatically suspend operation to prevent the machine from burning out due to excessive temperature
5) Overpressure protection: 1.2BAR pressure safety valve prevents the steam engine port from being blocked and the liner expands
6) Lighting control: sauna steam generator room lighting system control function
7) Long-distance signal transmission: the controller can control the operation of the machine within 50 meters
8) High-quality material: The inner tank is made of high-quality 304 stainless steel and durable thermal insulation cotton
As a professional sauna steam generator supplier , fenlin provides high quality steam generator, with strict quality control for the products, Fenlin has a large factory in China, providing you with a wide range of choices, we guarantee to give you first-class product quality and service. High quality steam generator can be supplied in bulk, shipped directly from the factory, only the factory price
