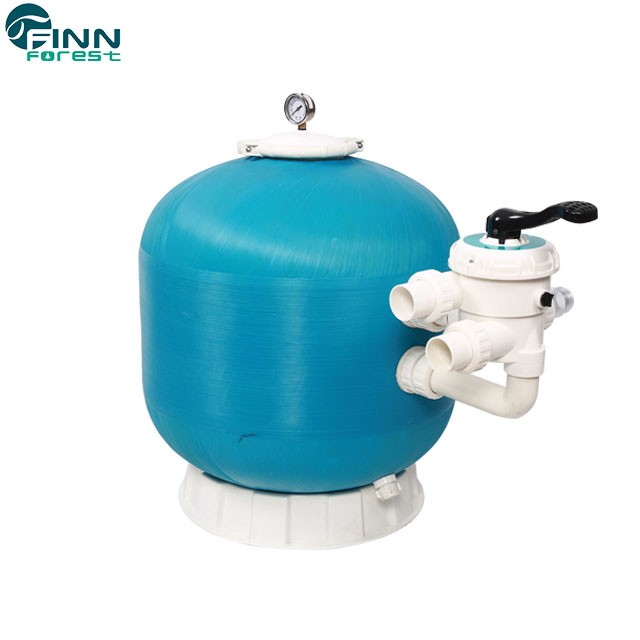

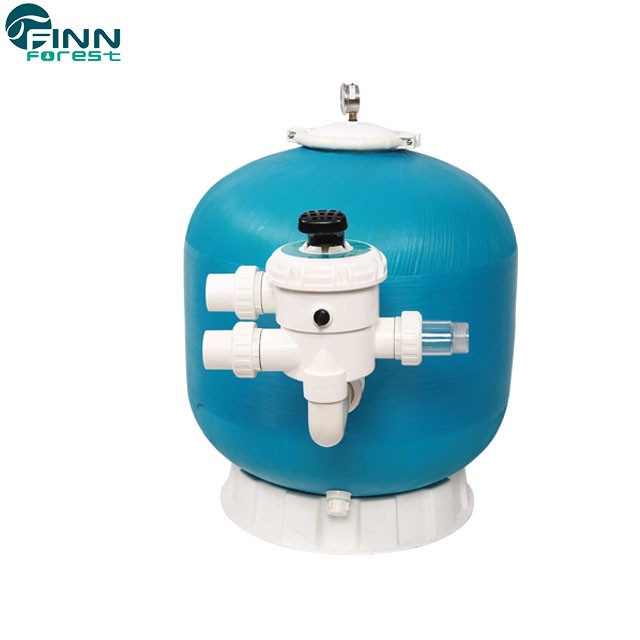

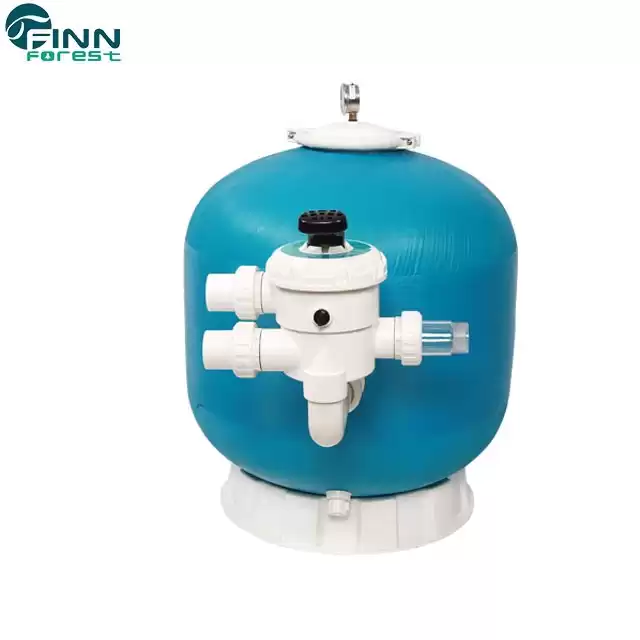

China Supplier Automatic Irrigation Rapid Pool Sand Filter

The pool sand filter is mainly made of advanced glass fiber and polyester, so as to ensure that the Perry filter has a firm structure, is not easy to wear and is durable. The six-position valve of the filter can be used for six different procedures, and it is easy to operate. It can be used with a variety of filter materials, such as filter sand, activated carbon and resin. Especially suitable for water purification, sewage treatment, swimming pools, fish ponds, massage pools, etc.


  • Logo/
  • Thickness/
  • ColorBlue
  • MaterialGlass fiber and polyester
  • SizeFeel free to consult us
  • ApplicationSwimming pool

China Supplier Automatic Irrigation Rapid Pool Sand Filter

The pool sand filter uses a special sand filter to eliminate the tiny dirt in the pool. Sand, as a medium for removing dirt, is filled in the cavity inside the filter. When the control knob is set to the "FILTER" position, the pool water containing suspended dirt particles is pressed into the filter pipeline by the pump, and then guided by the control switch to the outlet of the filter. The pool water passes through a filter, and tiny dirt is captured and filtered by the sand bed. The filtered clean water is returned to the swimming pool through the control switch at the bottom of the filter and then through the pipeline. This whole set of procedures is continuous and automatic, and provides a complete circulation process for the filter and piping system of the swimming pool.

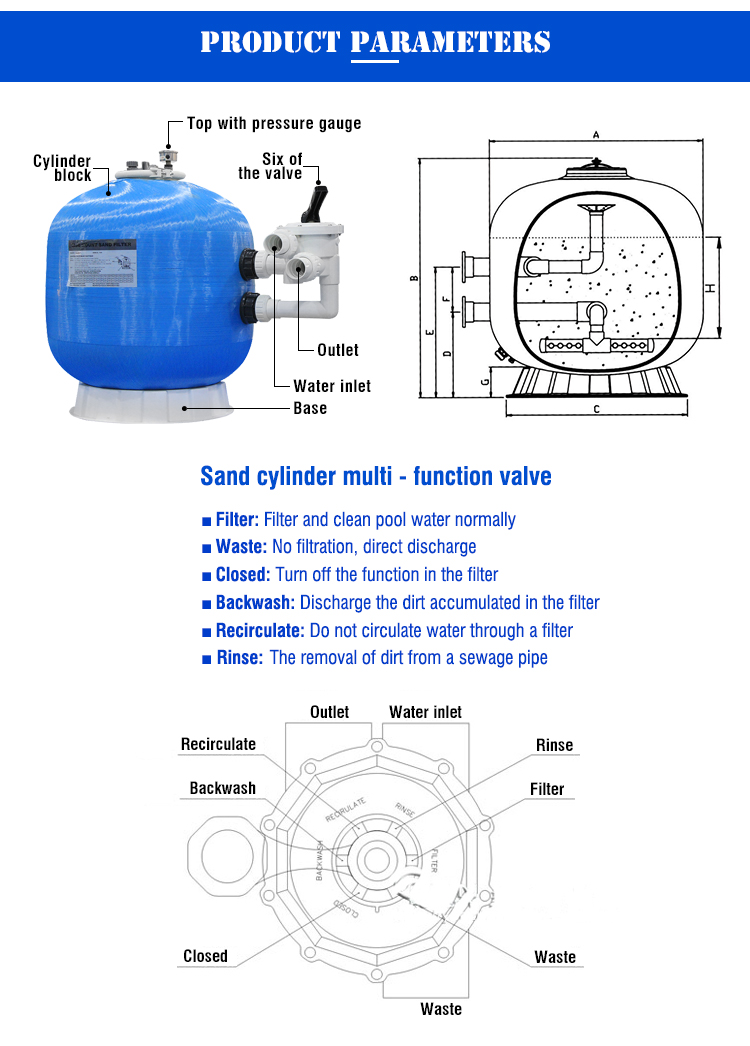

Product Parameters:

Model Melt Water Quantity  Height Valve Size Filtration Area Sand Quantity Flow Rate
Qs450 455 730 40 0.16 40 133
Qs500 535 770 40 0.22 85 192
Qs650 635 850 40 0.33 155 270
Qs700 710 960 40 0.38 185 320
Qs800 820 1050 50 0.50 250 420
Qs900 920 1180 50 0.64 350 500
Qs1000 1020 1220 50 0.79 500 550
Qs1200 1220 1410 50 1.13 700 700

Feature:

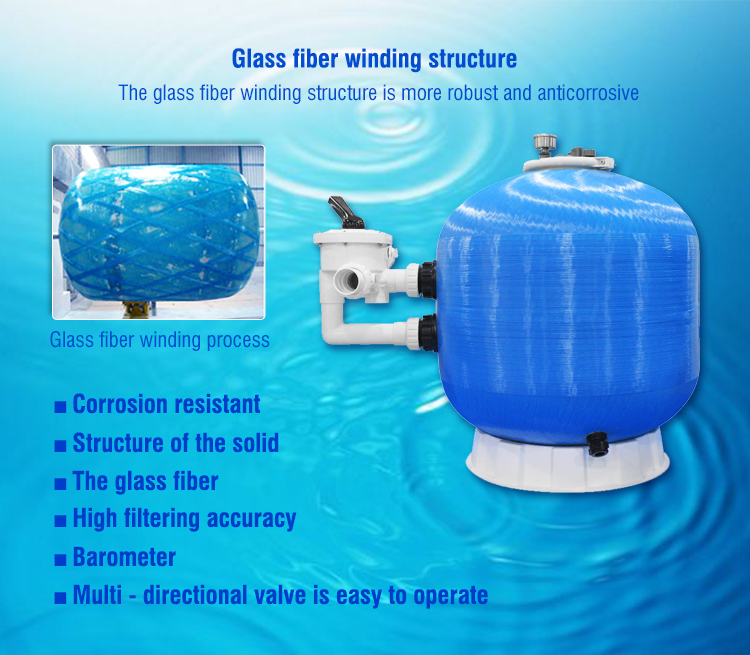

1. Reinforced polyester seamless shell, glass fiber winding spherical structure makes the sand cylinder stronger, and the surface is treated with non-toxicity.

2. Anti-corrosion, anti-wear, anti-UV, anti-oxidation O3, sun protection, general use in sea and fresh water.

3. The unique water distributor and water collector form balanced hydraulic flow, and the culvert drainage system has high efficiency.

4. High filtration precision, good effluent quality and effluent turbidity < <20um.

5. The filtration rate is high, which can reach 10 ~ 50m3/h/m2.

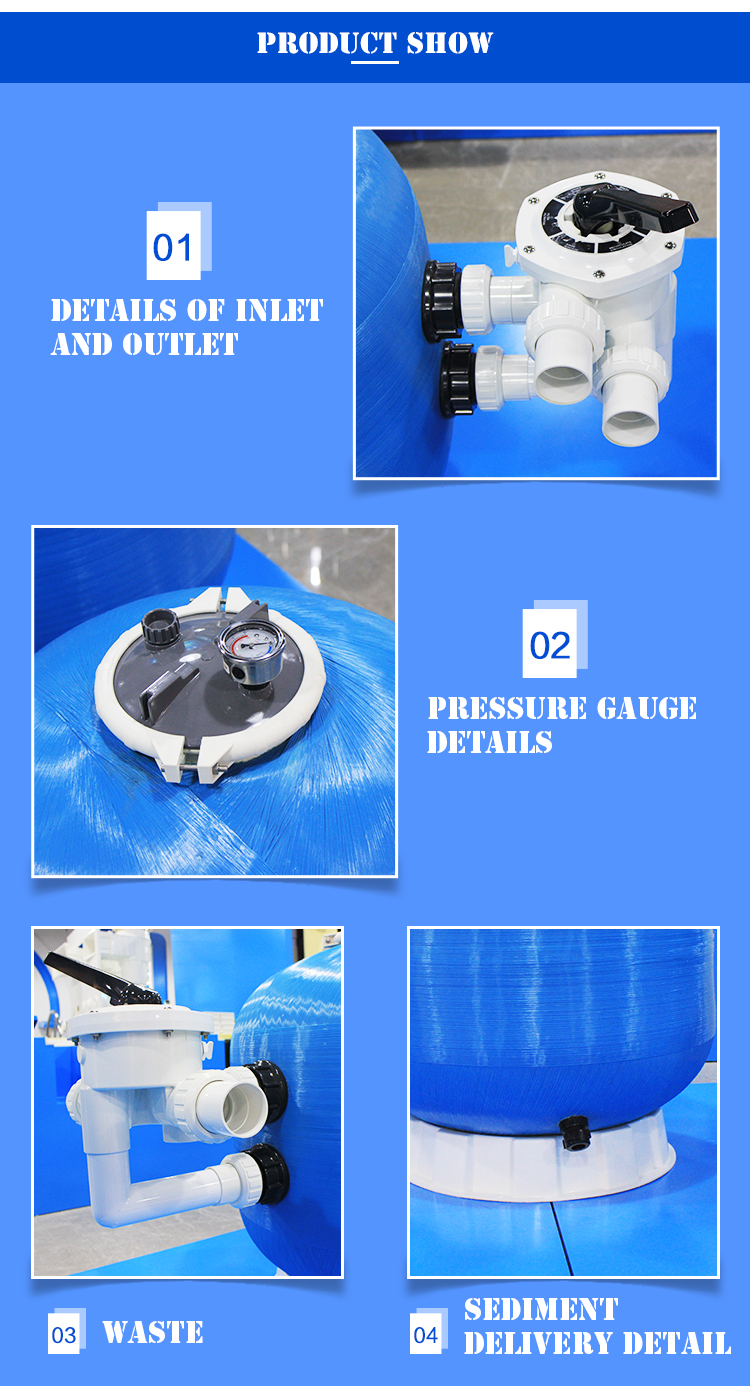

6. Multi-way valve is easy to operate and equipped with transparent sewage pipe to observe the clarity of washing water.

7. Equipped with barometer, manual vent valve and drain valve.

8. Bolts, nuts and various fasteners are made of stainless steel.

9. Fast cleaning, no loss of filter material, simple operation and maintenance, and no damage to the cylinder for ten years.

Scope of application:

1. Purification and filtration of large swimming pools, water parks, massage pools and waterscape projects.

2. Purification of industrial sewage and domestic sewage.

3. Pretreatment of drinking water.

4. Agricultural irrigation water treatment.

5. Seawater and freshwater aquaculture water treatment.

6. High-density temporary cultivation of hotels and aquatic products markets.

7. Aquarium, the life support system of aquatic biology laboratory.

8. Sewage treatment before wastewater discharge in aquatic products processing plant.

9. Treatment by factory circulating water aquaculture system.
