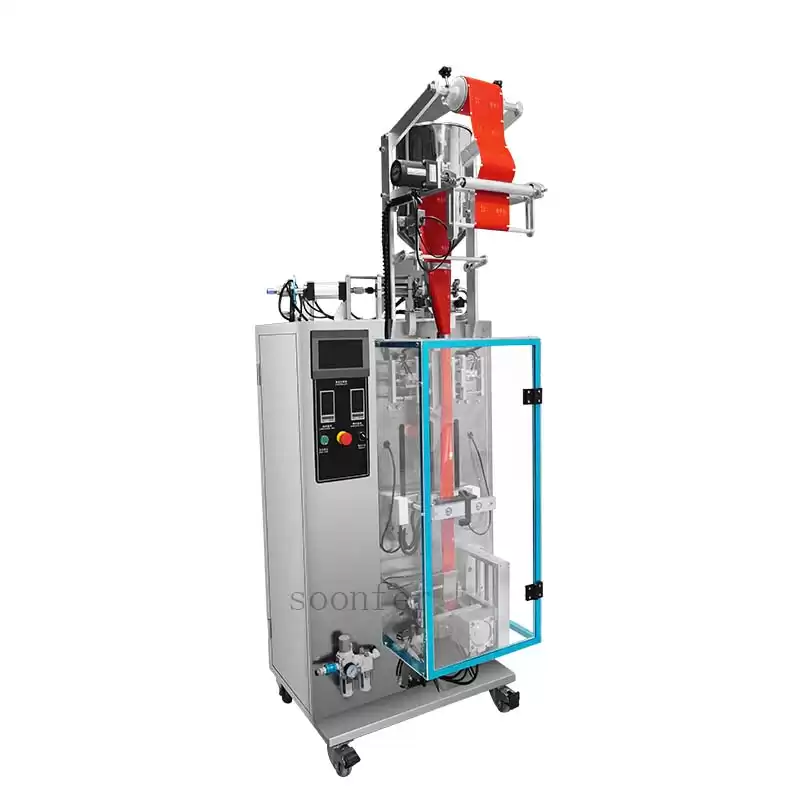

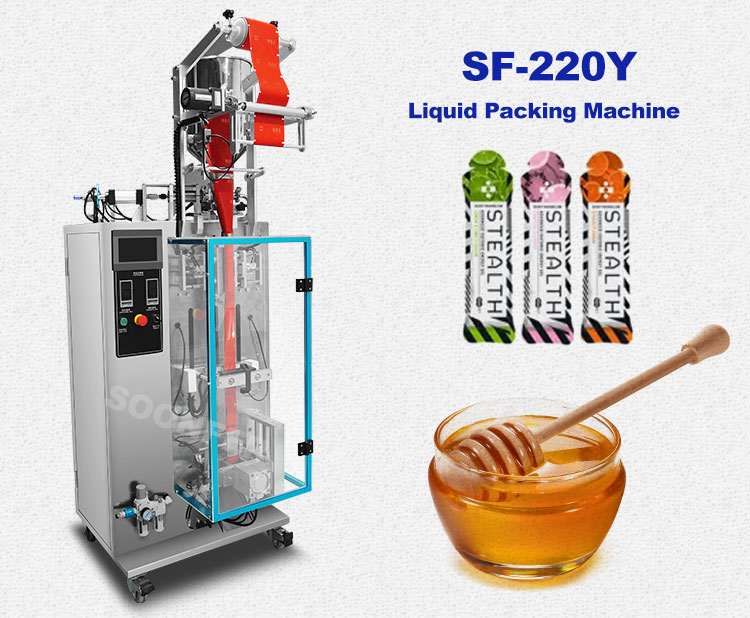

China supplier automatic stick honey fruit juice irregular shape bag pouch sachet filling sealing packing machine

Liquid irregular shape bag packing machine can pack various bag types and high sensitivity photoelectric eye color tracing, more accuracy.




China supplier automatic stick honey fruit juice irregular shape bag pouch sachet filling sealing packing machine


juice packing machine


Application of irregular shape bag liquid packing machine

Widely applied for food, Medicine,  hand sanitizer chemical liquid products such as Ketchup, flavoring, Sauce, Pasty, Shampoo, cream, body wash liquid and so on.

fruit juice packing machine

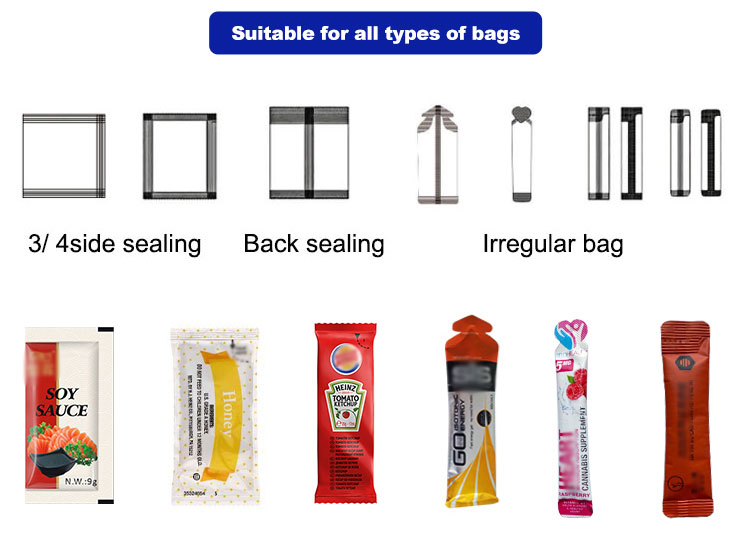

Bag type of irregular shape bag liquid packing machine

shaped pouches packing machine

Specification of irregular shape bag liquid packing machine

Model
SF-220Y

Packing speed

25-35bags/min

Measurement method

Ball valve pump

Power Supply

220V 50Hz

Power

2.5KW

Weight

300KG

Dimensions

L850*W960*H1700 (mm)

Bag size

L)40-160mm (W)35-110mm


Features of irregular shape bag liquid packing machine

1.Weight measuring, bag making, filling, sealing, cutting and bags counting can

be done automatically.

2.Computer PLC control and automatic alarming function.

3. English and Chinese human-machine operation interface, it is easy to operate,

high degree of automation.

4.Famous brand components, ensure the quality and durability of the machine.
