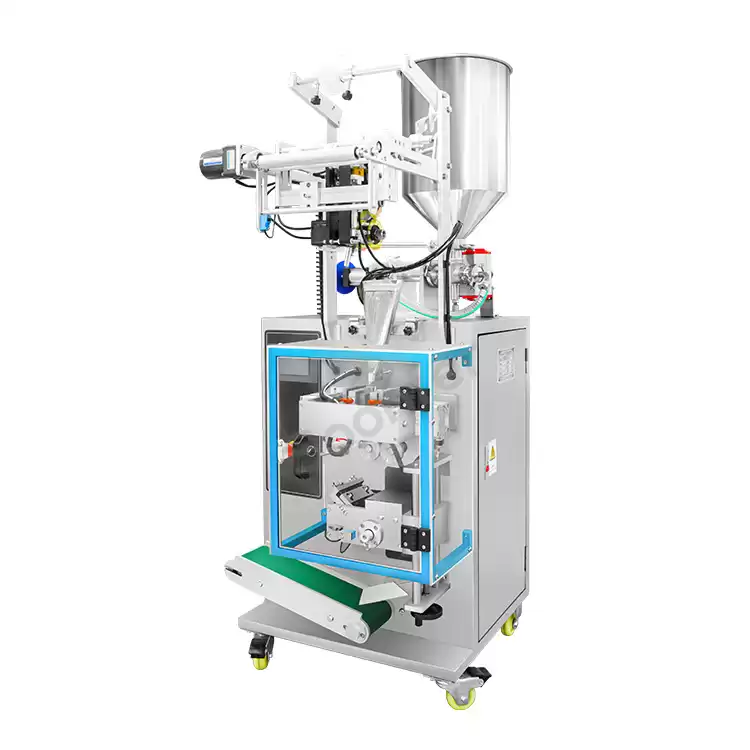

Full automatic liquid ketchup tomato sauce paste sachet filling packing machine
Application of liquid packing machine

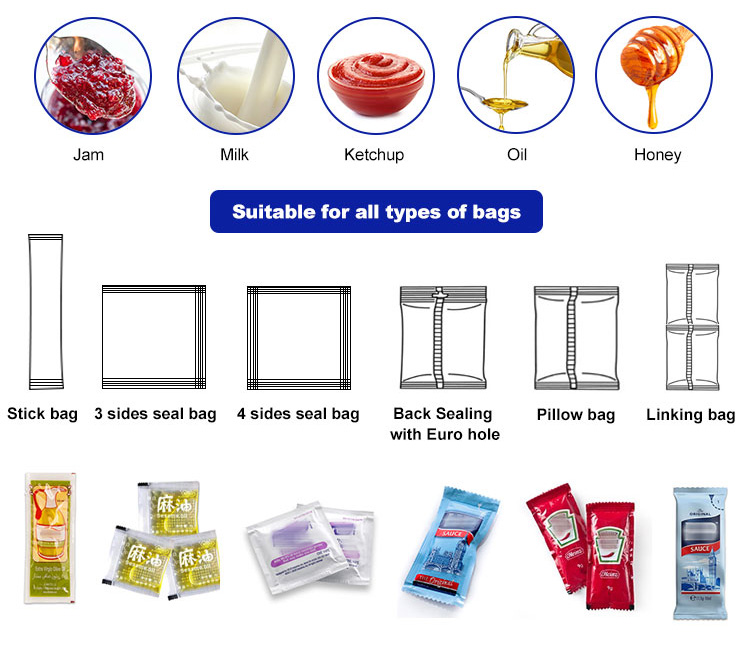

It is suitable for the packaging of various liquids and sauces such as liquid,sauce,soup,edible oil, liquid medicine, cream, seasoning sauce, honey, shampoo and shower gel.
Specification of liquid packing machine
|
Packing speed
|
30-80bags/min
|
Filling Range
|
1-100ml
|
Bag Size
|
Width:15-110 mm; length: 30-180mm
|
Film Width
|
Max: 220 mm
|
Power
|
220V, 50HZ, 1.2KVA
|
Bag type
|
Backside seal/3-side seal/4-side seal
|
Machine overlooking size
|

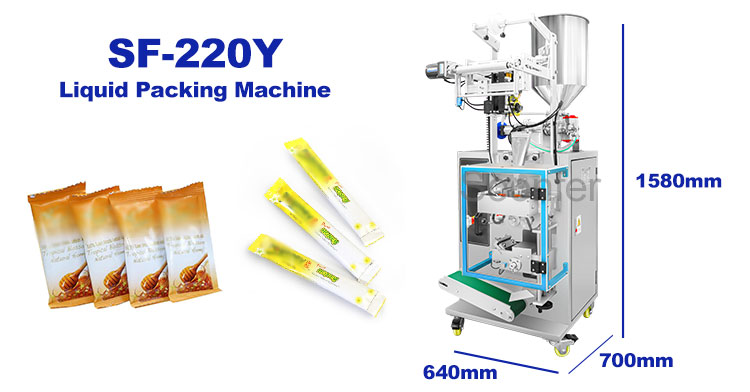

L840 *W1020 *H2050mm(1.756CBM)
|
Horizontal Sealing
|
Netted Line / Straight Line(optional)
|
Packing Material
|
Laminated film like OPP/CPP,OPP/CE,MST/PE/PET/PE
|
Machine texture
|
Carbon steel body and Stainless Steel 304 contact parts, Accurancy: +/-1%
|
Features of liquid packing machine
1.Different metering pump for different kinds of liquid. High accuracy and easy operation.
2.PLC intelligent chip computer system for efficient running.
3.Step motor for film drag structure, smooth film running and accurate bag cutting.
4.The touch screen, easy operation and multiple language for choice.
5.Separate PID temperature controller, suitable for various packing materials.
6.Articulated bag former structure, enable stable bag forming for perfect bag shape
7.Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
8.Machine automatically finish the process of filling, metering, bag forming, sealing and packing.
9.Machine is simple operation, holding small space and easy moving.
