CHINA'S FRAME SCAFFOLDING
Features:
* Material Specification: Steel grade Q235, frame leg OD.42x2.2mm
* Frame Width: 1219mm(4'), 914mm(3')
* Locking Device: Flip Lock
* Locking Space: 1219mm(4'), 914mm(3'), 610mm(2'),280mm(11")
* Finishing options: Hot dip galvanized, electric galvanized, painted, powder coated
Product Details:

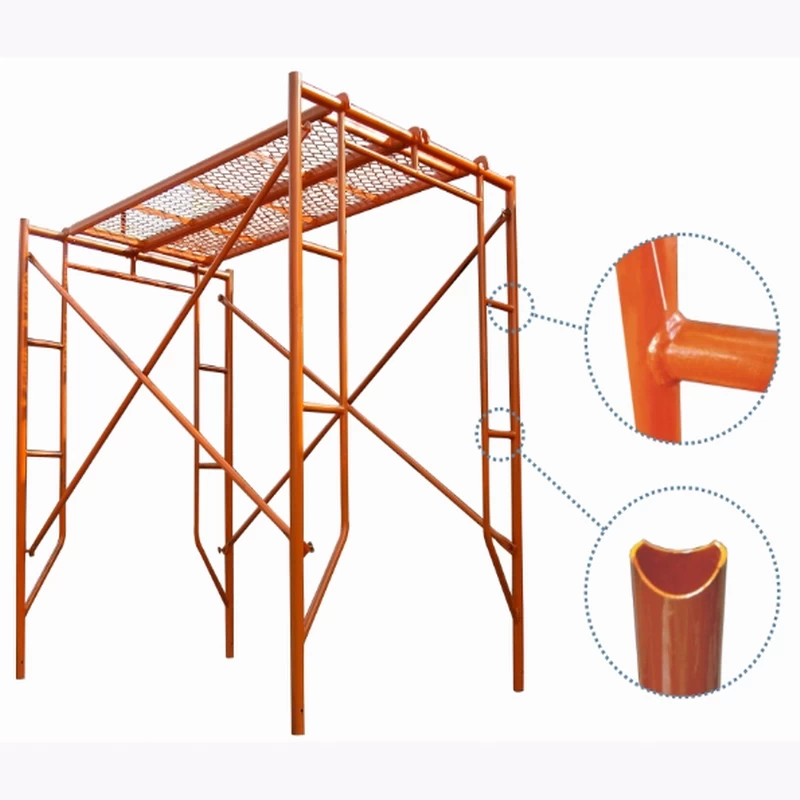

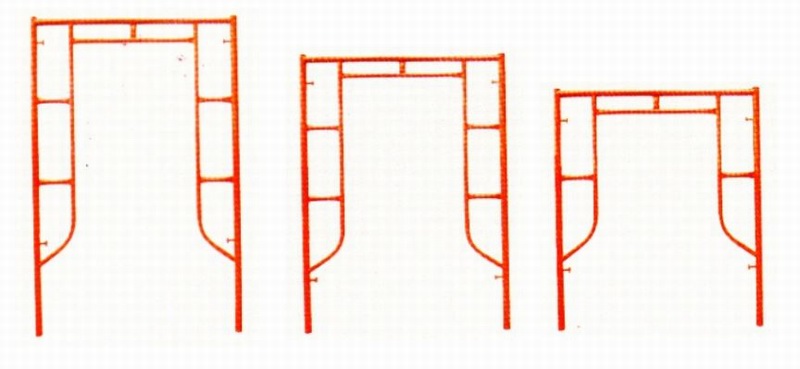

Walk Thru Frame / H Frame
|
Code
|
Description
|
Tube size
|
Weight(kg)
|
Weight(lbs)
|
|
CNF.TF.1219
|
Walk Thru Frame 1219x1930mm
|
Ø42x2.2mm, Ø25x1.2mm
|
14.40
|
31.75
|
|
CNF.TF.1217
|
Walk Thru Frame 1219x1700mm
|
13.10
|
28.89
|
|
CNF.TF.1215
|
Walk Thru Frame 1219x1524mm
|
12.20
|
26.90
|
|
CNF.TF.0919
|
Walk Thru Frame 914x1930mm
|
13.50
|
29.77
|
|
CNF.TF.0917
|
Walk Thru Frame 914x1700mm
|
12.20
|
26.90
|
|
CNF.TF.0915
|
Walk Thru Frame 914x1524mm
|
11.40
|
25.14
|

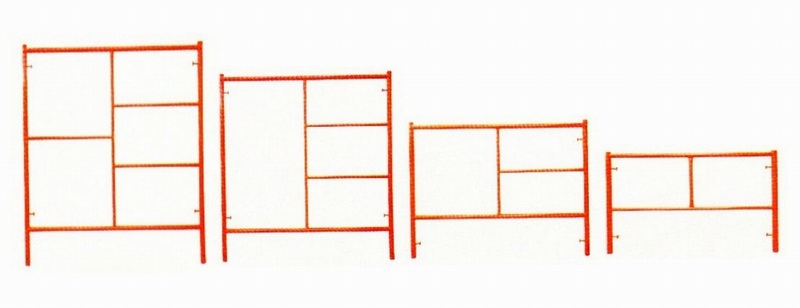

Mason Frame / Ladder Frame
|
Code
|
Description
|
Tube size
|
Weight(kg)
|
Weight(lbs)
|
|
CNF.MF.1219
|
Mason Frame 1219x1930mm
|
Ø42x2.2mm, Ø25x1.2mm
|
15.30
|
33.74
|
|
CNF.MF.1215
|
Mason Frame 1219x1524mm
|
12.30
|
27.12
|
|
CNF.MF.1212
|
Mason Frame 1219x1219mm
|
11.60
|
25.58
|
|
CNF.MF.1209
|
Mason Frame 1219x914mm
|
9.70
|
21.39
|
|
CNF.MF.1205
|
Mason Frame 1219x490mm
|
7.40
|
16.32
|
|
CNF.MF.0912
|
Mason Frame 914x1219mm
|
10.20
|
22.49
|
|
CNF.MF.0909
|
Mason Frame 914x914mm
|
8.40
|
18.52
|
|
CNF.MF.0905
|
Mason Frame 914x490mm
|
6.10
|
13.45
|

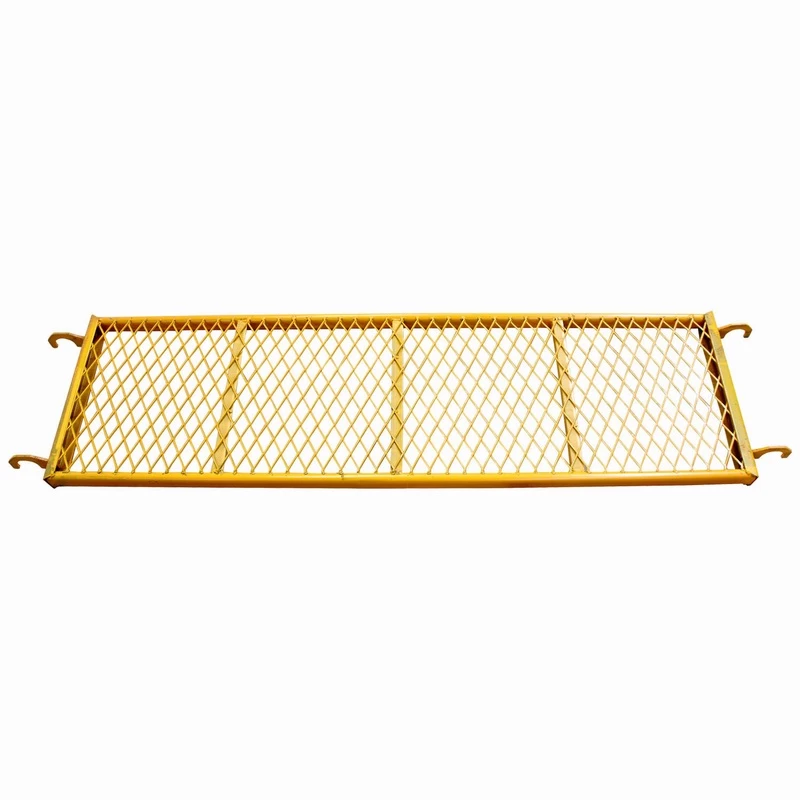

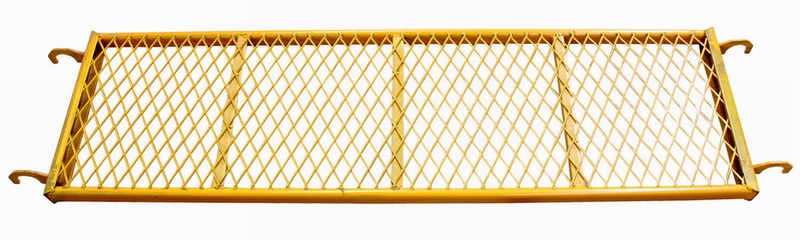

Catwalk Board
|
Code
|
Description
|
Tube size
|
Weight(kg)
|
Weight(lbs)
|
|
CNF.CWB.0518
|
Catwalk Board 500x1829mm
|
50x25mm
|
13.30
|
29.33
|
|
CNF.CWB.0418
|
Catwalk Board 400x1829mm
|
13.00
|
28.67
|

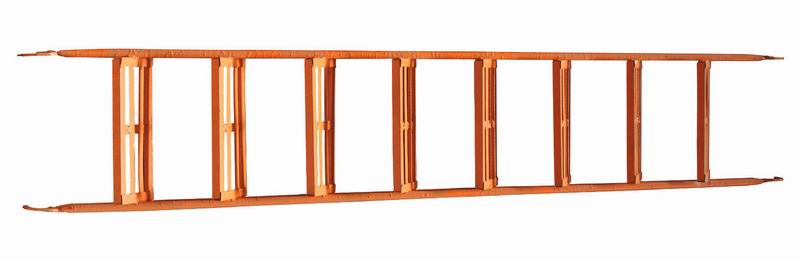

Stair for H Frame
|
Code
|
Description
|
Tube size
|
Weight(kg)
|
Weight(lbs)
|
|
CNF.ST.2677
|
Stair for Frame 500x2677mm
|
50x25mm
|
22.00
|
48.51
|
|
CNF.ST.2514
|
Stair for Frame 500x2514mm
|
20.80
|
45.86
|

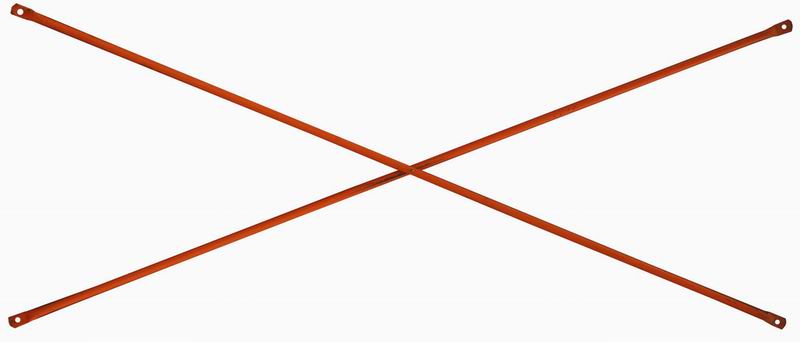

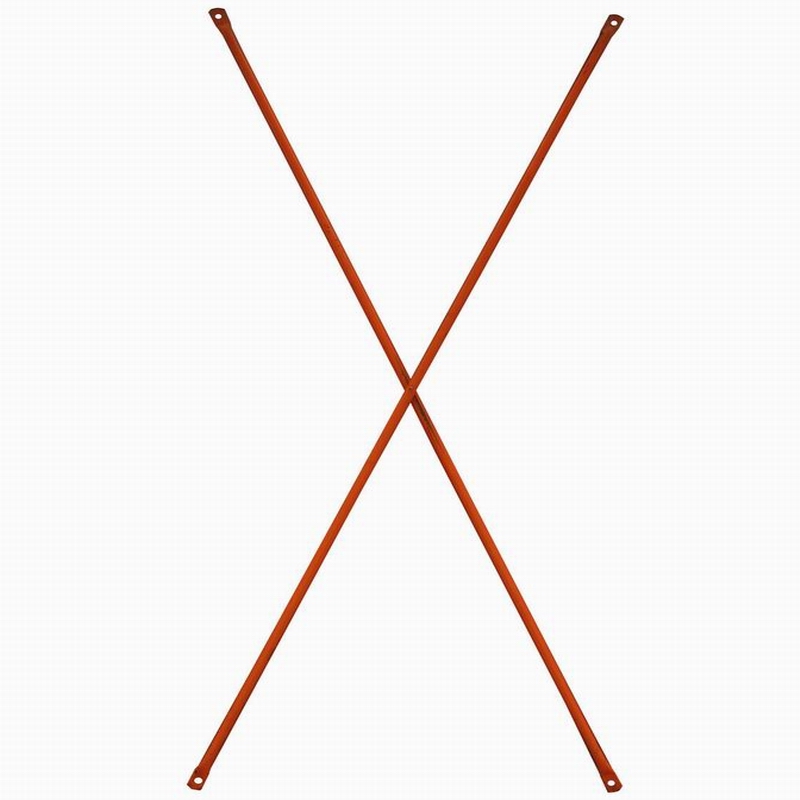

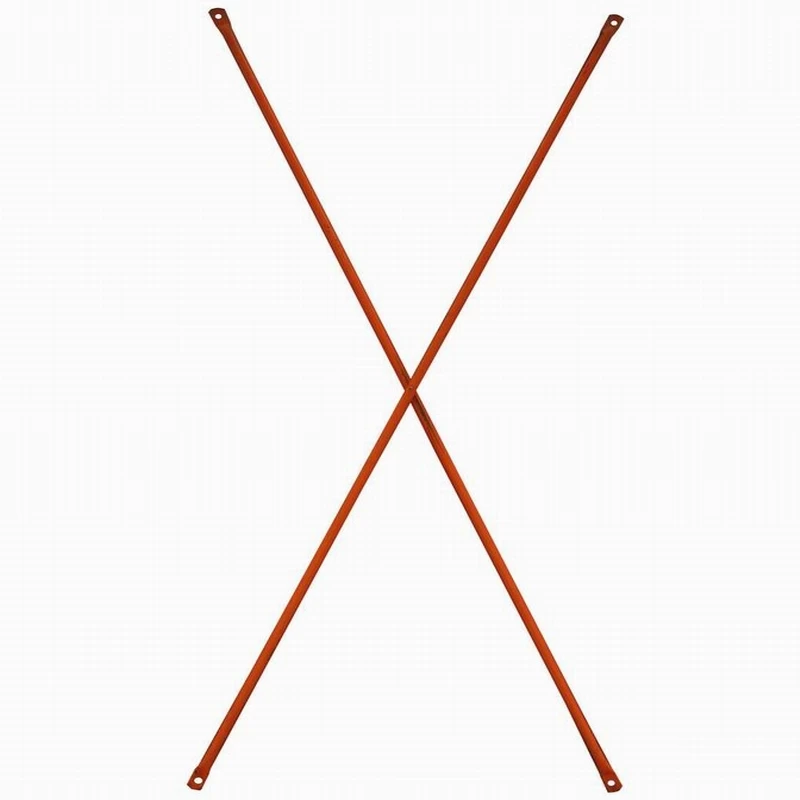

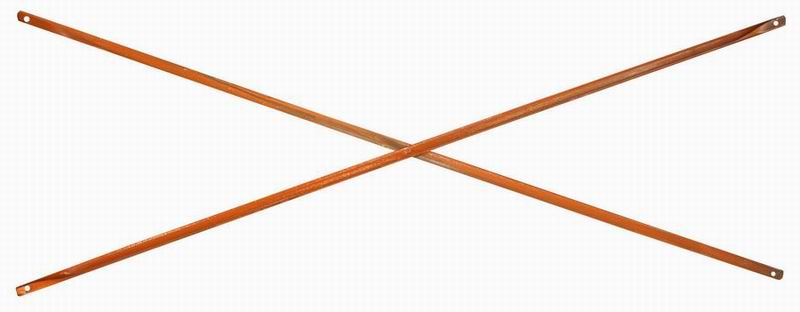

Cross Braces
|
Code
|
Description
|
Tube size
|
Weight(kg)
|
Weight(lbs)
|
|
CNF.CB.2198
|
Cross Brace 2198mm
|
Ø25x1.2mm
|
3.16
|
6.97
|
|
CNF.CB.1928
|
Cross Brace 1928mm
|
Ø25x1.2mm
|
2.79
|
6.15
|
|
CNF.ACB.2198
|
Angle Brace 2198mm
|
30x3mm
|
2.80
|
6.17
|
|
CNF.ACB.1928
|
Angle Brace 1928mm
|
30x3mm
|
2.50
|
5.51
|
Screw Jacks
|
Code
|
Description
|
Specification
|
Weight (kg)
|
Weight (lbs)
|
|
SBJ.30070
|
0.7M Solid Base Jack
|
Tr30x700mm, 100x100x5mm
|
4.15
|
9.15
|
|
SBJ.30060
|
0.6M Solid Base Jack
|
Tr30x600mm, 100x100x5mm
|
3.65
|
8.05
|
|
SUJ.30070
|
0.7M Solid U-head Jack
|
Tr30x700mm, 160x90x30x5mm
|
4.60
|
10.14
|
|
SUJ.30060
|
0.6M Solid U-head Jack
|
Tr30x600mm, 160x90x30x5mm
|
4.10
|
9.04
|

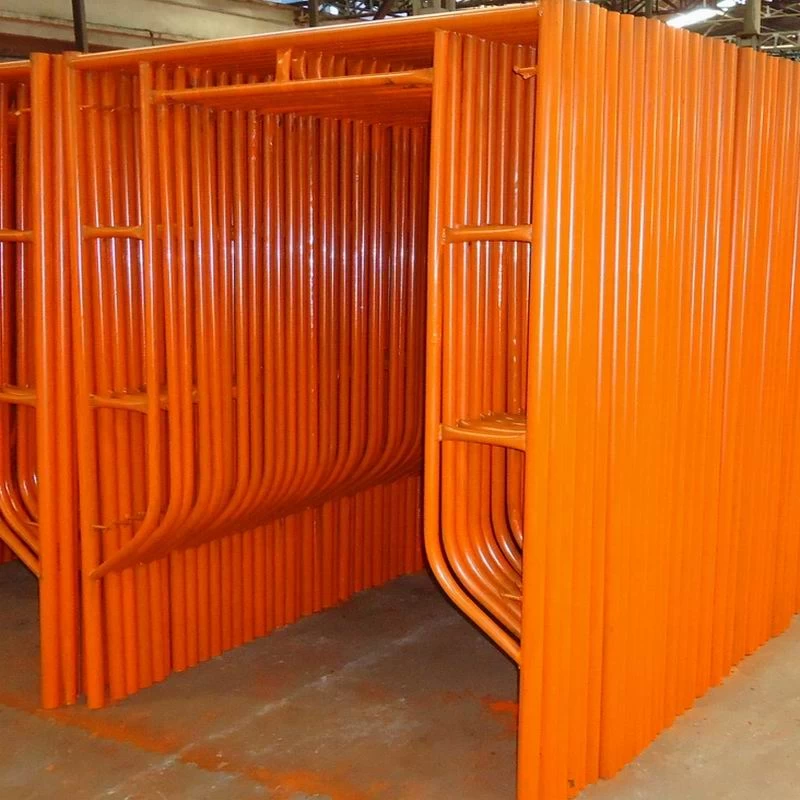

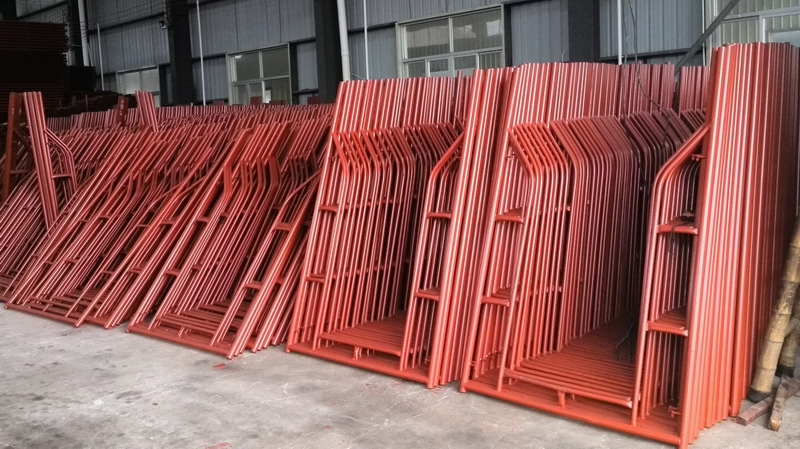

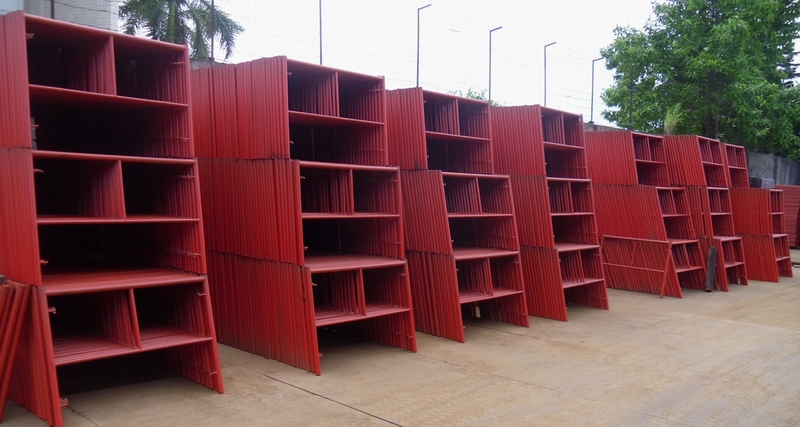

Frame Scaffolding Warehouse
