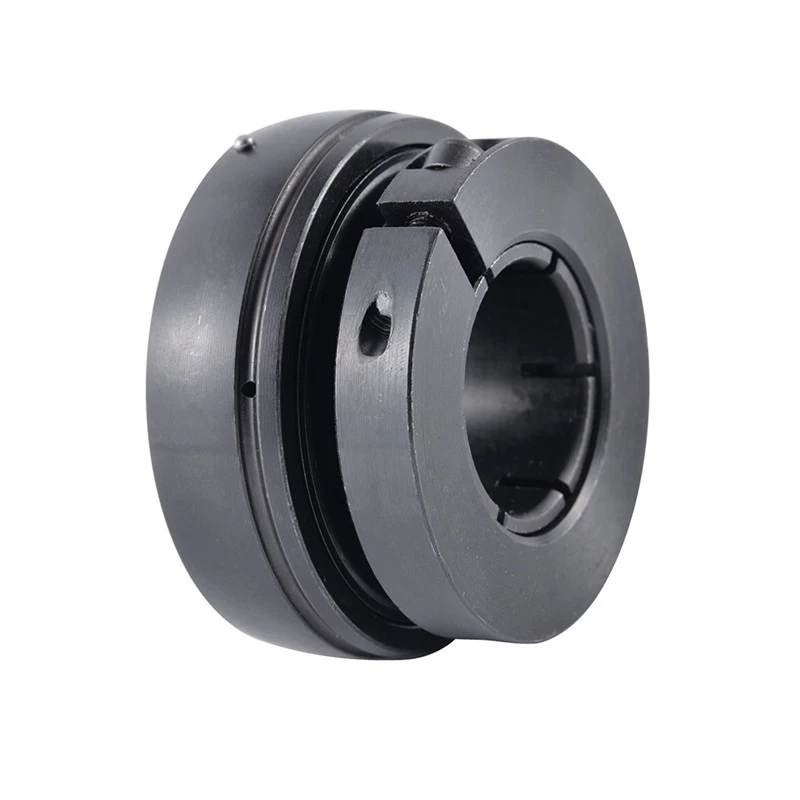

Chrome Steel Bearing Insert With Concentic Locking UE2

Wider inner ring,Concerntric locking

Easy method of assembling/dismantling.

Outstanding locking performance.


Facebook Twitter Pinterest LinkedIn 分享

Ball Bearing UE205

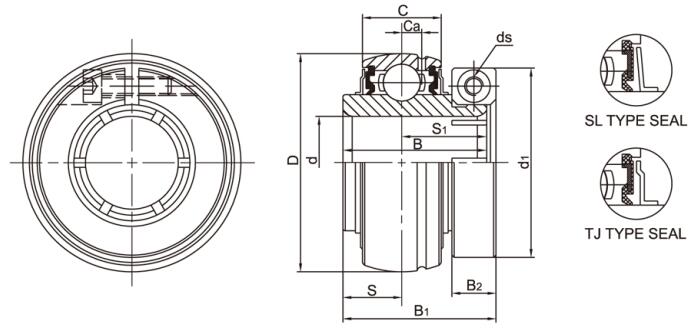

Bearing No. Shaft Dia Dimensions (mm)
Load rating
 ( KN )
Weight (kg)
d D B C S S1 B1 B2 d1 ds Ca Dynamic Static
(in) (mm) Cr Cor
UE204  20 47 31 17 12.7 18.3 33.0 9.5 40 8 M4X0.7 4.3 12.82 6.65 0.18
UE204-12 3/4   47 31 17 12.7 18.3 33.0 9.5 40 8 M4X0.7 4.3 0.18
UE205   25 52 34.1 17 14.3 19.8 35.4 9.5 49.0 M4x0.7 4 14.03 8.05 0.21
UE205-13  13/16    52 34.1 17 14.3 19.8 35.4 9.5 49.0 M4x0.7 4 0.21
UE205-14 7/8   52 34.1 17 14.3 19.8 35.4 9.5 49.0 M4x0.7 4 0.21
UE205-15 15/16   52 34.1 17 14.3 19.8 35.4 9.5 49.0 M4x0.7 4 0.21
UE205-16 1   52 34.1 17 14.3 19.8 35.4 9.5 49.0 M4x0.7 4 0.21
UE206   30 62 38.1 19 15.9 22.2 39.8 9.5 55.5 M4x0.7 5.3 19.47 11.43 0.33
UE206-17 1-1/16   62 38.1 19 15.9 22.2 39.8 9.5 55.5 M4x0.7 5.3 0.33
UE206-18 1-1/8   62 38.1 19 15.9 22.2 39.8 9.5 55.5 M4x0.7 5.3 0.33
UE206-19 1-3/16   62 38.1 19 15.9 22.2 39.8 9.5 55.5 M4x0.7 5.3 0.33
UE206-20 1-1/4   62 38.1 19 15.9 22.2 39.8 9.5 55.5 M4x0.7 5.3 0.33
UE207   35 72 42.9 20 17.5 25.4 43.9 11.0 64.0 M5X0.8 5.8 25.69 15.55 0.51
UE207-20 1-1/4   72 42.9 20 17.5 25.4 43.9 11.0 64.0 M5X0.8 5.8 0.51
UE207-21 1-5/16   72 42.9 20 17.5 25.4 43.9 11.0 64.0 M5X0.8 5.8 0.51
UE207-22 1-3/8   72 42.9 20 17.5 25.4 43.9 11.0 64.0 M5X0.8 5.8 0.51
UE207-23 1-7/16   72 42.9 20 17.5 25.4 43.9 11.0 64.0 M5X0.8 5.8 0.51
UE208   40 80 49.2 21 19.0 30.2 50.2 11.0 68.0 M5X0.8 6.2 29.51 18.14 0.68
UE208-24 1-1/2   80 49.2 21 19.0 30.2 50.2 11.0 68.0 M5X0.8 6.2 0.68
UE208-25 1-9/16   80 49.2 21 19.0 30.2 50.2 11.0 68.0 M5X0.8 6.2 0.68
UE209   45 85 49.2 22 19.0 30.2 50.2 11.0 74.0 M5X0.8 6.5 31.85 20.8 0.78
UE209-26  1-5/8    85 49.2 22 19.0 30.2 50.2 11.0 74.0 M5X0.8 6.5 0.78
UE209-27 1-11/16   85 49.2 22 19.0 30.2 50.2 11.0 74.0 M5X0.8 6.5 0.78
UE209-28 1-3/4   85 49.2 22 19.0 30.2 50.2 11.0 74.0 M5X0.8 6.5 0.78
UE210   50 90 51.6 24 19.0 32.6 52.6 14.5 81.0 M6x1 7 34.99 23.7 0.85
UE210-30  1-7/8    90 51.6 24 19.0 32.6 52.6 14.5 81.0 M6x1 7 0.85
UE210-31 1-15/16   90 51.6 24 19.0 32.6 52.6 14.5 81.0 M6x1 7 0.85
UE210-32 2   90 51.6 24 19.0 32.6 52.6 14.5 81.0 M6x1 7 0.85
UE211   55 100 55.6 25 22.2 33.4 56.6 14.5 92.0 M6x1 7.4 43.34 29.39 1.16
UE211-32 2   100 55.6 25 22.2 33.4 56.6 14.5 92.0 M6x1 7.4 1.16
UE211-33 2-1/16   100 55.6 25 22.2 33.4 56.6 14.5 92.0 M6x1 7.4 1.16
UE211-34 2-1/8   100 55.6 25 22.2 33.4 56.6 14.5 92.0 M6x1 7.4 1.16
UE211-35 2-3/16   100 55.6 25 22.2 33.4 56.6 14.5 92.0 M6x1 7.4 1.16
UE212   60 110 65.1 27 25.4 39.7 66.6 17.5 103.0 M8X1.25 7.6 47.68 33.43 1.59
UE212-36  2-1/4    110 65.1 27 25.4 39.7 66.6 17.5 103.0 M8X1.25 7.6 1.59
UE212-37 2-5/16   110 65.1 27 25.4 39.7 66.6 17.5 103.0 M8X1.25 7.6 1.59
UE212-38 2-3/8   110 65.1 27 25.4 39.7 66.6 17.5 103.0 M8X1.25 7.6 1.59
UE212-39 2-7/16   110 65.1 27 25.4 39.7 66.6 17.5 103.0 M8X1.25 7.6 1.59
