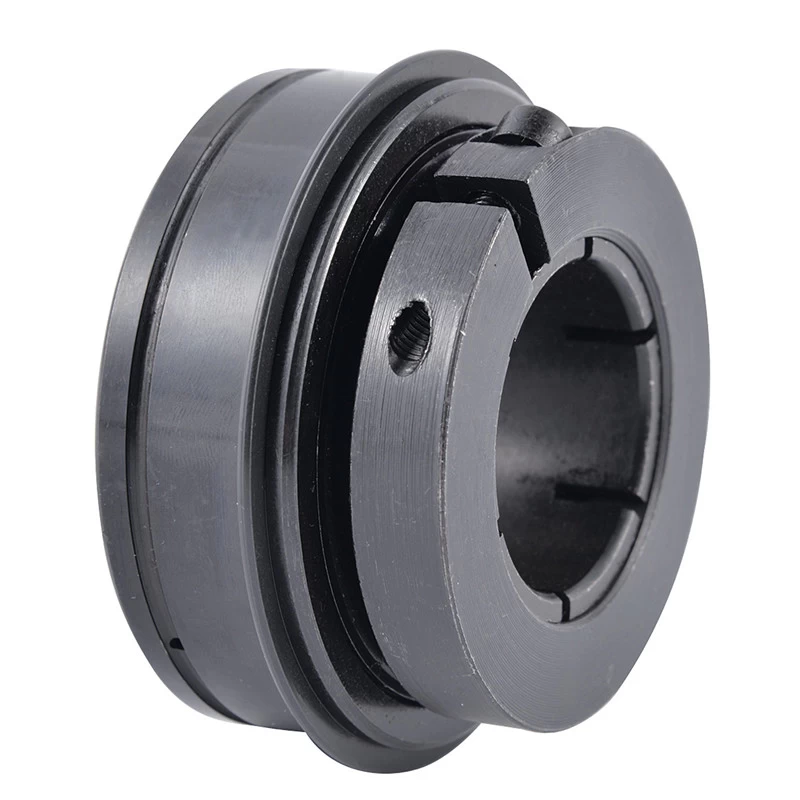

Chrome Steel Bearing Insert With Concentic Locking UER2

With cylindrical outer ring and snap ring,Concentric locking

Easy method of assembling/dismantling.
Outstanding locking performance.



Facebook Twitter Pinterest LinkedIn 分享

Ball Bearing UER205

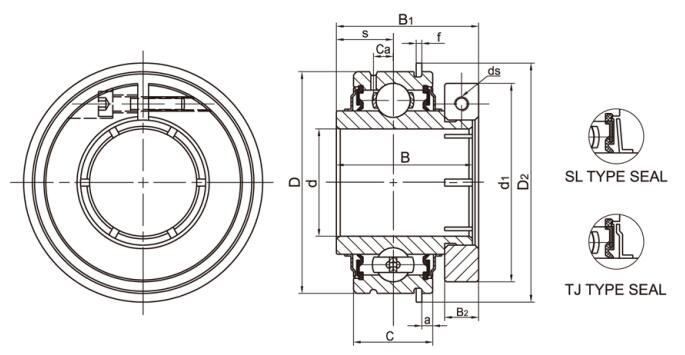

Bearing No. Shaft Dia Dimensions (mm)
Load rating
( KN )
Weight (kg)
d D B C S B1 B2 a f D2 d1 ds Ca Dynamic Static
(in) (mm) (max) Cr Cor
UER204  20 47 31 15.9 10.3 33 9.5 2.38 1.07 52.7 40.8 M4 4.05 12.82 6.65 0.22
UER204-12 3/4   47 31 15.9 10.3 33 9.5 2.38 1.07 52.7 40.8 M4 4.05 0.22
UER205   25 52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 14.03 8.05 0.28
UER205-13 13/16   52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 0.28
UER205-14 7/8   52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 0.28
UER205-15 15/16   52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 0.28
UER205-16 1   52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 0.28
UER206   30 62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 19.47 11.43 0.38
UER206-17 1-1/16   62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 0.38
UER206-18 1-1/8   62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 0.38
UER206-19 1-3/16   62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 0.38
UER206-20 1-1/4   62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 0.38
UER207   35 72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 25.69 15.55 0.56
UER207-20 1-1/4   72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 0.56
UER207-21 1-5/16   72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 0.56
UER207-22 1-3/8   72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 0.56
UER207-23 1-7/16   72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 0.56
UER208   40 80 49.2 27.8 19 50.2 11 3.18 1.65 86.6 68 M5 7.5 29.51 18.14 0.87
UER208-24 1-1/2   80 49.2 27.8 19 50.2 11 3.18 1.65 86.6 68 M5 7.5 0.87
UER208-25 1-9/16   80 49.2 27.8 19 50.2 11 3.18 1.65 86.6 68 M5 7.5 0.87
UER209   45 85 49.2 27.8 19 50.2 11 3.18 1.65 91.6 74 M5 7.5 31.85 20.8 0.95
UER209-26  1-5/8    85 49.2 27.8 19 50.2 11 3.18 1.65 91.6 74 M5 7.5 0.95
UER209-27 1-11/16   85 49.2 27.8 19 50.2 11 3.18 1.65 91.6 74 M5 7.5 0.95
UER209-28 1-3/4   85 49.2 27.8 19 50.2 11 3.18 1.65 91.6 74 M5 7.5 0.95
UER210   50 90 51.6 28.6 19 52.6 14.5 3.18 2.41 96.5 81 M6 6.8 34.99 23.7 1.03
UER210-30  1-7/8    90 51.6 28.6 19 52.6 14.5 3.18 2.41 96.5 81 M6 6.8 1.03
UER210-31 1-15/16   90 51.6 28.6 19 52.6 14.5 3.18 2.41 96.5 81 M6 6.8 1.03
UER210-32 2   90 51.6 28.6 19 52.6 14.5 3.18 2.41 96.5 81 M6 6.8 1.03
UER211   55 100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 43.34 29.39 1.21
UER211-32 2   100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 1.21
UER211-33 2-1/16   100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 1.21
UER211-34 2-1/8   100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 1.21
UER211-35 2-3/16   100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 1.21
UER212   60 110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 47.68 33.43 1.68
UER212-36 2-1/4   110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 1.68
UER212-37 2-5/16   110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 1.68
UER212-38 2-3/8   110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 1.68
UER212-39 2-7/16   110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 1.68
