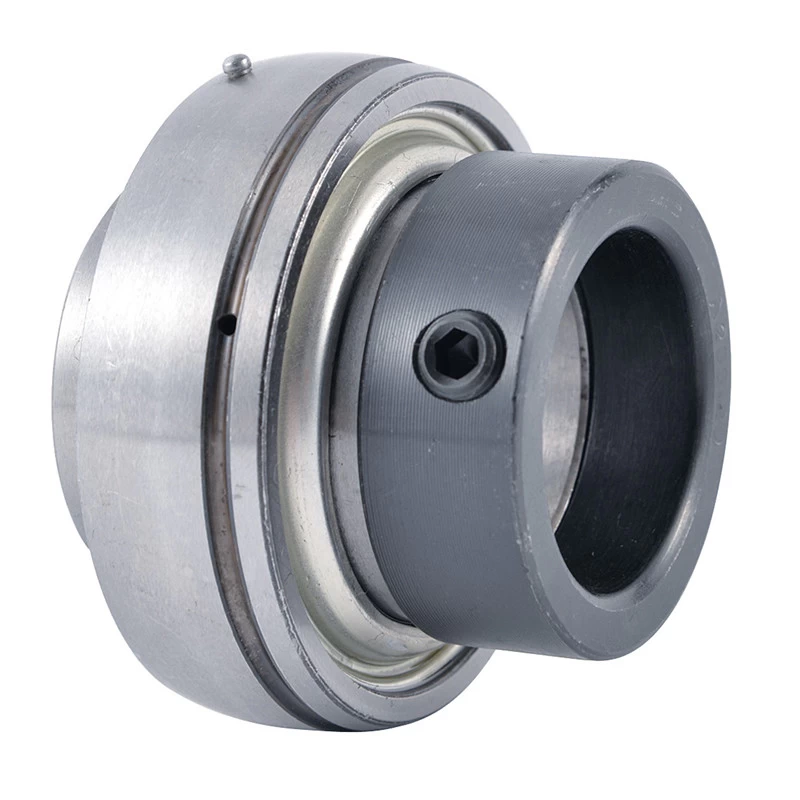

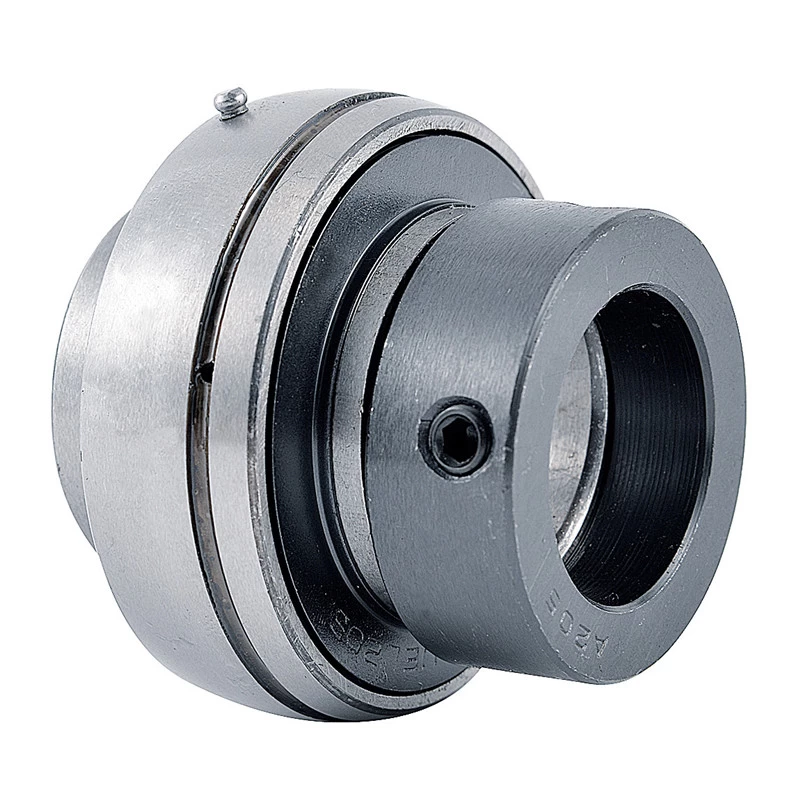

Chrome Steel Bearing Insert With Eccentric Locking NA2 NA2...L3


NA/NA..L3  Standard duty, Wider inner ring,Eccentric locking



Facebook Twitter Pinterest LinkedIn 分享

Bearing Insert NA210 L3


Bearing No. Shaft Dia Dimensions(mm)
Basic dynamic Load ratings
( KN )
Basic static Load ratings
( KN )
Weight (kg)

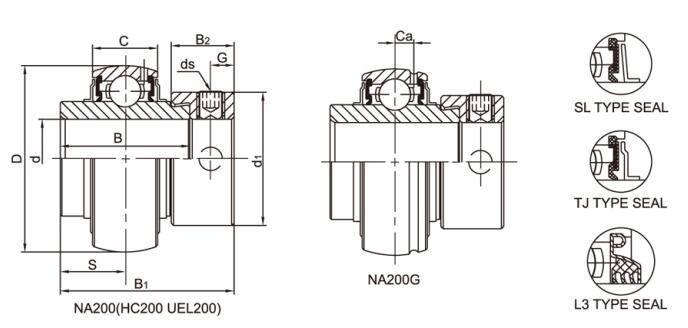

d D B C S B1 B2 d1 G ds Ca
(in) (mm) (mm) (in.UNF)
NA204  20 47 34.2 17 17.1 43.7 13.5 33.3 5 M6X1 4.3 12.82 6.65 0.21
NA204-12 3/4   47 34.2 17 17.1 43.7 13.5 33.3 5   1/4-28 4.3 0.21
NA205   25 52 34.9 17 17.5 44.4 13.5 38.1 5 M6X1   4 14.03 8.05 0.25
NA205-14 7/8    52 34.9 17 17.5 44.4 13.5 38.1 5   1/4-28 4 0.25
NA205-15 15/16   52 34.9 17 17.5 44.4 13.5 38.1 5   1/4-28 4 0.25
NA205-16 1   52 34.9 17 17.5 44.4 13.5 38.1 5   1/4-28 4 0.25
NA206   30 62 36.5 19 18.3 48.4 15.9 44.5 6 M6X1   5.3 19.47 11.43 0.39
NA206-17 1-1/16   62 36.5 19 18.3 48.4 15.9 44.5 6   1/4-28 5.3 0.39
NA206-18 1-1/8   62 36.5 19 18.3 48.4 15.9 44.5 6   1/4-28 5.3 0.39
NA206-19 1-3/16   62 36.5 19 18.3 48.4 15.9 44.5 6   1/4-28 5.3 0.39
NA206-20 1-1/4   62 36.5 19 18.3 48.4 15.9 44.5 6   1/4-28 5.3 0.39
NA207   35 72 37.6 20 18.8 51.1 17.5 55.6 6.5 M8X1   5.8 25.69 15.55 0.60
NA207-20 1-1/4   72 37.6 20 18.8 51.1 17.5 55.6 6.5   5/16-24 5.8 0.60
NA207-21 1-5/16   72 37.6 20 18.8 51.1 17.5 55.6 6.5   5/16-24 5.8 0.60
NA207-22 1-3/8   72 37.6 20 18.8 51.1 17.5 55.6 6.5   5/16-24 5.8 0.60
NA207-23 1-7/16   72 37.6 20 18.8 51.1 17.5 55.6 6.5   5/16-24 5.8 0.60
NA208   40 80 42.8 21 21.4 56.3 18.3 60.3 6.5 M8X1   6.2 29.51 18.14 0.77
NA208-24 1-1/2   80 42.8 21 21.4 56.3 18.3 60.3 6.5   5/16-24 6.2 0.77
NA208-25 1-9/16   80 42.8 21 21.4 56.3 18.3 60.3 6.5   5/16-24 6.2 0.77
NA209   45 85 42.8 22 21.4 56.3 18.3 63.5 6.5 M8X1   6.5 31.85 20.8 0.84
NA209-26 1-5/8    85 42.8 22 21.4 56.3 18.3 63.5 6.5   5/16-24 6.5 0.84
NA209-27 1-11/16   85 42.8 22 21.4 56.3 18.3 63.5 6.5   5/16-24 6.5 0.84
NA209-28 1-3/4   85 42.8 22 21.4 56.3 18.3 63.5 6.5   5/16-24 6.5 0.84
NA210   50 90 49.2 24 24.6 62.7 18.3 69.9 6.5 M8X1   7 34.99 23.7 1.02
NA210-30 1-7/8    90 49.2 24 24.6 62.7 18.3 69.9 6.5   5/16-24 7 1.02
NA210-31 1-15/16   90 49.2 24 24.6 62.7 18.3 69.9 6.5   5/16-24 7 1.02
NA210-32 2   90 49.2 24 24.6 62.7 18.3 69.9 6.5   5/16-24 7 1.02
NA211   55 100 55.5 25 27.80 71.4 20.7 76.2 8 M10X1.25   7.4 43.34 29.39 1.37
NA211-32 2   100 55.5 25 27.80 71.4 20.7 76.2 8   3/8-24 7.4 1.37
NA211-33 2-1/16   100 55.5 25 27.80 71.4 20.7 76.2 8   3/8-24 7.4 1.37
NA211-34 2-1/8   100 55.5 25 27.80 71.4 20.7 76.2 8   3/8-24 7.4 1.37
NA211-35 2-3/16   100 55.5 25 27.80 71.4 20.7 76.2 8   3/8-24 7.4 1.37
NA212   60 110 61.9 27 31.00 77.8 22.3 84.2 8 M10X1.25   7.6 47.68 33.43 1.85
NA212-36 2-1/4   110 61.9 27 31.00 77.8 22.3 84.2 8   3/8-24 7.6 1.85
NA212-37 2-5/16   110 61.9 27 31.00 77.8 22.3 84.2 8   3/8-24 7.6 1.85
NA212-38 2-3/8   110 61.9 27 31.00 77.8 22.3 84.2 8   3/8-24 7.6 1.85
NA212-39 2-7/16   110 61.9 27 31.00 77.8 22.3 84.2 8   3/8-24 7.6 1.85
NA213   65 120 68.6 28 34.30 85.7 23.5 86 8.5 M10X1.25   8.5 57.2 40.01 2.10
NA213-39 2-7/16   120 68.6 28 34.30 85.7 23.5 86 8.5   3/8-24 8.5 2.10
NA213-40 2-1/2   120 68.6 28 34.30 85.7 23.5 86 8.5   3/8-24 8.5 2.10
NA214   70 125 68.6 29 34.30 85.7 23.5 90 8.5 M10X1.25   8.9 62.19 43.9 2.34
NA214-43 2-11/16   125 68.6 29 34.30 85.7 23.5 90 8.5   3/8-24 8.9 2.34
NA214-44 2-3/4   125 68.6 29 34.30 85.7 23.5 90 8.5   3/8-24 8.9 2.34
NA215   75 130 75 30 37.3 92.1 23.5 102 8.5 M10X1.25   9.2 62.08 44.82 2.50
NA215-47 2-15/16   130 75 30 37.3 92.1 23.5 102 8.5   3/8-24 9.2 2.50
NA215-48 3   130 75 30 37.3 92.1 23.5 102 8.5   3/8-24 9.2 2.50
