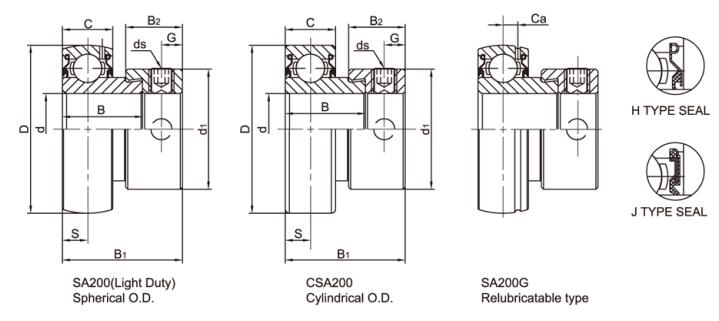

Bearing No.
|
Shaft Dia
|
Dimensions(mm)
|
Basic load ratings
( KN )
|
Weight
(kg)
|
|
d
|
D
|
B
|
C
|
S
|
B1
|
B2
|
d1
|
G
|
ds
|
Ca
|
Dynamic Cr
|
Static Cor
|
|
(in)
|
(mm)
|
(mm)
|
(in.UNF)
|
|
SA201
|
|
12
|
40
|
19.1
|
12
|
6
|
28.6
|
13.5
|
28.6
|
5
|
M6x1
|
|
3.5
|
9.55
|
4.78
|
0.2
|
|
SA201-8
|
1/2
|
|
40
|
19.1
|
12
|
6
|
28.6
|
13.5
|
28.6
|
5
|
|
1/4-28
|
3.5
|
0.2
|
|
SA202
|
|
15
|
40
|
19.1
|
12
|
6
|
28.6
|
13.5
|
28.6
|
5
|
M6x1
|
|
3.5
|
9.55
|
4.78
|
0.2
|
|
SA202-9
|
9/16
|
|
40
|
19.1
|
12
|
6
|
28.6
|
13.5
|
28.6
|
5
|
|
1/4-28
|
3.5
|
0.2
|
|
SA202-10
|
5/8
|
|
40
|
19.1
|
12
|
6
|
28.6
|
13.5
|
28.6
|
5
|
|
1/4-28
|
3.5
|
0.2
|
|
SA203
|
|
17
|
40
|
19.1
|
12
|
6
|
28.6
|
13.5
|
28.6
|
5
|
M6x1
|
|
3.5
|
9.55
|
4.78
|
0.2
|
|
SA203-11
|
11/16
|
|
40
|
19.1
|
12
|
6
|
28.6
|
13.5
|
28.6
|
5
|
|
1/4-28
|
3.5
|
0.2
|
|
SA204
|
|
20
|
47
|
21.5
|
14
|
7
|
31
|
13.5
|
33.3
|
5
|
M6X1
|
|
4
|
12.82
|
6.65
|
0.21
|
|
SA204-12
|
3/4
|
|
47
|
21.5
|
14
|
7
|
31
|
13.5
|
33.3
|
5
|
|
1/4-28
|
4
|
0.21
|
|
SA205
|
|
25
|
52
|
22
|
15
|
7.5
|
31.5
|
13.5
|
38.1
|
5
|
M6X1
|
|
4.3
|
14.03
|
8.05
|
0.25
|
|
SA205-14
|
7/8
|
|
52
|
22
|
15
|
7.5
|
31.5
|
13.5
|
38.1
|
5
|
|
1/4-28
|
4.3
|
0.25
|
|
SA205-15
|
15/16
|
|
52
|
22
|
15
|
7.5
|
31.5
|
13.5
|
38.1
|
5
|
|
1/4-28
|
4.3
|
0.25
|
|
SA205-16
|
1
|
|
52
|
22
|
15
|
7.5
|
31.5
|
13.5
|
38.1
|
5
|
|
1/4-28
|
4.3
|
0.25
|
|
SA206
|
|
30
|
62
|
23.8
|
16
|
8
|
35.7
|
15.9
|
44.5
|
6
|
M6X1
|
|
4.9
|
19.47
|
11.43
|
0.39
|
|
SA206-17
|
1-1/16
|
|
62
|
23.8
|
16
|
8
|
35.7
|
15.9
|
44.5
|
6
|
|
1/4-28
|
4.9
|
0.39
|
|
SA206-18
|
1-1/8
|
|
62
|
23.8
|
16
|
8
|
35.7
|
15.9
|
44.5
|
6
|
|
1/4-28
|
4.9
|
0.39
|
|
SA206-19
|
1-3/16
|
|
62
|
23.8
|
16
|
8
|
35.7
|
15.9
|
44.5
|
6
|
|
1/4-28
|
4.9
|
0.39
|
|
SA206-20
|
1-1/4
|
|
62
|
23.8
|
16
|
8
|
35.7
|
15.9
|
44.5
|
6
|
|
1/4-28
|
4.9
|
0.39
|
|
SA207
|
|
35
|
72
|
25.4
|
17
|
8.5
|
38.9
|
17.5
|
55.6
|
6.5
|
M8X1
|
|
5.5
|
25.69
|
15.55
|
0.6
|
|
SA207-20
|
1-1/4
|
|
72
|
25.4
|
17
|
8.5
|
38.9
|
17.5
|
55.6
|
6.5
|
|
5/16-24
|
5.5
|
0.6
|
|
SA207-21
|
1-5/16
|
|
72
|
25.4
|
17
|
8.5
|
38.9
|
17.5
|
55.6
|
6.5
|
|
5/16-24
|
5.5
|
0.6
|
|
SA207-22
|
1-3/8
|
|
72
|
25.4
|
17
|
8.5
|
38.9
|
17.5
|
55.6
|
6.5
|
|
5/16-24
|
5.5
|
0.6
|
|
SA207-23
|
1-7/16
|
|
72
|
25.4
|
17
|
8.5
|
38.9
|
17.5
|
55.6
|
6.5
|
|
5/16-24
|
5.5
|
0.6
|
|
SA208
|
|
40
|
80
|
30.2
|
18
|
9
|
43.7
|
18.3
|
60.3
|
6.5
|
M8X1
|
|
6
|
29.51
|
18.14
|
0.77
|
|
SA208-24
|
1-1/2
|
|
80
|
30.2
|
18
|
9
|
43.7
|
18.3
|
60.3
|
6.5
|
|
5/16-24
|
6
|
0.77
|
|
SA208-25
|
1-9/16
|
|
80
|
30.2
|
18
|
9
|
43.7
|
18.3
|
60.3
|
6.5
|
|
5/16-24
|
6
|
0.77
|
|
SA209
|
|
45
|
85
|
30.2
|
19
|
9.5
|
43.7
|
18.3
|
63.5
|
6.5
|
M8X1
|
|
6.1
|
31.85
|
20.8
|
0.84
|
|
SA209-26
|
1-5/8
|
|
85
|
30.2
|
19
|
9.5
|
43.7
|
18.3
|
63.5
|
6.5
|
|
5/16-24
|
6.1
|
0.84
|
|
SA209-27
|
1-11/16
|
|
85
|
30.2
|
19
|
9.5
|
43.7
|
18.3
|
63.5
|
6.5
|
|
5/16-24
|
6.1
|
0.84
|
|
SA209-28
|
1-3/4
|
|
85
|
30.2
|
19
|
9.5
|
43.7
|
18.3
|
63.5
|
6.5
|
|
5/16-24
|
6.1
|
0.84
|
|
SA210
|
|
50
|
90
|
30.2
|
20
|
10
|
43.7
|
18.3
|
69.9
|
6.5
|
M8X1
|
|
6.6
|
34.99
|
23.7
|
1.02
|
|
SA210-30
|
1-7/8
|
|
90
|
30.2
|
20
|
10
|
43.7
|
18.3
|
69.9
|
6.5
|
|
5/16-24
|
6.6
|
1.02
|
|
SA210-31
|
1-15/16
|
|
90
|
30.2
|
20
|
10
|
43.7
|
18.3
|
69.9
|
6.5
|
|
5/16-24
|
6.6
|
1.02
|
|
SA210-32
|
2
|
|
90
|
30.2
|
20
|
10
|
43.7
|
18.3
|
69.9
|
6.5
|
|
5/16-24
|
6.6
|
1.02
|
|
SA211
|
|
55
|
100
|
32.5
|
21
|
10.5
|
48.4
|
20.7
|
76.2
|
8
|
M10X1.25
|
|
7.2
|
43.34
|
29.39
|
1.37
|
|
SA211-32
|
2
|
|
100
|
32.5
|
21
|
10.5
|
48.4
|
20.7
|
76.2
|
8
|
|
3/8-24
|
7.2
|
1.37
|
|
SA211-33
|
2-1/16
|
|
100
|
32.5
|
21
|
10.5
|
48.4
|
20.7
|
76.2
|
8
|
|
3/8-24
|
7.2
|
1.37
|
|
SA211-34
|
2-1/8
|
|
100
|
32.5
|
21
|
10.5
|
48.4
|
20.7
|
76.2
|
8
|
|
3/8-24
|
7.2
|
1.37
|
|
SA211-35
|
2-3/16
|
|
100
|
32.5
|
21
|
10.5
|
48.4
|
20.7
|
76.2
|
8
|
|
3/8-24
|
7.2
|
1.37
|
|
SA212
|
|
60
|
110
|
37.2
|
22
|
11
|
53.1
|
22.3
|
84.2
|
8
|
M10X1.25
|
|
7.5
|
47.68
|
33.43
|
1.85
|
|
SA212-36
|
2-1/4
|
|
110
|
37.2
|
22
|
11
|
53.1
|
22.3
|
84.2
|
8
|
|
3/8-24
|
7.5
|
1.85
|
|
SA212-37
|
2-5/16
|
|
110
|
37.2
|
22
|
11
|
53.1
|
22.3
|
84.2
|
8
|
|
3/8-24
|
7.5
|
1.85
|
|
SA212-38
|
2-3/8
|
|
110
|
37.2
|
22
|
11
|
53.1
|
22.3
|
84.2
|
8
|
|
3/8-24
|
7.5
|
1.85
|
|
SA212-39
|
2-7/16
|
|
110
|
37.2
|
22
|
11
|
53.1
|
22.3
|
84.2
|
8
|
|
3/8-24
|
7.5
|
1.85
|
Notes: 1.Suffix G = Lubrication groove and holes on outer rings.
2.Suffix N = Non-lubrication type,without lubrication groove & holes,without anti-rotation pin and holes.
