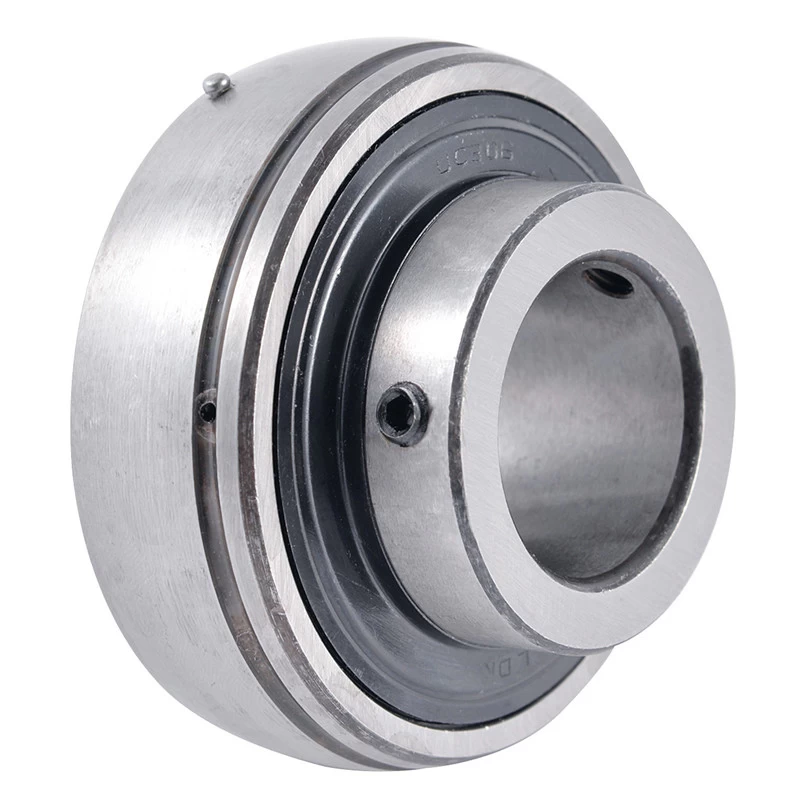

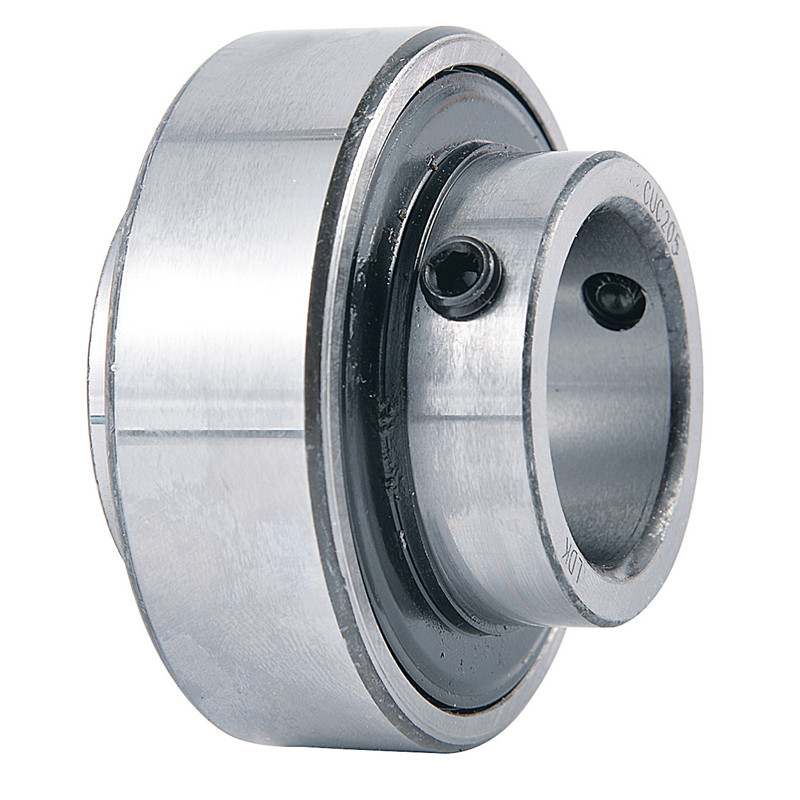

Chrome Steel Bearing Insert With Setscrew Locking UC2 UC2...L3 CUC2


UC/UC..L3/CUC Standard duty, Wider inner ring,Setscrew locking



Facebook Twitter Pinterest LinkedIn 分享

UC208-24 L3

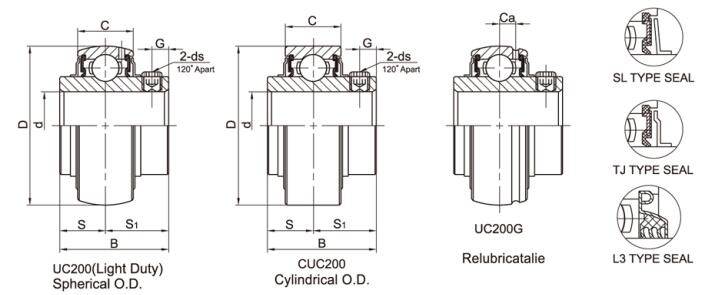

Bearing No. Shaft Dia Dimensions( mm) Basic dynamic Load ratings Basic static Load ratings Weight (kg)
d D B C S S1 G ds Ca
(in) (mm) (mm) (in.UNF) ( KN ) ( KN )
UCW201  12 40 27.4 14 11.5 15.9 4.2 M5x0.8   4.1 9.55 4.78 0.12
UCW201-8 1/2   40 27.4 14 11.5 15.9 4.2   10-32 4.1 0.12
UCW202   15 40 27.4 14 11.5 15.9 4.2 M5x0.8   4.1 9.55 4.78 0.11
UCW202-9 9/16   40 27.4 14 11.5 15.9 4.2   10-32 4.1 0.11
UCW202-10 5/8   40 27.4 14 11.5 15.9 4.2   10-32 4.1 0.11
UCW203    17 40 27.4 14 11.5 15.9 4.2 M5x0.8   4.1 9.55 4.78 0.10
UCW203-11 11/16   40 27.4 14 11.5 15.9 4.2   10-32 4.1 0.10
UC201    12 47 31 17 12.7 18.3 5 M6x1   4.3 12.82 6.65 0.21
UC201-8 1/2   47 31 17 12.7 18.3 5   1/4-28 4.3 0.21
UC202   15 47 31 17 12.7 18.3 5 M6x1   4.3 12.82 6.65 0.19
UC202-9 9/16   47 31 17 12.7 18.3 5   1/4-28 4.3 0.19
UC202-10 5/8   47 31 17 12.7 18.3 5   1/4-28 4.3 0.19
UC203    17 47 31 17 12.7 18.3 5 M6x1   4.3 12.82 6.65 0.18
UC203-11 11/16 47 31 17 12.7 18.3 5   1/4-28 4.3 0.19
UC204    20 47 31 17 12.7 18.3 5 M6x1   4.3 12.82 6.65 0.17
UC204-12 3/4   47 31 17 12.7 18.3 5   1/4-28 4.3 0.18
UC205   25 52 34.1 17 14.3 19.8 5.4 M6x1   4 14.03 8.05 0.19
UC205-13 13/16 52 34.1 17 14.3 19.8 5.4   1/4-28 4 0.22
UC205-14  7/8    52 34.1 17 14.3 19.8 5.4   1/4-28 4 0.21
UC205-15 15/16   52 34.1 17 14.3 19.8 5.4   1/4-28 4 0.20
UC205-16 1   52 34.1 17 14.3 19.8 5.4   1/4-28 4 0.19
UC206   30 62 38.1 19 15.9 22.2 5.5 M6x1   5.3 19.47 11.43 0.31
UC206-17 1-1/16   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.34
UC206-18 1-1/8   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.33
UC206-19 1-3/16   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.32
UC206-20 1-1/4   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.30
UC207   35 72 42.9 20 17.5 25.4 6.9 M8x1   5.8 25.69 15.55 0.46
UC207-20 1-1/4   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.52
UC207-21 1-5/16   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.51
UC207-22 1-3/8   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.48
UC207-23 1-7/16   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.46
UC208   40 80 49.2 21 19.0 30.2 8 M8x1   6.2 29.51 18.14 0.63
UC208-24 1-1/2   80 49.2 21 19.0 30.2 8   5/16-24 6.2 0.68
UC208-25 1-9/16   80 49.2 21 19.0 30.2 8   5/16-24 6.2 0.64
UC209   45 85 49.2 22 19.0 30.2 8 M8x1   6.5 31.85 20.8 0.68
UC209-26 1-5/8    85 49.2 22 19.0 30.2 8   5/16-24 6.5 0.78
UC209-27 1-11/16   85 49.2 22 19.0 30.2 8   5/16-24 6.5 0.74
UC209-28 1-3/4   85 49.2 22 19.0 30.2 8   5/16-24 6.5 0.70
UC210   50 90 51.6 24 19.0 32.6 10 M10x1.25   7 34.99 23.7 0.78
UC210-30  1-7/8    90 51.6 24 19.0 32.6 10   3/8-24 7 0.85
UC210-31 1-15/16   90 51.6 24 19.0 32.6 10   3/8-24 7 0.8
UC210-32 2   90 51.6 24 19.0 32.6 10   3/8-24 7 0.78
UC211   55 100 55.6 25 22.2 33.4 10 M10x1.25   7.4 43.34 29.39 1.07
UC211-32 2   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.22
UC211-33 2-1/16    100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.16
UC211-34 2-1/8   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.1
UC211-35 2-3/16   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.05
UC212   60 110 65.1 27 25.4 39.7 10 M10x1.25   7.6 47.68 33.43 1.51
UC212-36 2-1/4   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.65
UC212-37 2-5/16   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.59
UC212-38 2-3/8   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.52
UC212-39 2-7/16   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.42
UC213   65 120 65.1 28 25.4 39.7 10 M10x1.25   8.5 57.2 40.01 1.86
UC213-39 2-7/16   120 65.1 28 25.4 39.7 10   3/8-24 8.5 1.96
UC213-40 2-1/2   120 65.1 28 25.4 39.7 10   3/8-24 8.5 1.94
UC214   70 125 74.6 29 30.2 44.4 12 M12x1.25   8.9 62.19 43.9 2.18
UC214-43 2-11/16   125 74.6 29 30.2 44.4 12   7/16-20 8.9 2.28
UC214-44 2-3/4   125 74.6 29 30.2 44.4 12   7/16-20 8.9 2.06
UC215   75 130 77.8 30 33.3 44.5 12 M12X1.25   9.2 62.08 44.82 2.21
UC215-47 2-15/16   130 77.8 30 33.3 44.5 12   7/16-20 9.2 2.30
UC215-48 3   130 77.8 30 33.3 44.5 12   7/16-20 9.2 2.13
UC216   80 140 82.6 33 33.3 49.3 12 M12X1.25   9.5 72.62 53.34 2.79
UC217   85 150 85.7 35 34.1 51.6 12 M12X1.25   11.1 83.15 64.54 3.38
UC217-52 3-1/4   150 85.7 35 34.1 51.6 12   7/16-20 11.1 3.59
UC218   90 160 96 37 39.7 56.3 12 M12X1.25   11.8 95.84 72.64 4.46
UC218-56 3-1/2   160 96 37 39.7 56.3 12   7/16-20 11.8 4.56
