Chrome Steel Bearing Insert With Setscrew Locking UC3


UC300  Heavy duty, Wider inner ring,Setscrew locking



Facebook Twitter Pinterest LinkedIn 分享

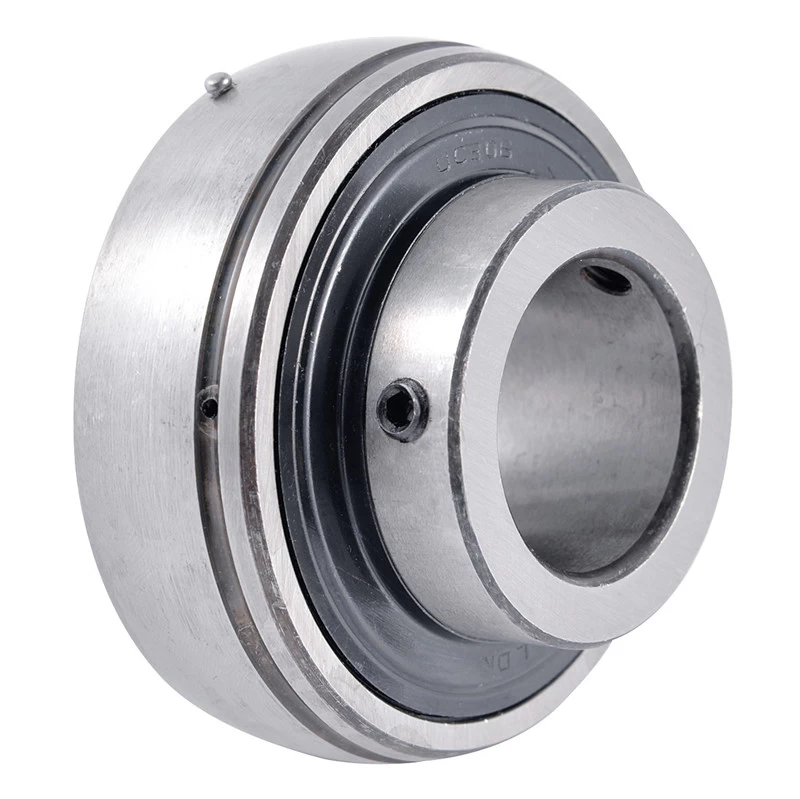

Chrome Steel Bearing UC308

Bearing No. Shaft Dia Dimensions (mm)
Basic dynamic Load ratings
( KN )
Basic static Load ratings
( KN )
Weight (kg)
d D B C S S1 G ds Ca
(in) (mm) (mm) (in.UNF)
UC305  25 62 38 21 15 23 6 M6X1   6.4 22.46 11.57 0.44
UC305-14  7/8    62 38 21 15 23 6   1/4-28 6.4 0.44
UC305-15  15/16    62 38 21 15 23 6   1/4-28 6.4 0.44
UC305-16 1   62 38 21 15 23 6   1/4-28 6.4 0.44
UC306  30 72 43 23 17 26 6 M6X1   7.1 27.14 15.2 0.56
UC306-18  1-1/8    72 43 23 17 26 6   1/4-28 7.1 0.56
UC306-19 1-3/16   72 43 23 17 26 6   1/4-28 7.1 0.56
UC307  35 80 48 25 19 29 8 M8X1   8 33.53 19.22 0.71
UC307-20  1-1/4    80 48 25 19 29 8   5/16-24 8 0.71
UC307-21  1-5/16    80 48 25 19 29 8   5/16-24 8 0.71
UC307-22 1-3/8   80 48 25 19 29 8   5/16-24 8 0.71
UC308  40 90 52 27 19 33 10 M10X1.25   9 40.96 24.01 1.00
UC308-24  1-1/2    90 52 27 19 33 10   3/8-24 9 1.00
UC308-25 1-9/16   90 52 27 19 33 10   3/8-24 9 1.00
UC309  45 100 57 30 22 35 10 M10X1.25   9.5 53.33 32.19 1.28
UC309-26  1-5/8    100 57 30 22 35 10   3/8-24 9.5 1.28
UC309-27  1-11/16    100 57 30 22 35 10   3/8-24 9.5 1.28
UC309-28 1-3/4   100 57 30 22 35 10   3/8-24 9.5 1.28
UC310  50 110 61 32 22 39 12 M12X1.25   10.5 62.38 38.32 1.65
UC310-30  1-7/8    110 61 32 22 39 12   7/16-20 10.5 1.65
UC310-31 1-15/16   110 61 32 22 39 12   7/16-20 10.5 1.65
UC311  55 120 66 34 25 41 12 M12X1.25   11 72.05 44.97 2.07
UC311-32  2   120 66 34 25 41 12   7/16-20 11 2.07
UC311-34  2-1/8    120 66 34 25 41 12   7/16-20 11 2.07
UC311-35 2-3/16   120 66 34 25 41 12   7/16-20 11 2.07
UC312 60 130 71 36 26 45 12 M12X1.25   11.5 82.33 52.16 2.59
UC312-36  2-1/4    130 71 36 26 45 12   7/16-20 11.5 2.59
UC312-38  2-3/8    130 71 36 26 45 12   7/16-20 11.5 2.59
UC312-39 2-7/16   130 71 36 26 45 12   7/16-20 11.5 2.59
UC313  65 140 75 38 30 45 12 M12X1.25   12.5 94.54 60.82 3.15
UC313-40 2-1/2   140 75 38 30 45 12   7/16-20 12.5 3.15
UC314  70 150 78 40 33 45 12 M12X1.25   13.2 104.7 68.13 3.83
UC314-44 2-3/4   150 78 40 33 45 12   7/16-20 13.2 3.83
UC315  75 160 82 42 32 50 12 M14X1.5   14 113.97 78.66 4.59
UC315-48 3   160 82 42 32 50 12   1/2-20 14 4.59
UC316   80 170 86 44 34 52 14 M14X1.5   14.9 123.46 88.18 5.40
UC317  85 180 96 46 40 56 16 M16X1.5   16 133.16 98.25 6.58
UC317-52 3-1/4   180 96 46 40 56 16   5/8-18 16 6.58
UC318  90 190 96 48 40 56 16 M16X1.5   17.3 144.67 110.59 7.34
UC318-56 3-1/2   190 96 48 40 56 16   5/8-18 17.3 7.34
UC319  95 200 103 50 41 62 16 M16X1.5   18.3 156.68 122.07 8.70
UC319-60 3-3/4   200 103 50 41 62 16   5/8-18 18.3 8.70
UC320  100 215 108 54 42 66 18 M18X1.5   20 173.14 140.67 10.80
UC320-64 4   215 108 54 42 66 18   5/8-18 20 10.80
UC321   105 225 112 56 44 68 18 M18X1.5   20.8 183.7 153.2 12.20
UC322   110 240 117 60 46 71 18 M18X1.5   20.9 206.8 179.9 14.30
UC324   120 260 126 64 51 75 18 M18X1.5   22.9 228 208.6 18.50
UC326   130 280 135 68 54 81 20 M20X1.5   24.9 274.2 273.7 23.00
UC328   140 300 145 72 59 86 20 M20X1.5   26.9 296.9 306.5 28.50
