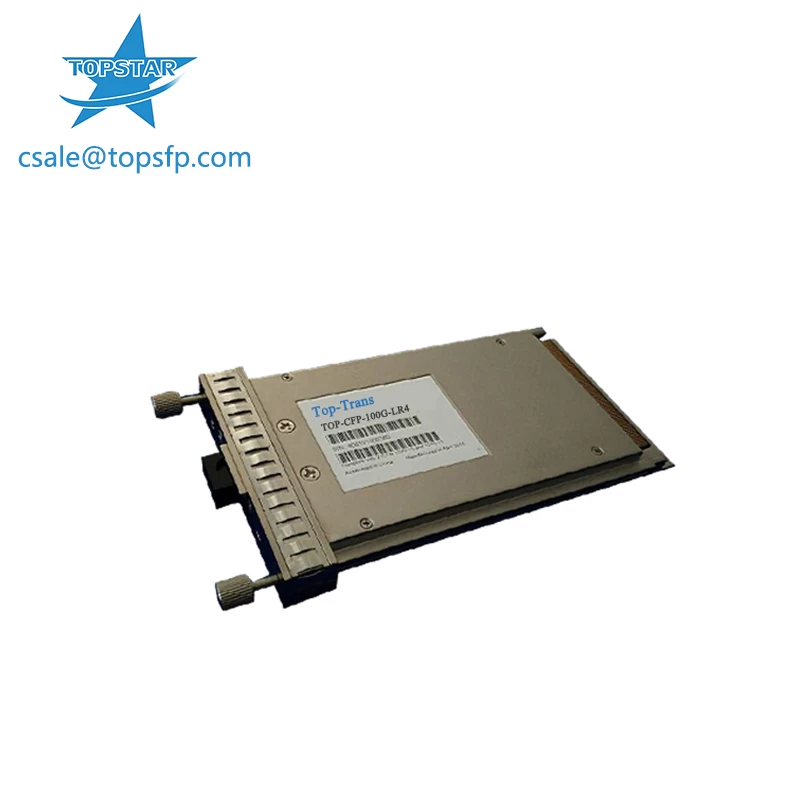

Cisco CFP-100G-LR4 Compatible 100GBASE-LR4 1310nm 10km 10-2549-02 Transceiver Module

The original switches marked “Unique” below could be found in Topstar, eg: Juniper MX960 & EX 4300 series, Cisco Nexus 9396PX & Cisco ASR 9000 Series, HP 5900 Series & HP 5406R ZL2 V3(J9996A), Arista 7050S-64, Brocade ICX7750-26Q & ICX6610-48, Avaya VSP 7000 MDA 2, etc.

  • Wavelength1310nm
  • Distance10km
  • Data Rate100G
  • Temperature0 to 70°C
  • Warranty1 Year
Facebook Twitter Pinterest LinkedIn 分享

Cisco CFP-100G-LR4 Compatible 100GBASE-LR4 1310nm 10km 10-2549-02 Transceiver Module


Features

  • Hot Pluggable CFP MSA package
  • IEEE 802.3ba 100GBASE-LR4 compliant
  • ITU-T 4I1-9D1F compliant
  • CFP-MSA-HW-Spec-rev1-40 compliant
  • Up to 10km for G.652 SMF
  • Receiver: 4-lane x 25Gb/s PIN ROSAs
  • Transmitter: 4-lane x 25Gb/s LAN-WDM EA-DFB TOSAs (1295.56,1300.05,1304.58,1309.14nm)
  • 10x10G Electrical Serial Interface (CAUI/OTL4.10)
  • MDIO management interface with Digital Diagnostic
  • +3.3V power supply
  • Power consumption less than 12W
  • Compact size: 144.75 x 82 x 13.6 mm
  • Operating case temperature: 0 to +70 ℃
  • Duplex SC or LC Receptacle
  • ROHs-6 compliant

Compatible with


  • Cisco CRS Router 1X100GBE
  • Cisco ASR 9000 Series Router A9K-2x100GE-SE
  • Cisco ASR 9000 Series Router A9K-1x100GE-SE
  • Cisco ASR 9000 Series Router A9K-1x100GE-TR
  • Cisco Nexus 7000 Series N7K-M202CF-22L
