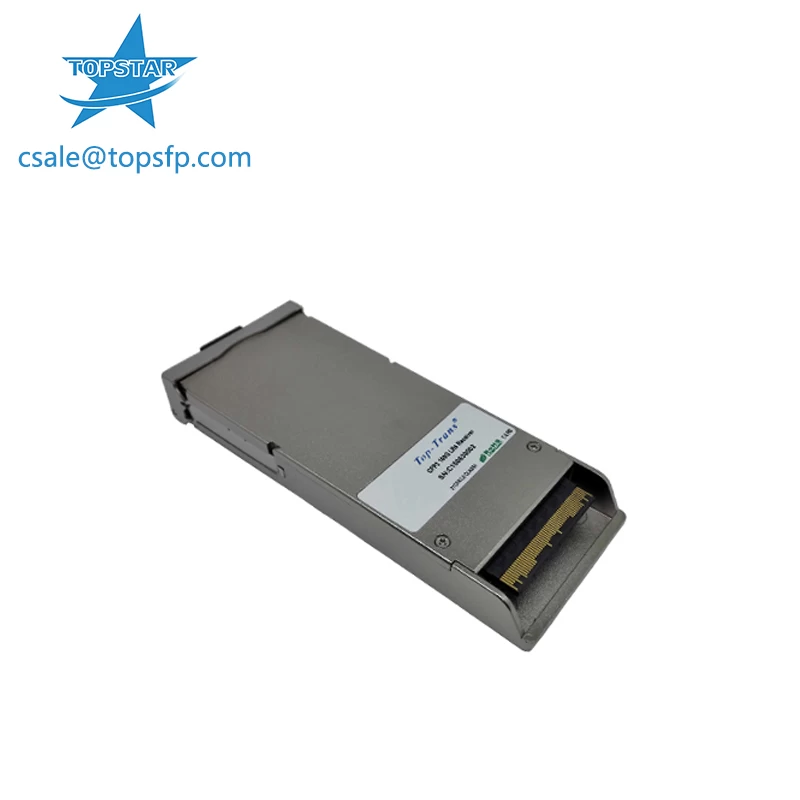

Cisco CFP2-100G-LR4 Compatible 100GBASE- LR4 1310nm 10km Transceiver Module

The original switches marked “Unique” below could be found at Topstar, eg: Juniper MX960 & EX 4300 series, Cisco Nexus 9396PX & Cisco ASR 9000 Series, HP 5900 Series & HP 5406R ZL2 V3(J9996A), Arista 7050S-64, Brocade ICX7750-26Q & ICX6610-48, Avaya VSP 7000 MDA 2, etc.

  • Wavelength1310nm
  • Distance10km
  • Data Rate100G
  • Temperature0 to 70°C
  • Warranty1 Year
Facebook Twitter Pinterest LinkedIn 分享

Cisco CFP2-100G-LR4 Compatible 100GBASE- LR4 1310nm 10km Transceiver Module


Features

  • Hot Pluggable CFP2 MSA package
  • IEEE 802.3ba 100GBASE-LR4 compliant
  • CFP-MSA-CFP2-HW-Specification compliant
  • Up to 10km for G.652 SMF
  • Receiver: 4 x 25Gb/s PIN ROSA
  • Transmitter: 4 x 25Gb/s WDM TOSA (1295.56,1300.05,1304.58,1309.14nm)
  • 4 x 28G Electrical Serial Interface (CEI-28G-VSR)
  • MDIO management interface with Digital Diagnostic
  • +3.3V power supply
  • Power consumption less than 9W
  • Compact size: 107.5 x 41.5 x 12.4 mm
  • Operating case temperature: 0 to +70 ℃
  • Duplex LC Receptacle
  • ROHs-6 compliant
