Cisco Switch 10G Tx1330/Rx1270nm 40km Transmissions Wdm Cwdm

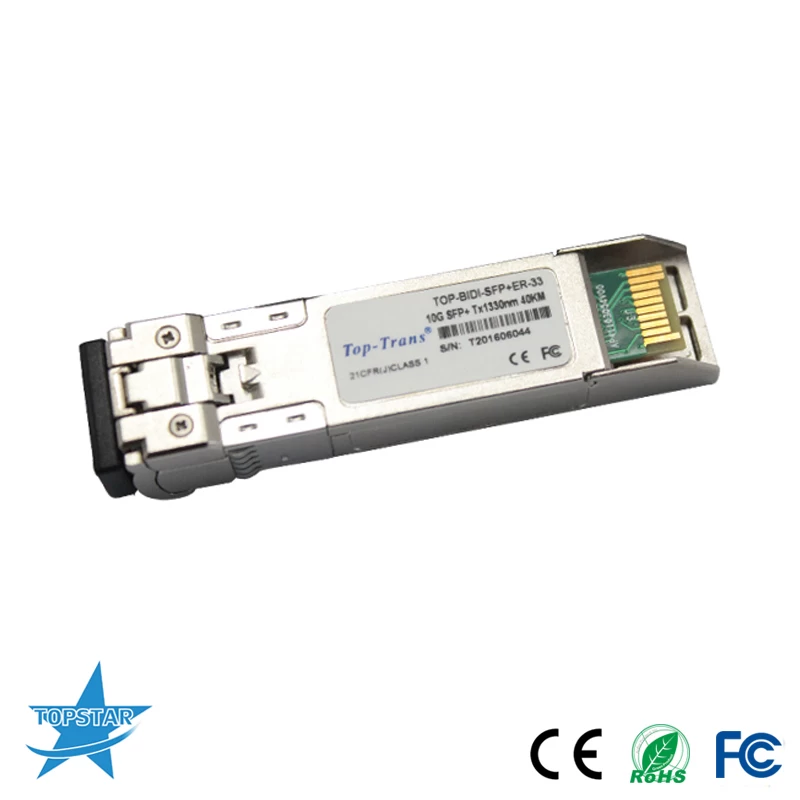

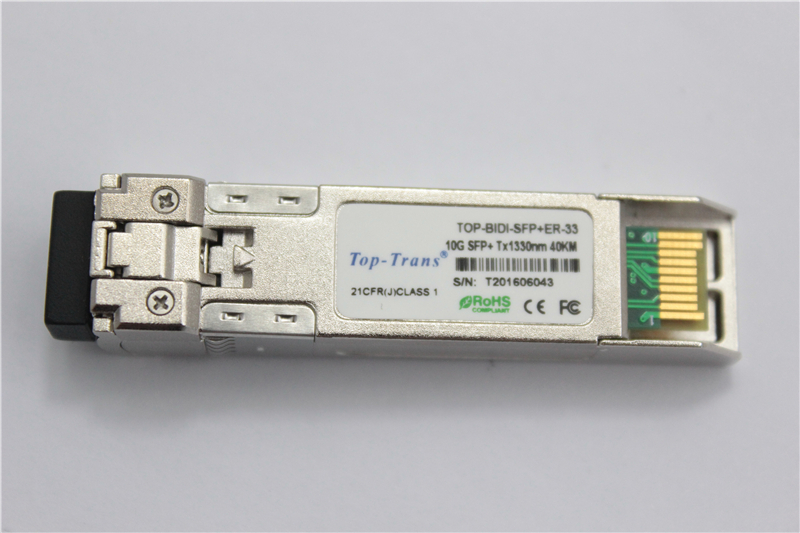

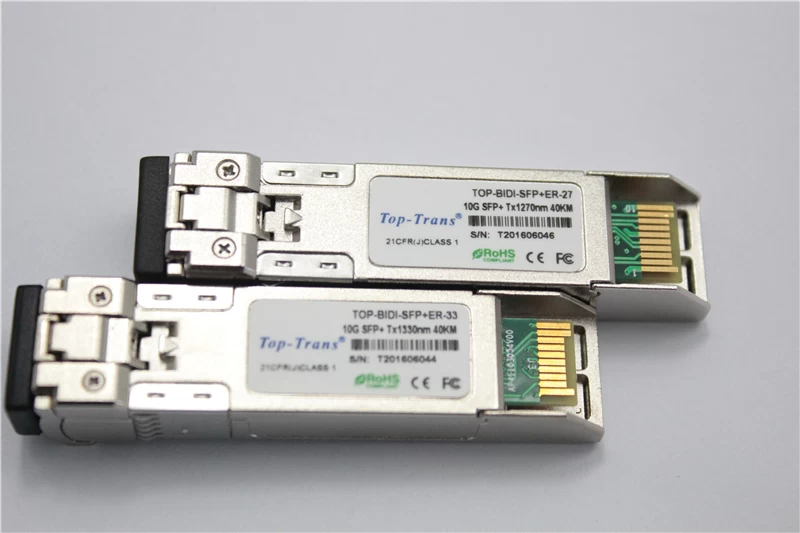

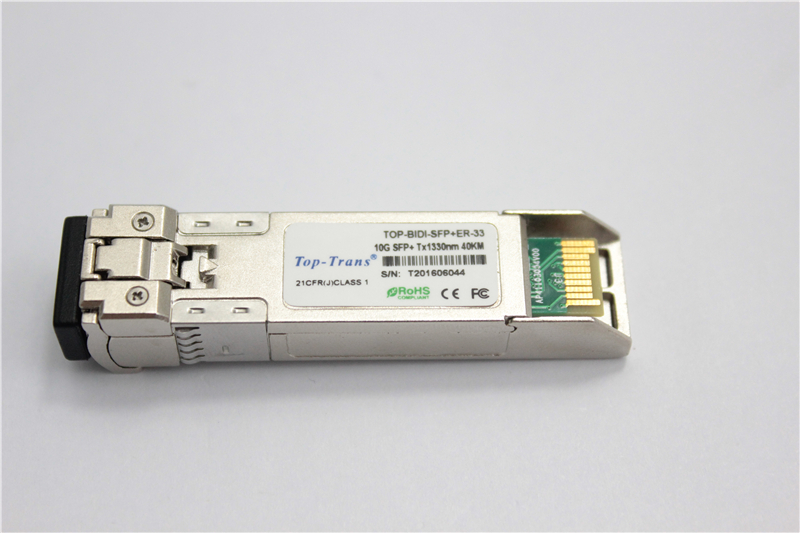

SFP+ 10G 40KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA.

The module data link up to 40kmin9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. TxFault is provided to indicate that degradation of the laser.

Loss of signal (LOS) out put is provided to indicate the loss of an input optical signal of receiver or the link status with partner.


  • WavelengthTx1330/Rx1270nm
  • Distance40KM
  • Data Rate10G
  • Temperature0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Warranty3 Years
  • ConnectorSingle port LC/SC

Cisco Switch 10G Tx1330/Rx1270nm 40km Transmissions Wdm Cwdm

10G Tx1330/Rx1270nm 40km Transmissions Wdm


PRODUCT FEATURES

● SFPMS A package with duplex LC connector

● Very low EMI and excellent ESD protection

● Digital Diagnostic Monitor Interface

● Hot pluggable

● 10Gb/s serial optical interface

● Up to 40km distance

● Compliant with SFP+MSA

● High transmission margin

● +3.3V single power supply

● Below<1.5W power consumption

● SFP mechanical interface



APPLICATIONS

● 10GBASE-BX at 10.3125Gb/s

● 10GBASE-BX at 9.953Gb/s



STANDARD

● SFP+MSA Compliant

● SFF-8472 reversion 9.5 compliant

● IEEE802.3-2005 compliant

● Telcordia GR-468-CORE compliant

● FCC47CFRPart15, Class B compliant

● FDA21CFR1040.10 and 1040.11, class1 compliant

● RoHS compliant


Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


4.Customized label and package , OEM and ODM service offered
