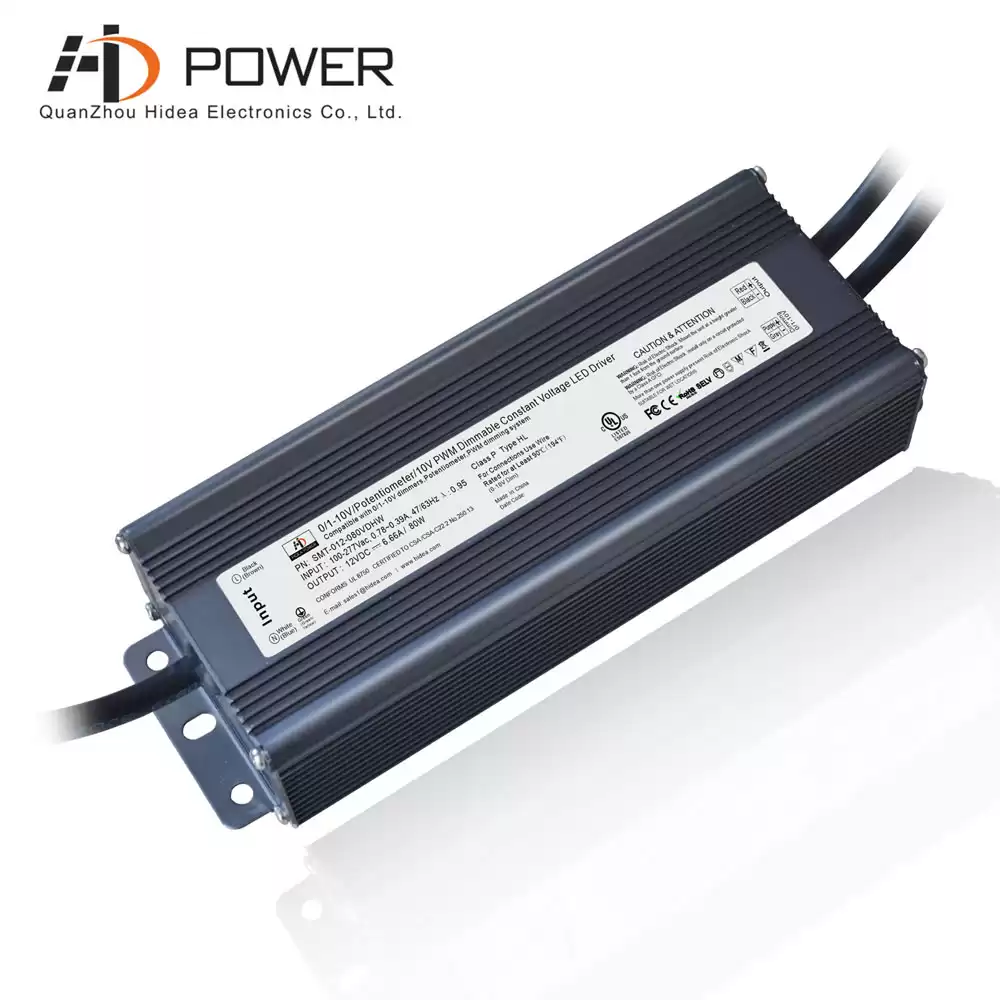

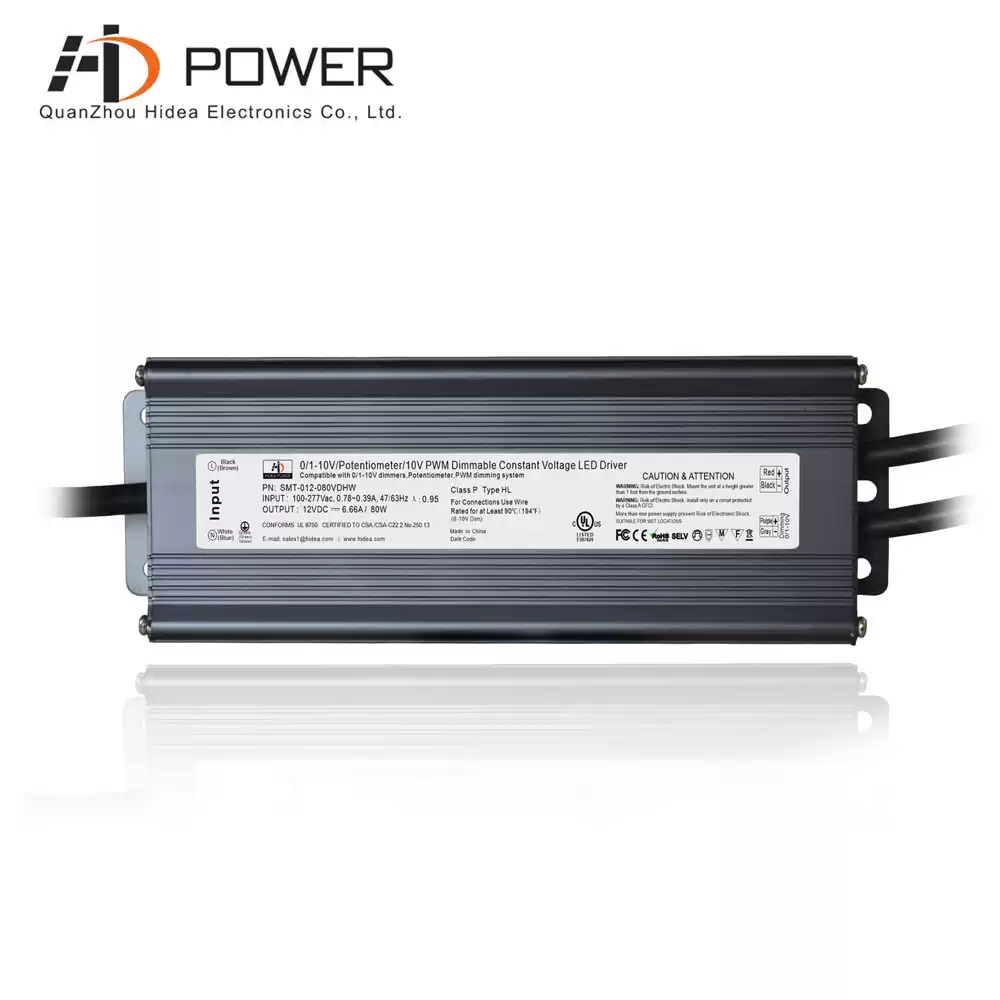

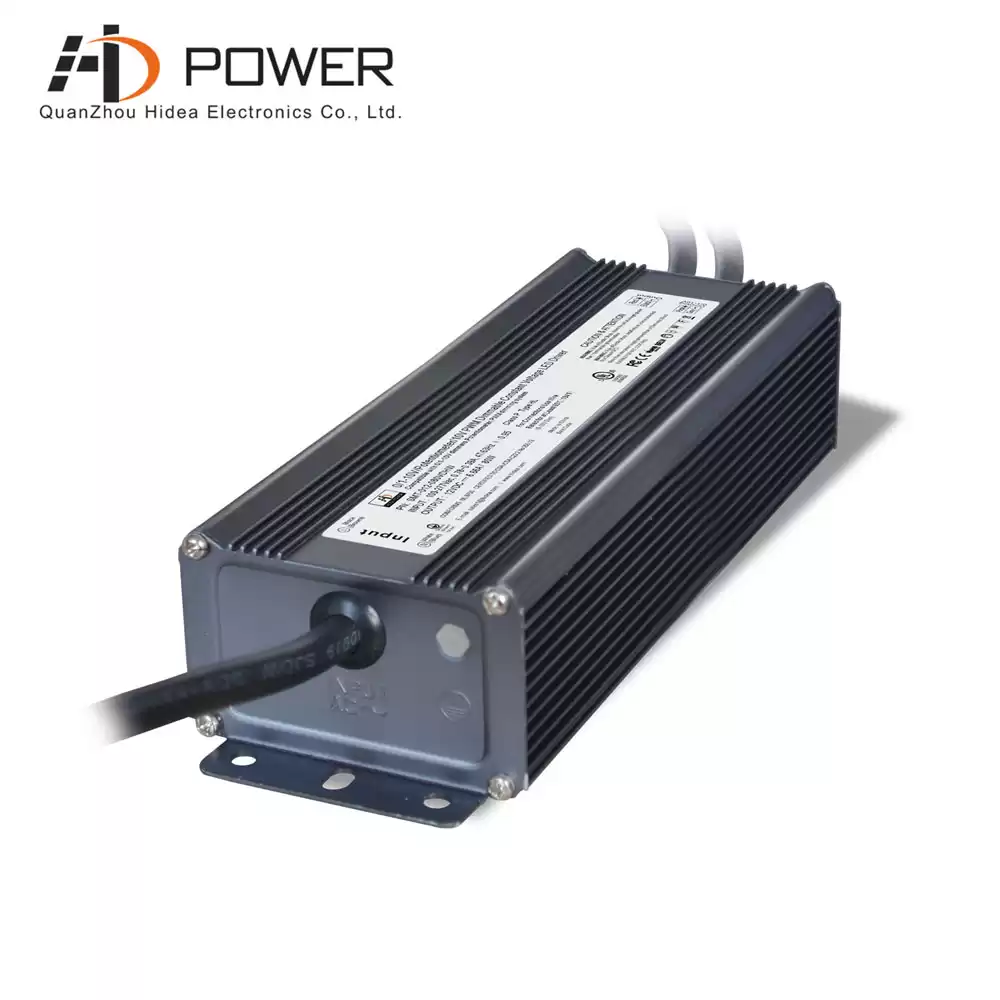

class 2 waterproof 0 10v dimmable constant voltage 24v 80w led driver power supply ip67
ip67 is suitable for outdoor installation of 80W LED driver, constant voltage working mode, working efficiency up to 88%, using free air convection for heat dissipation, aluminum shell, good heat dissipation, suitable for installation and use in outdoor lighting projects
Specification
|
model
|
SMT-012-080VDHW
|
SMT-024-080VDHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
6.66A
|
3.33A (class 2 type)
|
|
Rated power
|
80W
|
80W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.95/110V , PF≧0.95/277V
|
|
Full Load Efficiency(Typ.)
|
86%@120VAC 88%@277VAC
|
|
AC Current(Typ.)
|
1.3A @110VAC 0.72A/170VAC 0.530A/220VAC 0.427A/277VAC
|
|
Inrush Current (Typ.)
|
1.0A/120VAC 0.63A/170VAC 0.50A/220VAC 0.41A/277VAC
|
|
Leakage current
|
﹤0.40mA/110V,277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≦140VAC(90~135V) , ≦290VAC(260~277V)
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
Class P, Type HL, EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%Load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV)
|
|
Others
|
Weight
|
1.32Kg
|
|
Size
|
230*70*47mm(L*W*H)
|
|
packing
|
329*279*176mm/10pcs
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC & 277vac input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
UL listed dimmable waterproof led power supply 12v 80w ,the universal AC input:100-277vAC. It is often used in large indoor spaces like factories and distribution facilities with Stouch Lighting High bay lighting.
Related Products
|

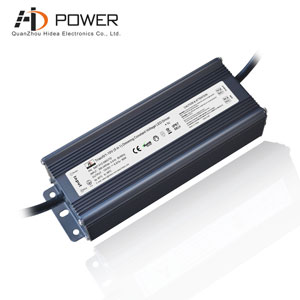

triac & 0-10v dimmable led driver aluminum shell design, waterproof grade ip67, good heat dissipation, effectively waterproof and dustproof, UL certified, complies with global safety lighting regulations, 7-year warranty
