CMS Modular UPS 10-100kVA

System Capicity: 10kVA - 100kVA
Module Capicity: 10kVA
3/3, 3/1, 1/3, 1/1; 50/60Hz; BOTTOM/TOP feed
High Frequency MODULAR UPS
Choice of UPS module result in rational redundancy.
Modular,hot-swappable, field-replaceable STS, monitor, UPS module.
Scalable from 10KVA to 100KVA. Parallel-capable up to 400KVA.



Overview

Sicon CMS is non-isolated, world class, redundant, scalable, 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability. Sicon CMS is a true modular uninterruptible power supply, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into today's data center designs. Sicon CMS online double conversion ups is industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.

Breif introduction for Sicon CMS 380VAC 400VAC 415VAC 3 Phase UPS Products Range: 7 type system frame, 3 type ups module, which is designed basing on rational redundancy and projects requiement. system frame: 50kva, 100kva, 150kva, 250kva, 350kva, 500kva, 800kva. ups module: 10kva, 25kva, 50kva. Basing on these products, Sicon offer the most reasonable, cost-effective modular ups solution for projects.

Meanwhile, basing on rack-mount ups solution requirement, Sicon launched CMS/A Rack-Independent Technology Modular UPS basing on 25kva ups module with 100kva/200kva base unit in 2015, leading in Market.

ups install reference | more about sicon plant | sicon support


50/100kva Features

3/3// Uninterruptible Power Supplies 10kVA- 20kVA -30kVA -40kVA -50kVA -60kVA -70kVA -80kVA -90kVA -100kVA

UPS module: 10 kVA

System frame/chassis: 50kVA, 100 kVA

Excellent power capability

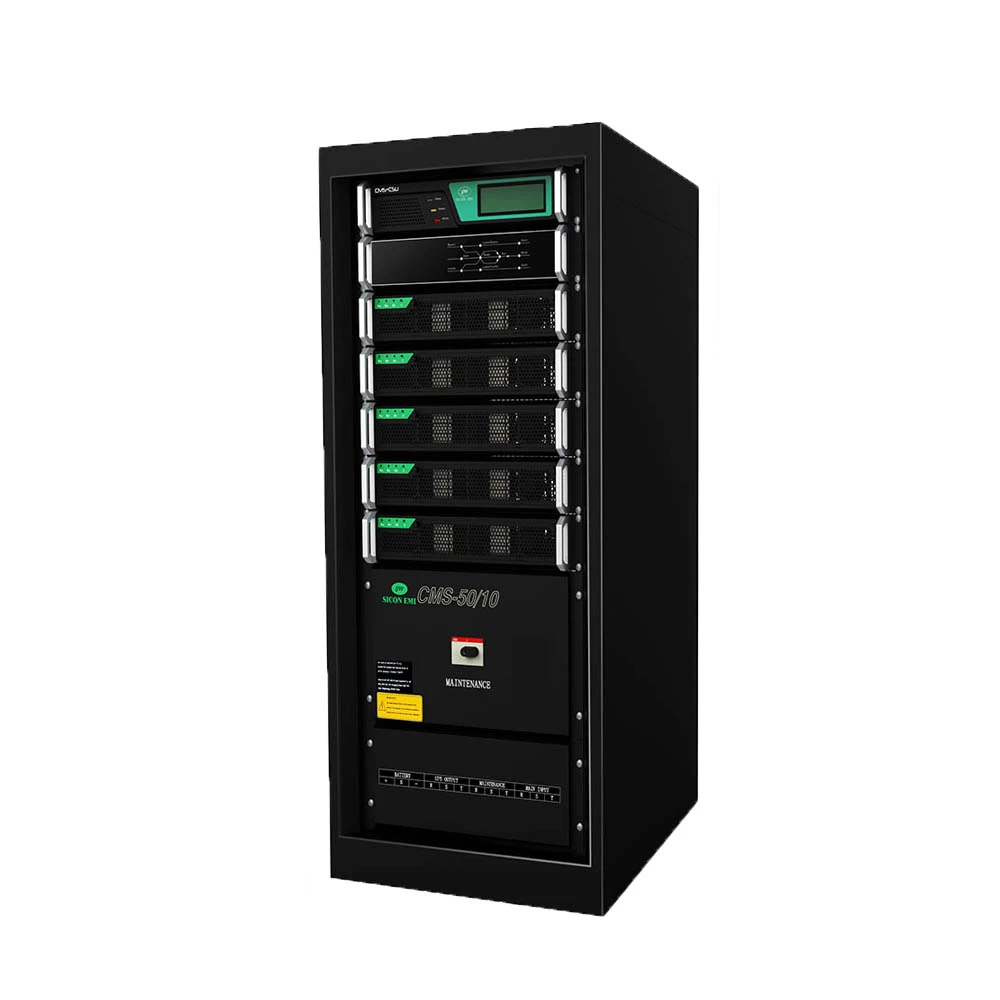

50kVA single chassis, parallelable up to 200kVA

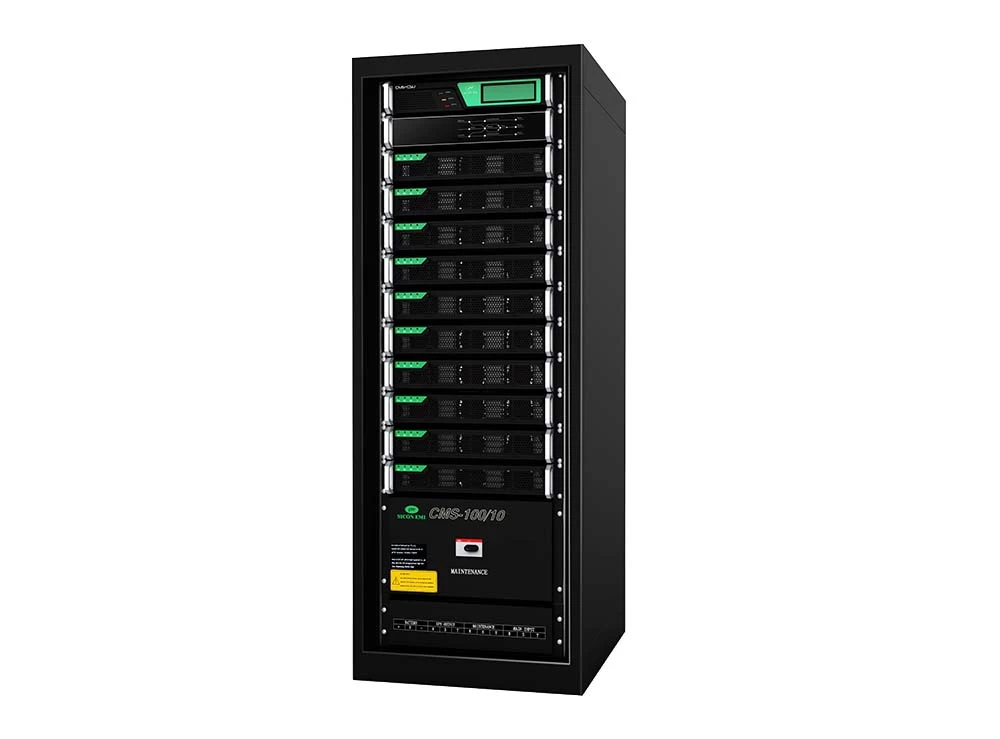

100kVA single chassis, parallelable up to 400kVA

Transformer Free UPS technology,  lower space and weight

Online double Conversion (VFI-SS-111) · Rational redundant structure · N+X redundancy

High efficiency · AC/DC, DC/AC 95%, DC/AC 98% efficiency

Input low current harmonic distortion · THDI ≤ 3%

High input power factor · input PF ≥ 0.99

High output power factor · Output PF = 0.9

Static and Maintenance bypass switch

Short circuit and overload protection

RS232 serial ports and dry contacts

Multi-level decentralized control technology and Master-slave synchronization in sequency control

Each module automatically even shares the input and output current, all UPS modules share batteries

Selectable input/ output voltage/ frequency range

Split by-pass

Battery management:

Battery discharge management

Auto-transfer between floating and even charging

Temperature compensation

Optional SNMP, Modbus adapters

Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS

2 year warranty

10 years spare parts support


10kVA UPS module

Full functioned UPS, delivering a combination of converter, inverter, charger and controller

Isolated airflow with redundant fans · Online cleanable airfliter · High power density · High efficiency · Autonomous Start-up · Cold start


STS Module

Parallel of SCR and AC Contactor

Online replace without shutdown system · High reliablity and overload ability · Transfer time within 1ms · Self-diagnose, interlock


Application

IDC date center · Government · Telecom · Bank · Security · Transportation · Broadcast&TV network · HealthCare · Communication · E-business · Finance · etc.
