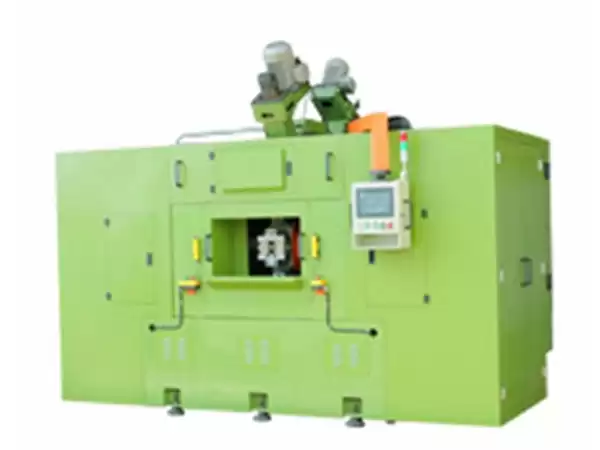

CNC Rotary Transfer Machine for Gate Valve
1.Applicatiom water segregator body 3/4"-1".
2.Working steps left boring/deep drill/tapping.Middle servo slide bore/drill/right boring/deep drill/tapping.
3.power unit head can be distributed by customer requirment.
4.Table operation mode.Hydraulic 6 indexing furntable.

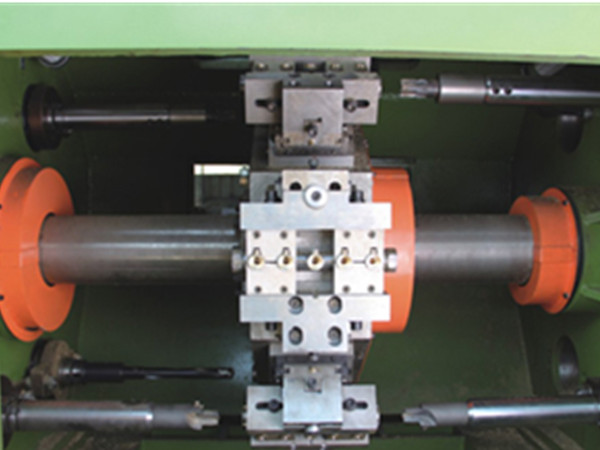

4.Fixture type:long stroke hydraulic bench vice.
5.Loading/unloading :manually loading/unloading.
6.Tool cooling system inject gas cool,tapping spray cool.
|
Spindle sleeve specification
|
φ110X380mm
|
|
Range of spindle speed
|
boring 680r/min,drilling:940r/min,tapping 556r/min (adjustable)
|
|
motor power
|
boring:3kwX4p=3pcs,Drilling:4kwX4p=2pcs,Tapping:2.2kwX6p=3pcs
hydraulic pump motor:3.75kwX4p=2pcs
|
|
hydraulic oil specification
|
runlaibao46#F antiwear hydraulic oil
|
|
spindle shank specification
|
BT-40
|
|
Operation voltage
|
3P-380VAC±5%(50HZ)
|
|
Total power
|
32.5kw
|
|
overall dimension of machine
|
3800X1780X2800
|
|
Machine weight
|
7500kg
|
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
