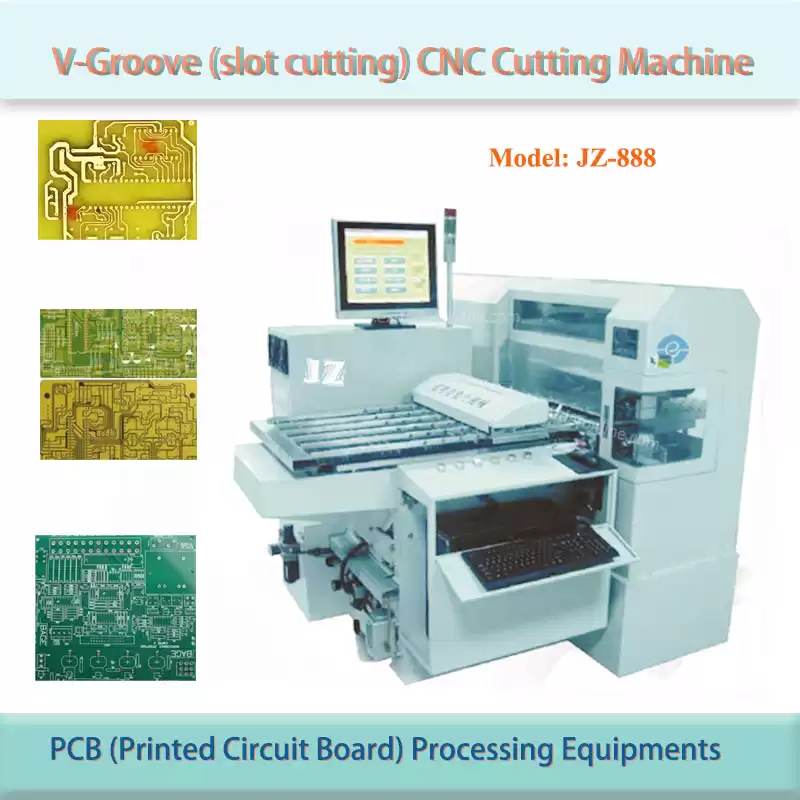

CNC V-GROOVE  SLOT CUTTING MACHINE

HS CODE: 8465.9200.00

This is a new edition of CNC V-groove slot cutting machine, it has 4 blades and 6 blades two kinds of.

Positioning mode: Sideway type

Cutter quantity: 6 Cutters

Processing area: The Max. plate  width: 480mm; plate length: unrestricted;

                               The Min. plate width: 75mm; plate length: 75mm

Processing plate thickness: 0.6- 3.0mm

The Min. distance from plate side to cutter: 3mm;

The Max. processing speed: 40M/Min.

Feeding and receiving mode: Automatic retraction plate

Processing precision: Residual thickness:  0.05mm

Parallel: 0.05mm

Gap: 0.05mm

Machine dimension: 1900*1530*1800mm(L*W*H)

Machine Weight: 1.8T

Power supply demand: AC 380V, 3 phases, 50Hz;

Air Pressure requirements: 4kgs/cm2

Dust collection flow: 36M3/Min.
