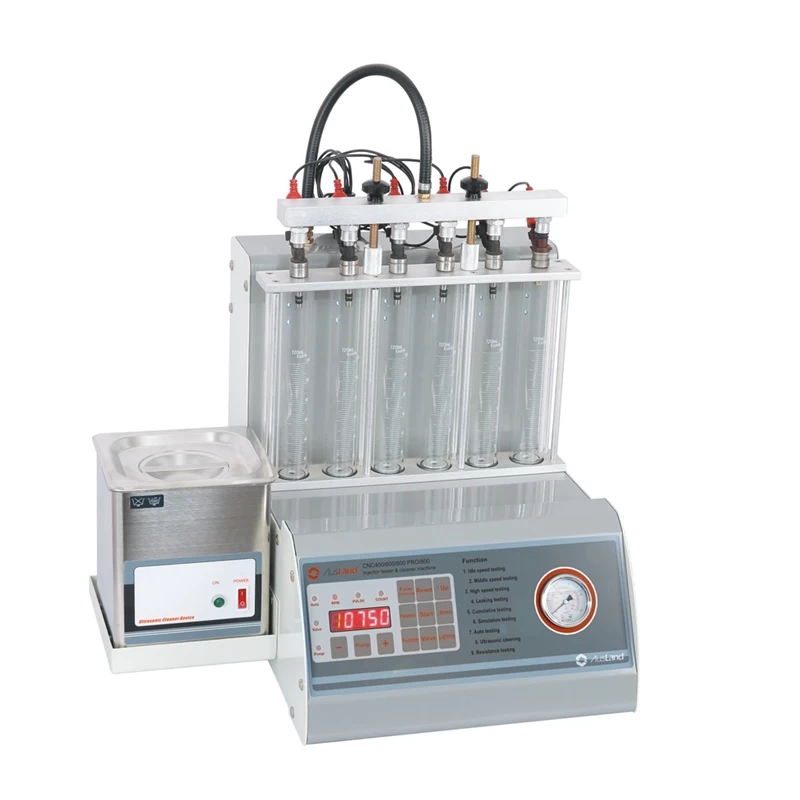

CNC600 PRO INJECTOR TESTER & CLEANER TECHNICAL PARAMETER

Dimensions: 400mm(L)* 450mm(W)* 510mm(H)

Weight: 25kg

Power: 85-132vac/170-264vac  47-63Hz

Fuel tank capacity: 4.5L

Ultrasonic wave frequency: 40KHz

Ultrasonic wave power: 100W

Rotate speed:0-9975r/min, step: 25r/min

Pulse width: 0-30ms, step:0.1ms

Count: 0-9975r, step: 25r

Time: 0-9975s, step: 5s

System pressure: 0-6.2kg/cm²(variable regulated)

System flow: 4L/min

Test cylinder: 8 (max)

Test tube capacity: 120cc

CNC600 PRO INJECTOR TESTER & CLEANER FUNCTION/FEATURES:

1.Can test injector resistance ( one by one ), and display the data.

2.Can test the defects of leaking, blocking, atomization, spray pattern, flow.

3.Solenoid valve drain the liquid to tank, have LED of backlight.

4.Cumulative testing and engine simulation testing.

5.Using pulse width modulation to control and adjust fuel pressure.

6.Have Auto function, manual function.

7.Ultrasonice cleaning, can set the working time, the max time is one hour, at the same time the injector is working.

8.Can test and clean GDI,FSI,SIDI,MPI,SPFI,TBI,CFI,K-JET,LPG,Motorbike-injector,including high or low resistance injector.

9.The display for LED.
