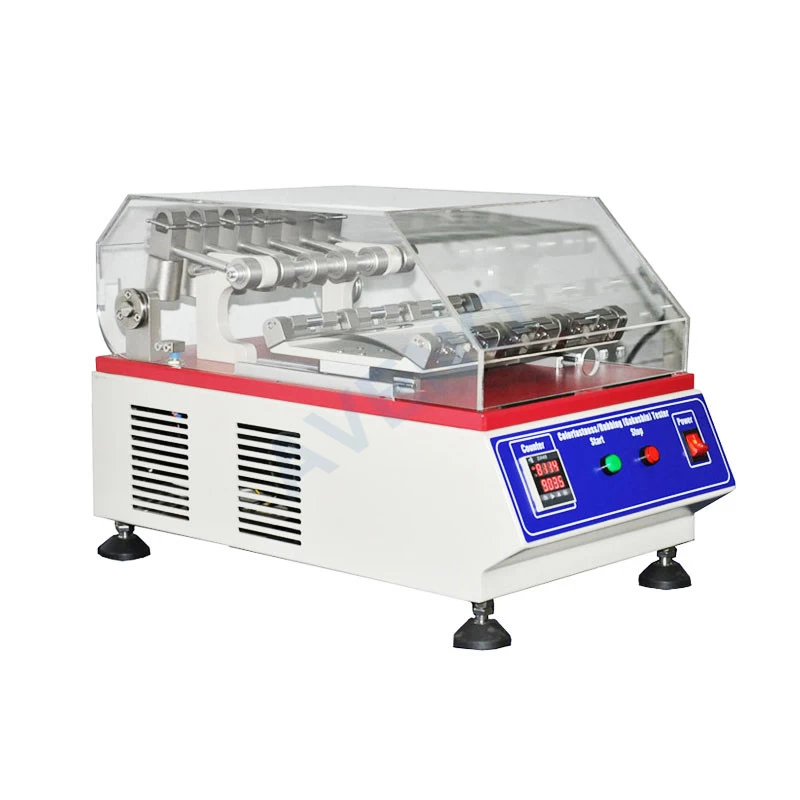

AC14-Colorfastness Rubbing (Gakushin) Tester
Application Of Colorfastness Rubbing (Gakushin) Tester
Colorfastness Rubbing (Gakushin) Tester is Rubbing color fastness tester for JIS standard method, apply to test the decolorization performance of fabric after friction under dry / wet state.
Test Principle Of Colorfastness Rubbing (Gakushin) Tester
The test sample friction with white cotton cloth of a certain stroke and a certain times, evaluation of decolorization grade by comparative the white cotton cloth with standard grey scale.
Feature Of Colorfastness Rubbing (Gakushin) Tester
-
With transparent shield and electronic access control technology, machine will stop work when open the shield, safety and convenience to observe the test situation.
-
Arc test table use SUS304 stainless steel, neat and durable.
-
Use linear sliding rail bearing reciprocating moving structure, high precision, smooth operation and quietly.
Standards Of Colorfastness Rubbing (Gakushin) Tester
JIS L 0849 type2, JIS L 0801, JIS L 0862, JIS L 1084, JIS L0823, JIS L1006
Key Specification Of Colorfastness Rubbing (Gakushin) Tester
|
Model
|
AC14
Colorfastness Rubbing (Gakushin) Tester
|
|
Test
position
|
6position
|
|
Friction
hammer surface radius
|
R45mm
|
|
Friction
hammer track
|
100±1
|
|
Friction
hammer load
|
2N(200g)
|
|
Test
speed
|
30±2r/min
|
|
Sample
stage surface radius
|
R200
|
|
Sample
dimension
|
220mmX30mm
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
33x55x35cm
|
|
Weight
|
45kg
|
