Products Name: Compact motor linear guide system motion stages (LMH350 Series)
Characteristics:
• Good rigidity and stability marble materials
• High repeatability accuracy±1μm
• Adopt U-type linear motor with peak force 900-2000Nm, continuous force 150-350Nm
• Continuous current 2.3Arms, peak current 13Arms
• Effective stroke 100-500mm for optional
Product Specifications
Motor Model/Parameter
|
Parameter\ Motor Model
|
Unit
|
U42
|
U43
|
U44
|
U46
|
|
Continuous Force (Tmax）
|
N
|
72
|
108
|
144
|
216
|
|
Peak Force
|
N
|
288
|
432
|
576
|
864
|
|
Motor Constant
|
N//SqrtW
|
8.8
|
11
|
12.8
|
15.8
|
|
Max.Continuous Power Dissipation
|
W
|
66.7
|
96.6
|
126.6
|
186.6
|
|
Continuous Current (Tmax）
|
Arms
|
2.3
|
2.3
|
2.3
|
2.3
|
|
Peak Current (1S)
|
Arms
|
9.2
|
9.2
|
9.2
|
9.2
|
|
Force Constant (25℃，±5%）
|
N/Arms
|
31.4
|
47.1
|
62.8
|
94.2
|
|
Back EMF Constant (25℃，±5%）
|
Vrms/rad/s
|
10.5
|
15.7
|
20.9
|
31.3
|
|
Electrical Resistance(25℃，±5%）P-P
|
Ω
|
6
|
8.7
|
11.4
|
16.8
|
|
Inductance(25℃，±20%）P-P
|
mH
|
4.0
|
6.0
|
8.0
|
10
|
|
Max Coil Temperature
|
℃
|
120
|
120
|
120
|
120
|
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
mm
|
60
|
60
|
60
|
60
|
|
Magnetic Attraction
|
KN
|
0
|
0
|
0
|
0
|
|
Mover Mass
|
Kg
|
0.6
|
0.9
|
1.2
|
1.8
|
Linear Motor Stages Selection
|
LMH350-U53-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
|
K
|
6
|
6
|
6
|
10
|
10
|
|
N
|
1
|
1
|
1
|
2
|
2
|
|
Stage Total Length (mm)
|
410
|
510
|
610
|
710
|
810
|
|
Stage Weight (kg)
|
35.9
|
42.3
|
48.7
|
55
|
61.4
|
|
Sliding Table M (mm)
|
190
|
|
A
|
8
|
|
B
|
3
|
|
Motion Parts Weight (kg)
|
10.7
|
|
LMH350-U54-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
|
K
|
6
|
6
|
10
|
10
|
10
|
|
N
|
1
|
1
|
2
|
2
|
2
|
|
Stage Total Length (mm)
|
470
|
570
|
670
|
770
|
870
|
|
Stage Weight (kg)
|
40
|
46.3
|
52.7
|
59
|
65.4
|
|
Sliding Table M (mm)
|
250
|
|
A
|
12
|
|
B
|
5
|
|
Motion Parts Weight (kg)
|
13.6
|
|
LMH350-U55-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
|
K
|
6
|
6
|
10
|
10
|
10
|
|
N
|
1
|
1
|
2
|
2
|
2
|
|
Stage Total Length (mm)
|
530
|
630
|
730
|
830
|
930
|
|
Stage Weight (kg)
|
44
|
50.4
|
56.8
|
63.1
|
69.5
|
|
Sliding Table M (mm)
|
310
|
|
A
|
16
|
|
B
|
7
|
|
Motion Parts Weight (kg)
|
16.5
|
|
LMH350-U56-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
|
K
|
6
|
10
|
10
|
10
|
14
|
|
N
|
1
|
2
|
2
|
2
|
3
|
|
Stage Total Length (mm)
|
590
|
690
|
790
|
890
|
990
|
|
Stage Weight (kg)
|
48.1
|
54.5
|
60.8
|
67.2
|
73.6
|
|
Sliding Table M (mm)
|
370
|
|
A
|
16
|
|
B
|
7
|
|
Motion Parts Weight (kg)
|
19.4
|
Module several types:
Miniature stages, single axis Stages, general linear motor stages, multi-axis stages, gantry stages, extra large marble stages, servo motor stages.
Kindly instruct us your requirements, you can provide below parameters to our engineer, free product manual and 3D model and a reasonable price will send to you anytime.
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy

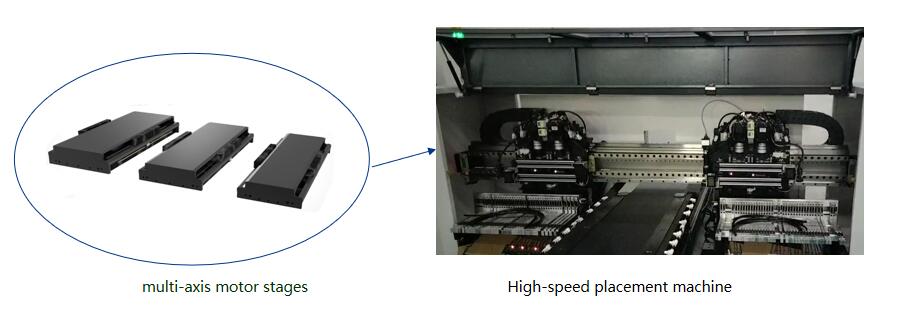

Industry Applications:
Apply to flat panel display industry, UV printing industry, and measurement system machine, high speed placement machine.
Remark:
Packaging Details.: plywood packing
Port.: Shenzhen ( BY SEA, AIR，TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Warranty: 12 months
