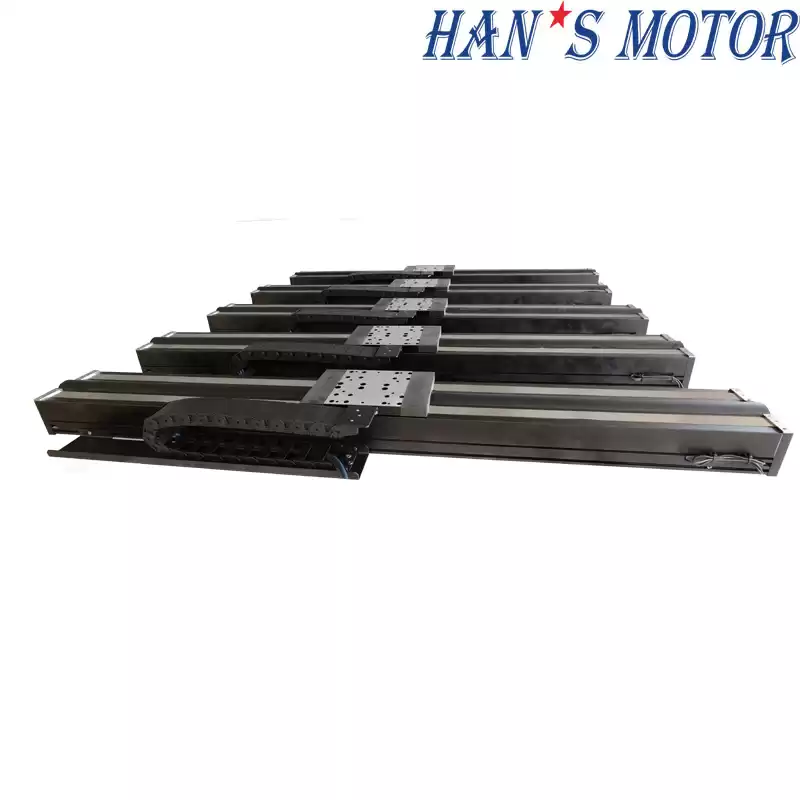

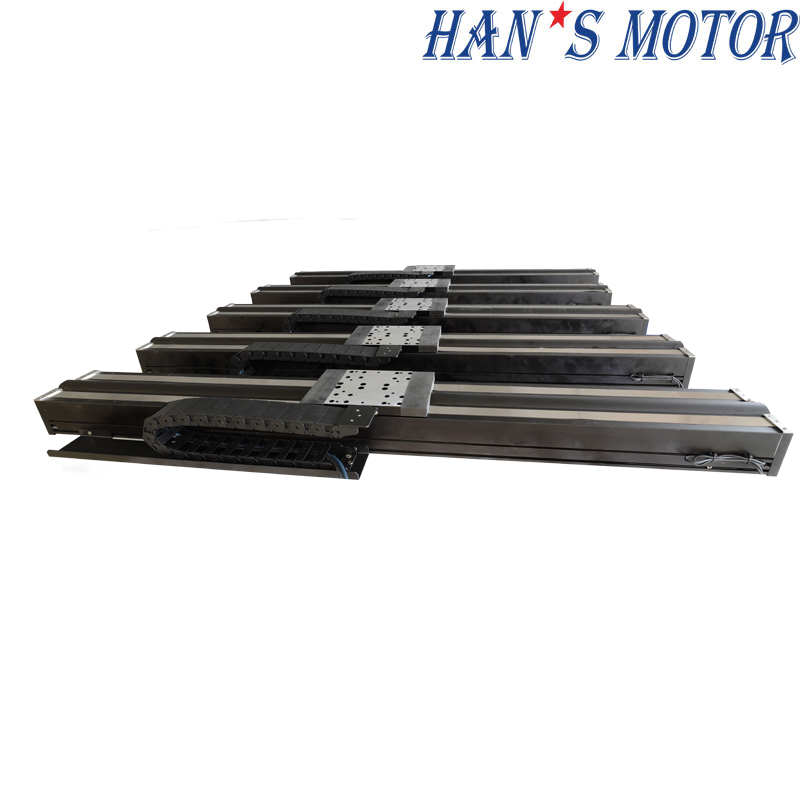

Products Name: Zero cogging force Ironless linear motor stages for high precision machine (LMH400 Series)
Characteristics:
• Low-noise, and insulation of high temperature
• High repeatability accuracy±1μm
• Continuous current 2.3Arms, peak current 13Arms
• AdoptImported RENNISHAW grating absolute feedback system (0.5μm）
• Han’sproduction capacity 5000-10000 pieces permonth
Product Specifications
Motor Model/Parameter
|
|
|
Ironless Motor
|
|
Parameter\ Motor Model
|
Unit
|
U62
|
U63
|
U64
|
U65
|
|
Continuous Force (Tmax）
|
N
|
221
|
331
|
442
|
552
|
|
Peak Force
|
N
|
1326
|
1988
|
2649
|
3311
|
|
Motor Constant
|
N//SqrtW
|
19
|
23.5
|
27.2
|
30.5
|
|
Max.Continuous Power Dissipation
|
W
|
135.2
|
199.5
|
263.8
|
328.1
|
|
Continuous Current (Tmax）
|
Arms
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Peak Current (1S)
|
Arms
|
15
|
15
|
15
|
15
|
|
Force Constant (25℃，±5%）
|
N/Arms
|
88.4
|
132.5
|
176.6
|
220.7
|
|
Back EMF Constant (25℃，±5%）
|
Vrms/rad/s
|
29.5
|
44.2
|
58.9
|
73.6
|
|
Electrical Resistance(25℃，±5%）P-P
|
Ω
|
10.3
|
15.2
|
20.1
|
25
|
|
Inductance(25℃，±20%）P-P
|
mH
|
19.0
|
28.5
|
38.0
|
47.5
|
|
Max Coil Temperature
|
℃
|
120
|
120
|
120
|
120
|
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
mm
|
84
|
84
|
84
|
84
|
|
Magnetic Attraction
|
KN
|
0
|
0
|
0
|
0
|
|
Mover Mass
|
Kg
|
1.9
|
2.7
|
3.6
|
4.5
|
Linear Motor Stages Selection
|
LMH400-U62-xxx-xxx-A
|
|
|
|
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
|
K
|
6
|
6
|
6
|
10
|
10
|
|
N
|
1
|
1
|
1
|
2
|
2
|
|
Stage Total Length (mm)
|
400
|
500
|
600
|
700
|
800
|
|
Stage Weight (kg)
|
44.9
|
53.6
|
62.3
|
71.1
|
79.8
|
|
Sliding Table M (mm)
|
190
|
|
A
|
8
|
|
B
|
3
|
|
Motion Parts Weight (kg)
|
11.6
|
|
LMH400-U63-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
|
K
|
6
|
6
|
10
|
10
|
10
|
|
N
|
1
|
1
|
2
|
2
|
2
|
|
Stage Total Length (mm)
|
480
|
580
|
680
|
780
|
880
|
|
Stage Weight (kg)
|
51.3
|
60.1
|
68.8
|
77.6
|
86.3
|
|
Sliding Table M (mm)
|
260
|
|
A
|
12
|
|
B
|
5
|
|
Motion Parts Weight (kg)
|
15.4
|
|
LMH400-U64-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
|
K
|
6
|
10
|
10
|
10
|
14
|
|
N
|
1
|
2
|
2
|
2
|
3
|
|
Stage Total Length (mm)
|
570
|
670
|
770
|
870
|
970
|
|
Stage Weight (kg)
|
58.6
|
67.4
|
76.1
|
84.9
|
93.6
|
|
Sliding Table M (mm)
|
350
|
|
A
|
16
|
|
B
|
7
|
|
Motion Parts Weight (kg)
|
20.1
|
|
LMH400-U65-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
|
K
|
6
|
10
|
10
|
10
|
14
|
|
N
|
1
|
2
|
2
|
2
|
3
|
|
Stage Total Length (mm)
|
650
|
750
|
850
|
950
|
1050
|
|
Stage Weight (kg)
|
65.2
|
74
|
82.7
|
91.5
|
100.2
|
|
Sliding Table M (mm)
|
430
|
|
A
|
20
|
|
B
|
9
|
|
Motion Parts Weight (kg)
|
24.4
|
Module several types:

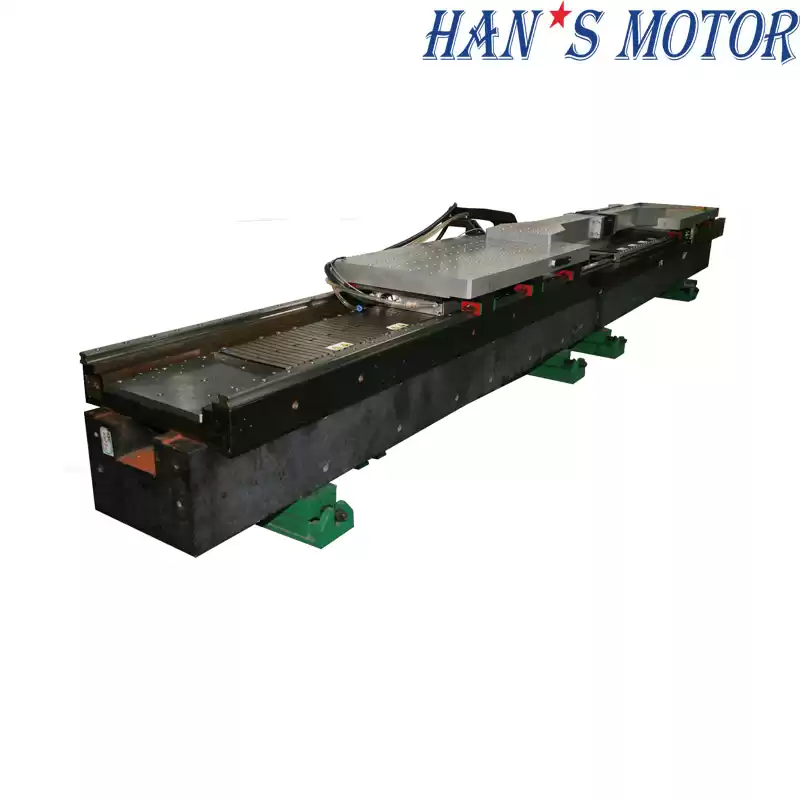

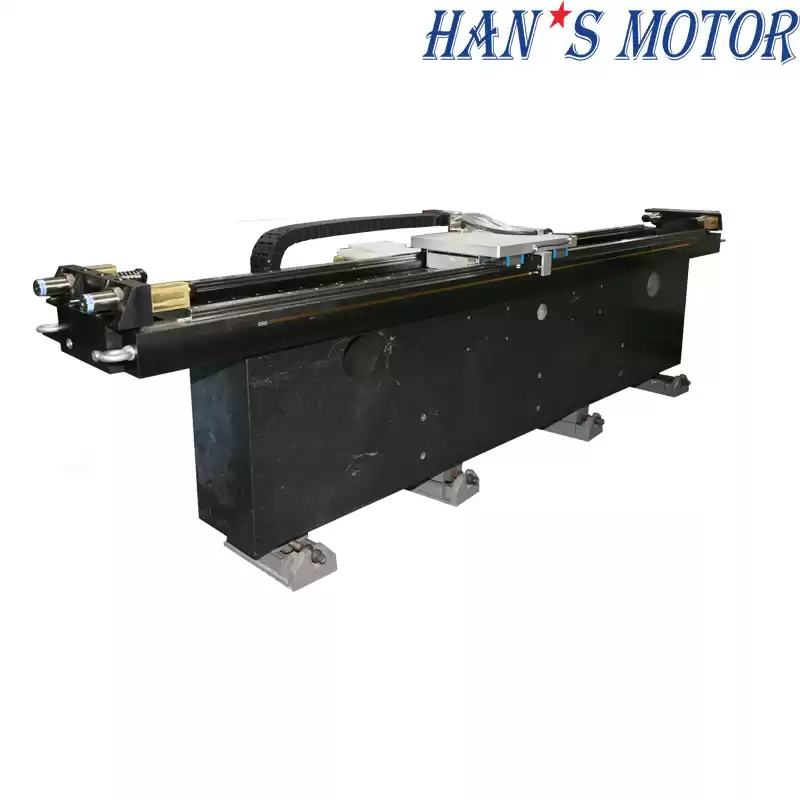

Miniature stages, single axis Stages, general linear motor stages, multi-axis stages, gantry stages, extra large marble stages, servo motor stages.
Kindly instruct us your requirements, you can provide below parameters to our engineer:
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
Industry Applications:
High accuracy multi-axis motion stages can be apply toLaminating machine for new energy industry
Remark:
Packaging Details.: plywood packing or 20GP container
Port.: Shenzhen ( BY SEA, AIR, TNT, UPS, FedEx, DHLand others.)
Leading time: According to the order quantity, 10-15 days for small order and 25-40 days for bulk order
Warranty: 12 months
Payment terms: T/T in advance
