Product Introduction

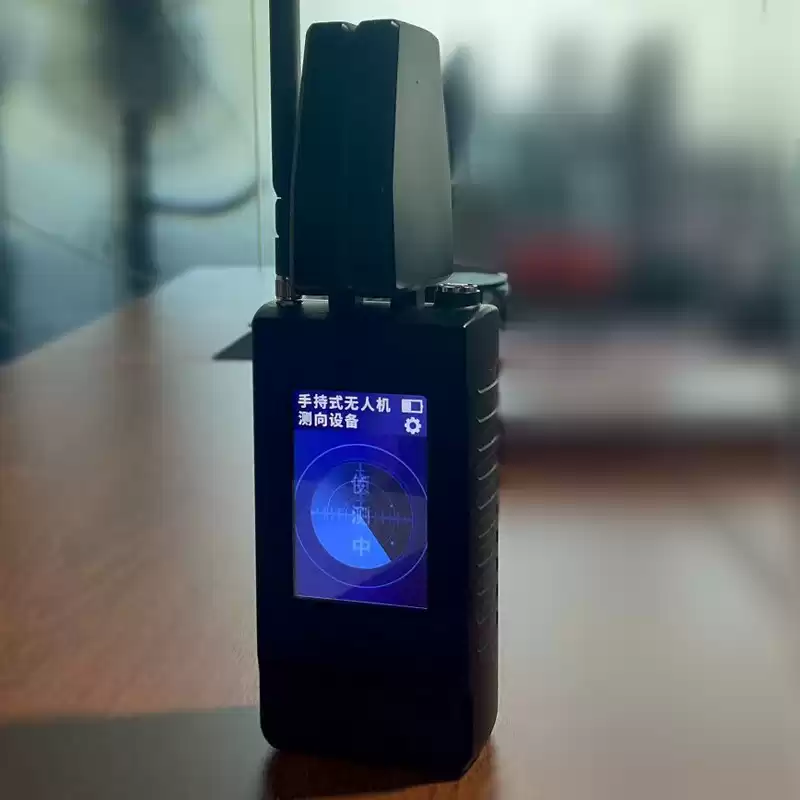

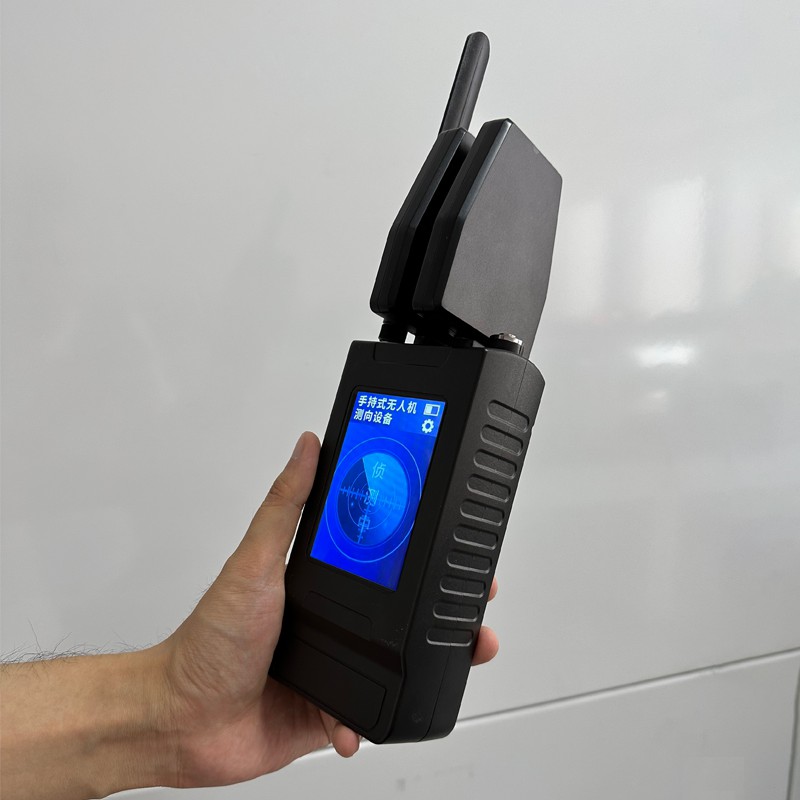

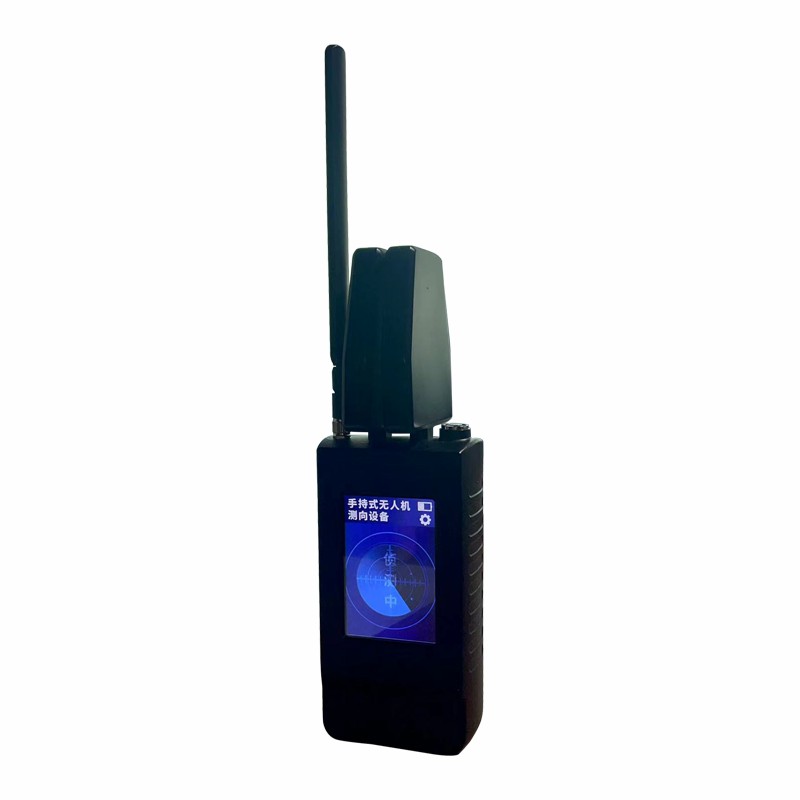

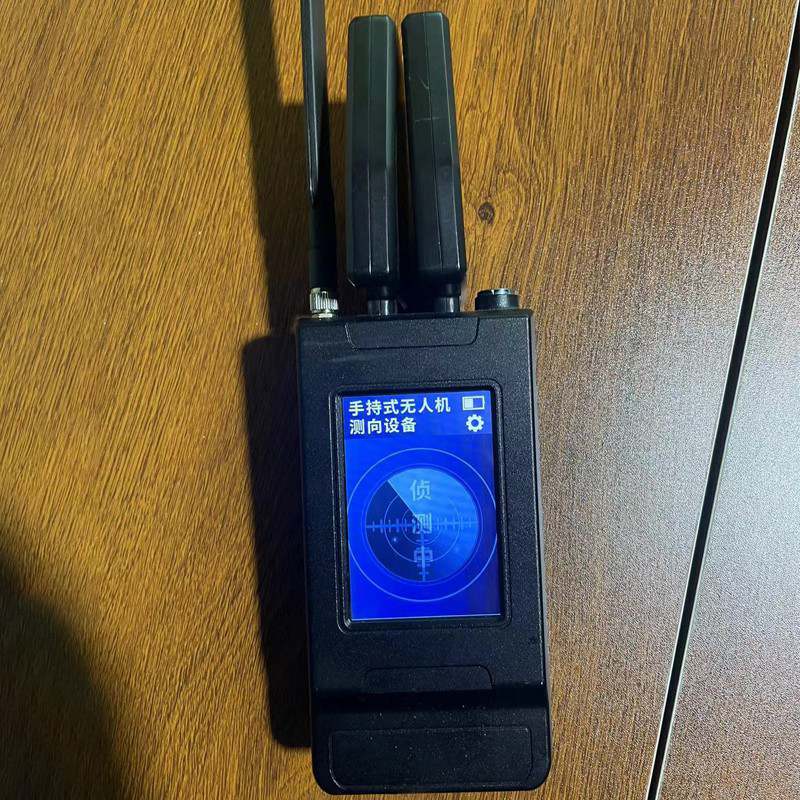

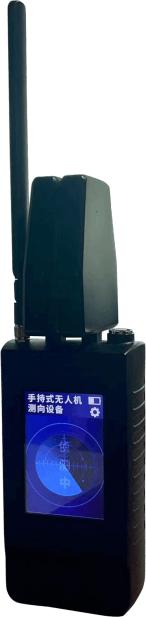

The ZC-20 handheld unmanned aerial vehicle (UAV) detection and direction-finding equipment integrates spectrum sensing and artificial intelligence analysis technologies, and is equipped with detection, direction-finding and display control functions. The whole drone is exquisitely designed and easy to carry. It is equipped with a large-capacity high-performance battery, which has a long battery life. It can detect mainstream drones on the market and meet the security task requirements in different scenarios.
Product features
Small in size, light in weight, and features touch design for easy operation
It has sound, light and early warning functions, and displays information such as the type of drone
Equipped with a built-in rechargeable lithium battery, to provide long battery life
Real-time display of drone flight position and direction
Technical parameters
|
ZC-20
|
|
Size
|
260mm×80mm×45mm
|
|
Weight
|
700g
|
|
Display screen
|
3.5-inch touch screen
|
|
Display screen resolution
|
480*320
|
|
Detection frequency band
|
2.4G，5.8G
|
|
Detection distance
|
> 1.5km, horizontal coverage 360°
|
|
Detection response speed
|
＜6s
|
|
Direction-finding accuracy
|
＜20°
|
|
Display content
|
Battery level display, drone model and schematic pictures
|
|
Frequency band information, unmanned aerial vehicle signal strength
|
|
Locking direction and detection schematic diagram
|
|
Control buttons/touch function
|
Physical power button, touch sound switch control
|
|
Touch vibration switch control, brightness adjustment
|
|
Detection/direction-finding/setting mode conversion
|
|
Target direction recognition
|
|
Detection and alarm method
|
Sound, vibration, interface display
|
|
False alarm rate
|
＜5%
|
|
Under-reporting rate
|
＜5%
|
|
Built-in battery
|
12V /3000mAh
|
|
Interface
|
Type-C charging interface, SMA
|
|
Full charge working time
|
> 8 hours
|
|
Display language
|
Default is Chinese. Other languages can be customized
|
|
Working temperature
|
-20℃~50℃
|
|
Protection grade
|
IP54
|
|
The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
|
