Portable Multi Frequency Drone Detection and Countermeasure System

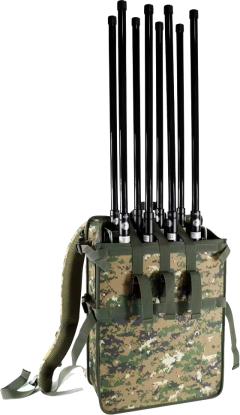

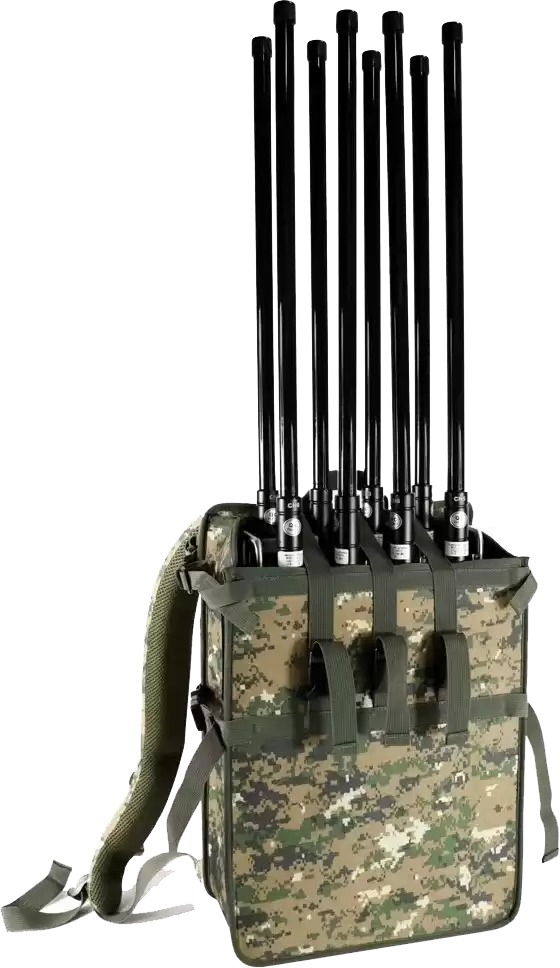

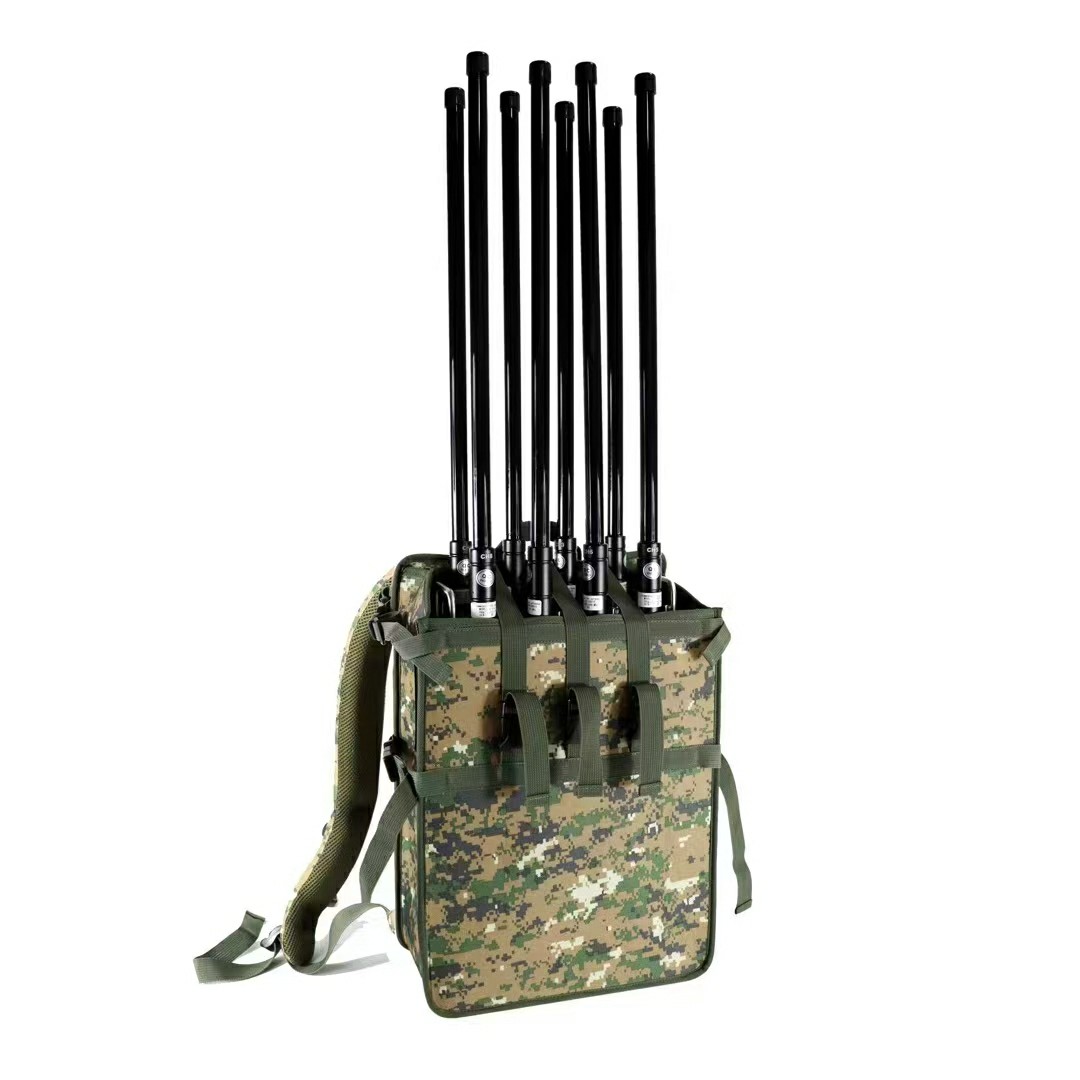

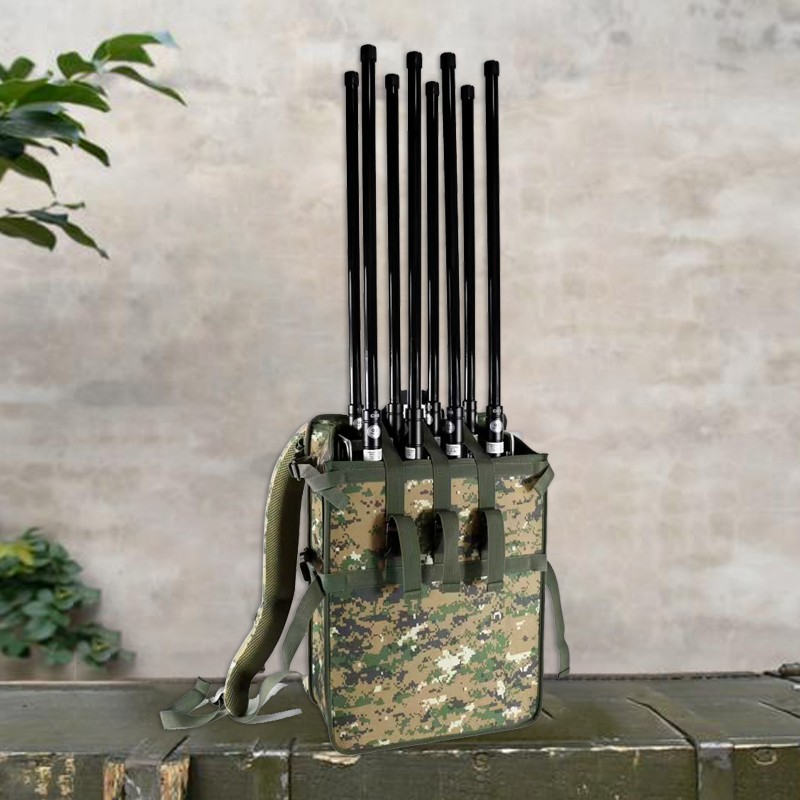

This backpack drone reconnaissance and strike device integrates detection and positioning, interference countermeasures, and terminal control. It is powered by an internal battery and can be flexibly carried around. It supports temporary deployment at high points or on the roof of a vehicle, enabling remote control. It can locate the real-time positions of mainstream drones and pilots, and display multiple information including longitude and latitude, orientation, distance, speed, and altitude. And it supports trajectory recording and electronic map display. In addition, the remote control of the equipment can reach up to 10 meters, to ensure the safety of the operators.









Product features

Black and white list management, precisely distinguishing legal flights

Identify mainstream models on the market and display target information in real time

Make the drone return or make an emergency landing on the spot

Unattended operation, with the ability to set interference duration and loop duration

Technical parameters



FTH-B03

Size

280mm*380mm*120mm

Weight

≤13kg

Detection frequency band

70MHz~6GHz

Detection distance

3km(depending on working conditions and model)

Simultaneously detect the number of targets

≥20 sorties

Continuous detection time

≥8h

Azimuth error

≤3°RMS

Positioning accuracy

≤10m

Detection success rate

≥99%

Identify response time

≤3s

Countermeasure frequency band

800M/900M/1.2G/1.5G/1.6G/2.4G/5.2G/5.8G

Countermeasures distance

1.5 to 2 kilometers (depending on working conditions and model)

Scope of countermeasures

Omnidirectional 360°

Battery

Built-in replaceable battery

Battery life

Detection ≥8 hours, countermeasures ≥1 hour

Charging time

≤6h

Power consumption of the entire machine

Detection is enabled at 55W and interference at 500W

Remote control

10m

Working temperature

-40℃~65℃

Relative humidity

5%-100%

Air pressure

70kPa-106kPa

Protection grade

IP56

The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
