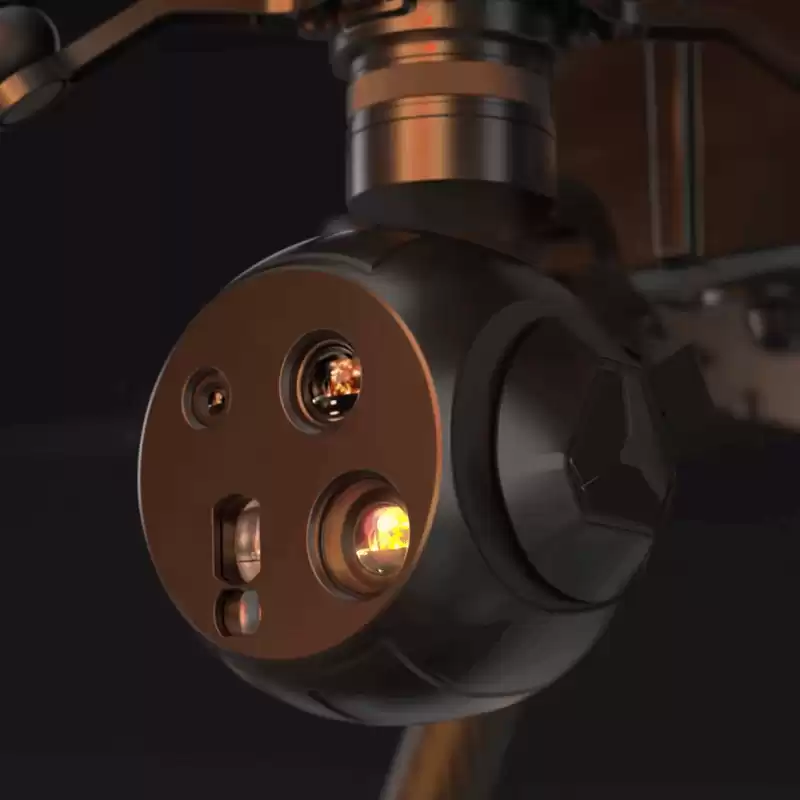

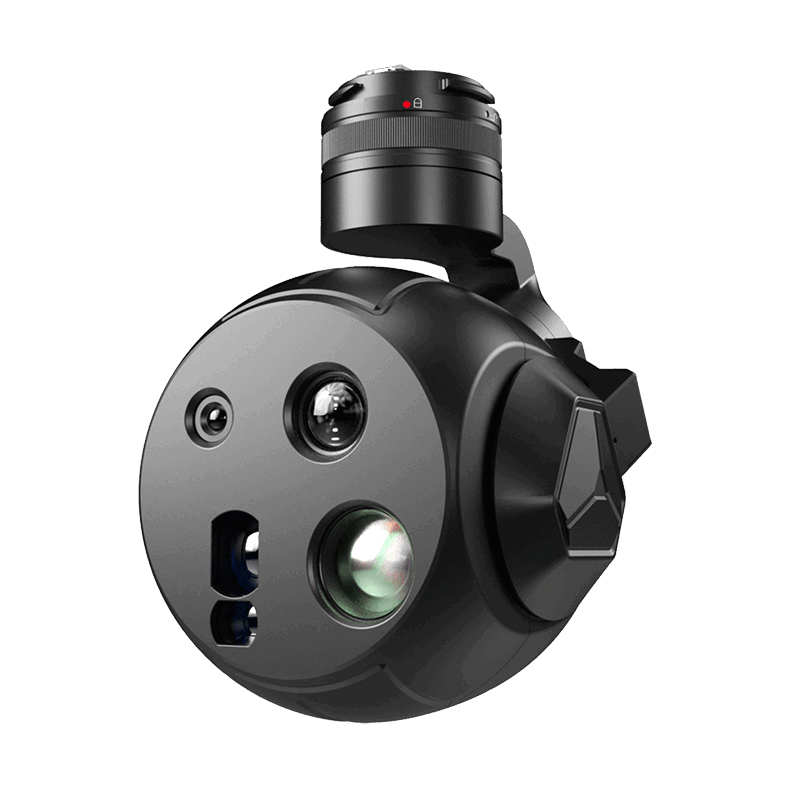

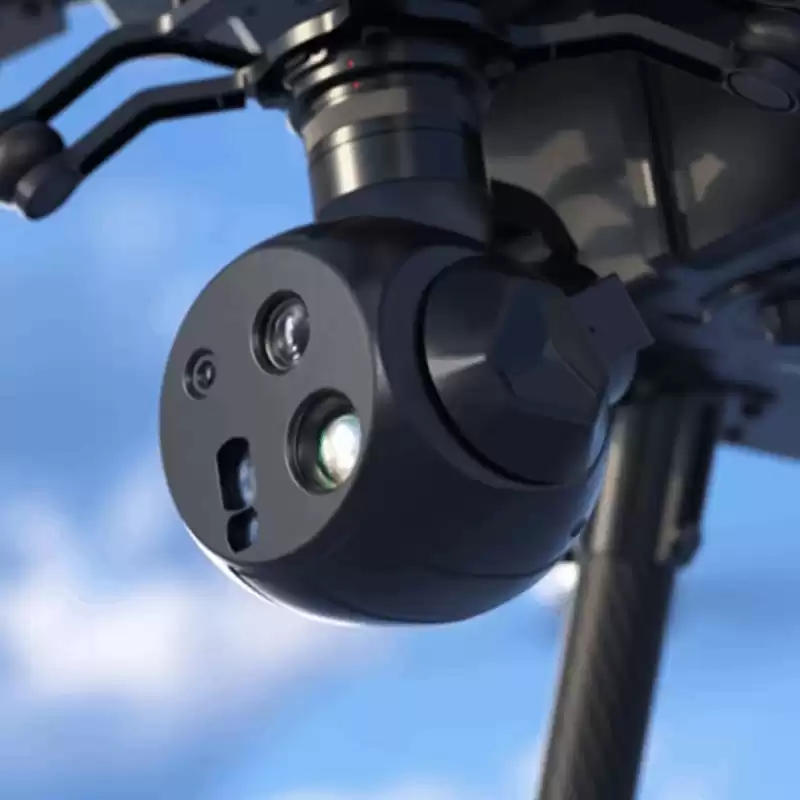

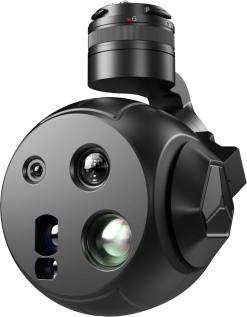

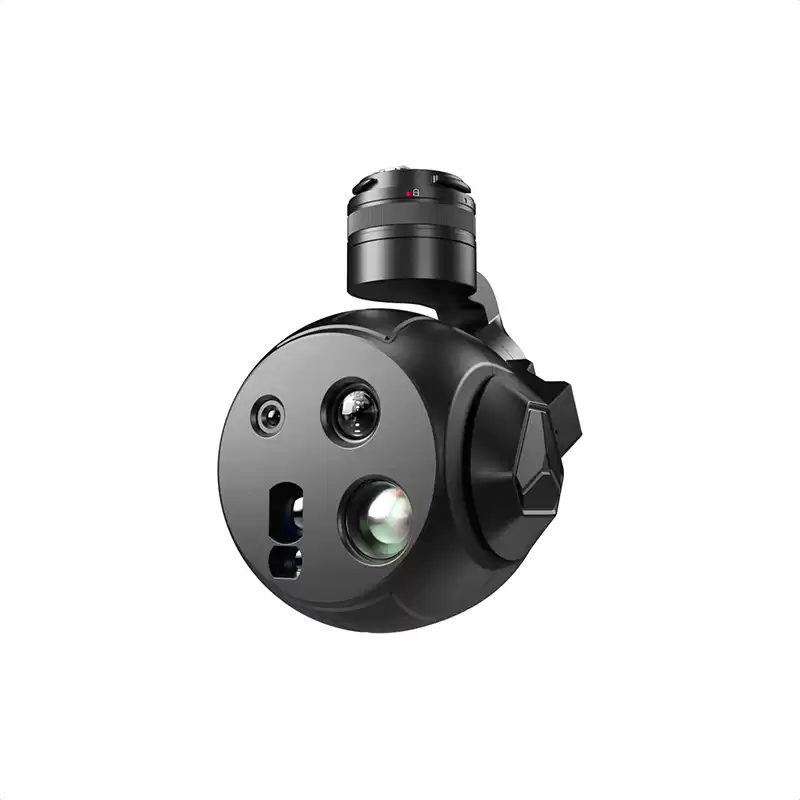

Four-light Pod LQ-05 model
|
|
Size
|
141.5*141.5*169mm(including shock-absorbing quick-release claws)
|
|
90*102.5*128mm(excluding shock-absorbing quick-release claws)
|
|
Weight
|
533.5g±5g(including quick-release shock-absorbing claws + docking station)
|
|
405g±5g(excluding shock-absorbing quick-release claws)
|
|
System power consumption
|
Average 11.4W (at rest)
|
|
Protection grade
|
IP54
|
|
Working temperature
|
-20℃~50℃
|
|
Storage temperature
|
-20℃~60℃
|
|
Cruising speed
|
120km/h
|
|
Control signal input mode
|
S. us, UART, Ethernet (TCP, UDP)
|
|
Working voltage
|
10~26V
|
|
Optical zoom
|
11x
|
|
Hybrid zoom
|
165x
|
|
AI computing power
|
10T
|
|
PTZ parameters
|
|
High-precision three-axis stabilization
|
Heading, pitch, roll
|
|
Angular joggle quantity
|
0.01°
|
|
Installation method
|
Quickly removable the shock-absorbing claws
|
|
Controllable rotation range
|
Pitch: -90° to 20°
|
|
Heading 360°*N (infinite positions)
|
|
Mechanical range
|
Roll -60° to 60°
|
|
|
Pitch: -120°
|
|
Working mode
|
Follow, lock, FPV
|
|
Wide-angle camera
|
|
Image sensor
|
1/2" CMOS, with 48 million effective pixels
|
|
Lens
|
Focal length: 4.5mm (Equivalent focal length: 24mm)
|
|
FOV
|
DFOV：84°
|
|
Video resolution
|
3840*2160@30fps
|
|
2560*1440@30fps
|
|
1920*1080@30fps
|
|
1280*720@30fps
|
|
Video format
|
MP4
|
|
Video coding format
|
H.265
|
|
Photo resolution
|
3840*2160，8000*6000
|
|
Photo format
|
JPG
|
|
Metering mode
|
Average metering, central metering, and point metering
|
|
Zoom camera
|
|
Image sensor
|
1/2" CMOS, with 48 million effective pixels
|
|
Lens
|
Focal length: 15-50mm, aperture: f/3.8 - f/4.4
|
|
(Equivalent focal length: 81-270mm) ±5%
|
|
FOV
|
W:28.98(D)23.48(H)17.81(V)
|
|
T:9.06(D)7.29(H)5.49(V)
|
|
Focus mode
|
MF，AFS
|
|
Video resolution
|
3840*2160@30fps
|
|
2560*1440@30fps
|
|
1920*1080@30fps
|
|
1280*720@30fps
|
|
Video format
|
MP4
|
|
Video coding format
|
H.265
|
|
Photo resolution
|
3840*2160 8000*6000
|
|
Photo format
|
JPG
|
|
Metering mode
|
Average metering, central metering, and point metering
|
|
Laser ranging
|
|
Wavelength
|
905nm
|
|
Ranging range (building)
|
5~1200m
|
|
Measurement accuracy
|
±1m
|
|
Measurement frequency
|
3Hz(5-45m);0.75-3Hz(45-1200m)
|
|
Eye safety level
|
Class 3R
|
|
Infrared camera
|
|
Thermal imaging sensor
|
Vanadium oxide uncooled, pixel pitch: 12 μ m
|
|
Lens
|
Focal length: 18mm, aperture: f/1.1
|
|
FOV
|
DFOV：31°
|
|
Digital zoom
|
8X
|
|
Video resolution
|
640*512，1280*1024@AI
|
|
Video format
|
MP4
|
|
Video coding format
|
H.265
|
|
Photo resolution
|
640*512，1280*1024@AI，
|
|
2560*2048@AI
|
|
Photo format
|
JPG
|
|
Noise Equivalent temperature difference (NETD)
|
≤50mK@25℃，F#1.0
|
|
Wavelength range
|
8~14μm
|
|
Temperature measurement range
|
High gain: -20℃ to +150℃ (±2℃ or ±2%, taking the larger value)
|
|
|
Low gain: 0℃ to +550℃ (±3℃ or ±3%, taking the larger value)
|
|
High-temperature alarm
|
|
|
Temperature measurement mode
|
Support
|
|
Pseudo-color mode
|
White heat, golden glow, iron red, faint light, aurora
|
|
Nine pseudo-color modes: red hot, medical, black hot, and golden red
|
|
Other camera parameters
|
|
Network bitstream protocol
|
RTSP supports dual streams of primary and secondary
|
|
Network code stream encoding format
|
H.265
|
|
Network bitstream screen
|
Support picture splicing and picture selection
|
|
Memory card type
|
FAT32、ex FAT
|
|
Video storage code
|
4K:40Mbps、2K:20Mbps
|
|
1080P:10Mbps、720P:5Mbps(H.265)
|
|
The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
|
