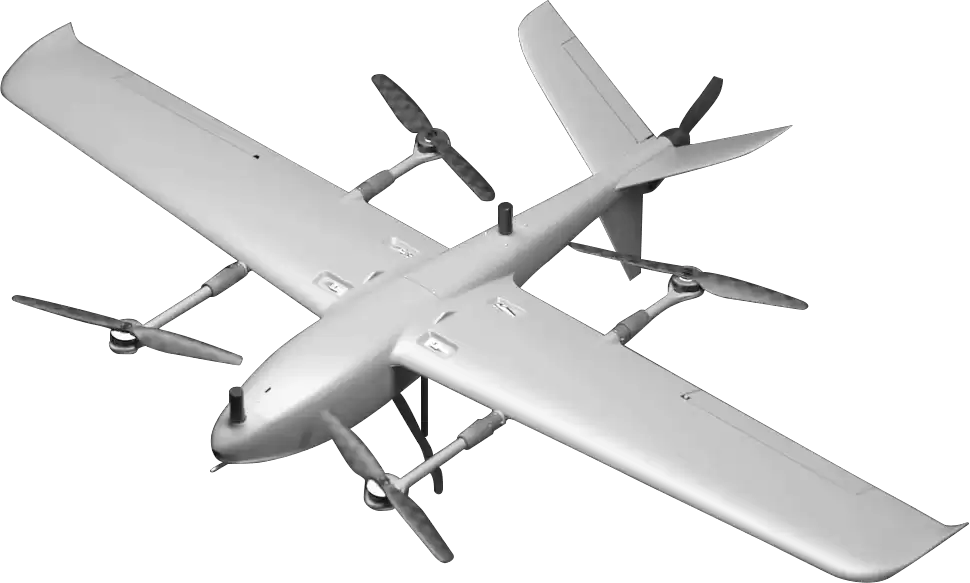

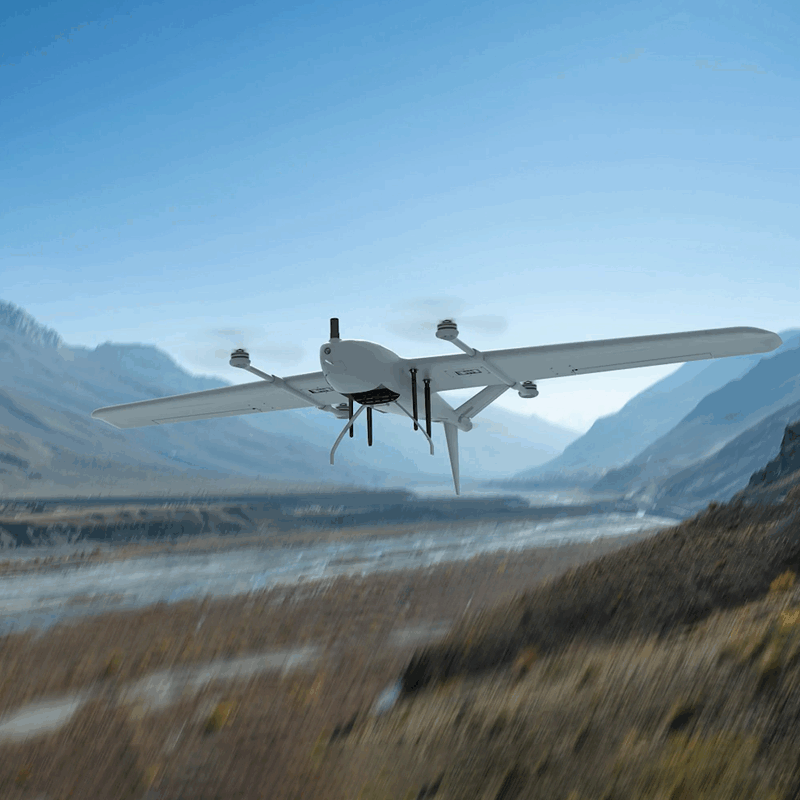

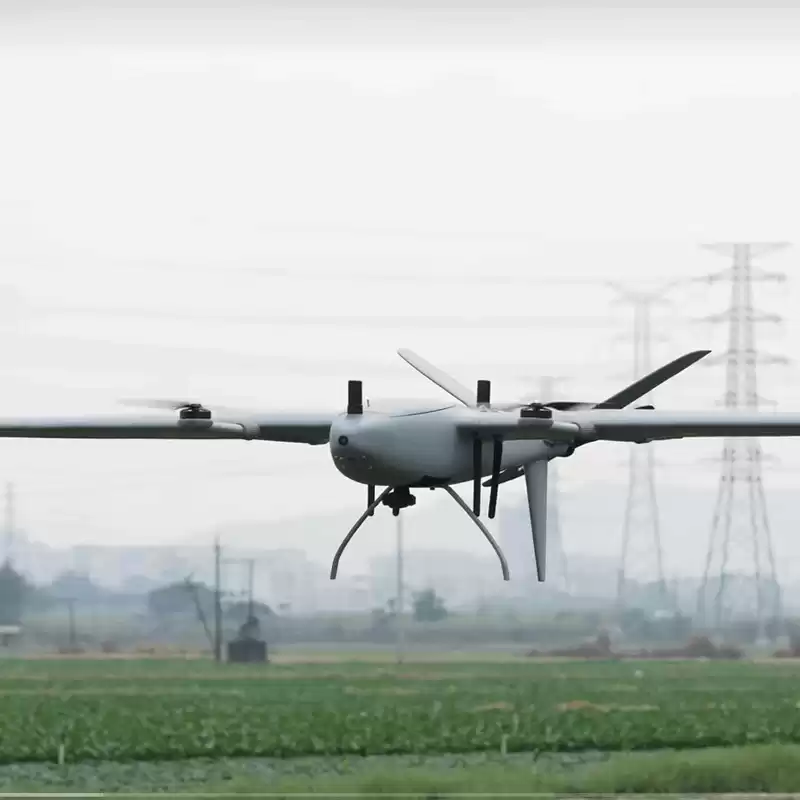

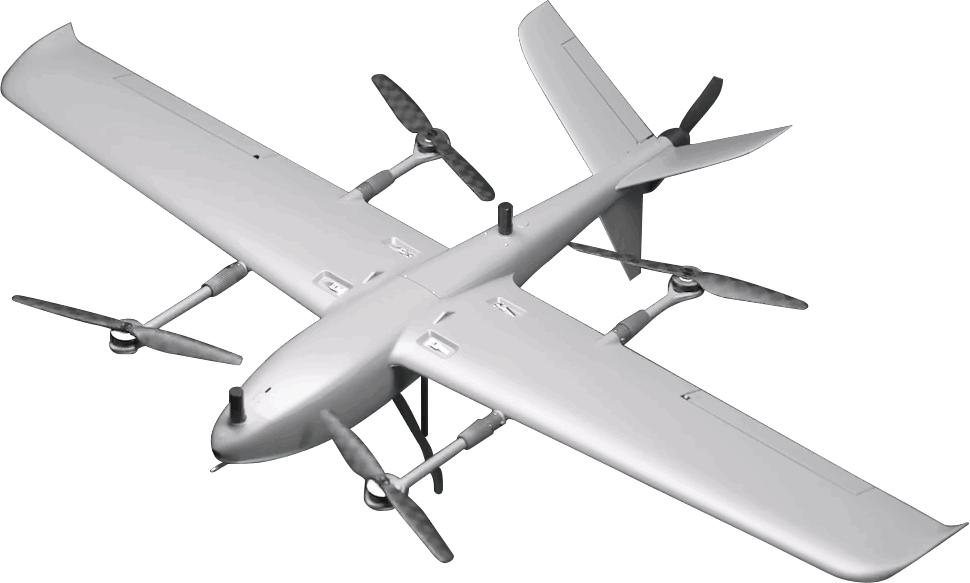

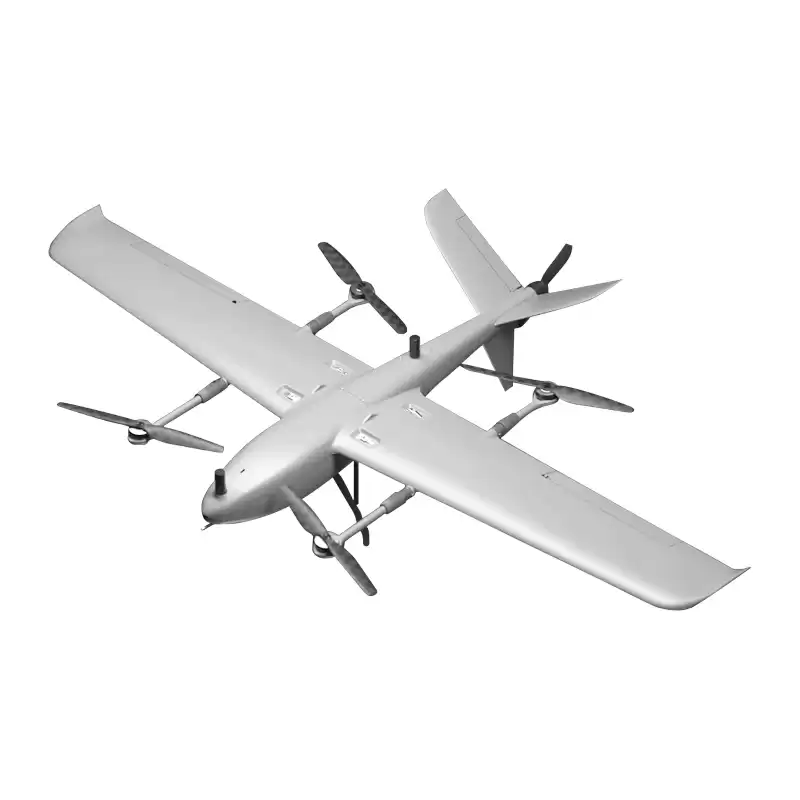

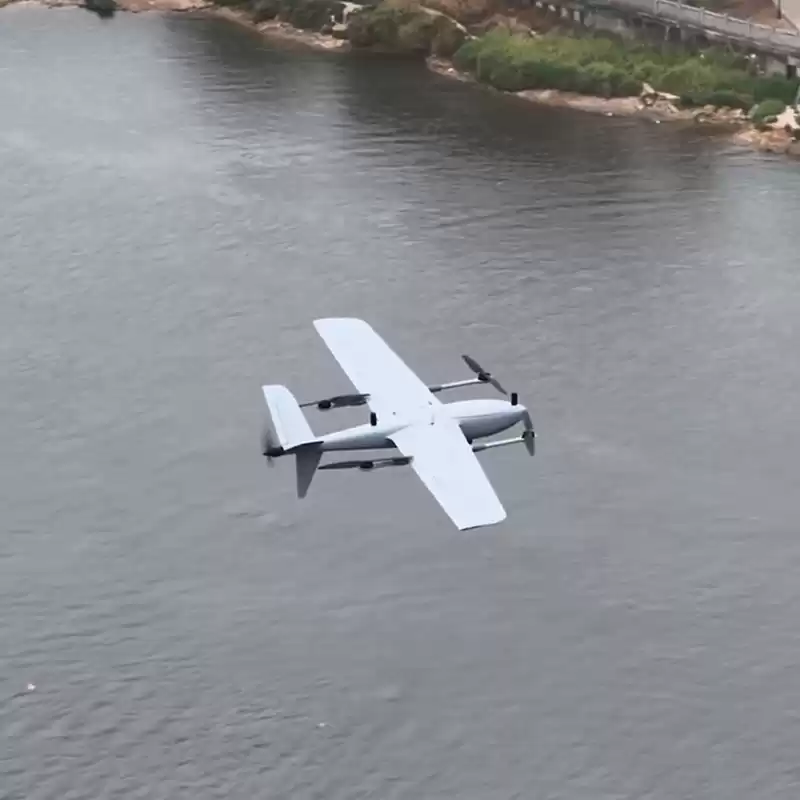

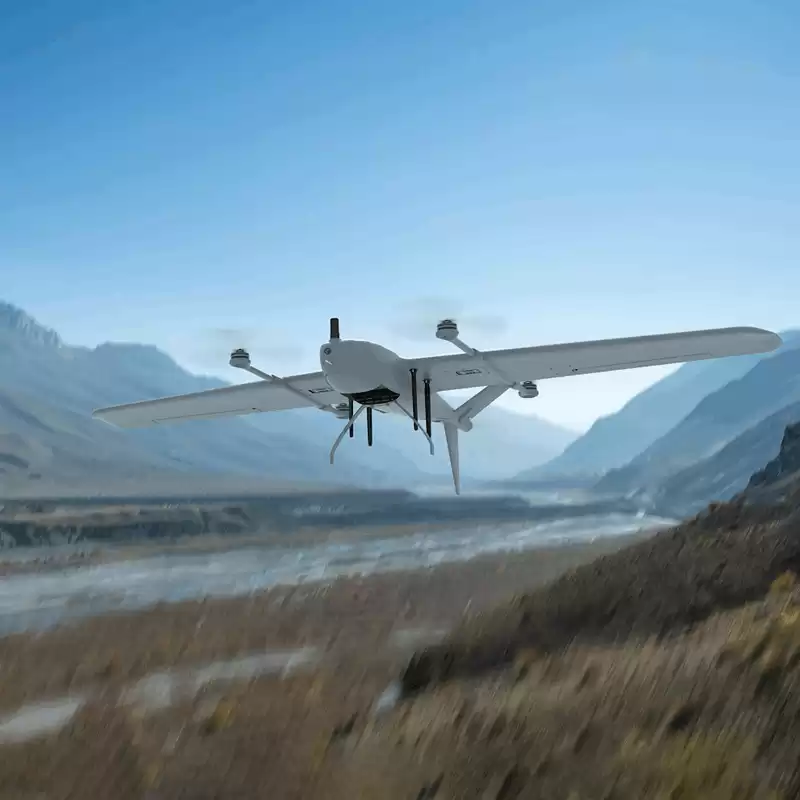

Hybrid VTOL Long-Endurance Mapping Surveillance Drone

       The FY-S01 vertical take-off and landing fixed-wing unmanned aerial vehicle (UAV) features folding wings and a tool-free quick-disassembly design, facilitating rapid deployment and flexible expansion. It is equipped with a redundant flight control system, high-definition real-time video transmission and multi-protocol PTZ interfaces, adapting to the requirements of different tasks. The high-performance handheld ground station that comes with it features long-distance low-latency communication, a high-brightness touch screen, and long battery life. It supports secure encrypted data transmission and is suitable for various professional scenarios such as mapping, inspection, and reconnaissance.







Product features

The fuselage is made of materials such as fiberglass, carbon fiber, and aviation aluminum alloy

It is equipped with an internal RTK module, enabling centimeter-level positioning and orientation

It is equipped with advanced algorithms to follow the target

It supports mount switching to meet the needs of different scenarios













Technical indicators



FY-S01 type

Expanded size

2200*1280*460mm

Material

Glass fiber, carbon fiber, engineering plastics, aviation aluminum alloys, etc

Quick disassembly method of drone

Quick disassembly without screws

Empty drone weight

5.1kg(excluding battery)

No-load weight

7.4kg(including battery)

Maximum takeoff weight

8.4kg

Maximum load

1kg

The ascending speed of multi-rotor

≤2.5m/s

Descent speed of multi-rotor

≤2m/s

Multi-rotor return altitude

50m

Fixed wing rising speed

≤3m/s

Fixed wing descent speed

≤4m/s

Fixed-wing circling radius

200m

Fixed-wing return altitude

110m

Maximum flight altitude

3000m

Practical ceiling

3500m

Stall airspeed

14m/s

Convert airspeed

15m/s

Cruising airspeed

18m/s

Maximum airspeed

25m/s

Protection grade

IP53

Wind resistance grade

Multi-rotor stage 4, fixed-wing stage 5

Working voltage

22 ~ 26.2 V

FPV camera field of view

Vertical direction 122 degrees, horizontal direction 113 degrees

FPV camera recording specifications

4K

Recommended battery

6S 22000mAh

The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
