Truck description:
CNCSC compactor garbage truck main component fillers waste bins and push shovels are made of Q345A high-strength manganese steel, with a solid structure, light weight, high rigidity and good strength. The bins and fillers are sealed with high-quality imported rubber strips, with a good sealing and long service life.
Advantages:
1. Our garbage compactor truck adopts circular arc section.
2. The hydraulic system adopts a combined control valve set, and the tubing is arranged orderly, beautiful, and the layout is reasonable.
3. The side and top surface of the garbage container is circular arc, with light weight, rigid strength and beautiful appearance.
4.With bi-directional compression technology, compression ratios is up to 1:2.5, and household waste can be compressed to more than 600kg/m³.
|

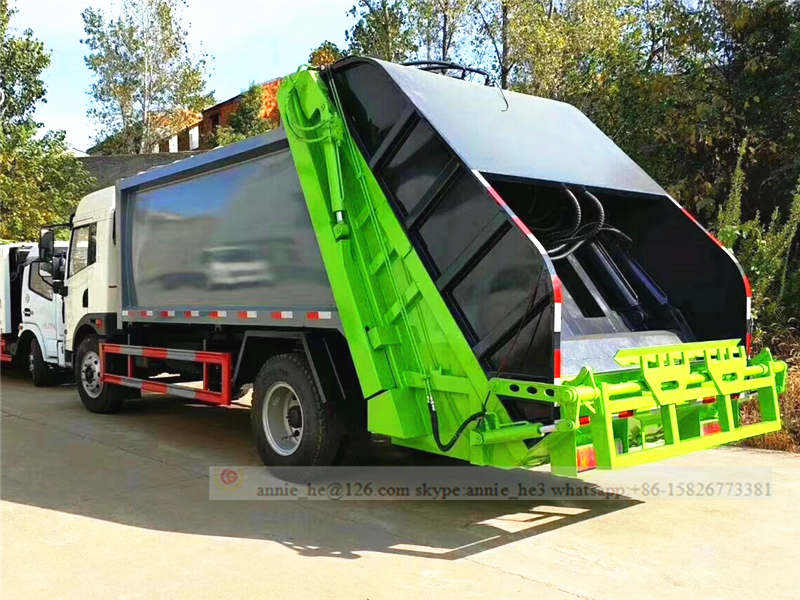

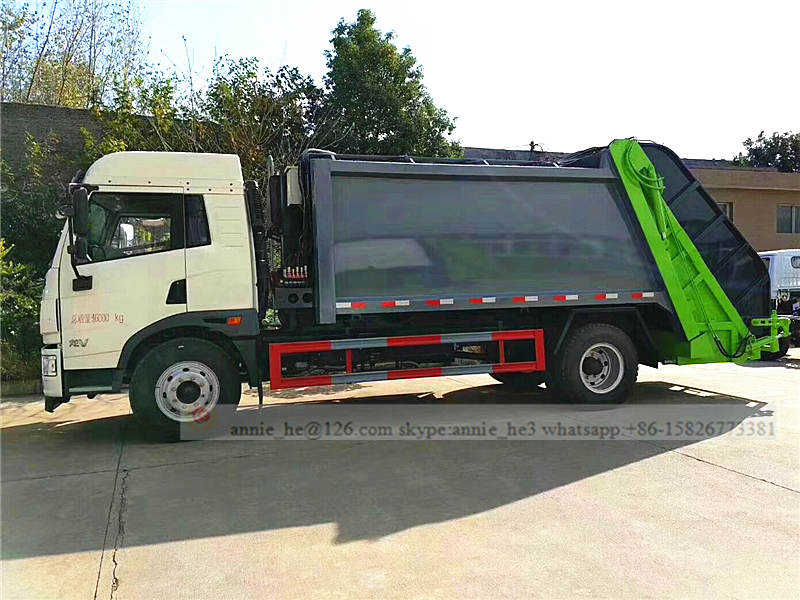

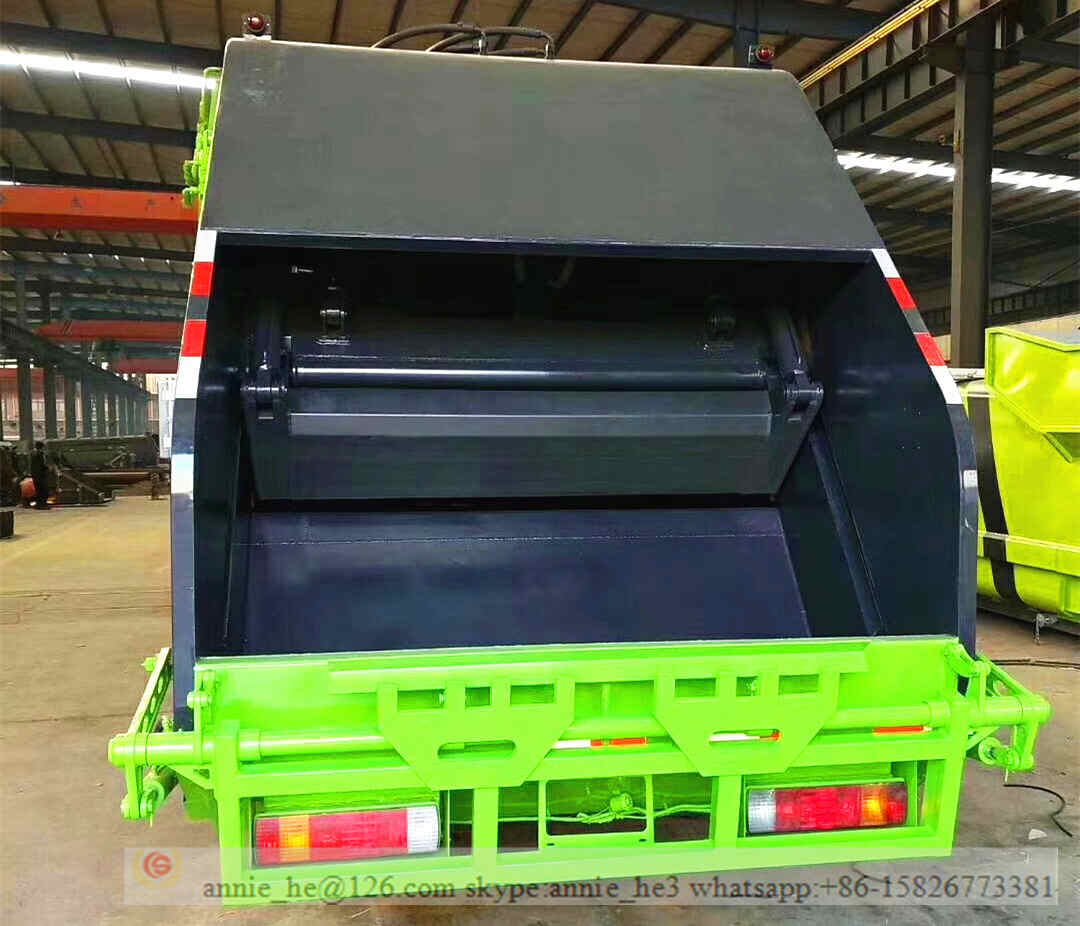

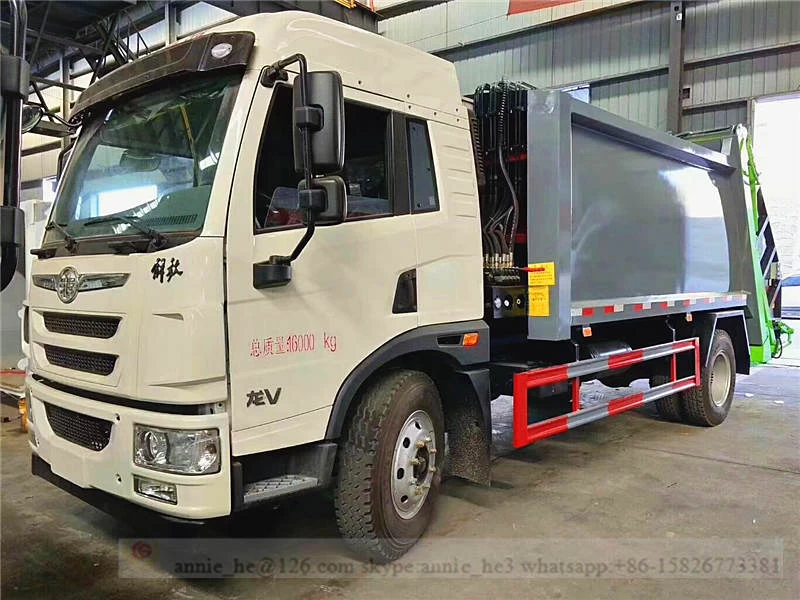

12,000Litres garbage compactor truck
|
|
Truck description
|
GVW (kg)
|
15600
|
|
Kerb weight (kg)
|
9600
|
|
Overall
dimension (mm)
|
Length
|
8320
|
|
Width
|
2490
|
|
Height
|
3250
|
|
Chassis
|
Number of axles
|
2
|
|
Allowable Passengers in cab
|
2
|
|
Air conditioner
|
For option
|
|
Wheel base(mm)
|
4500
|
|
Type of fuel
|
Diesel
|
|
Exhaust/output
|
4764ml/139kw
|
|
Tire specification
|
9.00-20 for option
|
|
Tank description
|
Material
|
Q345 manganese steel
|
|
Thickness
|
Side plate (mm)
|
3 or changed as request
|
|
Bottom plate(mm)
|
4 or changed as request
|
|
compression
parameter
|
garbage density after compression
|
0.5-0.8t/m3
|
|
full filling one time
|
less than 30S
|
|
one time unloading
|
less than 40S
|
|
compression ratio
|
more than 1:2.5
|
|
Other remark
|
Above specification is just for reference, please send us your request details.
|
|
