Compatible 10 KM Fibre SFP 100Base LX SFP 155 Mbps Transceivers

Compatible 100base LX SFP is high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.

10km SFP LR consists of three sections: an FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

SFP 155 Mbps Transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

ConnectorDual LC
Temperature0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
Wavelength1310 NM
Distance10 km
Data Rate155 M
ConditionCompatible
Warranty3 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

Compatible 10 KM Fibre SFP 100Base LX SFP 155 Mbps Transceivers

The Compatible 100base LX SFP is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.

Specifications

Transceiver unit with independent
1310nm FP Laser diode transmitter
In Ga As PIN photodiode receiver
Up to 155Mbps data rate operation
Standard serial ID information compliant with SFP MSA
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
RoHS compliant
Case operating temperature
Commercial: 0°C to +70°C
Extended: -10°C to +80°C

Industrial: -40°C to+85°C

Applications

Switch/Router
SAN/Server
Other optical transmission systems

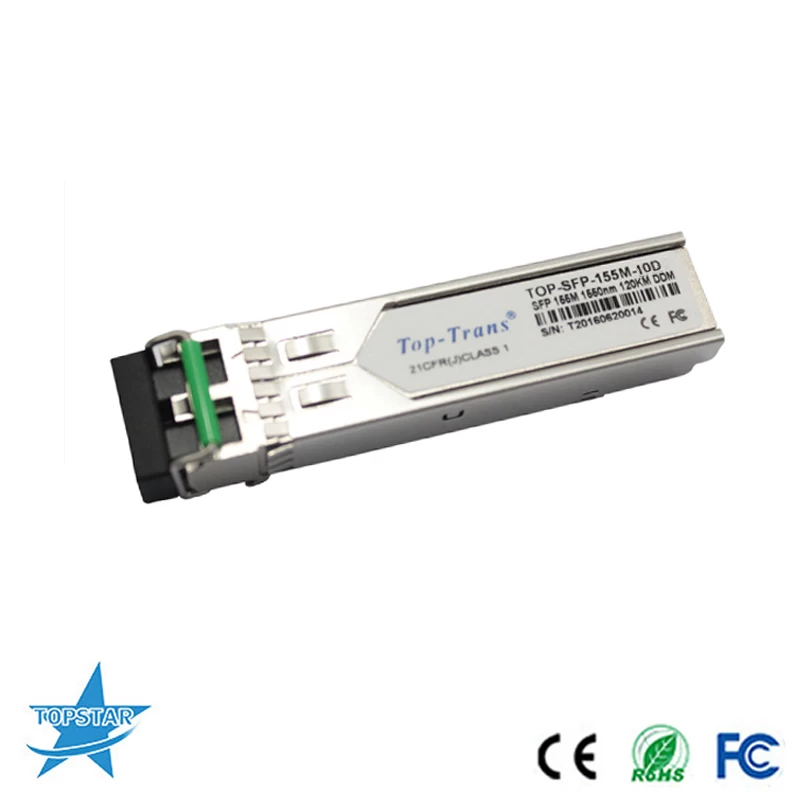

Below is the picture of Compatible 100base LX SFP

Professional Service

10km SFP is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.
