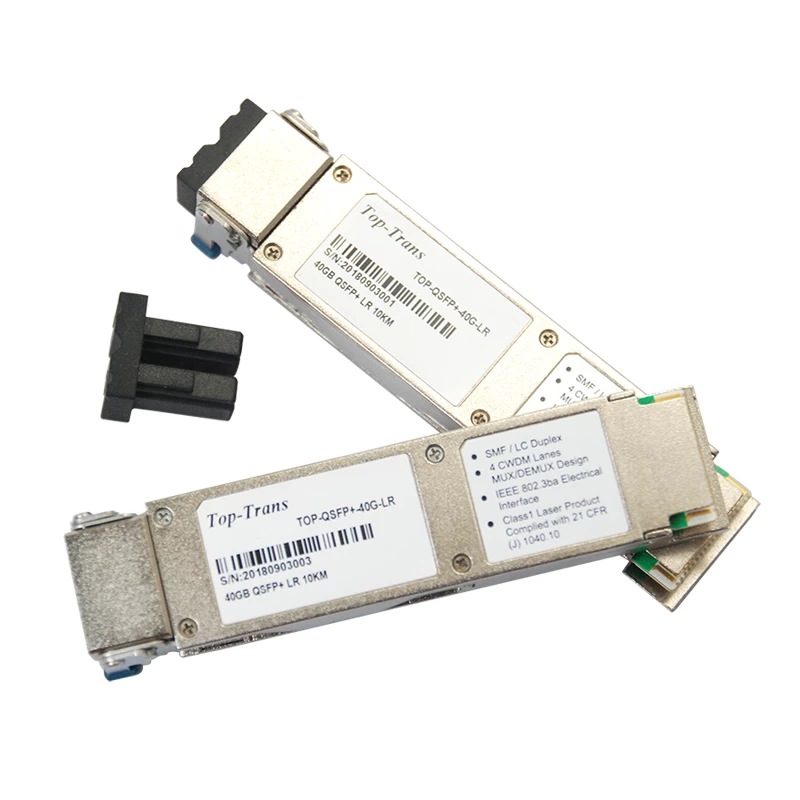

Compatible Cisco QSFP-40G-LR4 Compatible 40GBASE-LR4 and OTU3 QSFP+ 1310nm 10km LC DOM Transceiver Module

Product Details

Cisco Compatible QSFP-40G-LR4 Vendor Name FS
Form Type QSFP+ Max Data Rate 44.6Gbps
Wavelength 1310nm Max Cable Distance* 10km
Connector LC duplex Transimitter Type DFB CWDM
Cable Type SMF DDM/DOM Support Yes
CDR Supported Protocols OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant
TX Power -7~2.3dBm Receiver Sensitivity <-13.7dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F)




  • Distance10km
  • Data Rate44.6Gbps
  • Temperature0 to 70°C
  • ConditionNew
  • Warranty1 Year
  • Wavelength1310nm
  • ConnectorLC

Product Details

Cisco Compatible QSFP-40G-LR4 Vendor Name FS
Form Type QSFP+ Max Data Rate 44.6Gbps
Wavelength 1310nm Max Cable Distance* 10km
Connector LC duplex Transimitter Type DFB CWDM
Cable Type SMF DDM/DOM Support Yes
CDR Supported Protocols OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant
TX Power -7~2.3dBm Receiver Sensitivity <-13.7dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F)



Product Tags qsfp qsfp28          qsfp28 40g          qsfp28 100g          qsfp+ qsfp28          qsfp 40g          qsfp+ 40g          40g qsfp+          40g qsfp          40g 100g
