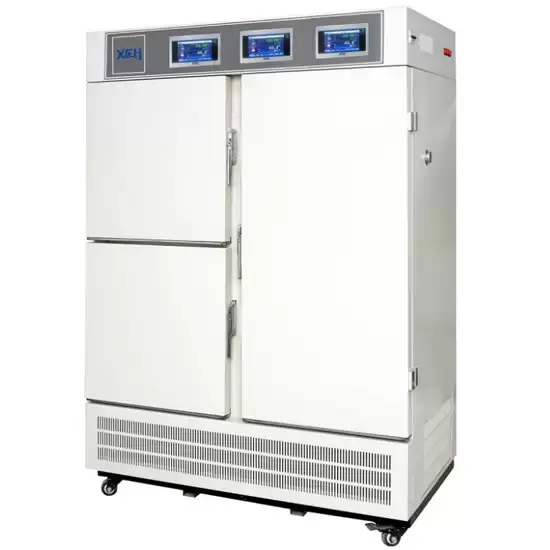

Comprehensive Drug Stability Test Chamber

The Medicine Stability Chamber, adopts quality imported components and manufacturing process, with stable and reliable performance, independent control and climatic test of three boxes and temperature and humidity control of A, B and C boxes.


Model: 430SD~830SD/CSD

TEMP Range: 15~65℃

Fluctuation: <±0.5℃

TEMP Deviation: < ±1.0℃
Humidity Range: 20 ~ 95%
Humidity Deviation:< ±3%RH
Capacity: 430L~830L
Environment temperature: +5 ~ 35℃



Stability Test Chamber

The ideal choice for pharmaceutical, packaging, life sciences, personal care, medical, biomedical storage, research and other fields.


Key Features Overview:

• Temperature Control:Temperature Fluctuation ≤ ±0.5℃,Temperature Deviation ≤ ±1.0℃

• Humidity Control: Humidity Fluctuation ≤ ±3%RH,Humidity Deviation ≤ ±3%RH

• Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber

• Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance

• Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.

• Refrigerating System: The imported fully enclosed industrial compressor, long life, low noise.

• Humidity System: Original imported capacities humidity sensor, direct detection of humidity,maintenance-free

• Control System: Three sets color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail

• Safety device: compressor overheat and over pressure overload protection, Fan overheat protection、water shortage protection

• Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent over temperature protection system, can automatically cut off the power supply

• Live Alarm: Temperature and humidity upper limit deviation alarm, independent over temperature alarm.

• Illumination System: Equipped with illumination sensor,direct illumination display, equipped with illumination storage and printing system

• CSD series: A with function of illumination, Illumination Range:100 ~ 8000Lux,Near Ultraviolet Range 0.84 ~ 5w/m2,Illuminance deviation 4500±500Lux

• Data Record: Equipped with data collection system conform to GMP requirements,Three sets Needle micro printer and USB output port as standard.

• Meet a criterion: Meet ICHQ1A(R2)、Q1B、Chinese Pharmacopoeia 2020 edition.

• Installed power: AC 220V±10%  50HZ

• Environment temperature: +5~35℃

• SMS alarm: Optional


Technical Data:

Model
Temp Range(℃)
Humidity Range Capacity(L)

INTERNAL DIMEN(mm)

W×D×H

EXTERNAL DIMEN(mm)

W×D×H

Power(KW)
TRAY
Remark
XCH-430SD
15 ~ 65
20 ~ 95%
100 480×420×500
1320×780×1930
3.5 1 A Box(Temperature + Humidity)
100
480×420×500
3.5 2 B Box(Temperature + Humidity)
230 480×420×1100
3.5 4 C Box(Temperature + Humidity)
XCH-830SD
20 ~ 95%
200 600×600×600

1520x1060x1970

4.0 1 A Box(Temperature + Humidity)
200 600×600×600
4.0 2 B Box(Temperature + Humidity)
430 600×600×1200
4.0 4 C Box(Temperature + Humidity)
XCH-430CSD
15 ~ 65
N/A
100 480×420×500
1320×780×1930
3.5 1  A Box(temperature + visible light + near
UV)
20 ~ 95%
100 480×420×500
3.5 2 B Box(Temperature + Humidity)
20 ~ 95%
230 480×420×1100
3.5 4 C Box(Temperature + Humidity)
XCH-830CSD
15 ~ 65
N/A
200 600×600×600
1520×960×1990
4.0 1  A Box(temperature + visible light + near
UV)
20 ~ 95%
200 600×600×600
4.0 2 B Box(Temperature + Humidity)
20 ~ 95%
430 600×600×1200
4.0 4 C Box(Temperature + Humidity)

Remark:

1.CSD series A equipped with temperature,visible light and NUV light three functions,Illumination measurement standard with visible and near ultraviolet sensors.
2.Visible and near ultraviolet values are automatically printed and stored:

  • Visible Range: 100 ~ 8000Lux, 4500±500Lux, The total illumination of the light test shall not be less than 1.2×106 Lux·hr;
  • Near ultraviolet range: 0.84 ~ 5w/㎡ ,Near ultraviolet energy shall not be less than 200w·hr//㎡.

Advantages:

  • No maintenance.No pollution source
  • High sensitivity, low annual drift
  • High precision
  • Safety,with alarm system
  • Energy-saving
