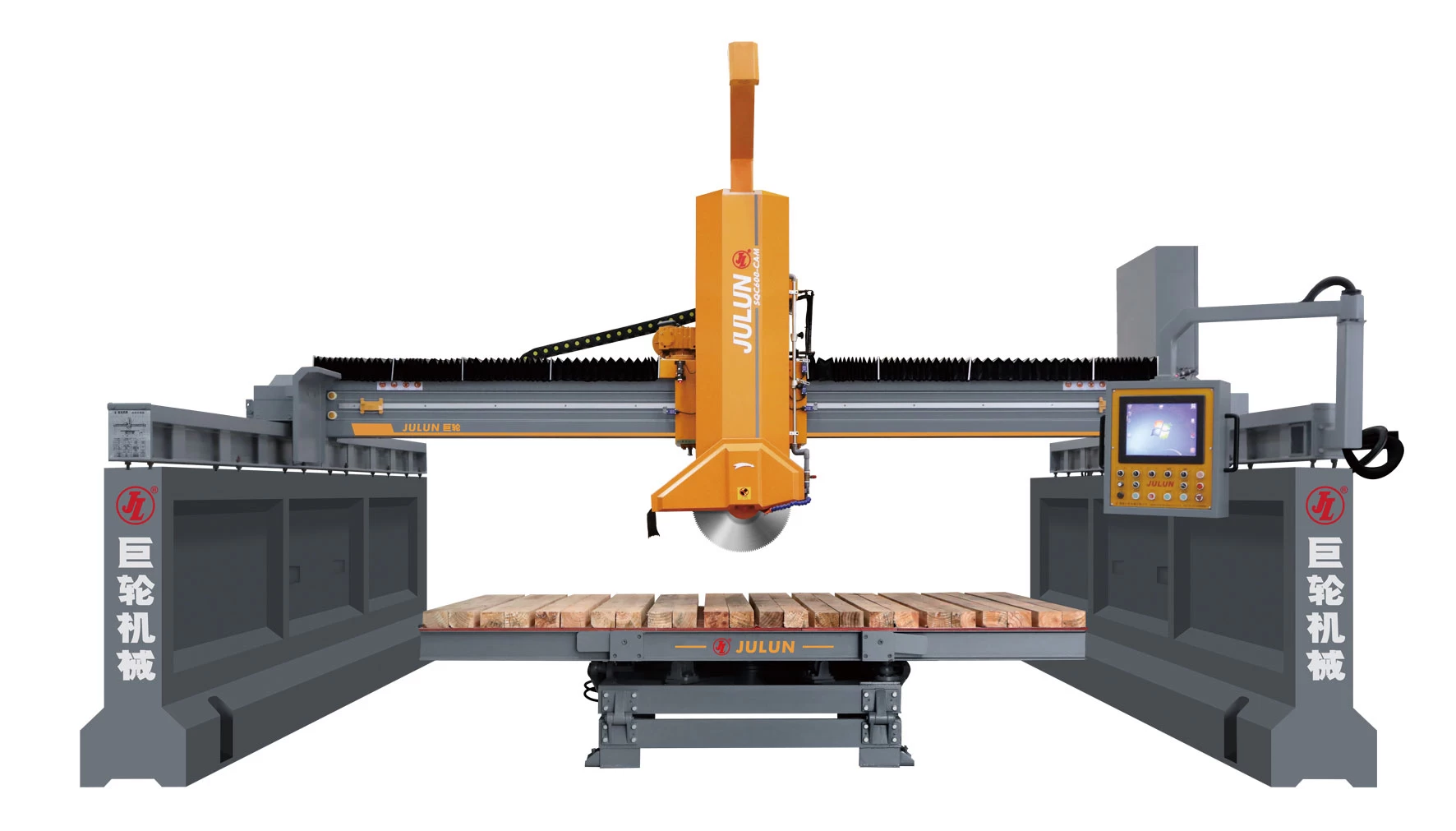

Computer Aided Intelligent Bridge Cutting Machine

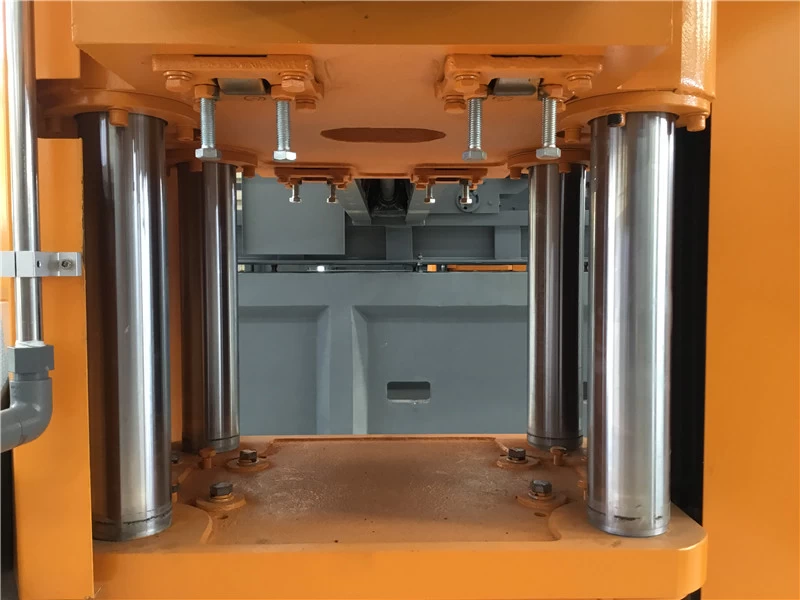

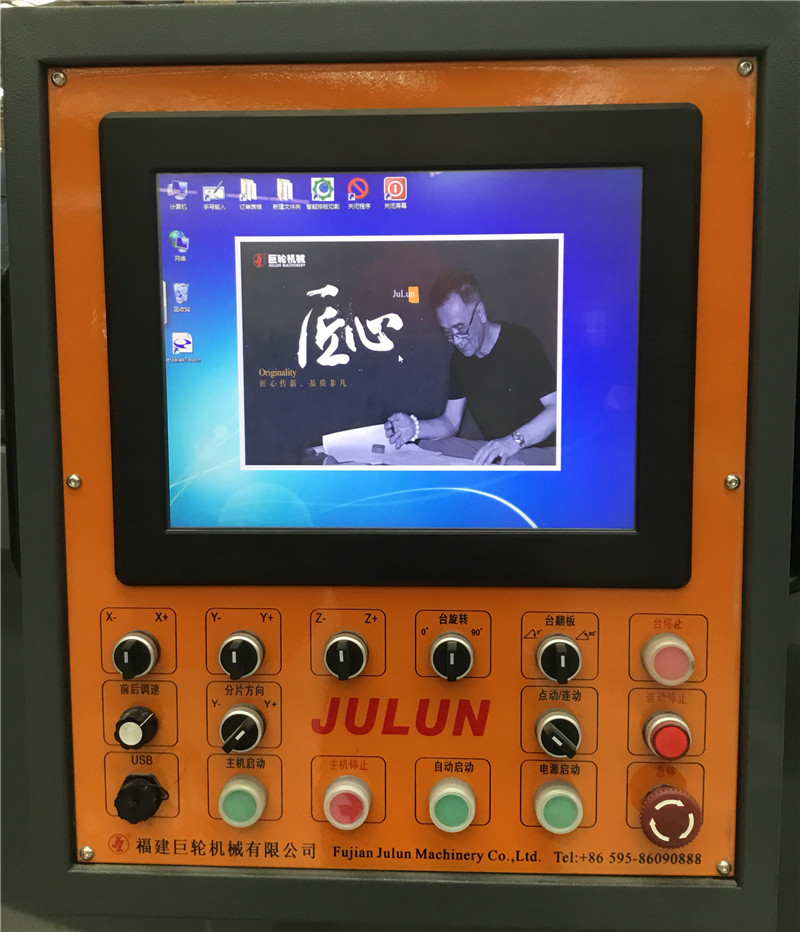

1.Granite cutting machine price is based on the four-post guide bridge cutting machine,equipped with upscale industrial table computer and ultra-high precision camera system.
2.The high-level programming language made by the application computer,which achieve automatically processing of laser stone cutting machine for the first time.
3.The automation includes automatically analysis orders,automatic identification,measurement,layout,cutting,
counting and record.In addition,it supports to load orders by WIFI remote connect and remote monitoring.
4.The intelligent bridge cutting machine supports two working modes:intelligent mode and traditional mode,which is compatible for traditional laser bridge cutting machine.The machine is featured with quick and simple operation,high efficiency and less labor and time.
Specification
|
Appellation
|
Unit
|
SQC-600-CAM
|
|
Max.blade diameter
|
mm
|
Φ600
|
|
Max.lifting stroke
|
mm
|
350
|
|
Worktable size
|
mm
|
3200×2000
|
|
Worktable rotation range(optional)
|
°
|
0°- 90°/0°- 360° （Set up by each 45 degree)
|
|
Worktable turn-over degree
|
°
|
0-85°
|
|
Water consumption
|
m3/h
|
3
|
|
Power of main motor
|
kw
|
18.5
|
|
Total power
|
kw
|
24
|
|
Dimension(L×W×H)
|
mm
|
6000×4800×3400
|
|
Weight
|
kg
|
5900
|
