Concrete Batching Machine

The concrete batching plant and mixer are equipped with fully automatic control. This series of batching plants uses electronic cumulative metering, centralized control in an electrical control cabinet, and digital display. It features high metering accuracy, fast batching speed, strong control performance, and high reliability. Feeding equipment can be of various types, including loaders, belt conveyors, grab buckets, and ground pushers.

Facebook Twitter Pinterest LinkedIn 分享

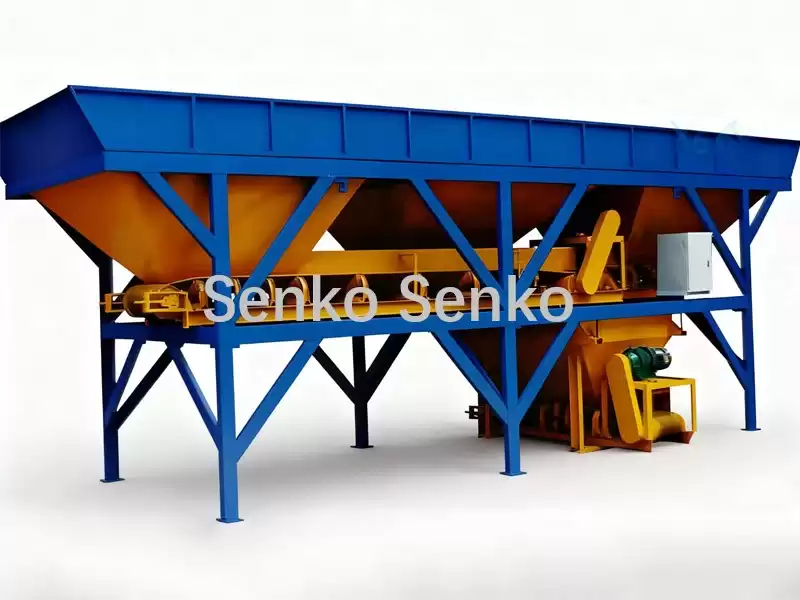

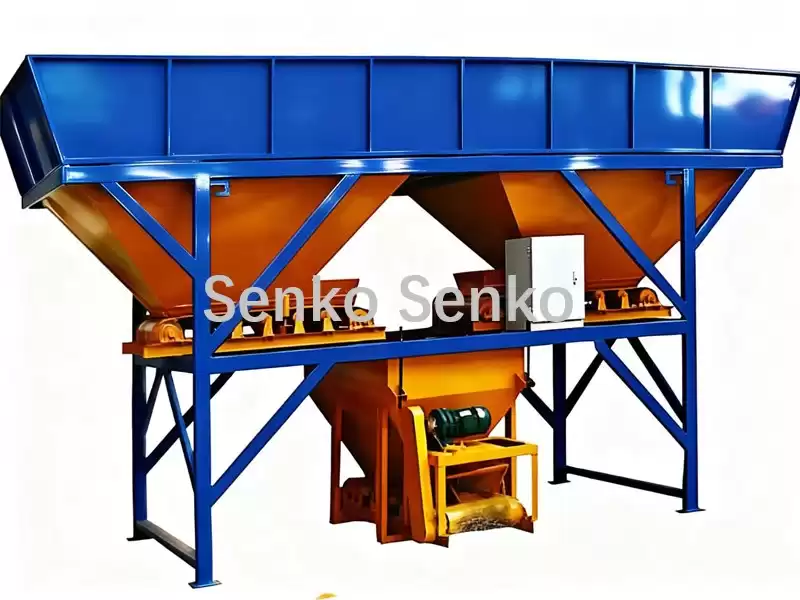

Batching Machine (Model: PLJ-800/1200/1600)



The Brick Batching Machine serves as the core pre-processing equipment at the front end of an automated brick production line, often referred to as the "stomach" of the system. Its primary mission is to perform precise metering and uniform mixing of various raw materials (such as aggregates, cement, fly ash, water, and pigments). By supplying the downstream molding machine with qualified materials of stable composition and uniform consistency, it acts as the critical link in ensuring both brick quality and production efficiency.


Parameter Information:

ITEM PL 800 PL 1200 PL 1600
Weighing hopper volume 0.8m³ 1.2m³ 1.6m³
Storage hopper volume 2*4m³ 3*4m³ 3*6m³
Production capacity 48㎡/h 72㎡/h 96㎡/h
Max weighing weight 1500KG 2000KG 2800KG
Types of batching aggregates 2 3 3
Loading height 2750MM 2750MM 2750MM
Measuring method E-scale E-scale E-scale
Batching method E- belt conveyor E- belt conveyor(flat shape) E- belt conveyor(flat shape)
Unloading methor E- belt conveyor E- belt conveyor(flat shape) E- belt conveyor(flat shape)
Total power 7KW 12KW 12KW
Total weight  2300KG 4000KG 4000KG
Overall dimension 5600*2250*3080MM 8500*2250*3080MM 9600*2200*3410MM



Product Advantages:

Ensuring Product Quality:Precise metering and thorough mixing fundamentally determine the strength, density, and color consistency of the bricks.

Improved Production Efficiency:Fully automated continuous operation, seamlessly integrated with the molding machine, significantly reduces manpower requirements and shift production cycles.

Flexible Formula Adaptation:Production formulas for various brick types (such as permeable bricks, grass-planting bricks, and standard bricks) can be easily stored and recalled via PLC, enabling "one-click switching."

Reduced Raw Material Waste:High-precision metering avoids the problems of over- or under-mixing that can occur with manual batching, effectively saving high-cost raw materials such as cement.


Finished Products:

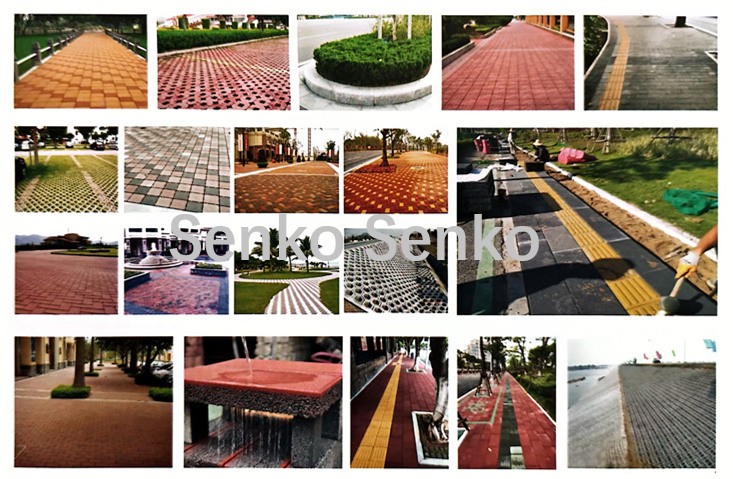

Application Scenarios:
