Concrete Pile High Elevation Solar PV Mounting System

The project adopts the concrete pile high hanging system, suitable for solar photovoltaic project in fish pond, flood area and sandy land. The main components are made of hot-dip galvanized steel with good performance, structural strength, stability and corrosion resistance,Compatible with various solar modules. Unique pile and structure design saves installation time and cost.



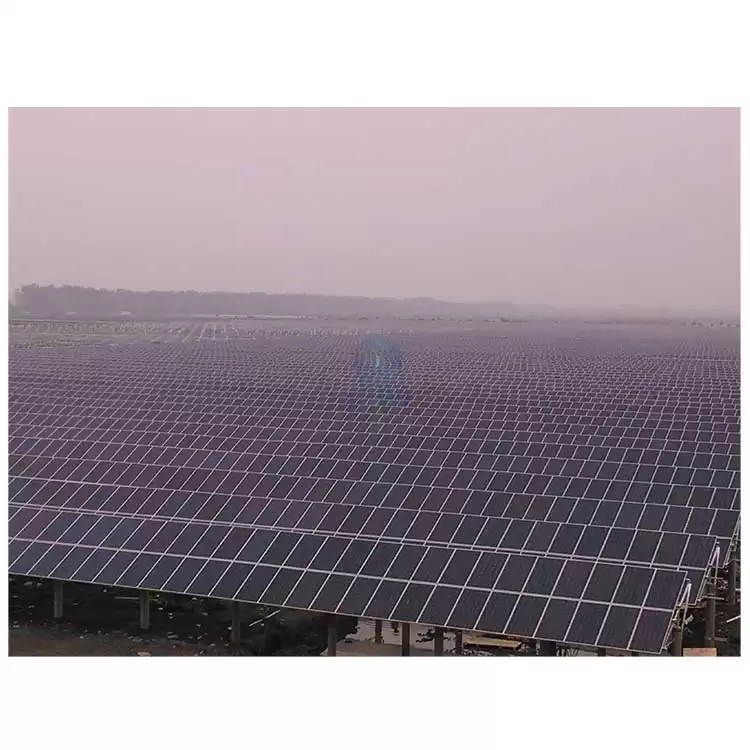

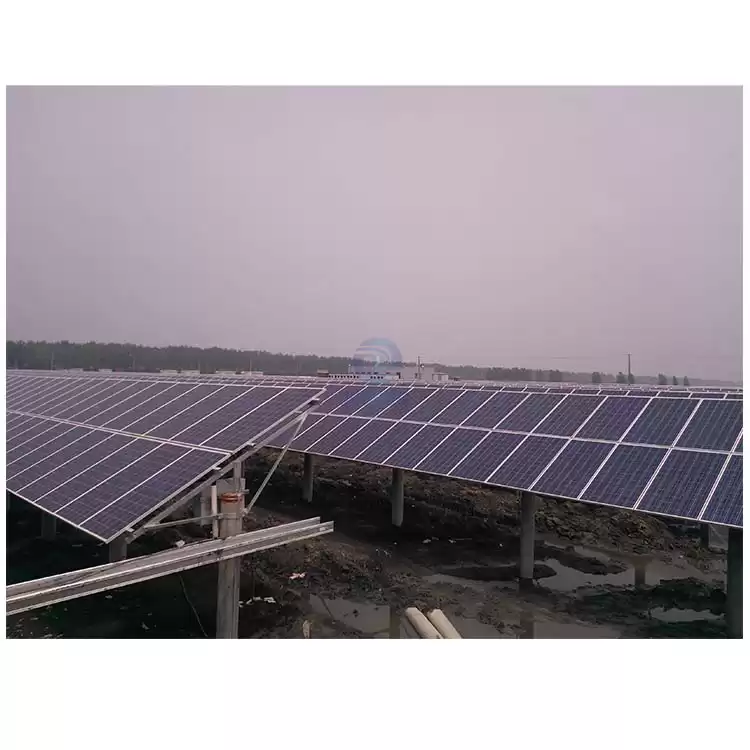

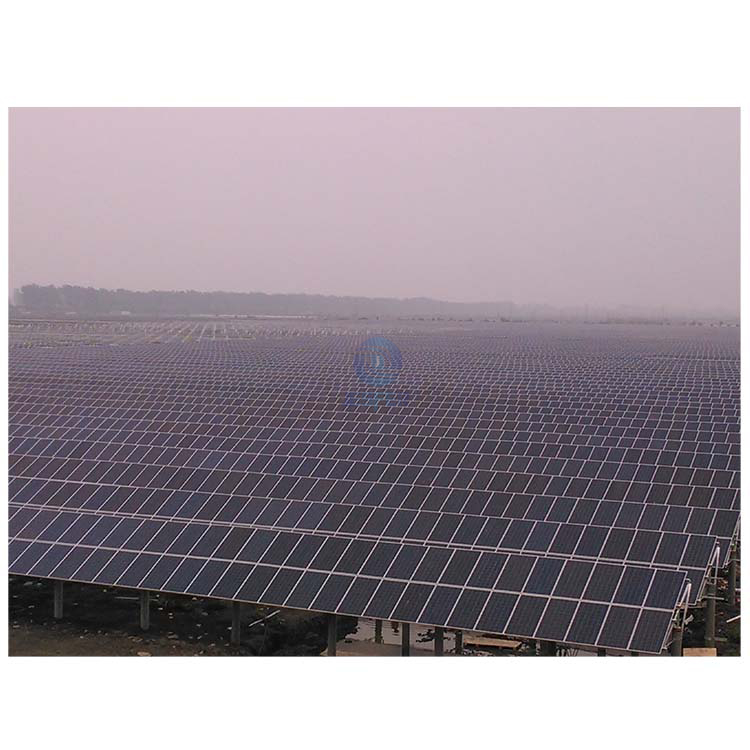

Concrete Pile High Elevation Solar PV Mounting System

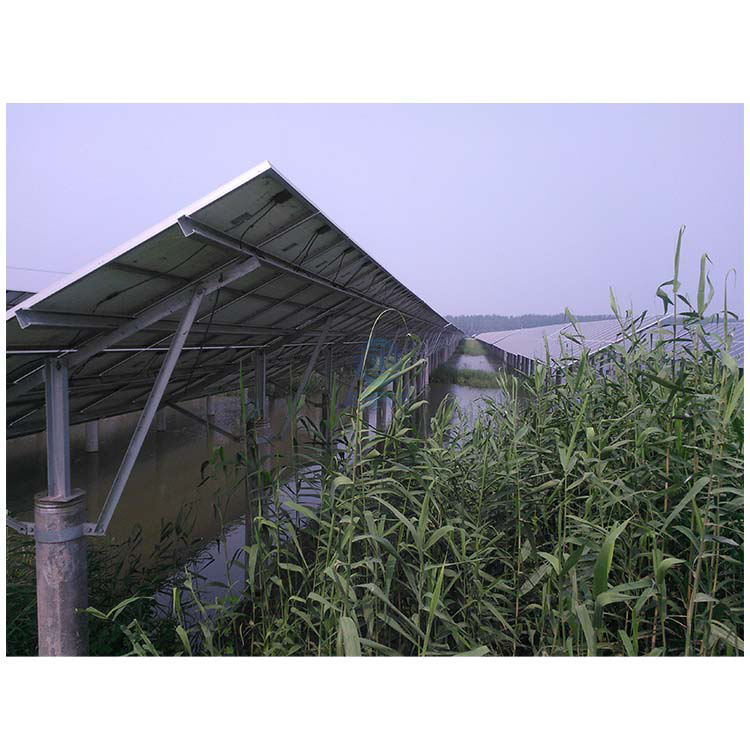

GM15 solar concrete pile mounting installation can not only realize the dual use of land, but also make use of wasteland to improve economic benefits.Solar energy project is installed above the fish pond to realize dual-use and improve economic benefits. The system can be used in many fields barren land, such as flood area or sand area, to save land resources.


System Structure

Solar Panel Support Frame

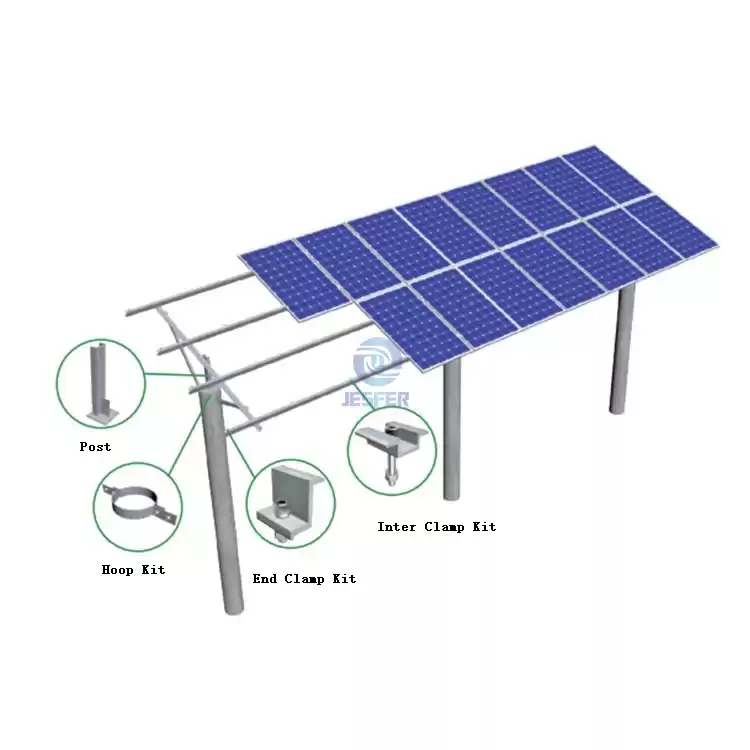

     Concrete Pile High Elevation Mounting System structures       Hoop Kit                        Beams


Technical Parameters

 System Name
 Ground Mount System GM15
 Panel Layout
 Landscape or Portrait
 Foundation
 Ponds,Reservoirs
 Material
 Anodized AL6005-T5 & Q235B Hot Dip Galvanized
 Tilt Angle
 0-45degrees
 Fastener
 SUS304 &Zinc-Nickel Alloy Electroplated Steel
 Snow Load
 1.4KN/㎡
 Color
 Customized or Silver
 Wind Load  60m/s  Design Standard
 AN/NZS1170,DIN1055,JIS C8955,etc.
 Applicable Solar Module
 Framed or Frameless
 Warranty
 10 Years
 Ground Clearance 400-1200mm  Small Components  Anodized AL-6005-T5


Installation Guide

bi facial solar structure system

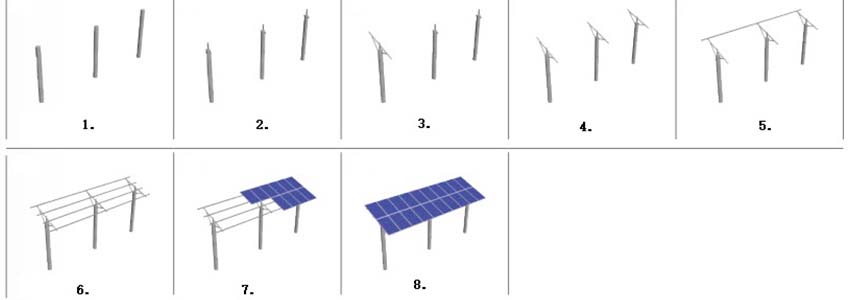

1.Install concrete pillar based on project solution.

2.Install Post and Hook Kit.

3.Install Front & Back Support and Inclined Support.

4.The installation of Front & Back Support and Inclined Support is done.

5.Install beam.

6.The installation of beam is done.

7.Fix the solar module with Inter Clamp Kit & End Clamp Kit.

8.Installation is done.
