Constant voltage led light driver 48w 12v

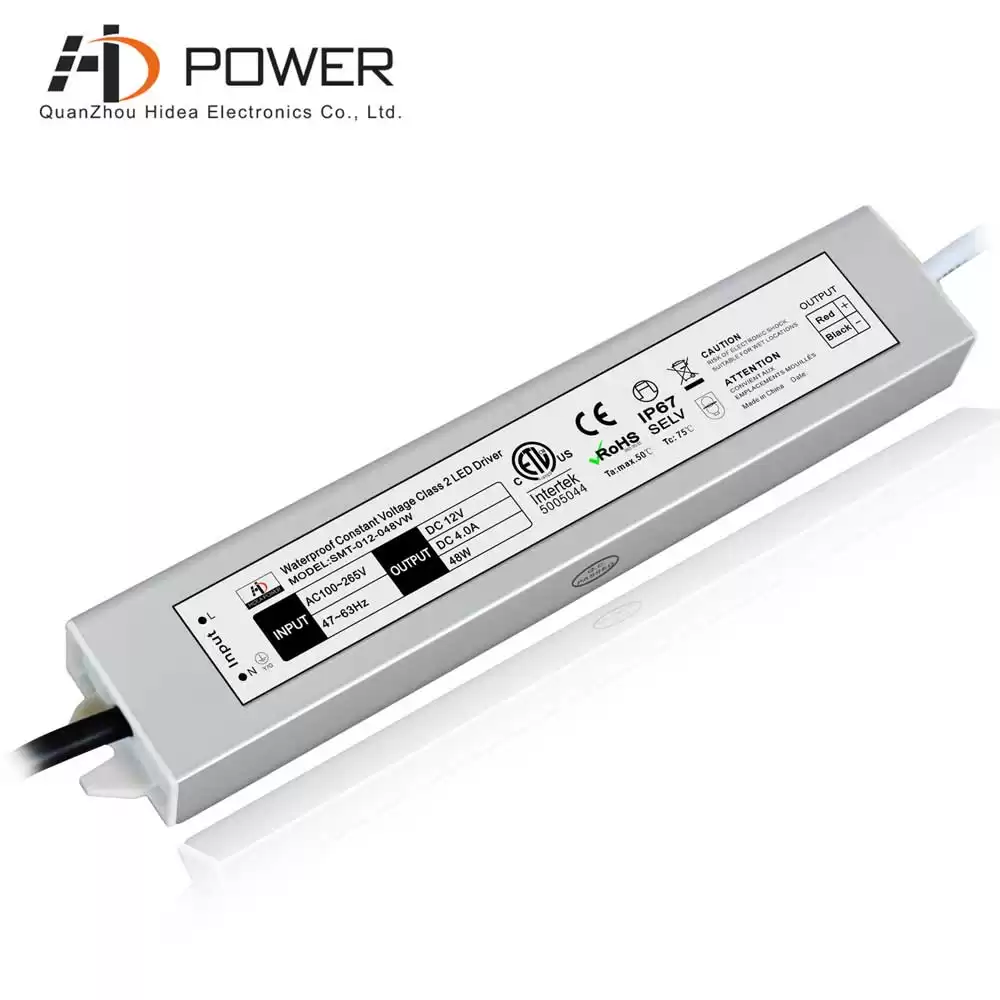

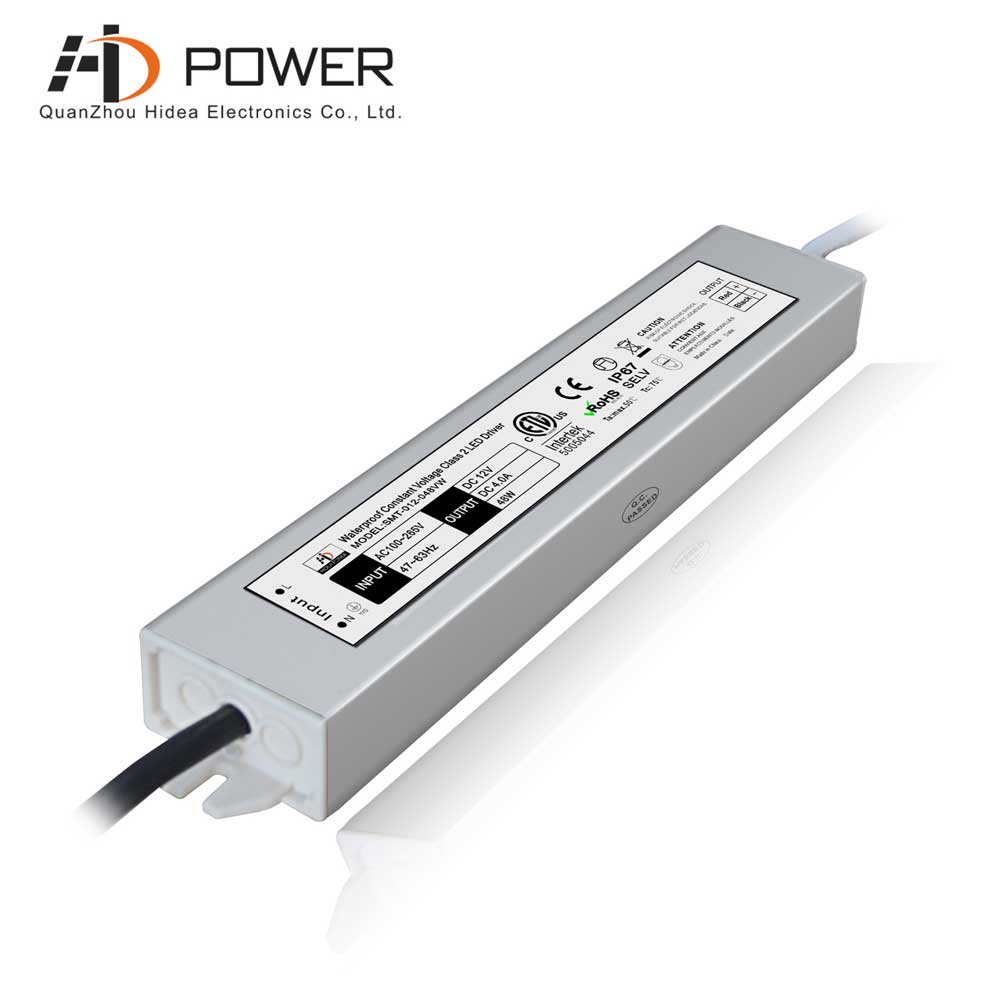

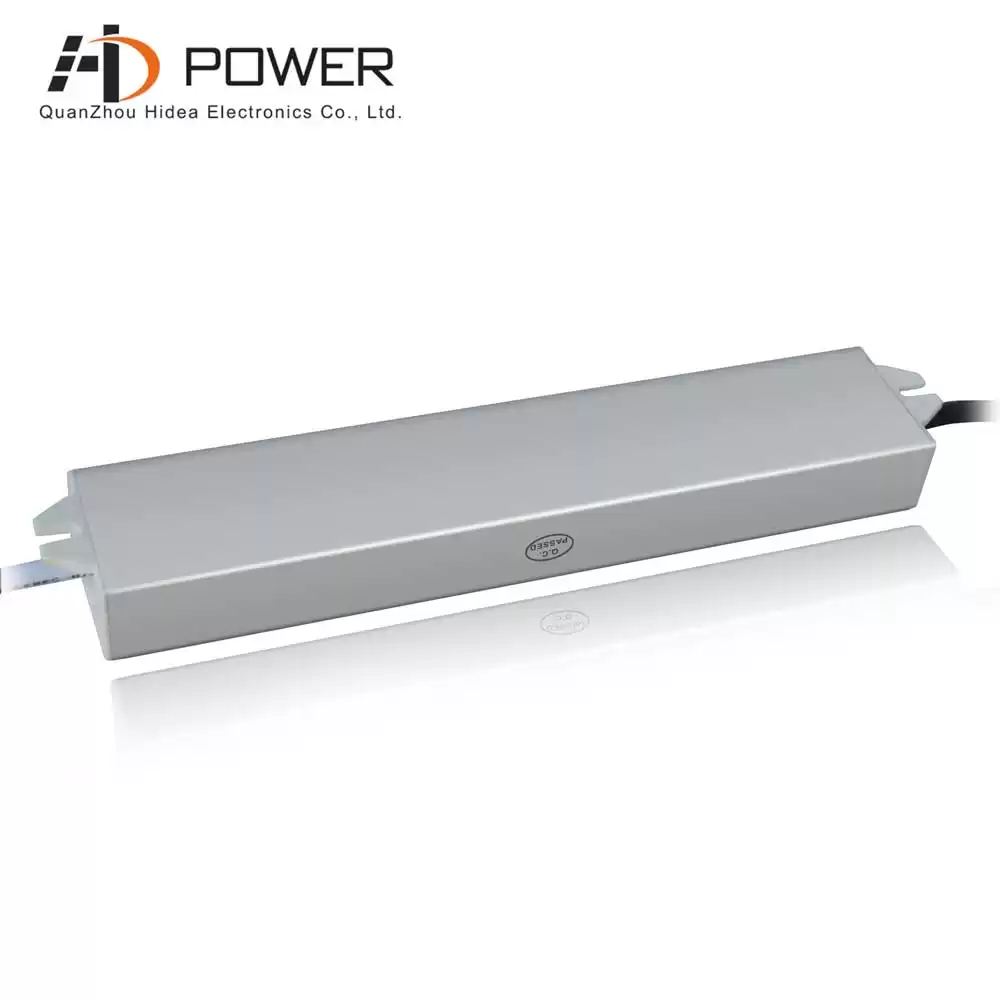

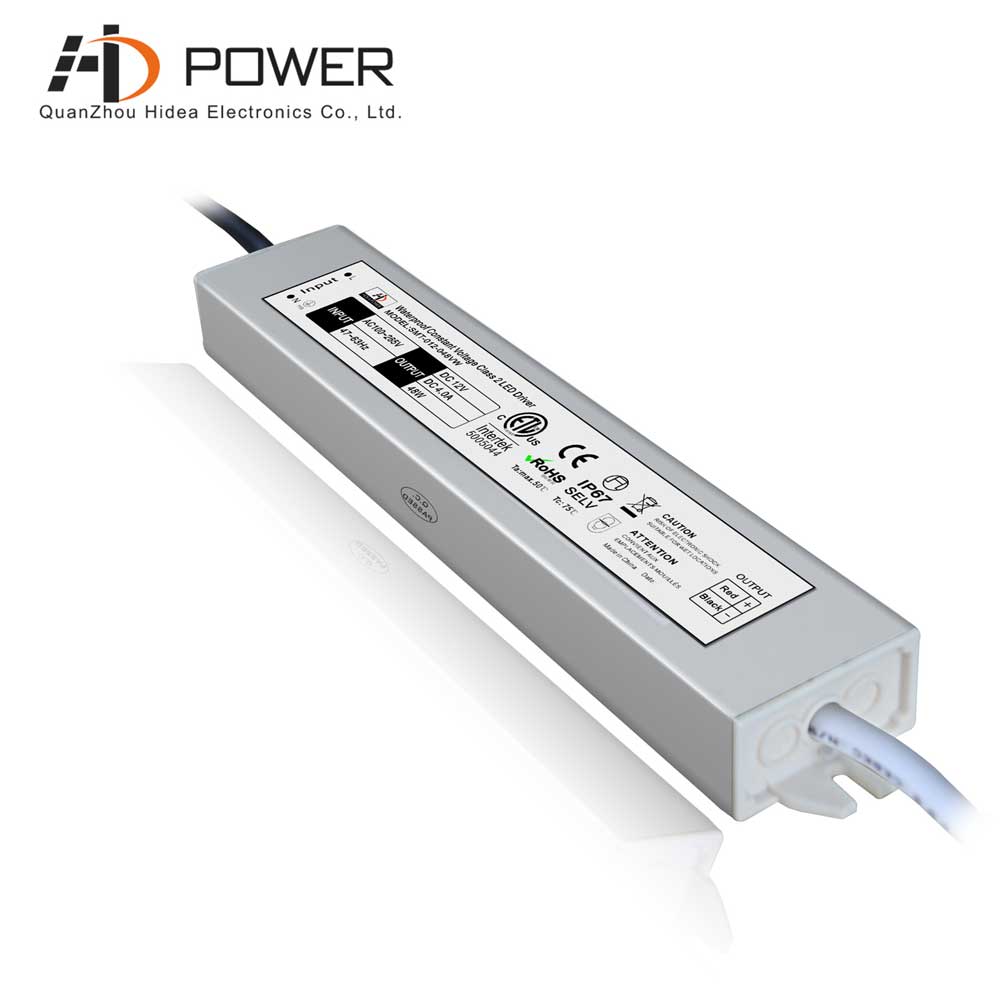

SMT-012-048VW is 12vdc waterproof led power supply 4amp 48w, slimline size with max.height 22mm， output 24vdc option is avalible too, competitive than MEANWELL LPV series waterproof driver 12v.
Specification
|
MODEL
|
SMT-012-048VW
|
SMT-024-048VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
4.0A
|
2.0A
|
|
CURRENT RANGE
|
0~4.0A
|
0~2.0A
|
|
RATED POWER
|
48W
|
48W
|
|
RIPPLE&NOISE(max)
|
120mVp-p
|
200mVp-p
|
|
voltage TOLERANCE
|
12V±5%
|
24V±5%
|
|
SETUP RISE TIME
|
60ms/110VAC
|
60ms/110VAC
|
|
HOLD UP TIME(Typ.)
|
20ms/230VAC
|
10ms/110VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265Vac
|
100~265Vac
|
|
FREQUENCY RANGE
|
50~60Hz
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥84%
|
|
AC CURRENT(Typ.)
|
0.45A/110V, 0.25A/220V
|
0.45A/110V,0.25A/220V
|
|
INRUSH CURRENT (Typ.)
|
COLD START 30A/110~220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@110%~150% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-25~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~90% RH non condensing, refer to IP67
|
|
Vibration
|
10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
IP67 approved; Design refer to LVD EN61347-2-13:2005,EN61347-1:2008
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC, I/P-COVER: 3KVAC , O/P-COVER:500VAC
|
|
EMC Test Standards
|
EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:20
|
|
MTBF
|
50KHours (25℃)
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

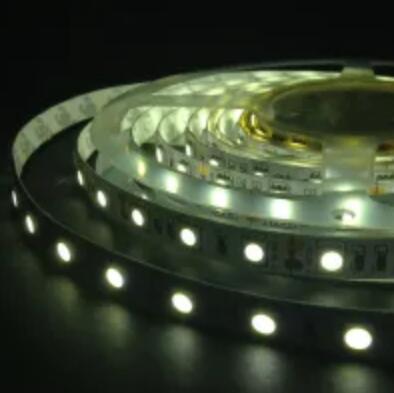

Compatible Light Type
IP67 LED driver 12v are ETL cETL listed for using in US and Canada, wattage from 12w to max. 250w, all are slimline size deisgn, 3 years warranty, work with SpekLED White Tape.
Related Products
|

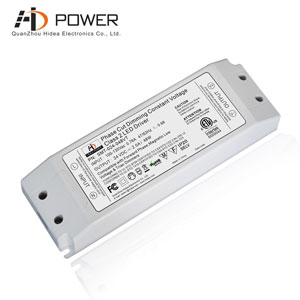

 12vdc 48w 110vac triac dimming led driver with ETL listed, 5 years warranty, dimming range 0-100%.
