Overview

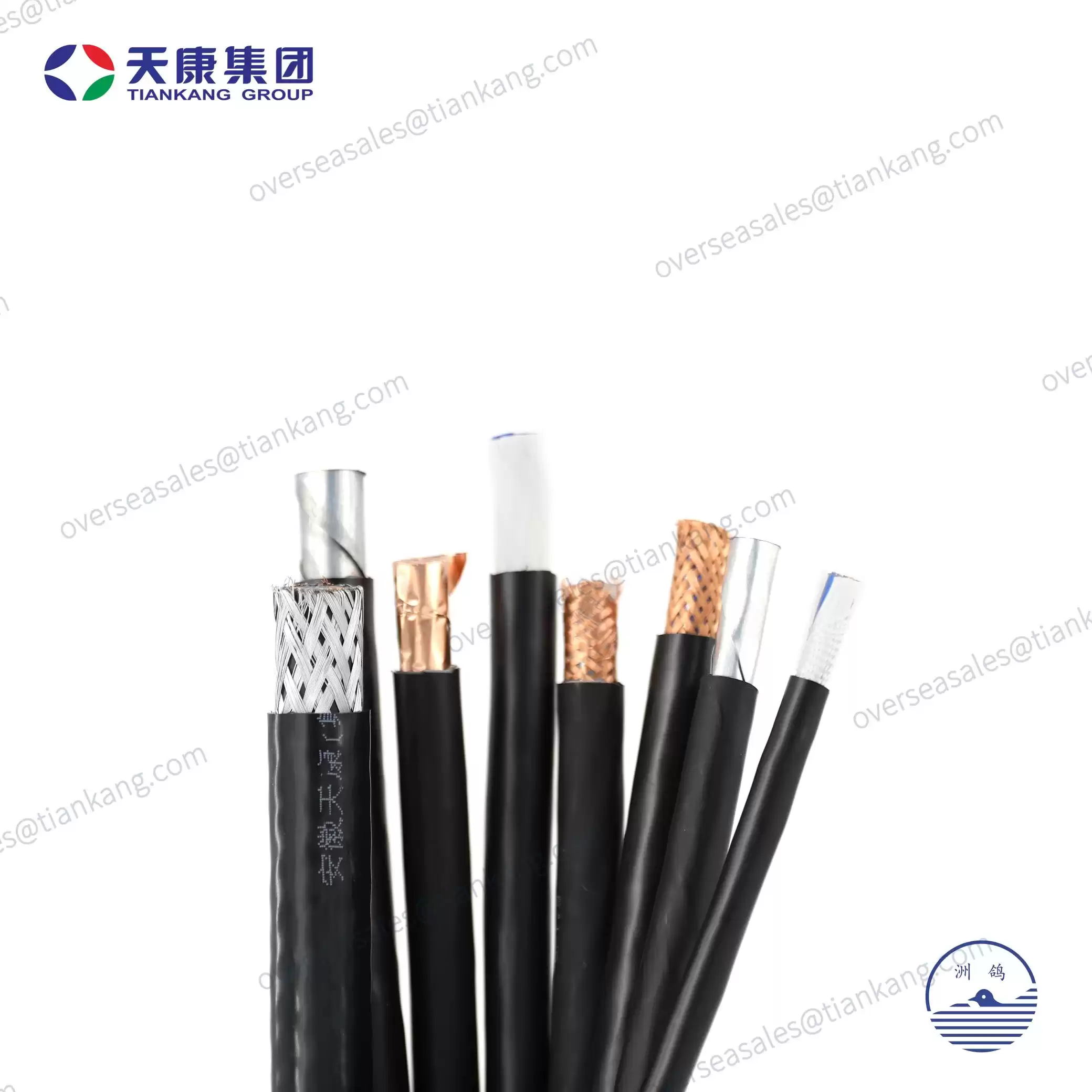

Control Cables are used for transmitting control, monitoring, interlocking, and auxiliary power signals between equipment and control systems in industrial plants, utilities, and infrastructure projects. They feature stable electrical characteristics, strong EMI immunity through optional shielding, and robust mechanical performance tailored to installation needs. Constructions include shielded or unshielded, armoured or non-armoured, with options for flame-retardant, fire-resistant, and LSZH materials to meet various standards and environments.
Conductor options: Copper (bare/tinned), class 2/5 stranded; round/sector (project-specific)
Core identification: Color-coded or numbered, with or without printed legends
Insulation: PVC, PE, or XLPE; EPR optional for flexibility

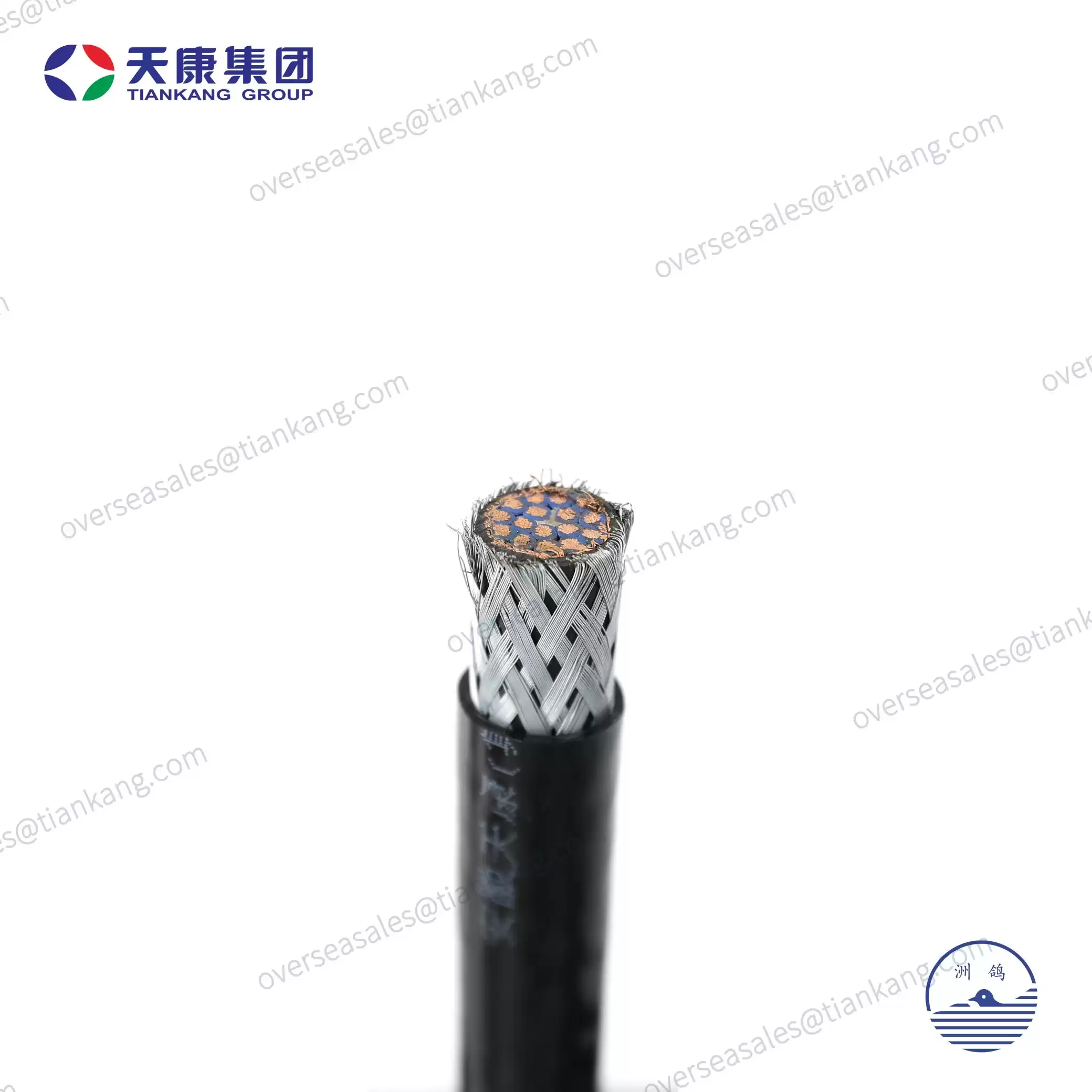

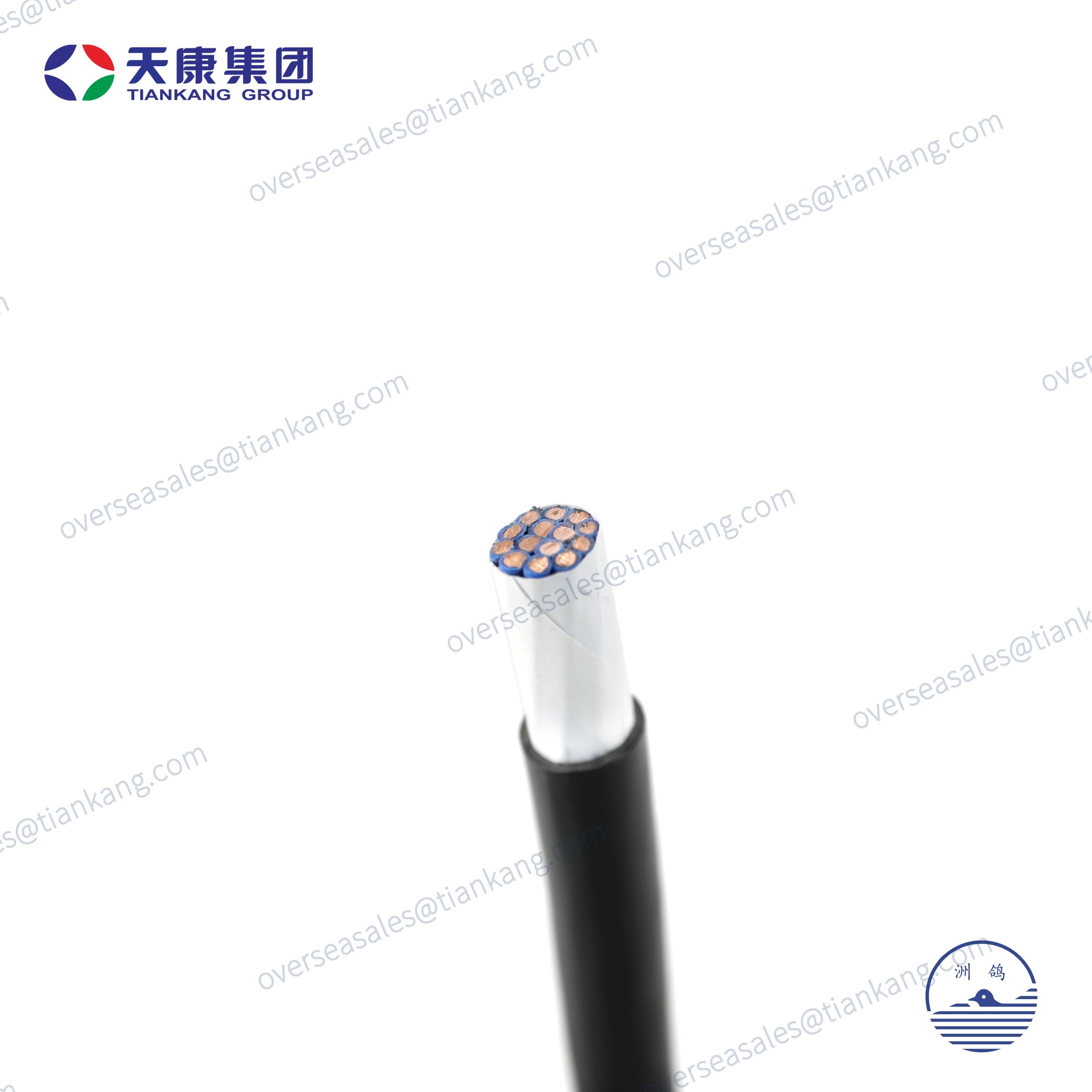

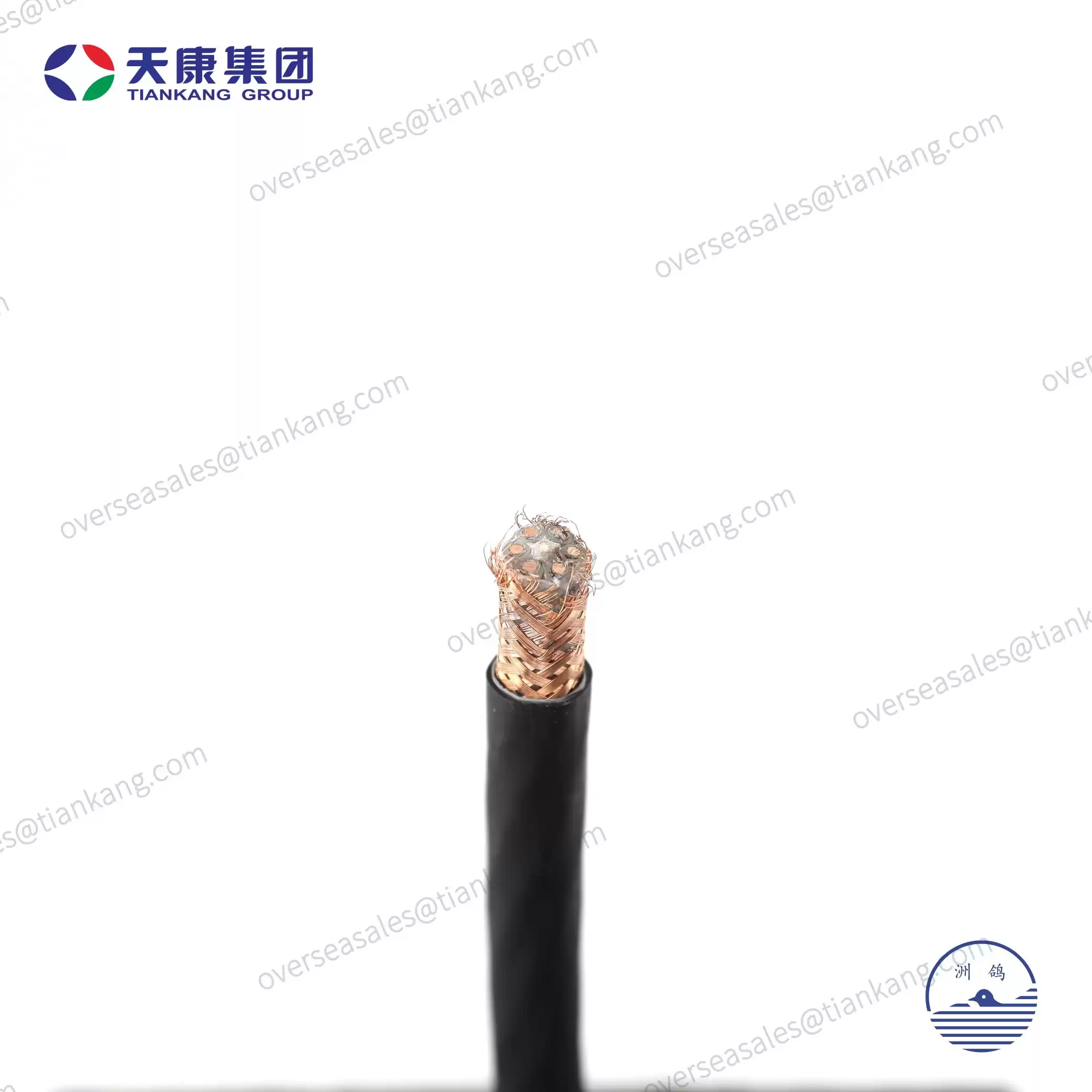

Shielding: Individual pair shield (for paired types), overall foil/braid shield optional
Mechanical protection: Steel tape armour (STA) or steel wire armour (SWA) as required
Outer sheath: PVC, PE, or LSZH; oil/UV-resistant grades available
Applications: Control and instrumentation circuits, interlocks, remote signaling, auxiliaries in MCCs, substations, conveyor lines, HVAC/BMS
Standards: IEC 60228, IEC 60332, IEC 60502-1/GB/T 9330, IEC 60754/61034 (LSZH), BS 6500/BS 6346 (as applicable), ICEA S-73-532/NEMA WC57 (on request)
Key Features
Stable signal integrity with low conductor resistance and optimized lay-up to reduce crosstalk
Optional overall and/or individual shielding for enhanced EMI/RFI immunity
Flame-retardant and LSZH options for stringent fire-safety environments; fire-resistant constructions available on request
Wide installation adaptability: trays, conduits, ducts, tunnels; armoured versions suitable for direct burial and high mechanical stress zones
Flexible designs for easy pulling and termination; tinned copper available for corrosion-prone areas

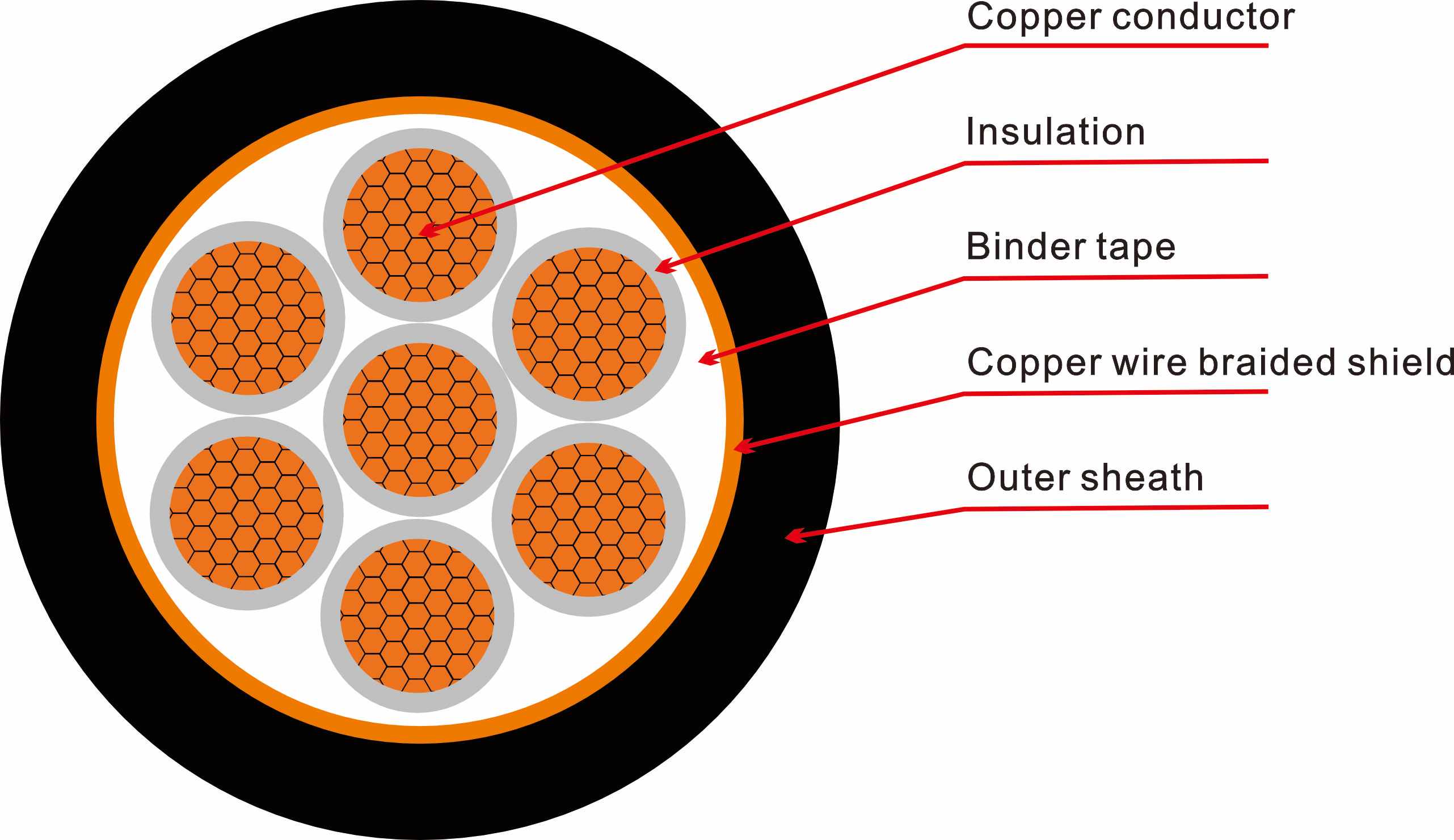

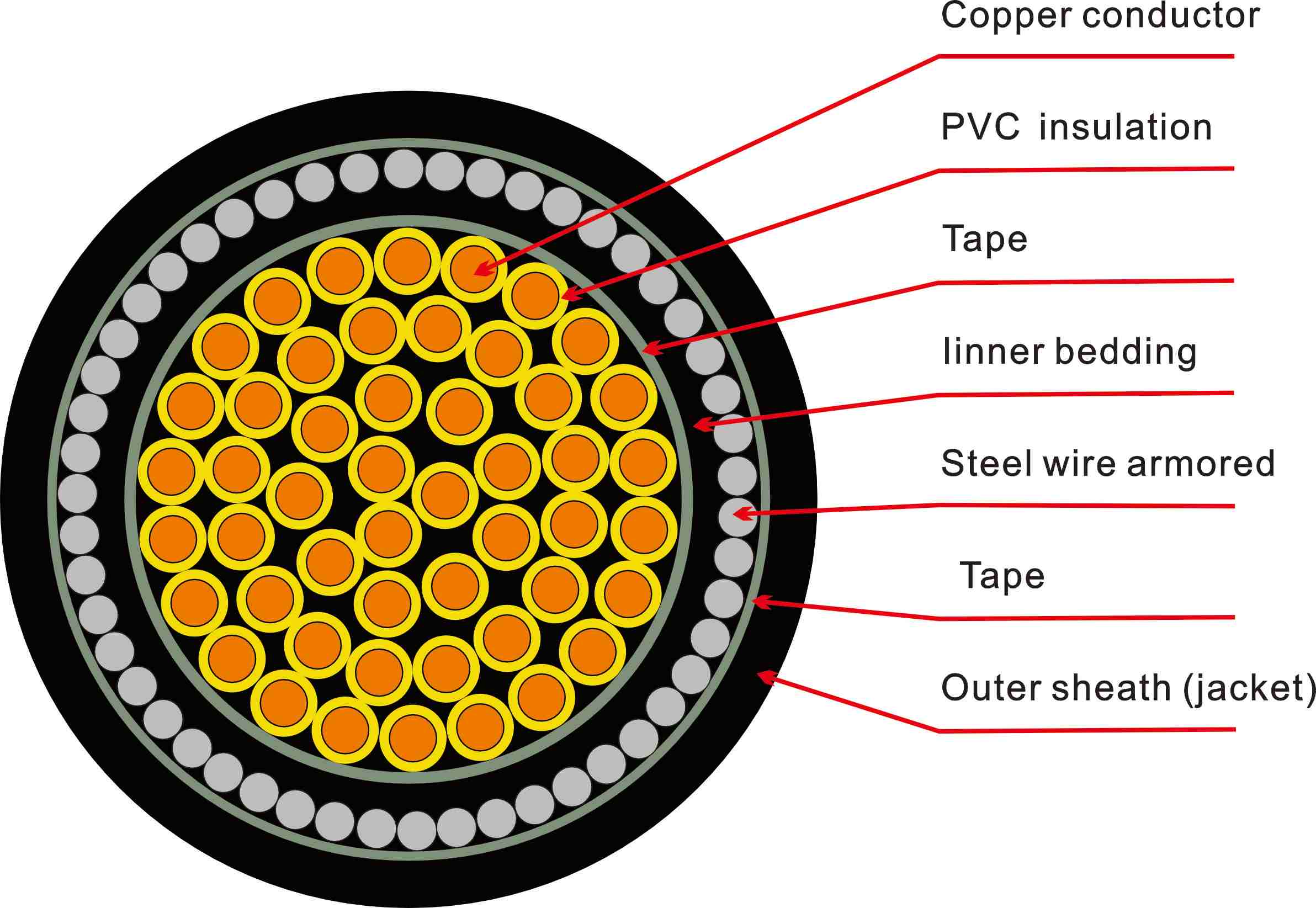

Layered from inside to outside

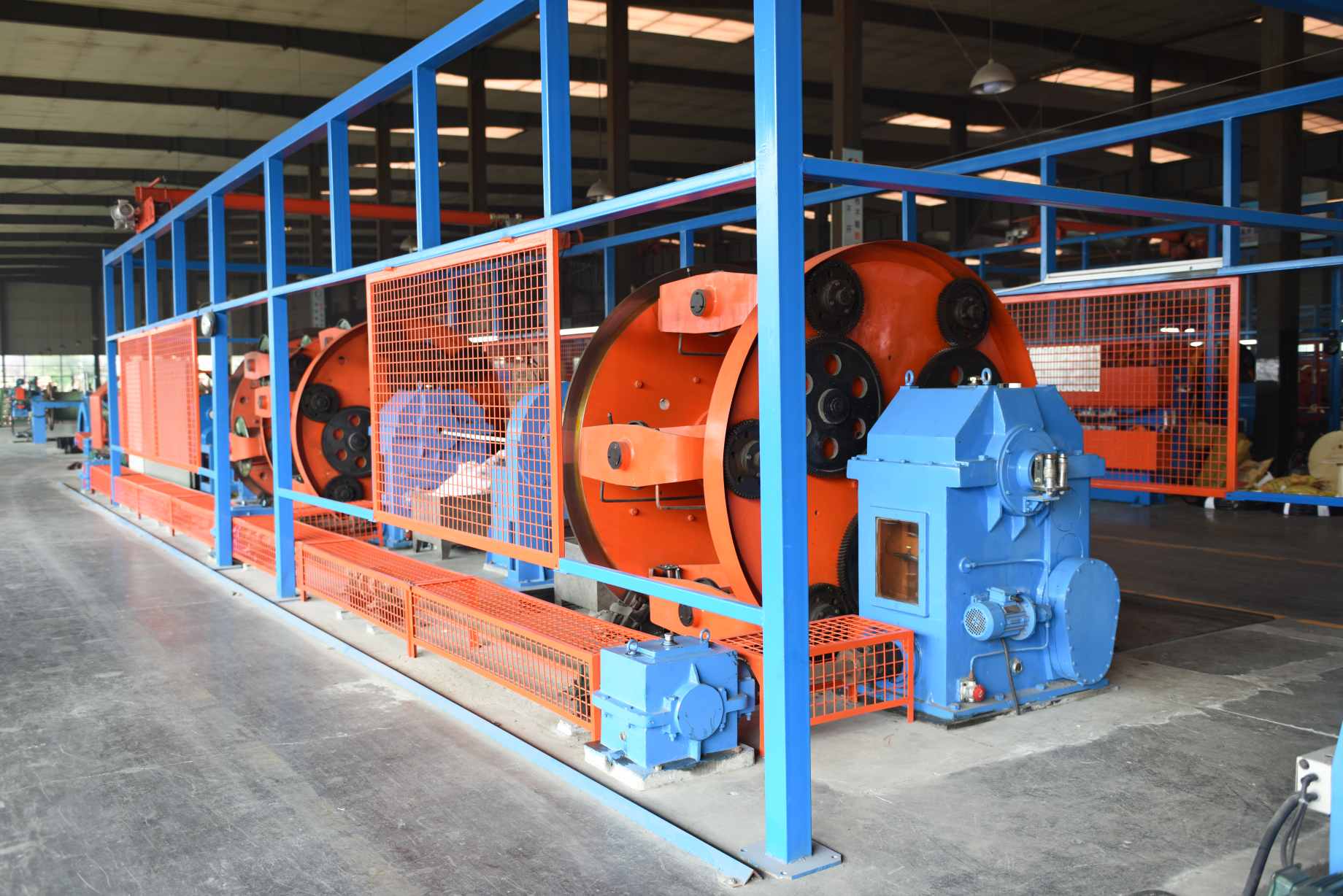

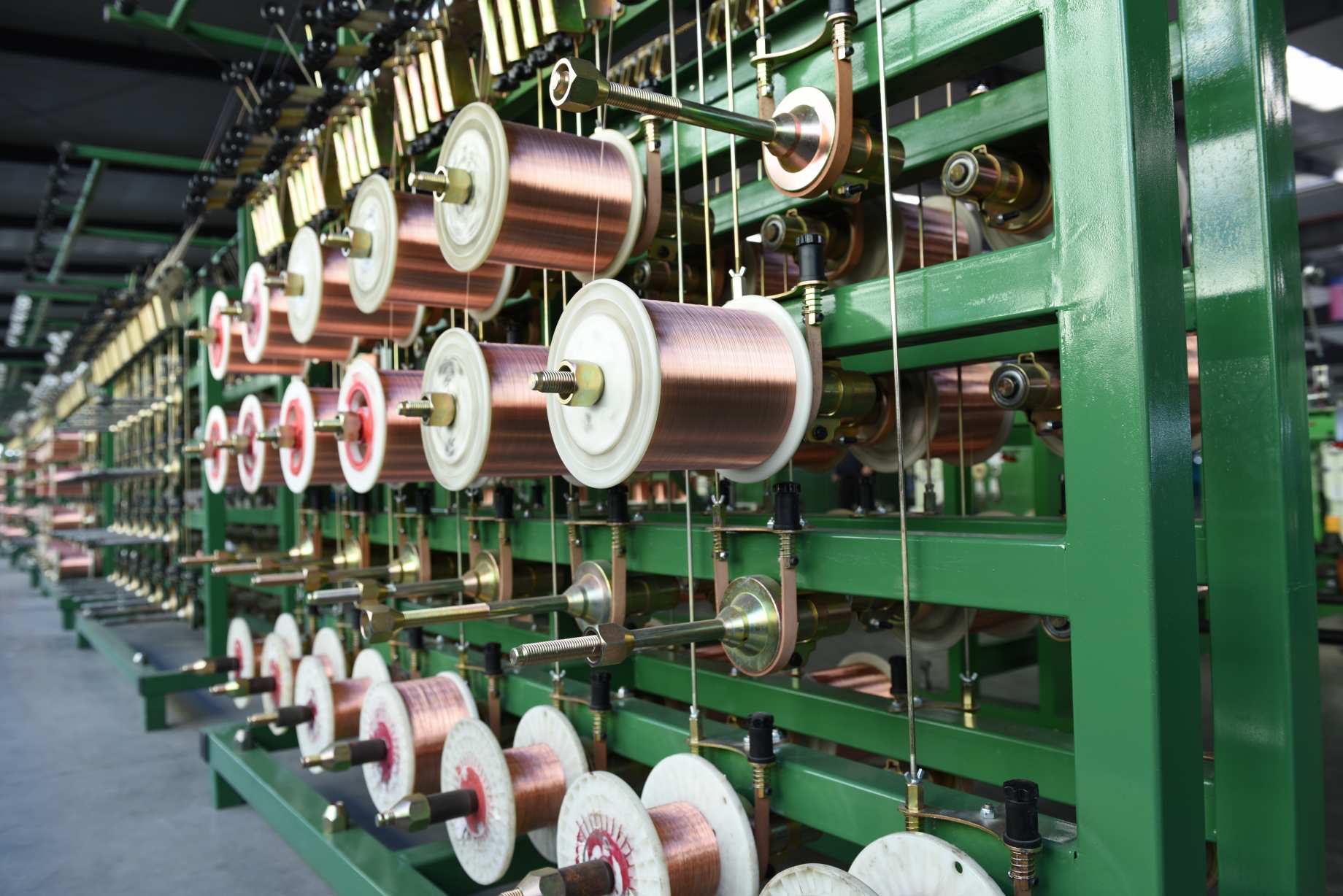

Factory photos
